Overview

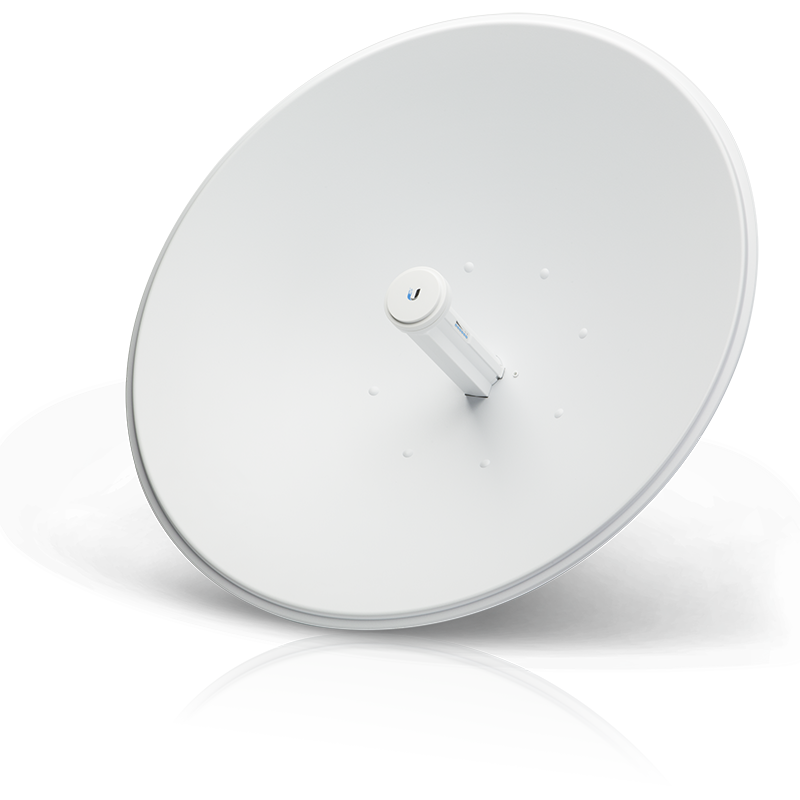

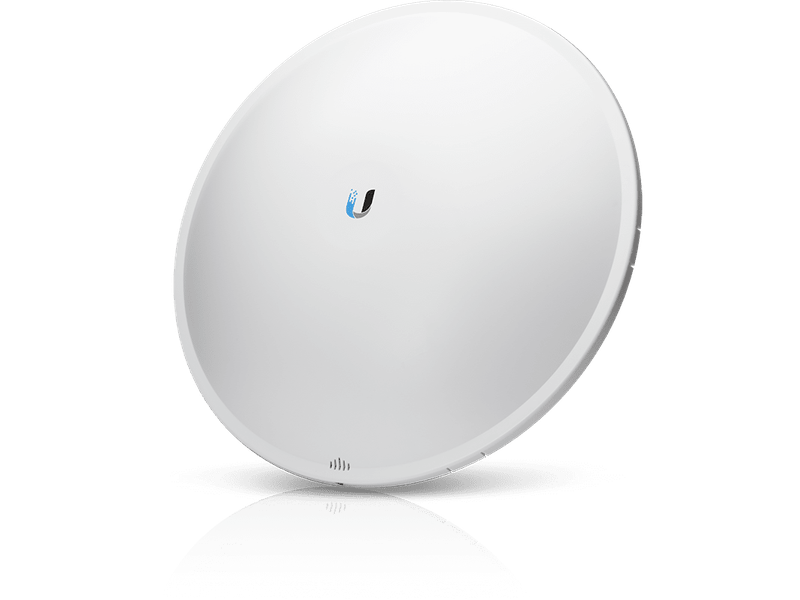

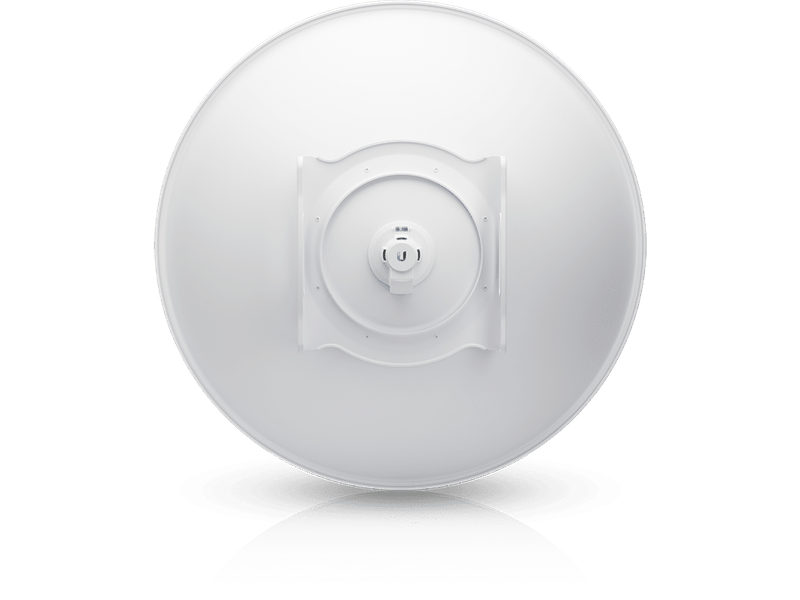

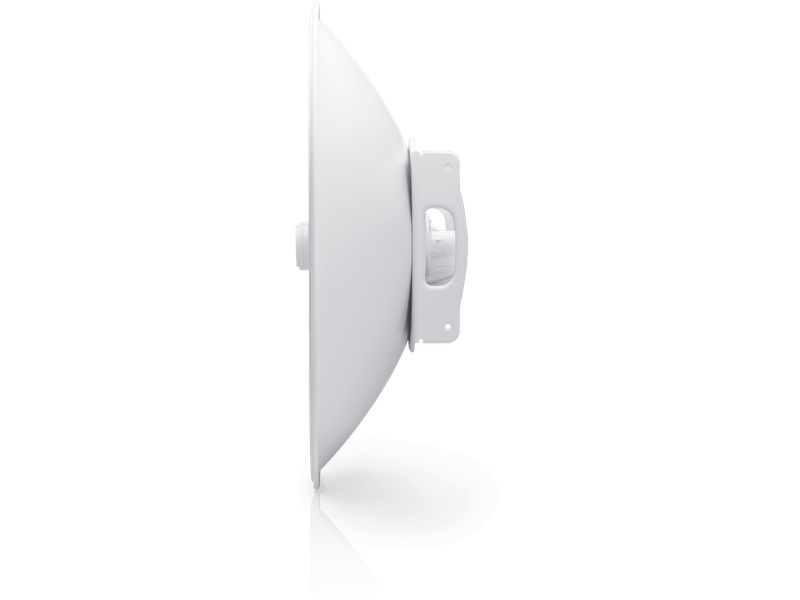

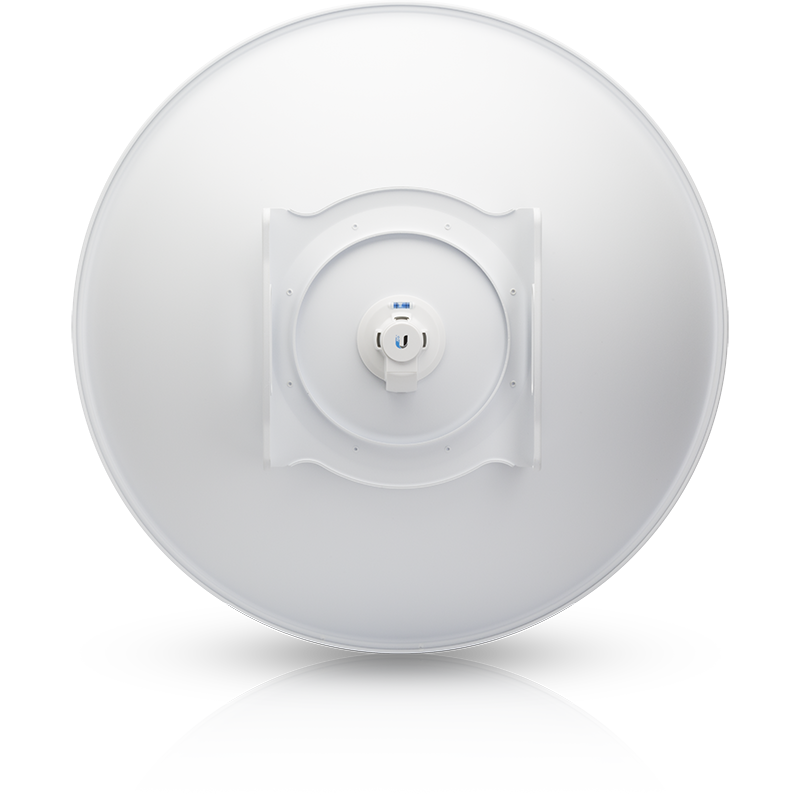

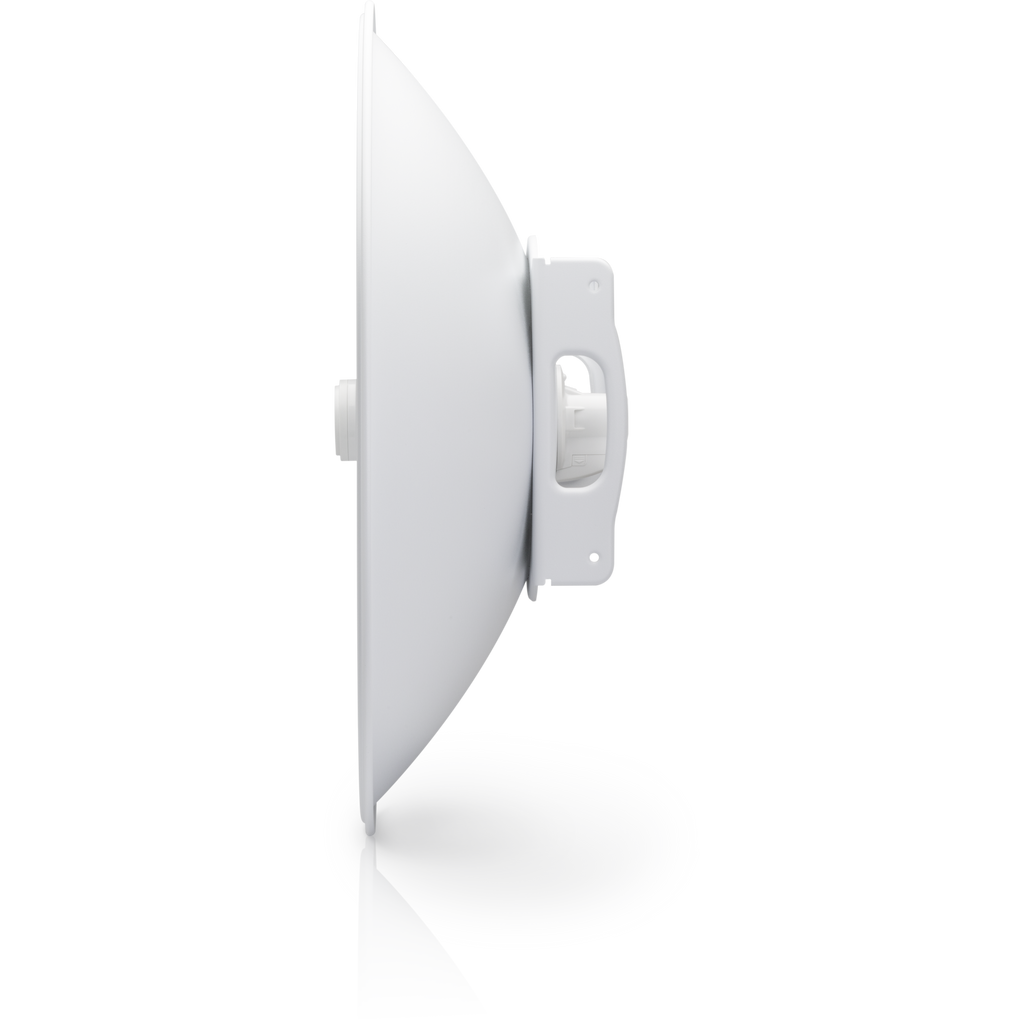

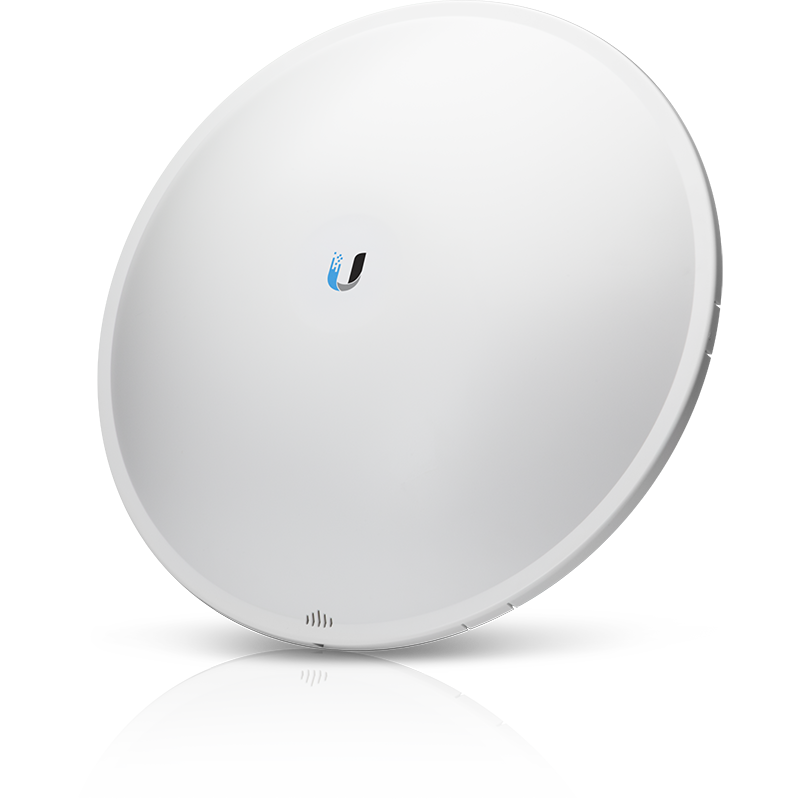

airMAX PowerBeam 5AC 620
PBE-5AC-620
5 GHz WiFi antenna with a 450+ Mbps Real TCP/IP throughput rate.
Note. This product should be purchased in pairs in order to form links.
Optional accessory ISO-Beam-620 – sold separately.
airMAX PowerBeam 5AC 620
PBE-5AC-620
5 GHz WiFi antenna with a 450+ Mbps Real TCP/IP throughput rate.
Note. This product should be purchased in pairs in order to form links.
Optional accessory ISO-Beam-620 – sold separately.
| PBE-5AC-620 Specifications | |
|---|---|
| Product Type | airMAX ac Bridge |
| Application | Long-range Point-to-Point (PtP) wireless links |
| Max Throughput | 450+ Mbps TCP/IP |
| System Gain | 29 dBi |
| Wireless | |
| Operating Frequency | Worldwide: 5150–5875 MHz USA: U-NII-1 to U-NII-3 bands |
| Channel Sizes | PtP Mode: 10/20/30/40/50/60/80 MHz PtMP Mode: 10/20/30/40 MHz |
| Polarization | Dual linear |
| Max VSWR | 1.6:1 |
| Interfaces | |
| Networking | (1) Gigabit Ethernet RJ45 port |
| LED Indicators | Power, LAN, (4) WLAN Signal Strength (RSSI-mapped) |
| Power | |
| Power Method | Passive PoE 2-pair (Pins 4,5+; 7,8−) |
| Power Supply | 24V, 0.5A Gigabit PoE adapter (included) |
| Supported Voltage Range | 20–27V DC |
| Max Power Consumption | 8.5W |
| Mechanical | |
| Dimensions | 620 × 620 × 386 mm (24.4 × 24.4 × 15.2") |
| Weight | 6.4 kg (14.1 lb) |
| Enclosure Material | Outdoor UV-stabilized plastic |
| Mounting | Pole mount kit (included) |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | Without radome: 1510 N @ 200 km/h (340 lbf) With radome: 1830 N @ 200 km/h (411 lbf) |
| Environmental | |
| Operating Temperature | −40 to 70°C (−40 to 158°F) |
| Operating Humidity | 5 to 95% noncondensing |
| ESD/EMP Protection | ±24kV Air/Contact |
| Compliance | |
| Certifications | CE, FCC, IC, RoHS |
| Environmental Tests | Salt Fog: IEC 68-2-11 / ASTM B117 Vibration: IEC 68-2-6 Temperature Shock: IEC 68-2-14 UV: IEC 68-2-5 @ 40°C Wind-Driven Rain: ETS 300 019-1-4 |
| NDAA Compliant | ✓ |
