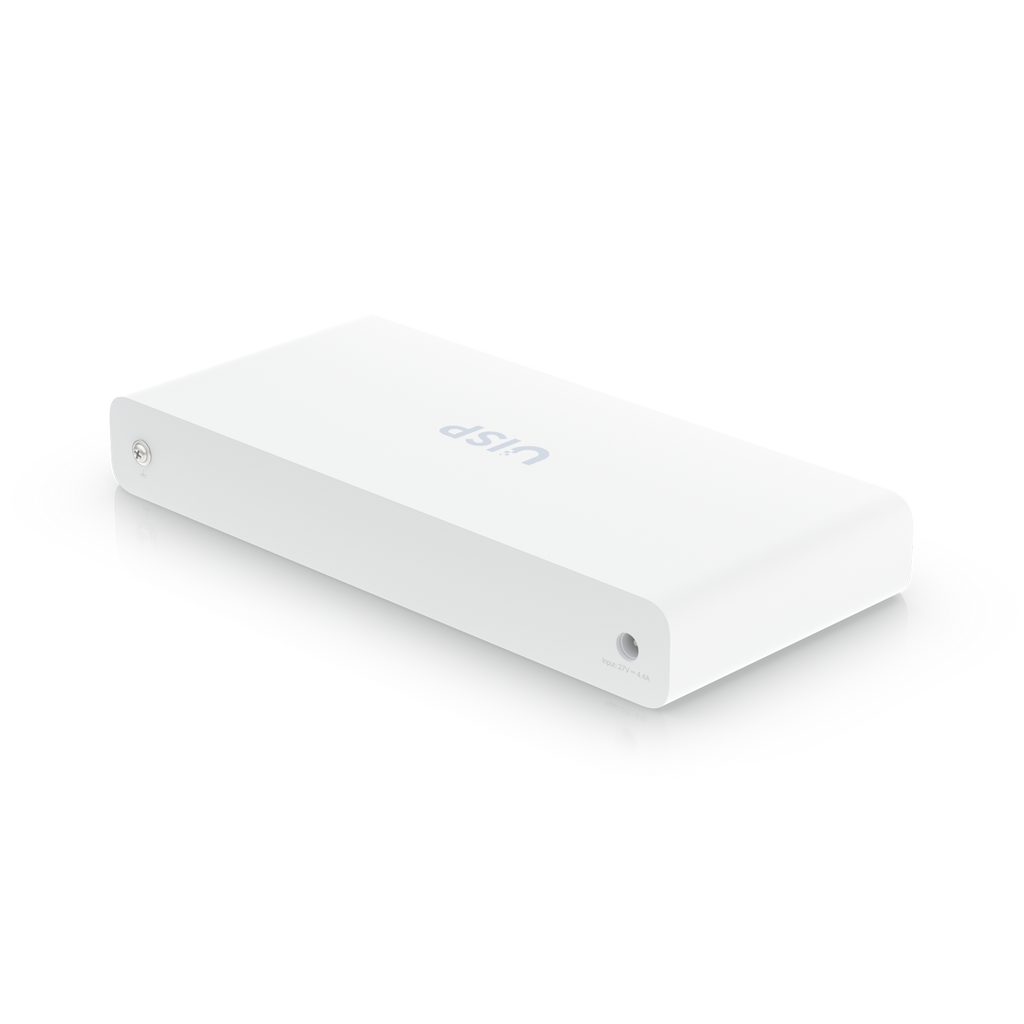

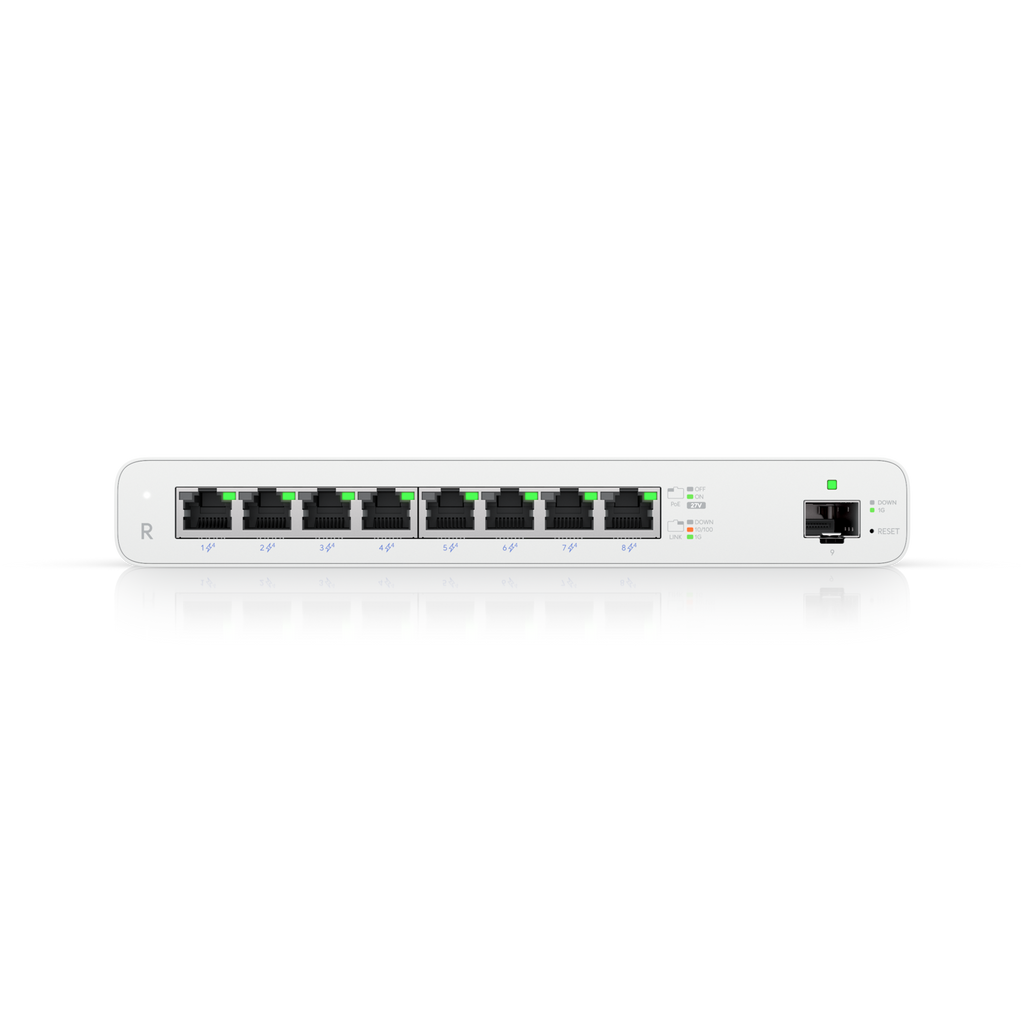

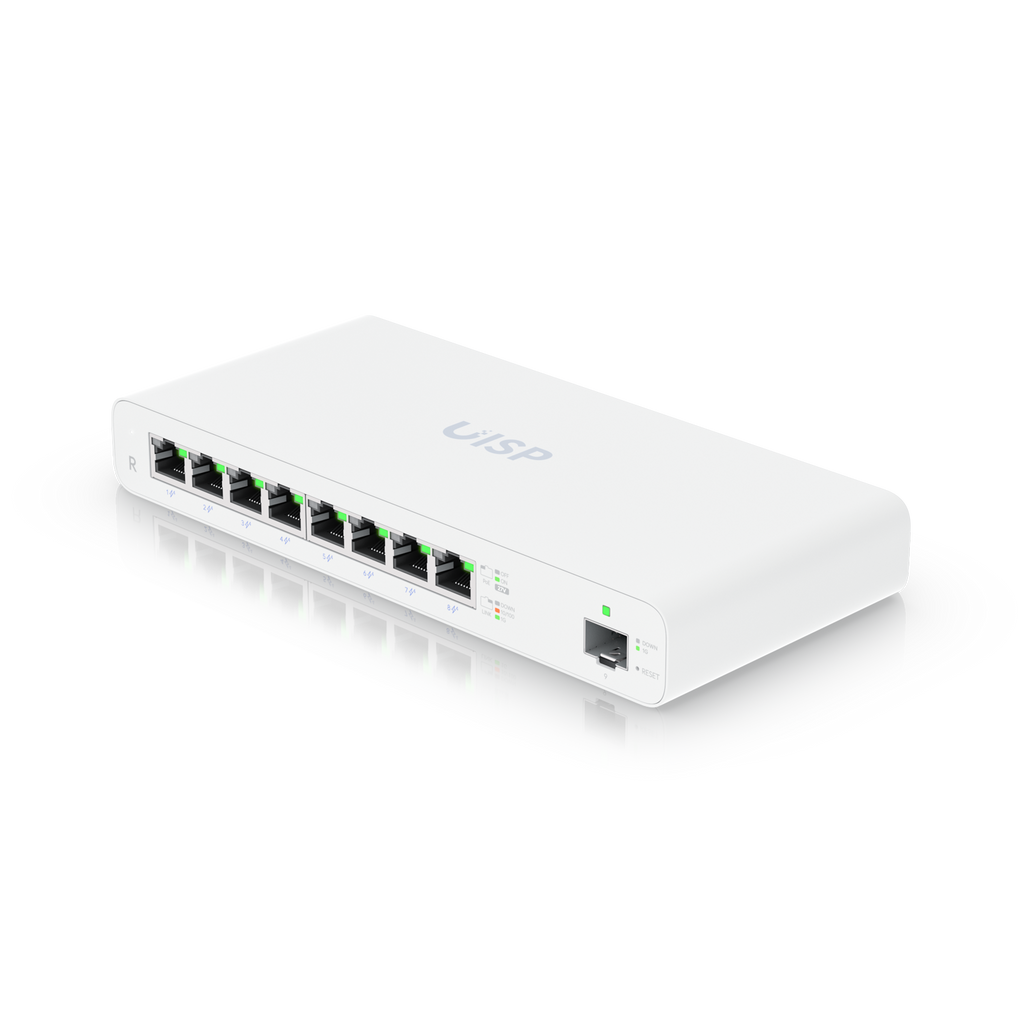

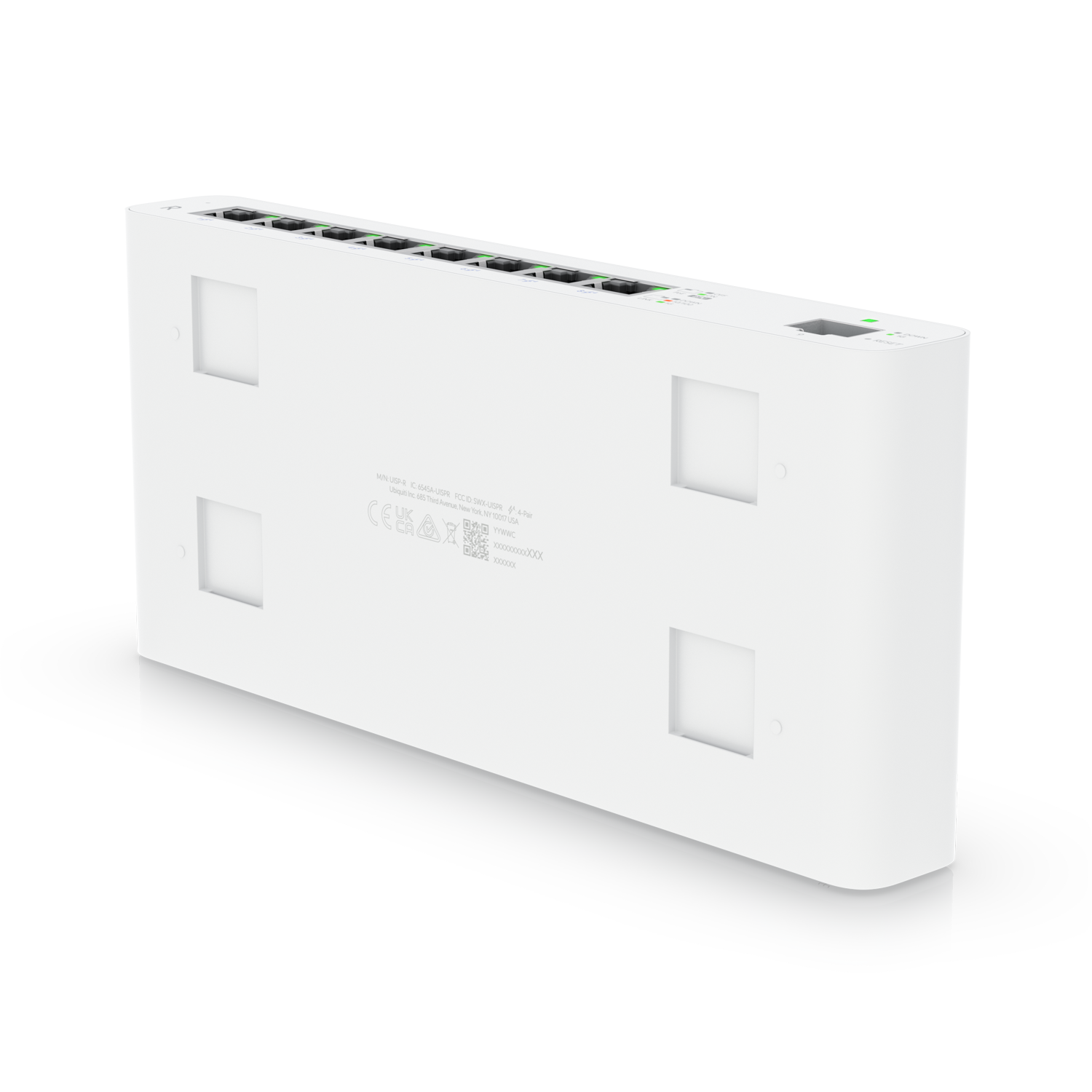

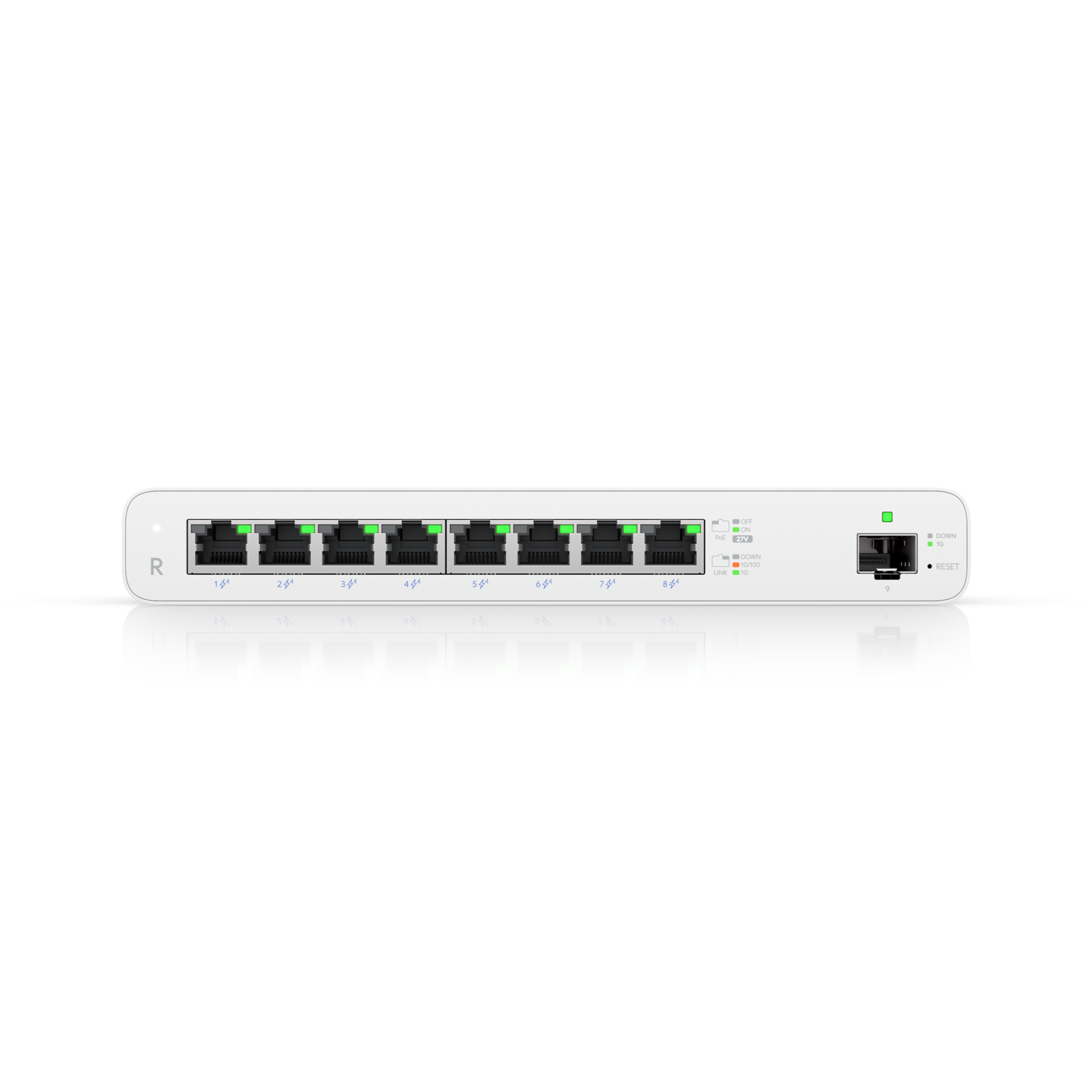

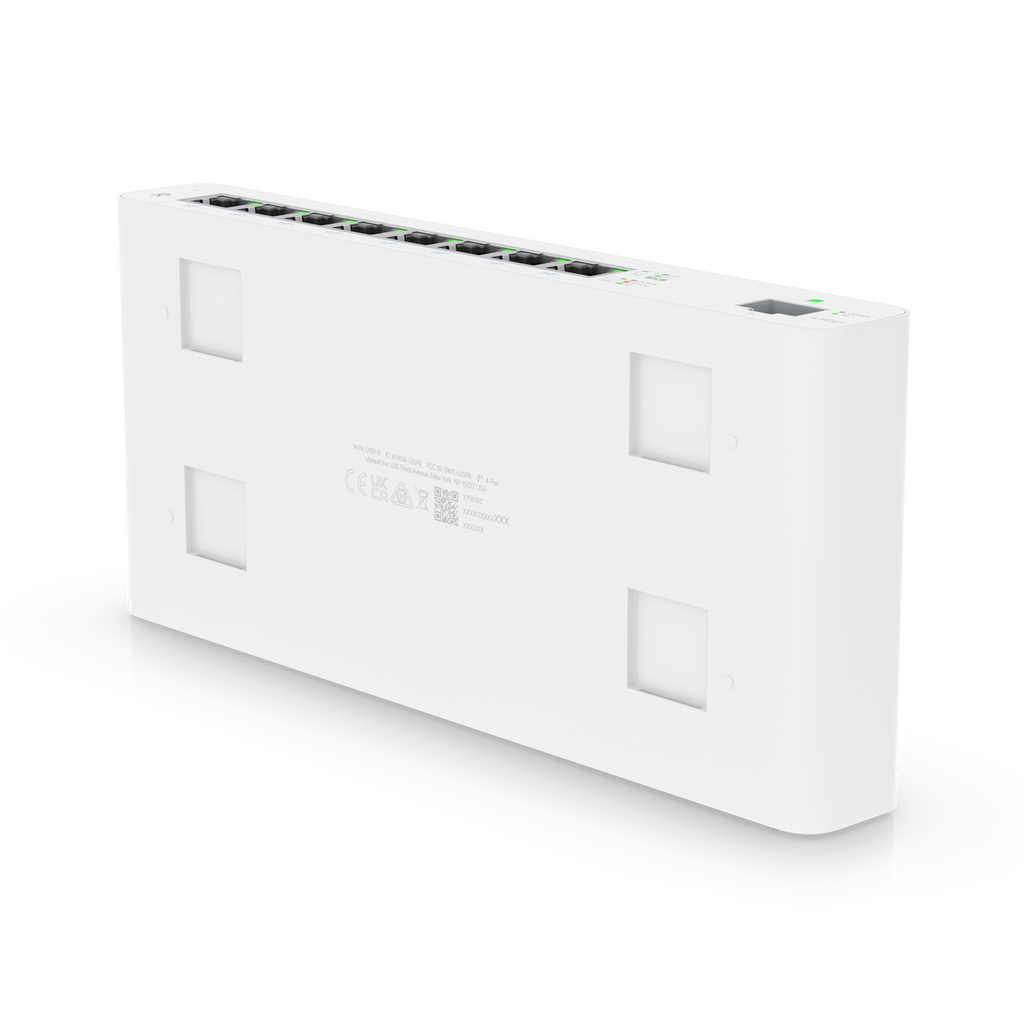

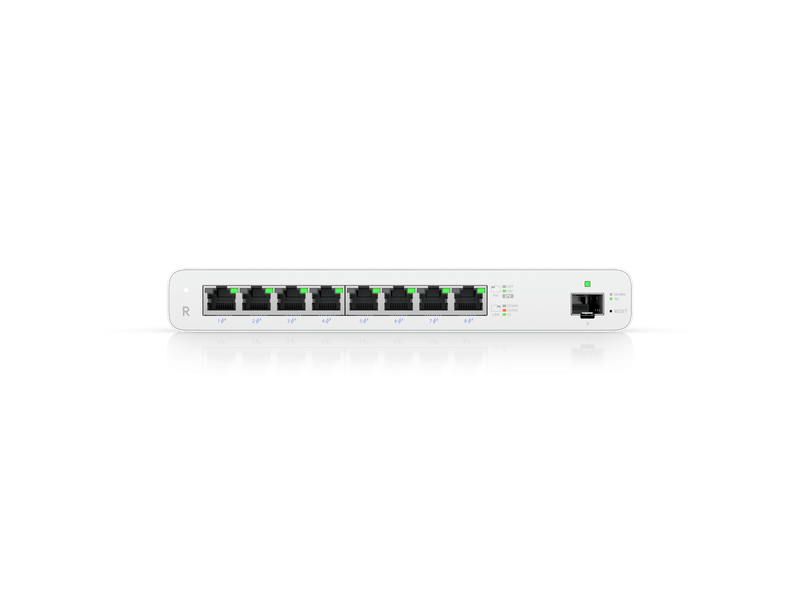

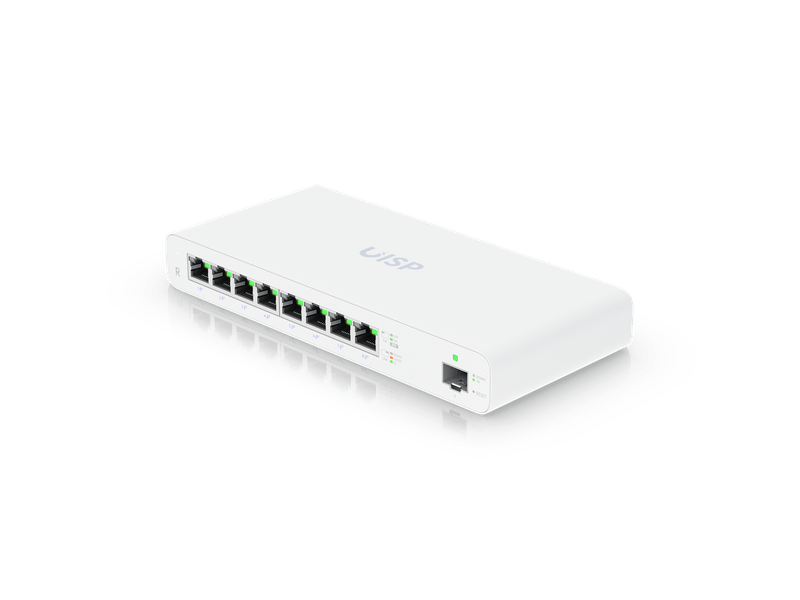

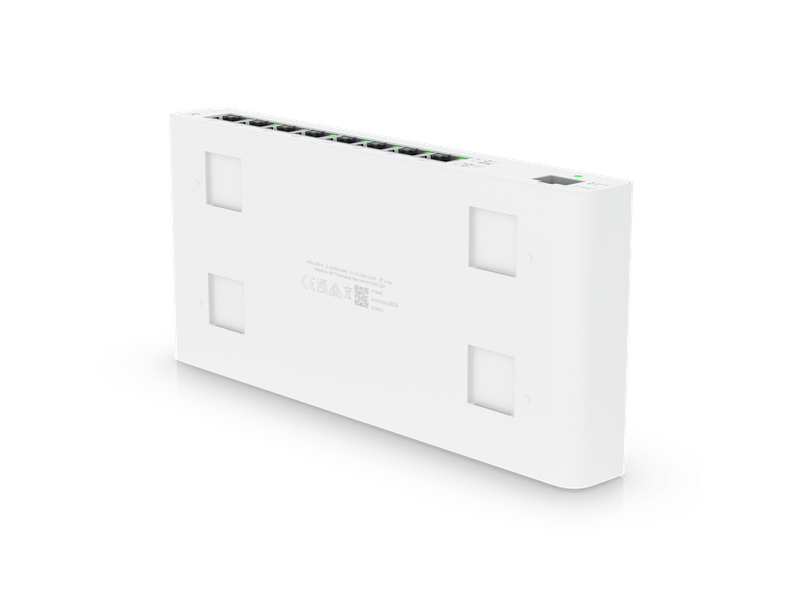

UISP Router
UISP-R
Eight-port, Gigabit PoE router designed for MicroPoP applications and supporting secure, large-scale networks.
UISP Router
UISP-R
Eight-port, Gigabit PoE router designed for MicroPoP applications and supporting secure, large-scale networks.
| UISP-R Specifications | |
|---|---|
| Product Type | Gigabit PoE Router |
| Use Case | MicroPoP deployments, WISP edge routing |
| Management Platform | UISP (v1.4.0 and later) |
| RJ45 Ports | (8) 10/100/1000 Mbps GbE |
| SFP Port | (1) 1G SFP |
| PoE Output | (8) Passive PoE ports 2-pair: pins 4,5+ / 7,8− 4-pair: pins 1,2,4,5+ / 3,6,7,8− |
| Max PoE Wattage per Port | 30W @ 27V DC |
| Total PoE Budget | 110W |
| Processor | Dual-core MIPS1004Kc @ 880 MHz |
| Memory | 512 MB DDR3 |
| Flash Storage | 512 MB NAND |
| Management Interfaces | In-band Ethernet, Bluetooth BLE |
| Power Method | External AC/DC adapter |
| Power Supply | 27V DC, 4.4A (included) |
| Supported Voltage Range | 24–28V DC |
| Max Power Consumption | 10W (excluding PoE output) |
| Dimensions | 210.4 × 95 × 29 mm (8.3 × 3.7 × 1.1") |
| Weight | 600 g (1.3 lb) |
| Enclosure Material | Polycarbonate |
| Mounting Options | Desktop or wall-mountable |
| Operating Temperature | -10 to 50°C (14 to 122°F) |
| Operating Humidity | 5 to 95% noncondensing |
| ESD/EMP Protection | ±15kV air / ±8kV contact |
| LEDs | System Status RJ45: PoE, speed/link/activity SFP: Link/activity |
| Certifications | CE, FCC, IC |
| NDAA Compliant | ✓ |
