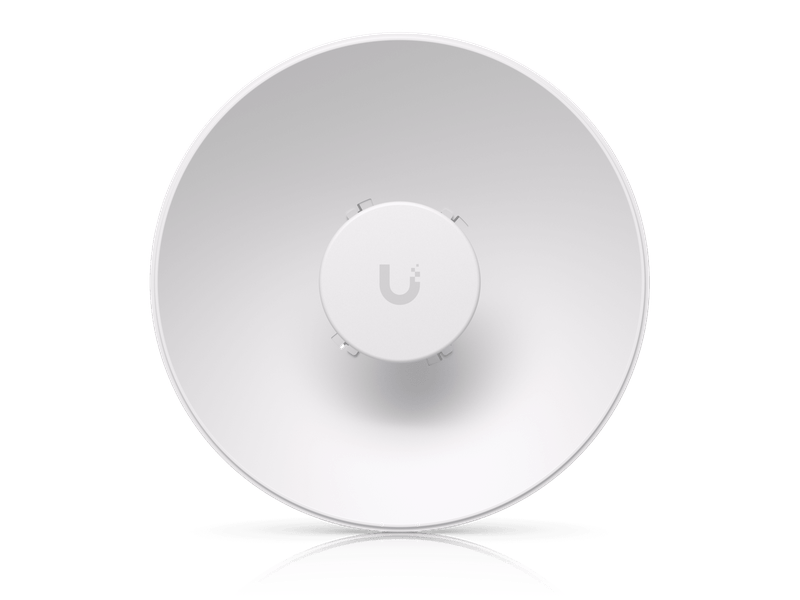

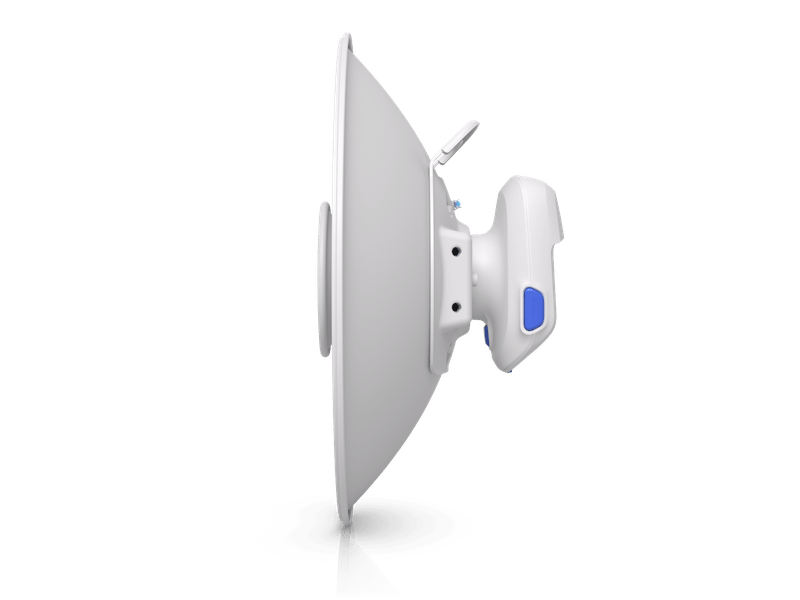

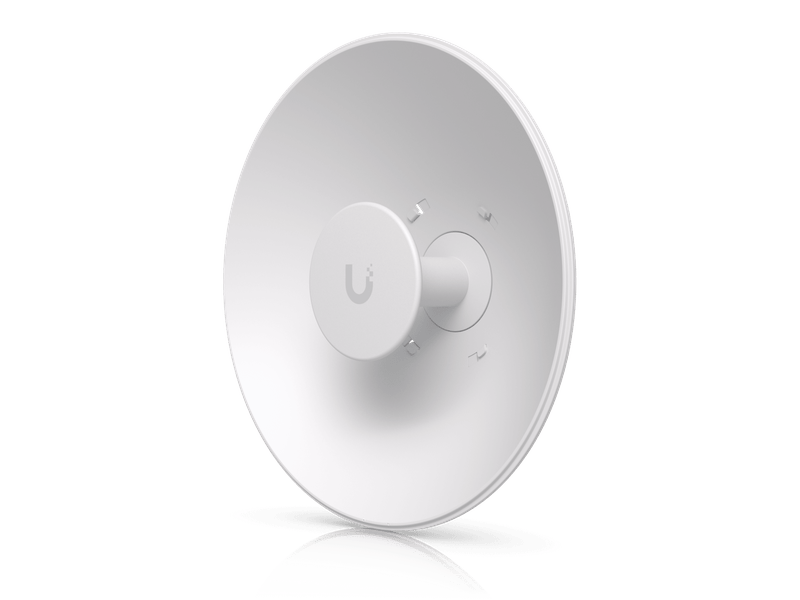

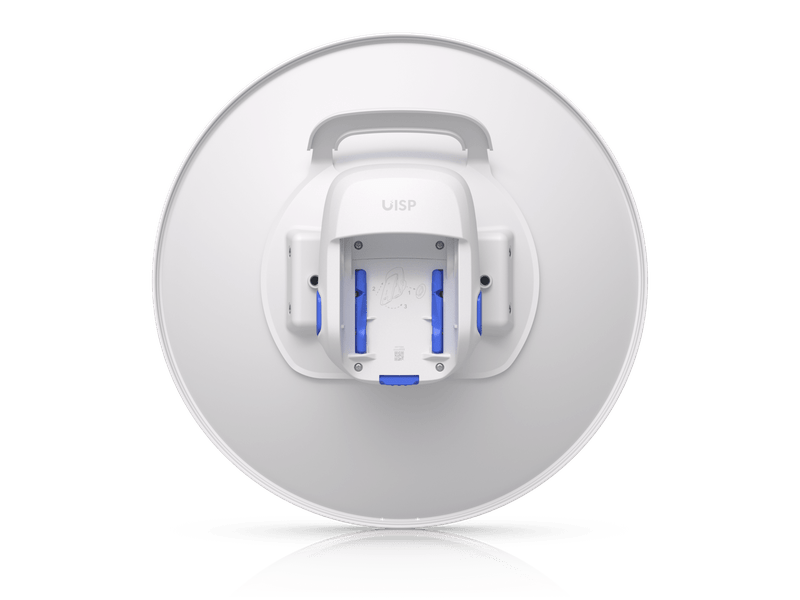

UISP Dish Mini
UISP-Dish-Mini
5-7 GHz compact dish with 26 dBi gain and radio direct connect.
Compatibility: Wave-MLO5, AF-5XHD, RP-5AC-Gen2
UISP Dish Mini
UISP-Dish-Mini
5-7 GHz compact dish with 26 dBi gain and radio direct connect.
Compatibility: Wave-MLO5, AF-5XHD, RP-5AC-Gen2
| UISP-Dish-Mini Specifications | |
|---|---|
| Antenna Dish Dimensions | Ø420 × 140 mm (Ø16.5 × 5.5") |
| With Waveguide | Ø420 × 211.3 mm (Ø16.5 × 8.3") |
| Weight | Dish: 1.95 kg (4.3 lb) Mount: 1 kg (2.2 lb) Waveguide: 0.45 kg (1 lb) |
| Enclosure Material | Dish: Powder-coated galvanized steel, UV-stabilized polycarbonate Waveguide: Aluminum alloy, UV-stabilized polycarbonate |
| Mount Material | Powder-coated galvanized steel, aluminum alloy |
| Mounting Type | Pole mount with alignment kit (included) |
| Elevation Adjustment | ±20° |
| Pole Diameter Compatibility | Ø1.25–3″ (Ø32–76 mm) |
| Weatherproofing | IPX6 |
| Wind Survivability | Up to 200 km/h (124 mph) |
| Wind Loading | 348 N @ 200 km/h (78 lbf @ 124 mph) |
| Frequency Range | 5.15 to 6.875 GHz |
| Gain | 26 dBi |
| Beamwidth (Azimuth) | 5.8–9° (3 dB) / 7.6–12.5° (6 dB) |
| Beamwidth (Elevation) | 5.8–9° (3 dB) / 7.6–12.5° (6 dB) |
| Polarization | Dual-linear |
| Cross-Polar Isolation | 15 dB |
| Electrical Downtilt | 0° |
| Max VSWR | 2:1 |
| NDAA Compliant | ✓ |
