Overview

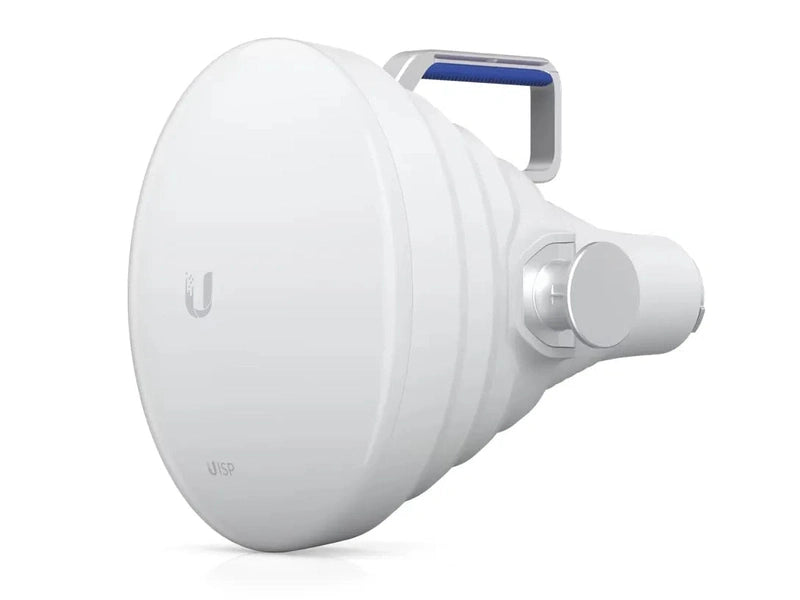

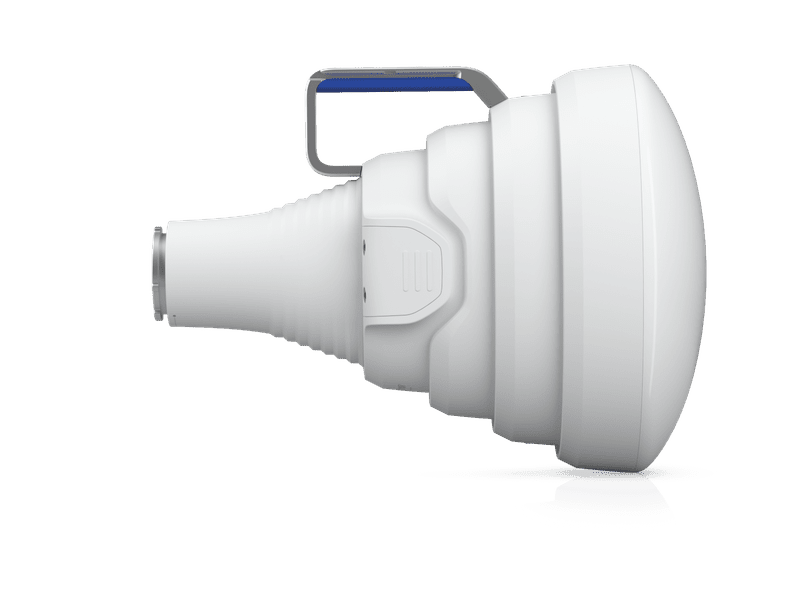

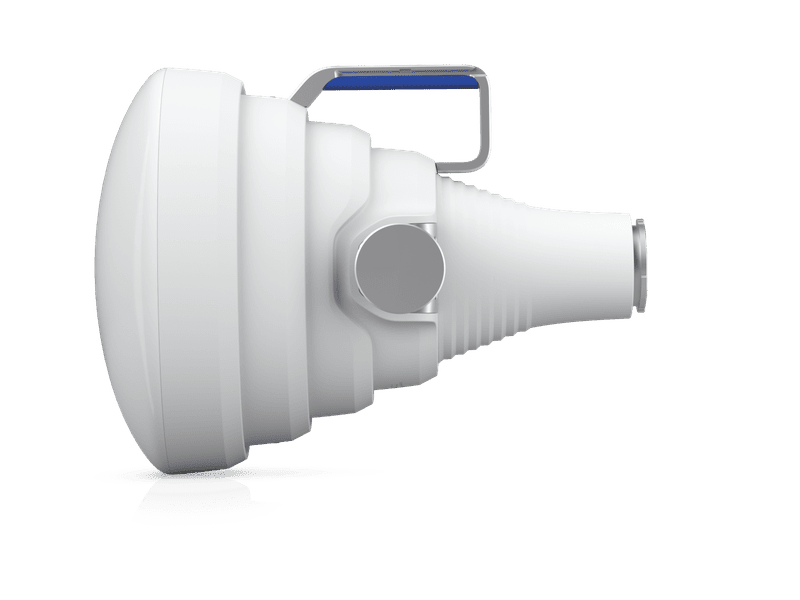

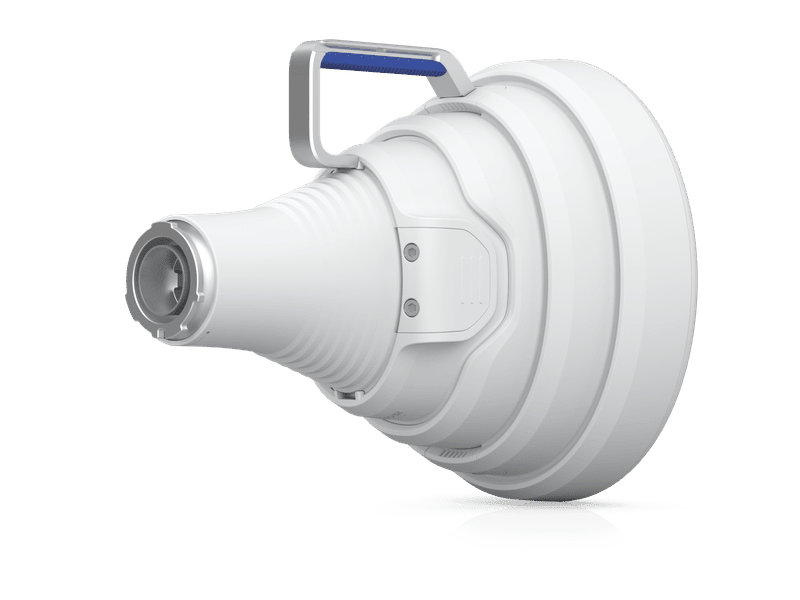

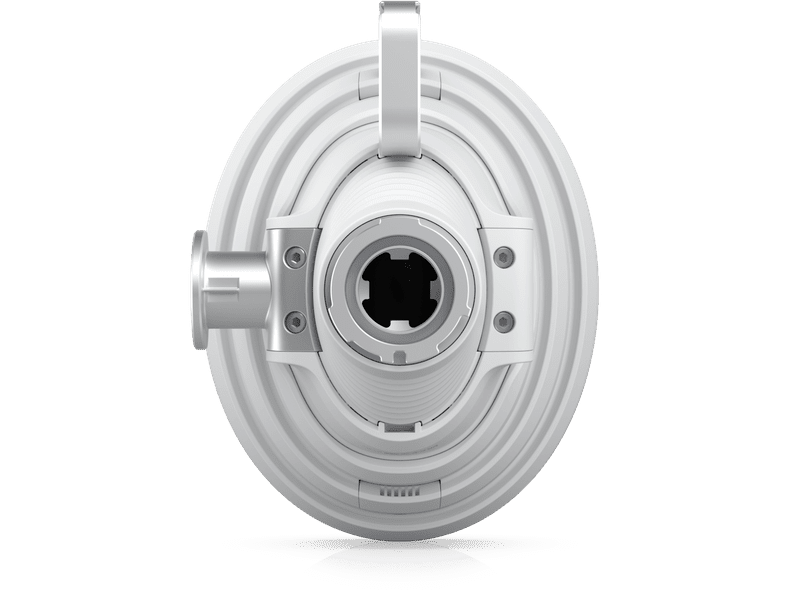

UISP Horn
UISP-Horn
High-isolation, point-to-multipoint (PtMP) horn antenna that covers a wide operating frequency range (5.15 - 6.875 GHz).
Compatibility: Wave-MLO5, RP-5AC-Gen2, LTU-Rocket, AF-5XHD
UISP Horn
UISP-Horn
High-isolation, point-to-multipoint (PtMP) horn antenna that covers a wide operating frequency range (5.15 - 6.875 GHz).
Compatibility: Wave-MLO5, RP-5AC-Gen2, LTU-Rocket, AF-5XHD
| Outdoor Unit Specifications | |
|---|---|
| Dimensions | 282 × 224 × 380 mm (11.1 × 8.8 × 15") |
| Weight | Device: 3.06 kg (6.75 lb) Mount: 925 g (2.04 lb) |
| Enclosure Material | UV stabilized polycarbonate, aluminum alloy |
| Wind Survivability | Up to 200 km/h (124 mph) |
| Wind Loading | 90 N at 200 km/h (20 lbf at 124 mph) |
| Mounting | Pole mount Alignment mount (Included) Mechanical adjustment: ±20° elevation, ±25° azimuth |
| Pole Mount Diameter | Ø1 to 3" (Ø25 to 70 mm) |
| Weatherproofing | IPX6 |
| Frequency Range | 5.15 to 6.875 GHz |
| Beamwidth | Azimuth: 30° (6 dB) Elevation: 25° (6 dB) |
| Electrical Downtilt | 0° |
| Max. VSWR | 2:1 |
| F/B Ratio | Typical: 45–50 dB Min.: 40 dB |
| NDAA Compliant | ✓ |
