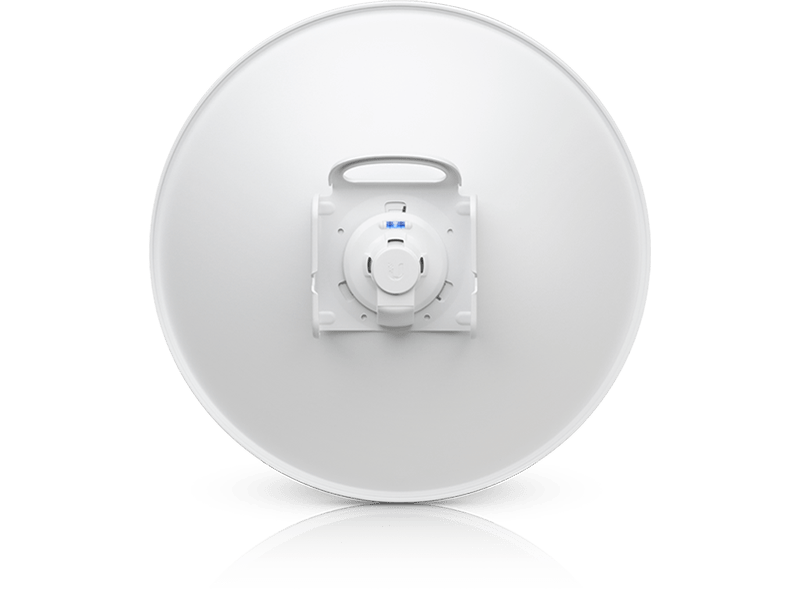

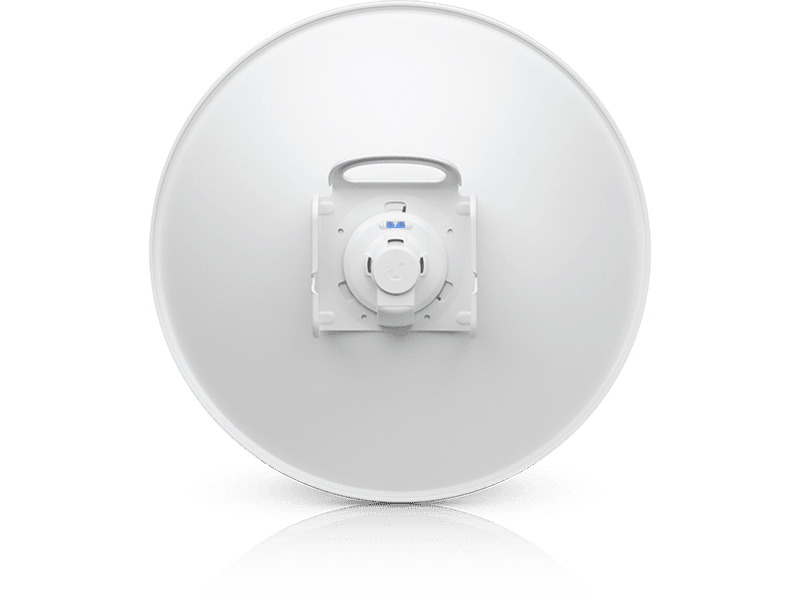

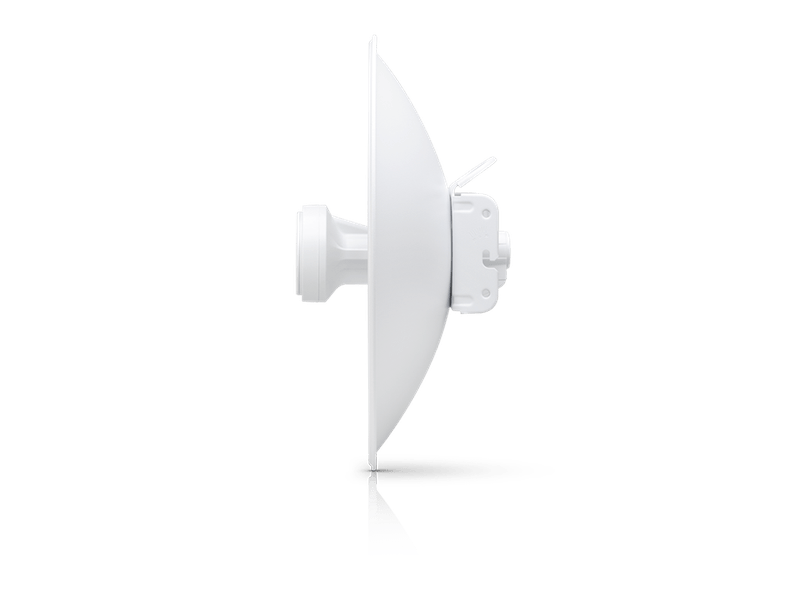

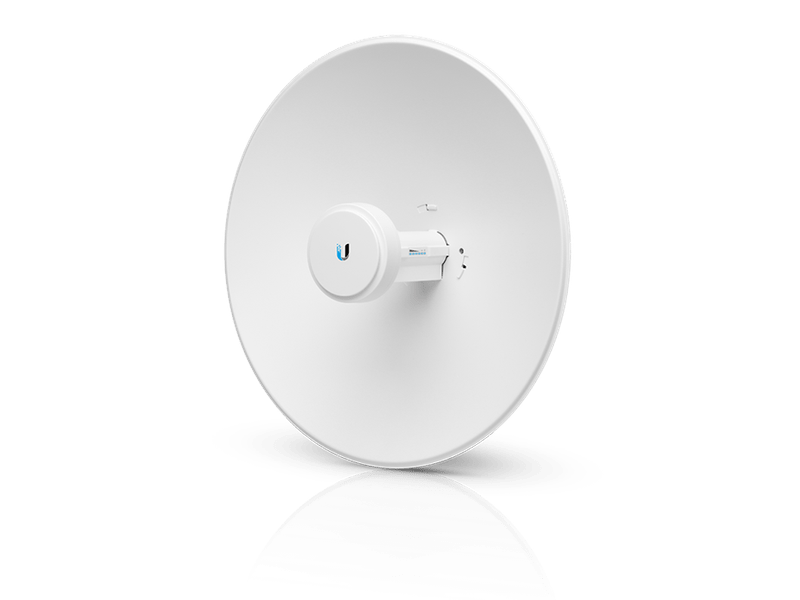

airMAX PowerBeam 2AC 400
PBE-2AC-400
2.4 GHz WiFi antenna with a 450+ Mbps real TCP/IP throughput rate.
airMAX PowerBeam 2AC 400
PBE-2AC-400
2.4 GHz WiFi antenna with a 450+ Mbps real TCP/IP throughput rate.
| PBE-2AC-400 Specifications | |
|---|---|
| Product Type | 2.4 GHz airMAX ac Bridge |
| Application | Point-to-Point and Point-to-Multipoint wireless links |
| Max Throughput | 450+ Mbps TCP/IP |
| System Gain | 18 dBi |
| Wireless | |
| Operating Frequency | Worldwide: 2412–2472 MHz USA: 2412–2462 MHz |
| Channel Sizes | PtP Mode: 10/20/40 MHz PtMP Mode: 10/20/40 MHz |
| Management Radio | Worldwide: 5150–5250 MHz USA: 5725–5850 MHz (U-NII-3) |
| Interfaces | |
| Networking | (1) Gigabit Ethernet RJ45 port |
| LED Indicators | Power, Ethernet, (4) Signal Strength |
| Power | |
| Power Method | Passive PoE 2-pair (Pins 4,5+; 7,8−) |
| Power Supply | 24V, 0.5A Gigabit PoE adapter (included) |
| Supported Voltage Range | 20–27V DC |
| Max Power Consumption | 7.5W |
| Mechanical | |
| Dimensions | 420 × 420 × 289 mm (16.5 × 16.5 × 11.4") |
| Weight | 1.8 kg (4 lb) |
| Enclosure Material | UV-stabilized plastic, powder-coated SPCC |
| Mounting | Pole mount kit (included) |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 342.5 N @ 200 km/h (77 lbf) |
| Environmental | |
| Operating Temperature | −40 to 70°C (−40 to 158°F) |
| Operating Humidity | 5 to 95% noncondensing |
| ESD/EMP Protection | ±24kV Air/Contact |
| Compliance | |
| Certifications | CE, FCC, IC, RoHS |
| Environmental Tests | Salt Fog: IEC 68-2-11 / ASTM B117 Vibration: IEC 68-2-6 Temperature Shock: IEC 68-2-14 UV: IEC 68-2-5 @ 40°C Wind-Driven Rain: ETS 300 019-1-4 |
| NDAA Compliant | ✓ |
