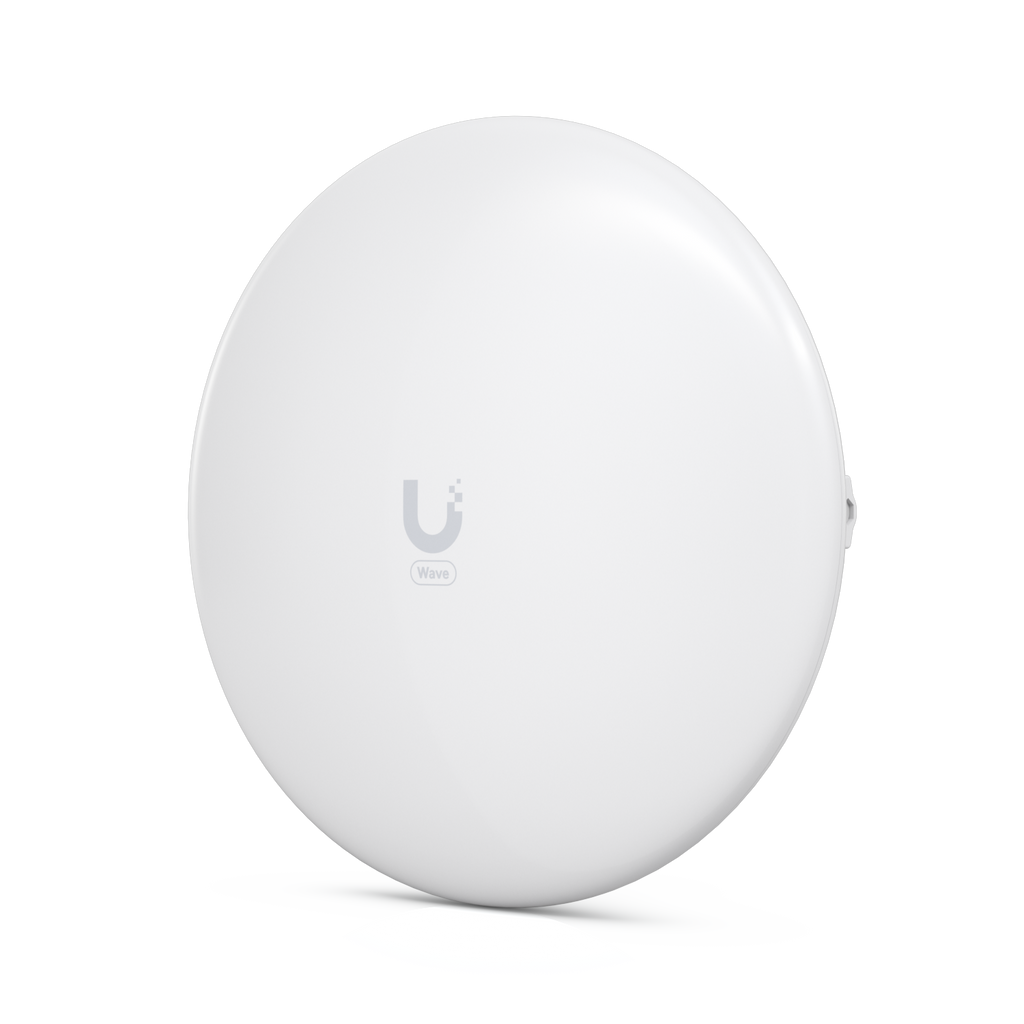

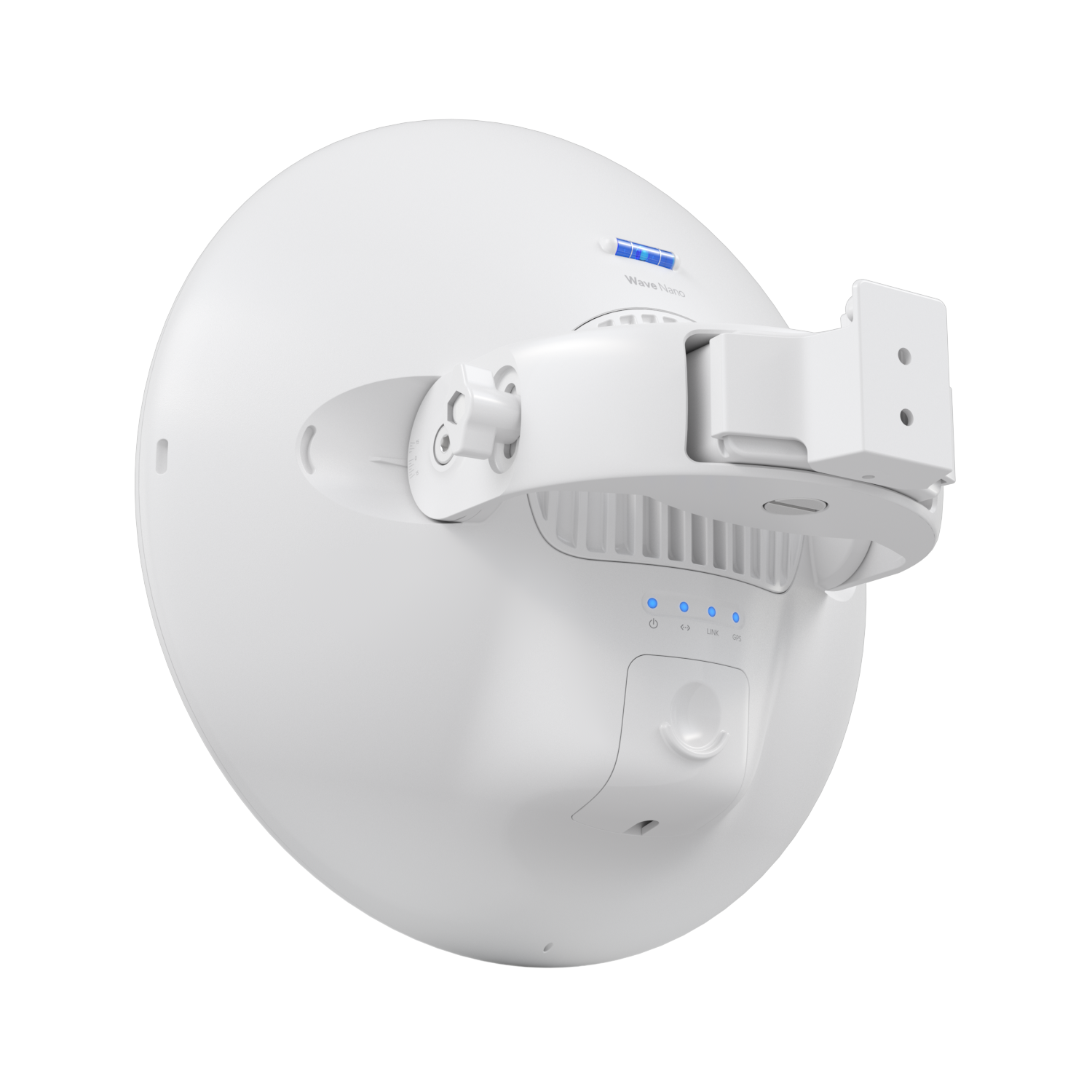

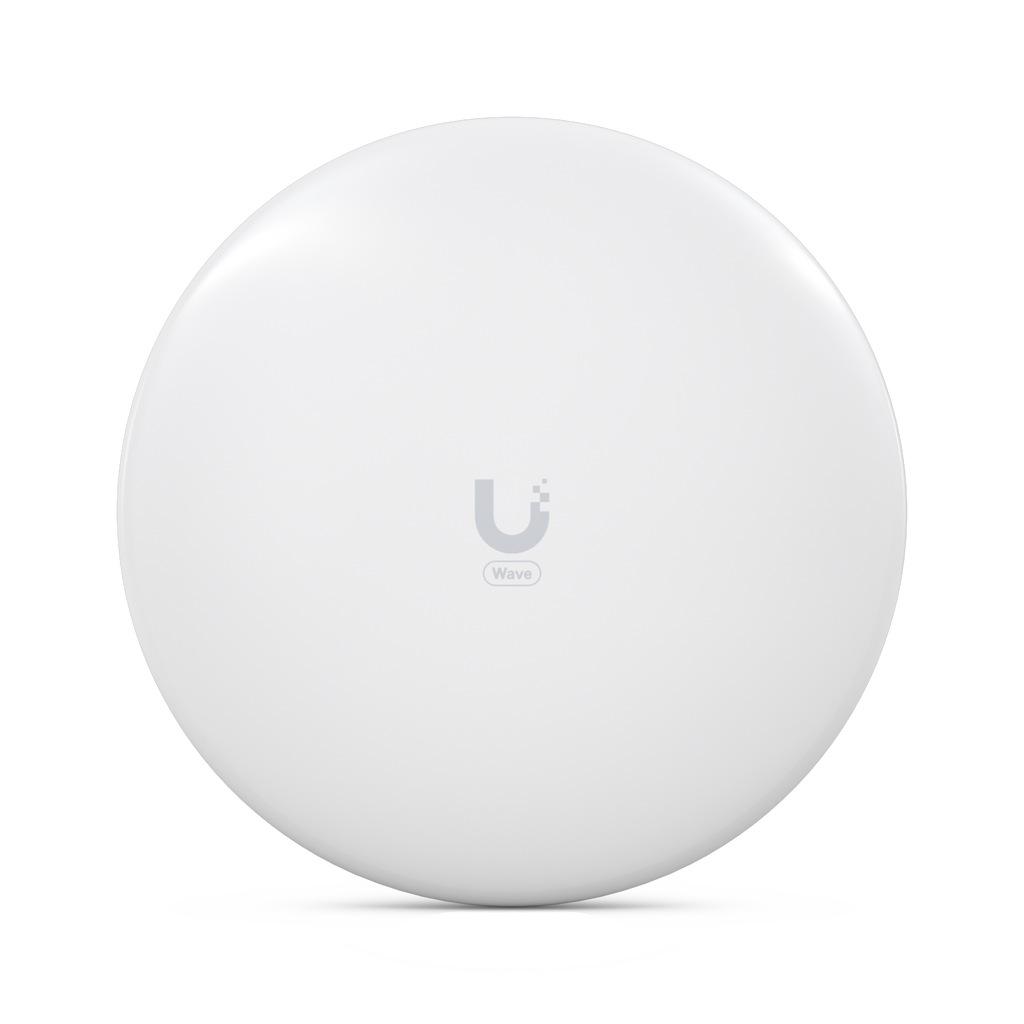

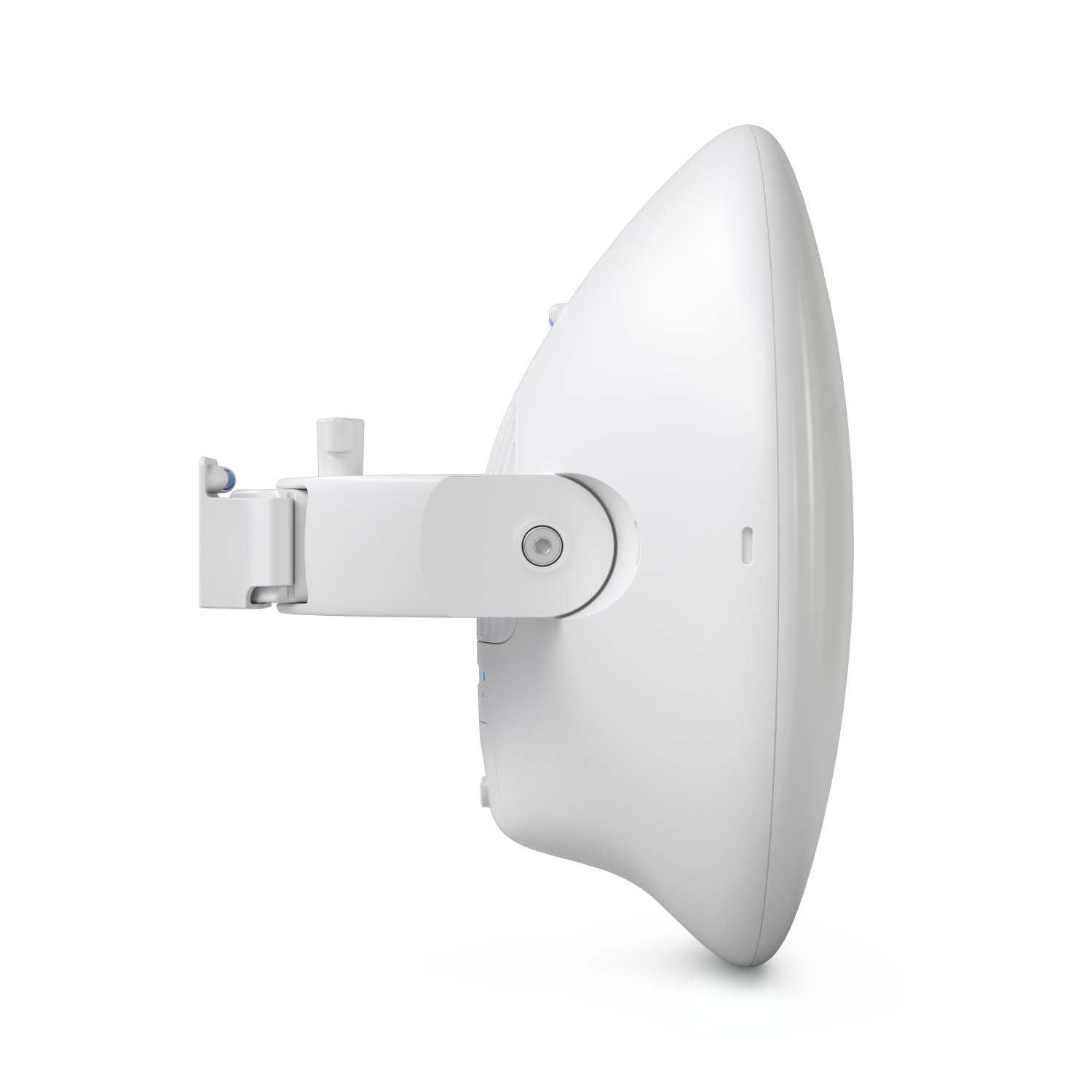

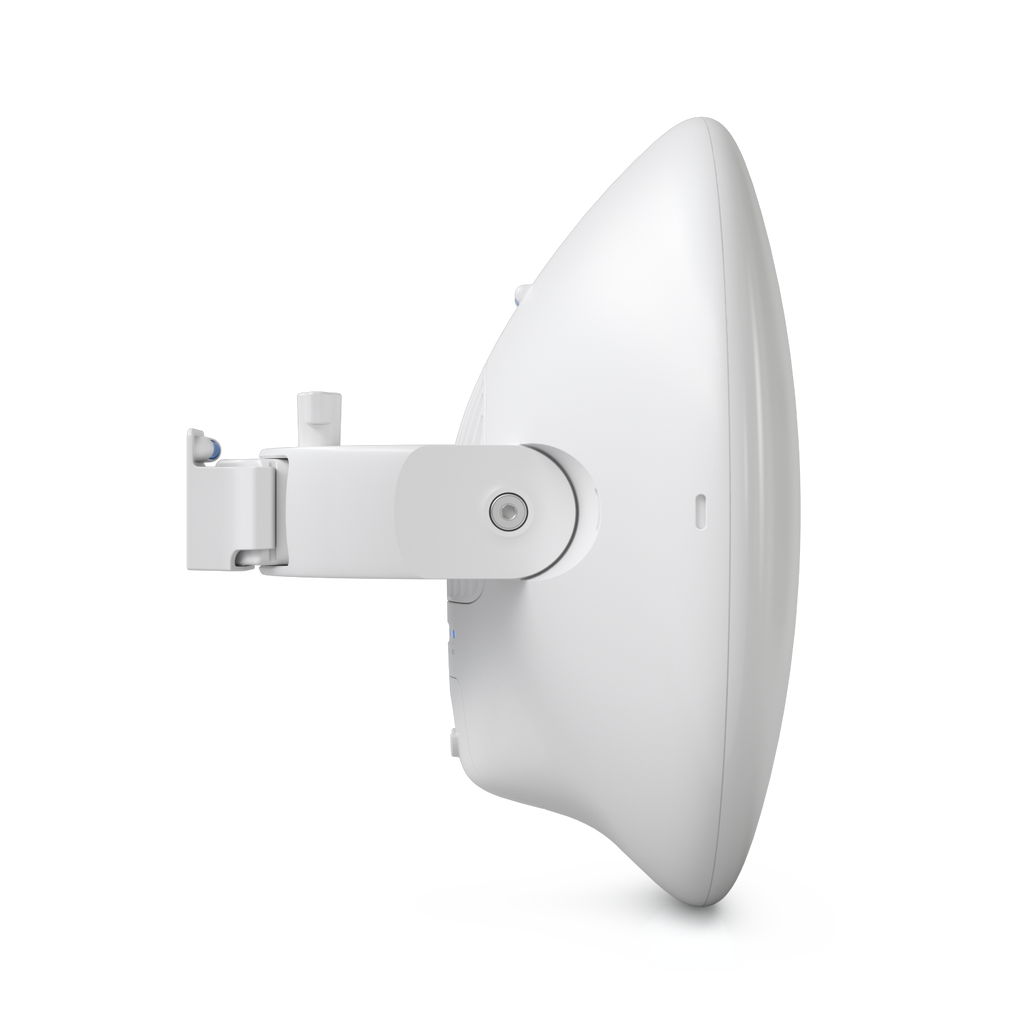

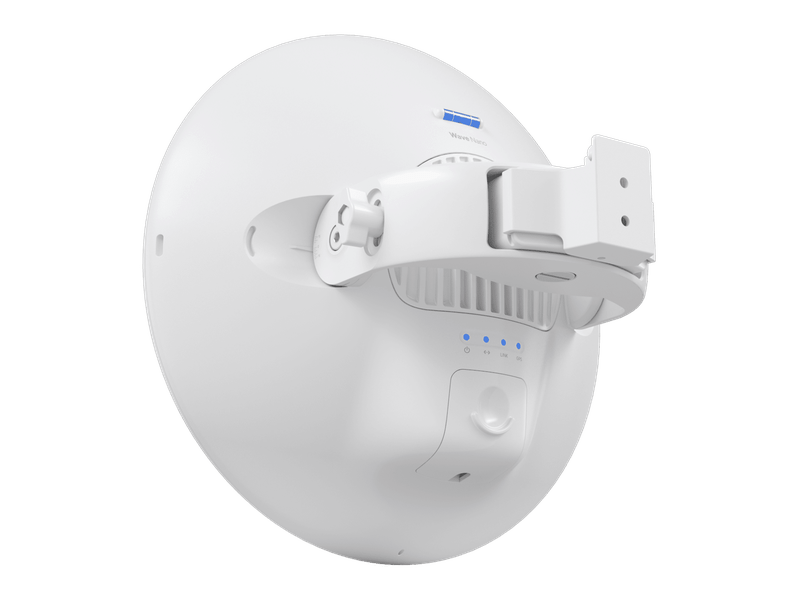

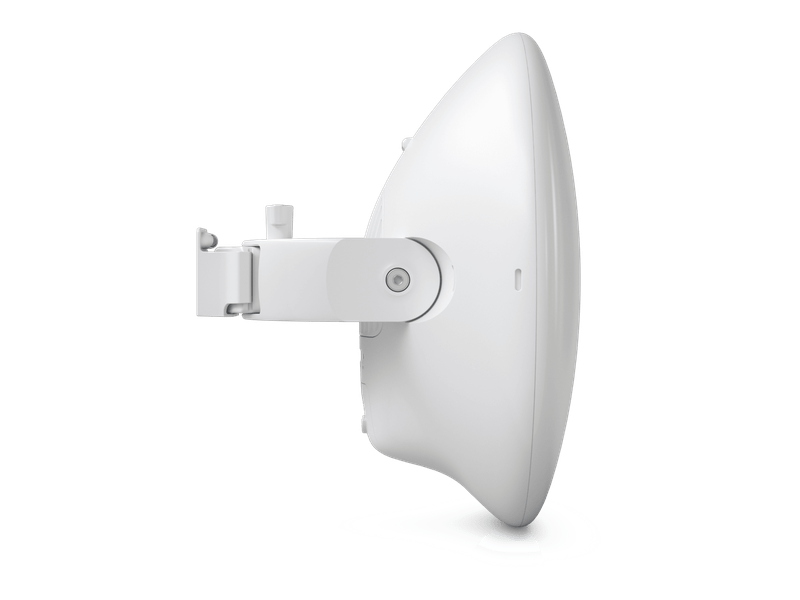

Wave Nano
Wave-Nano
60 GHz PtMP station powered by Wave Technology.
Wave Nano
Wave-Nano
60 GHz PtMP station powered by Wave Technology.
| Wave-Nano Specifications | |
|---|---|
| Product Type | 60 GHz PtMP Station |
| Total Throughput | 2 Gbps (1 Gbps duplex) |
| Max Range | 5+ km |
| Operating Mode | PtMP Station, PtP (FW 3.2.0+) |
| Management Platform | UISP (v1.4.5+) |
| Primary Frequency | 57–71 GHz (region-dependent) |
| Channel Bandwidth | 2160 / 1080 / 540 MHz |
| Modulation | 16QAM, QPSK |
| Antenna Gain | 41 dBi |
| Beamwidth | Azimuth: 1.4° / Elevation: 1.4° |
| Polarization | Vertically linear |
| Encryption | WPA2-PSK (AES) |
| WiFi Standard | 802.11ax (WiFi 6) |
| Frequency Bands | U-NII-1 to U-NII-3: 5150–5850 MHz (US/CA) 5150–5875 MHz (Worldwide) |
| Channel Bandwidth | 20 / 40 / 80 MHz |
| Modulation | Up to 1024QAM |
| Antenna Gain | 19 dBi |
| Beamwidth | Azimuth: 14° / Elevation: 14° |
| Polarization | Dual-linear |
| Processor | Dual-core ARM® Cortex®-A53 @ 1 GHz |
| Memory | 512 MB DDR3L |
| Networking Interface | (1) GbE RJ45 port |
| Power Method | Passive PoE 4-pair or 2-pair 44–54V DC or 22–27V DC |
| Power Supply | 48V DC, 0.65A PoE adapter (included) |
| Max Power Consumption | 20W |
| GPS | ✓ |
| Button | Factory reset |
| LED Indicators | Power, Ethernet, GPS, Link |
| Dimensions | Ø256.5 × 113.5 mm (Ø10.1 × 4.5") |
| Weight | 932 g (2.1 lb) without mount 1.2 kg (2.6 lb) with mount |
| Enclosure Material | Aluminum alloy, UV-stabilized plastic |
| Mounting Options | Pole mount (25–63.5 mm diameter) |
| Wind Loading | 127 N @ 200 km/h (28.6 lbf @ 125 mph) |
| Weatherproofing | IPX6 |
| Operating Temperature | -40 to 60°C (-40 to 140°F) |
| Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| NDAA Compliant | ✓ |
