Overview

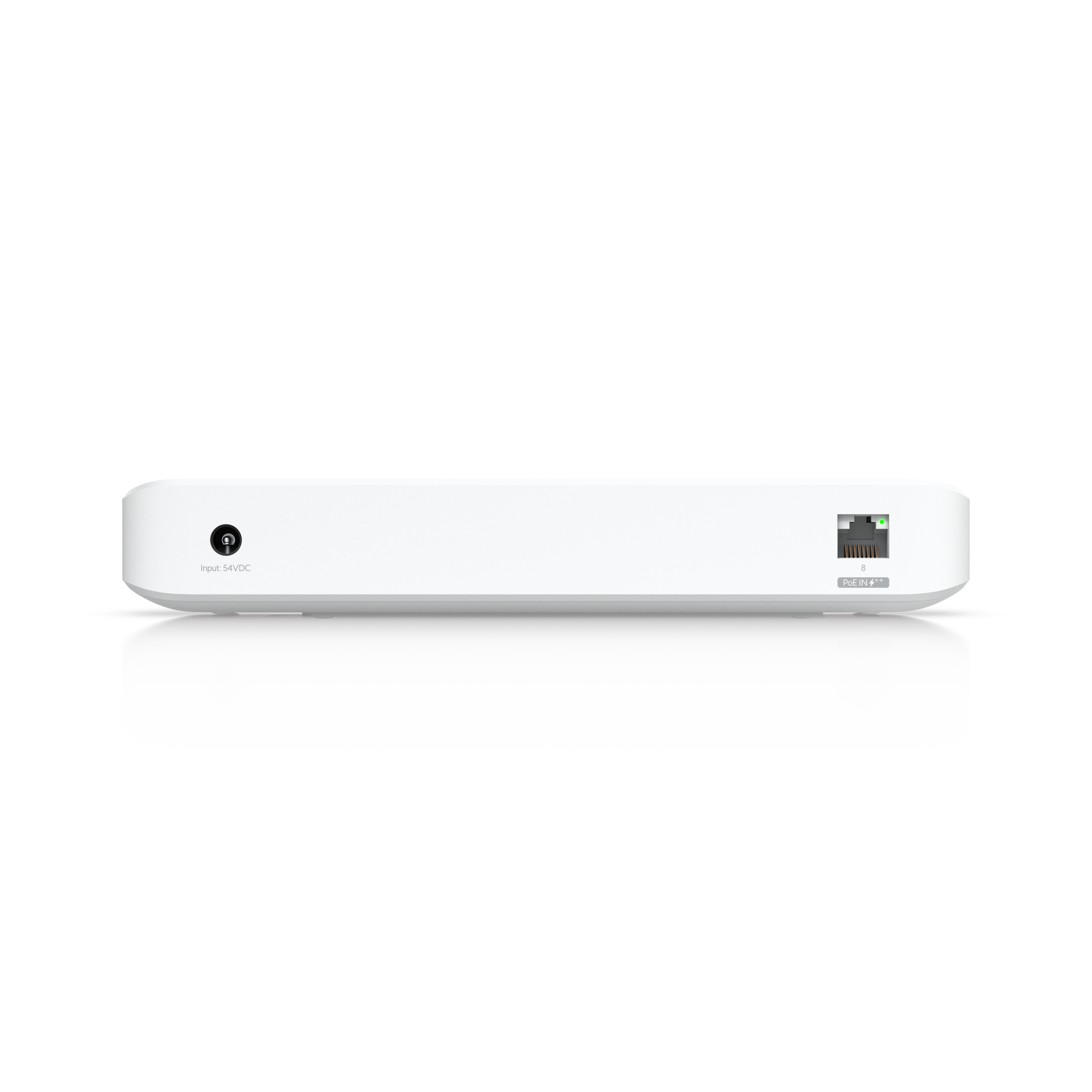

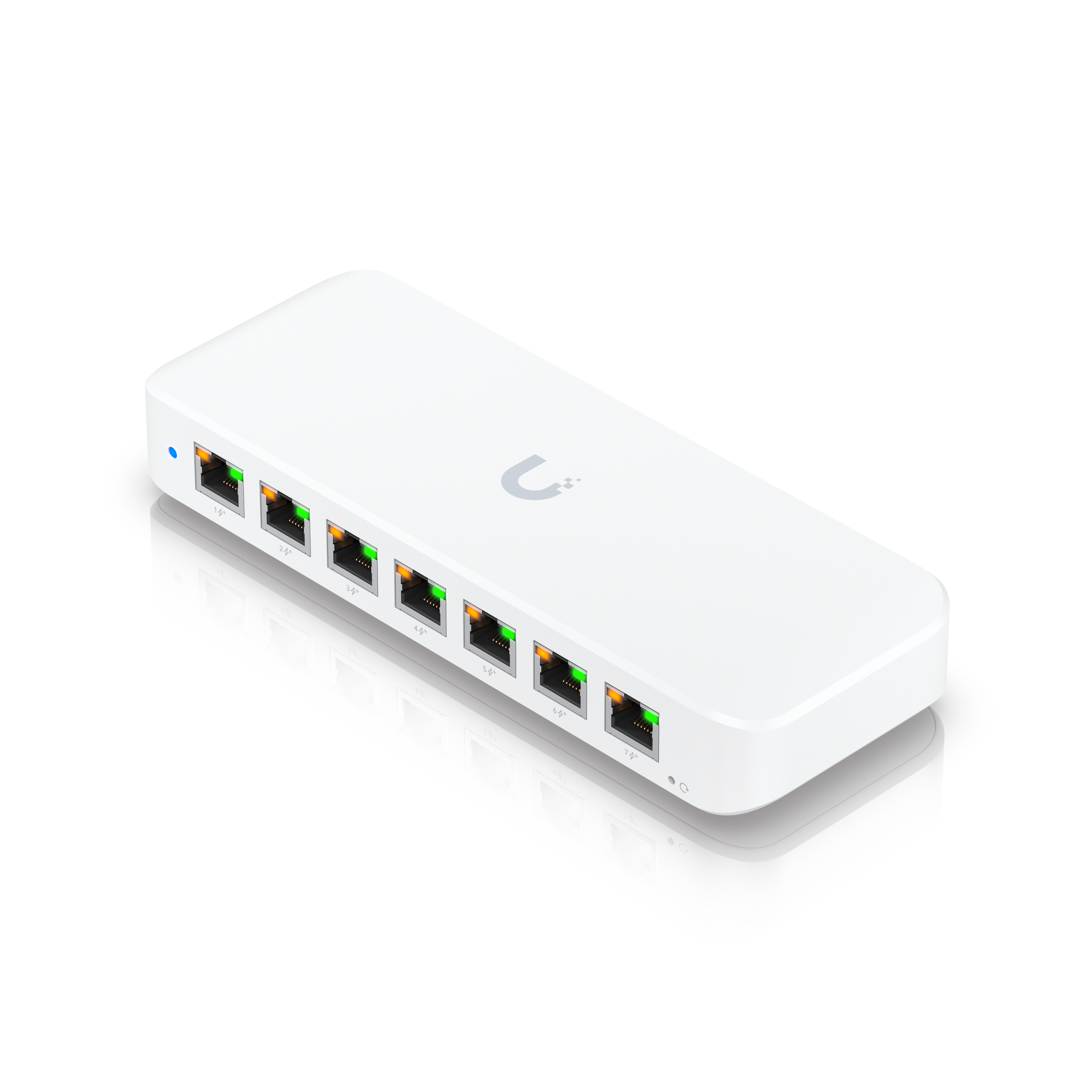

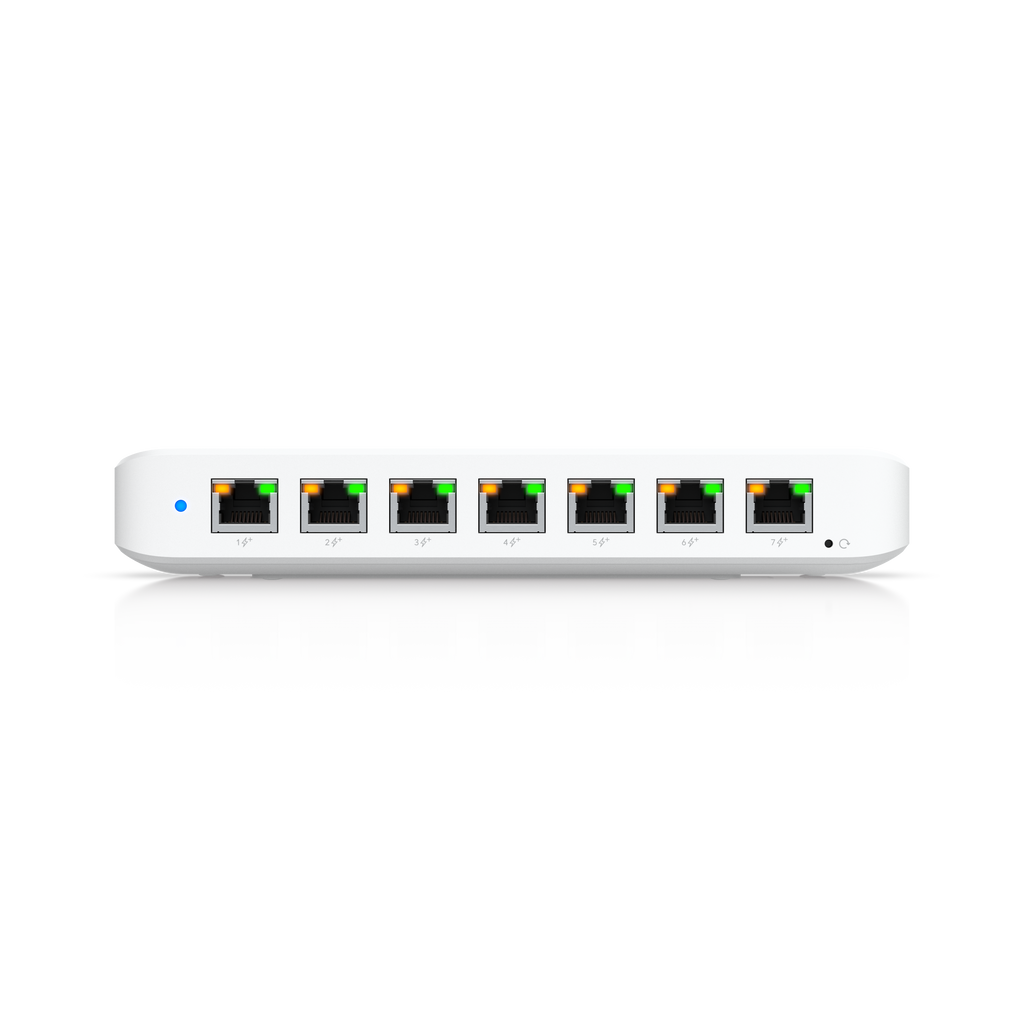

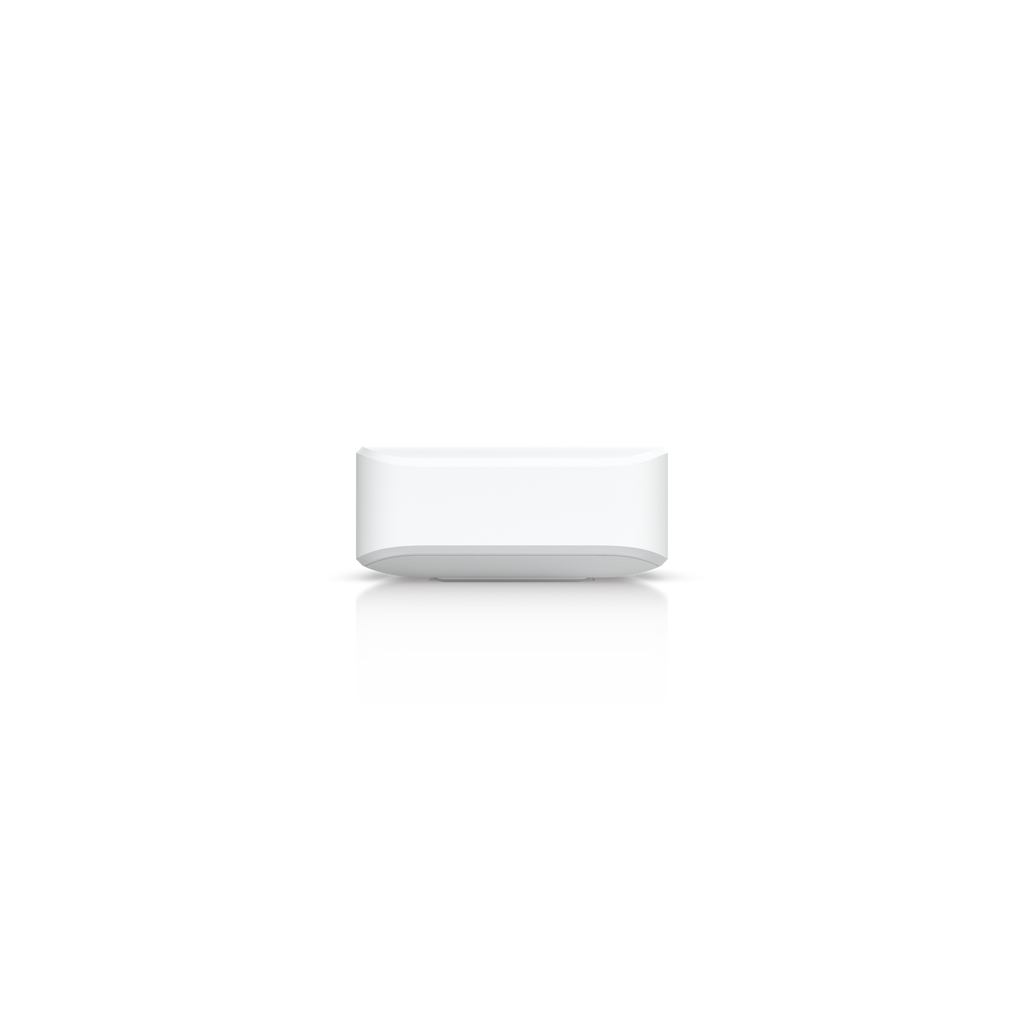

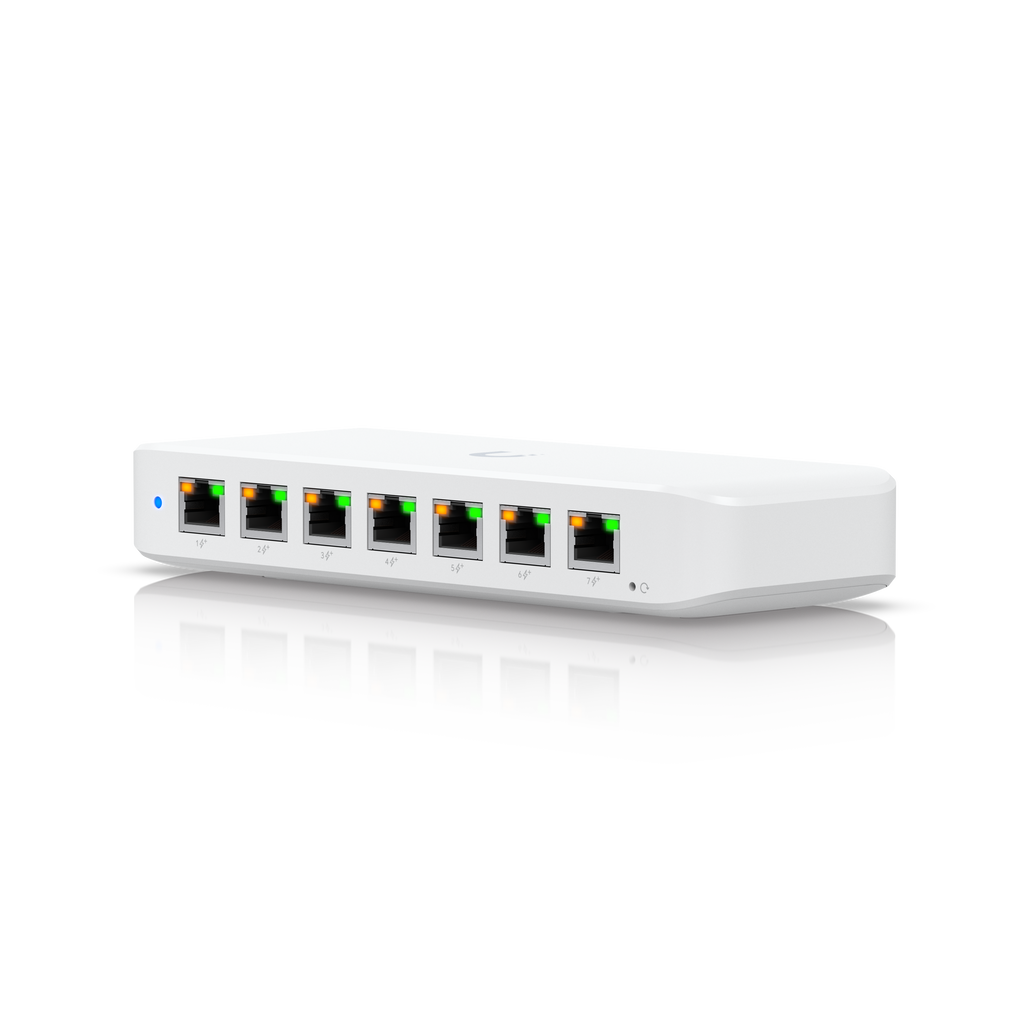

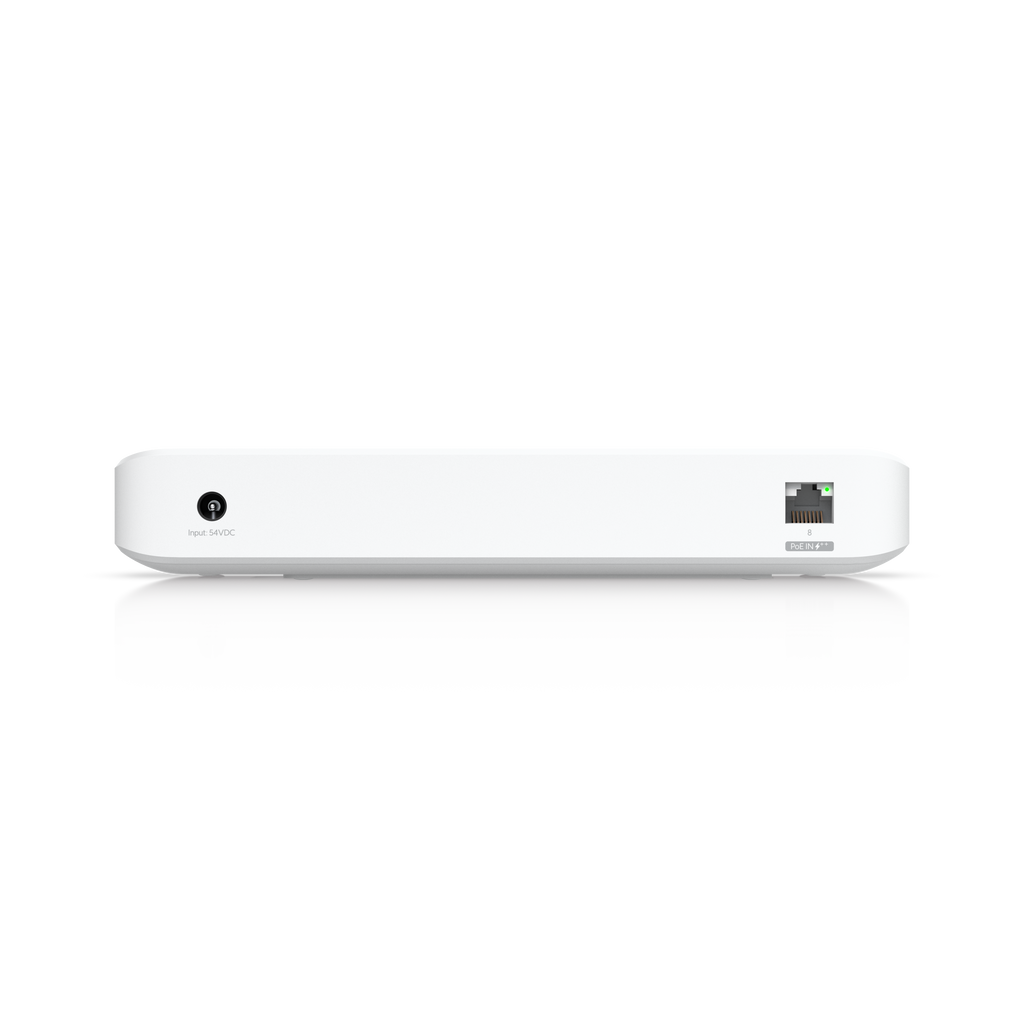

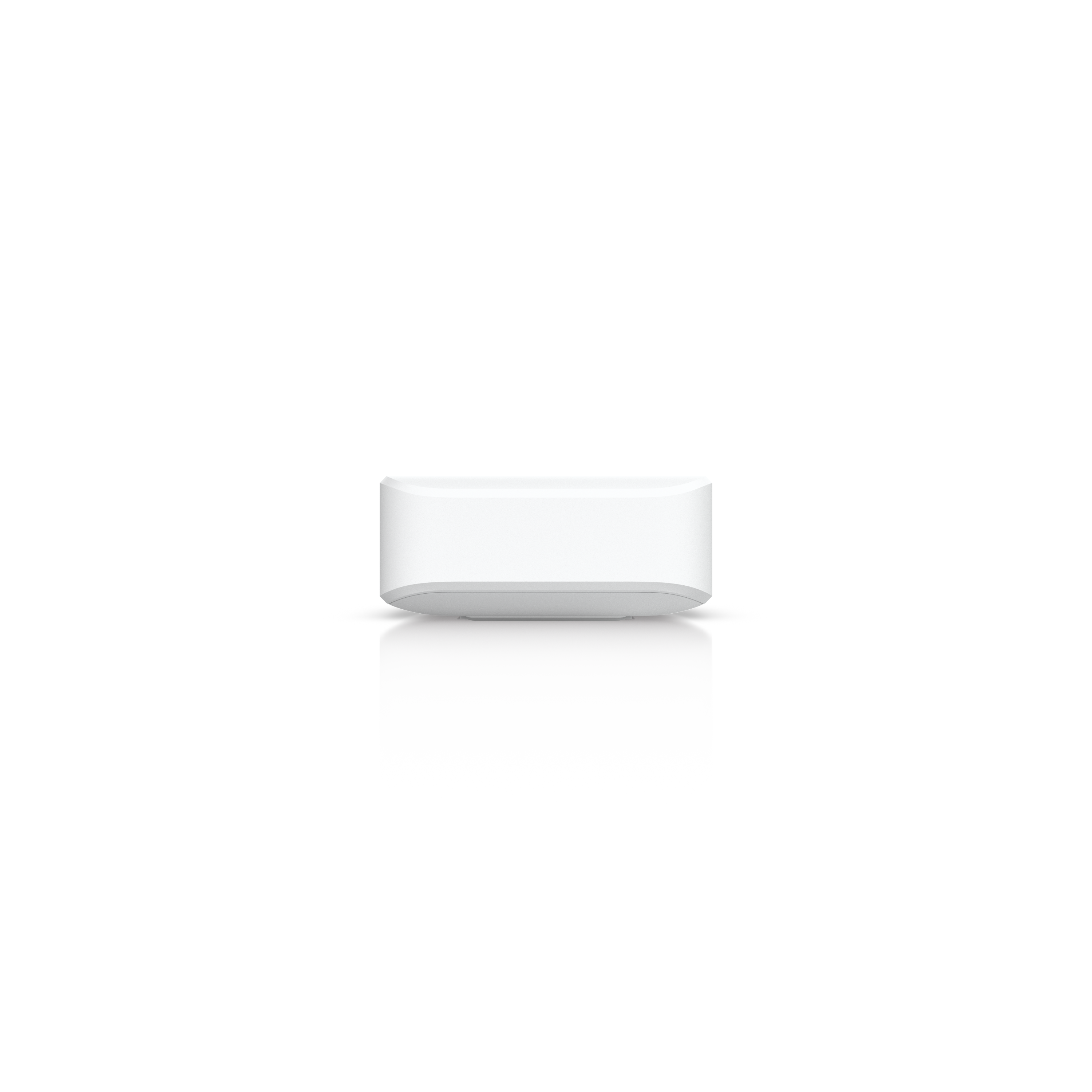

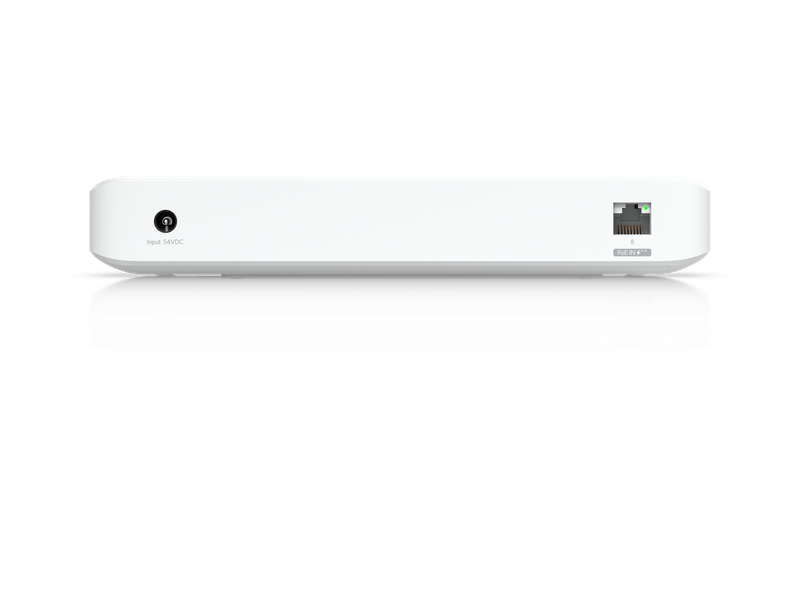

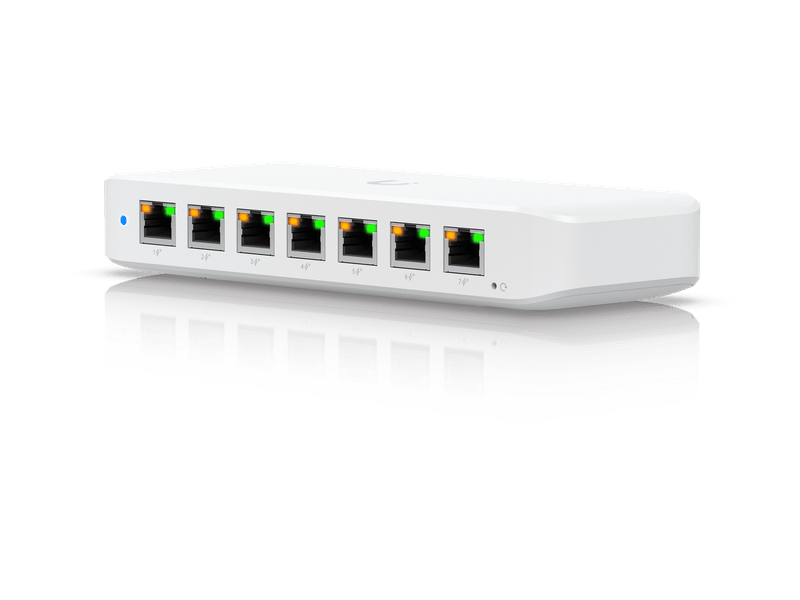

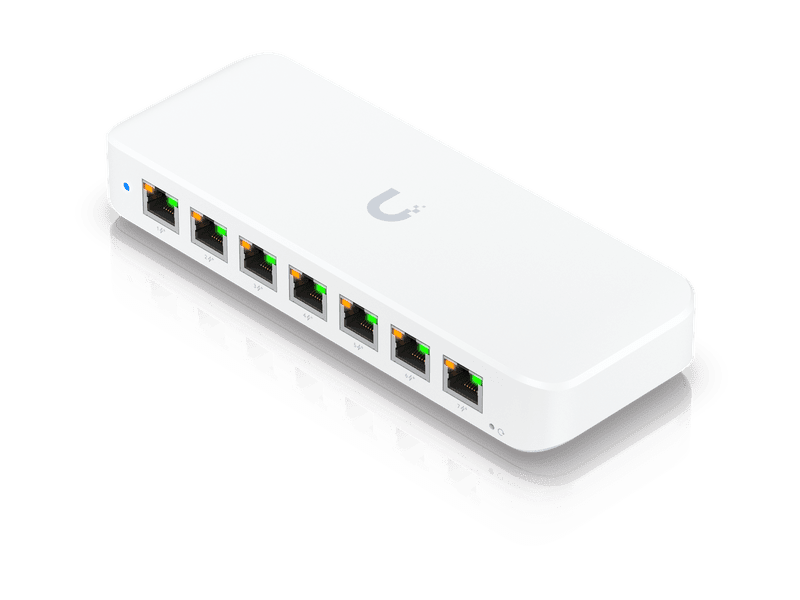

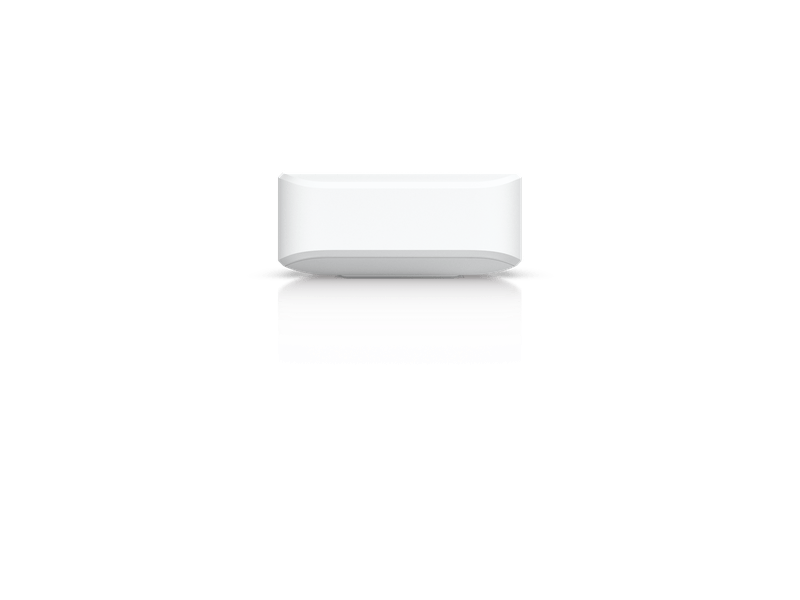

Ultra 210W
USW-Ultra-210W (202W)
A compact, Layer 2, 8-port GbE PoE switch with versatile mounting options.
Note. PoE input is supported for switch operation, with PoE+/PoE++ input or AC power required for PoE output.
Ultra 210W
USW-Ultra-210W (202W)
A compact, Layer 2, 8-port GbE PoE switch with versatile mounting options.
Note. PoE input is supported for switch operation, with PoE+/PoE++ input or AC power required for PoE output.
USW-Ultra-210W Specifications | |
---|---|
Product Type | Layer 2 Managed Gigabit PoE Switch |
Form Factor | Compact desktop / wall / magnetic mount |
Switching Capacity | 16 Gbps |
Non-Blocking Throughput | 8 Gbps |
Forwarding Rate | 12 Mpps |
RJ45 Ports | (8) GbE (7 × PoE+, 1 × PoE++ input) |
Max. PoE Output | PoE+ / PoE++ |
PoE Budget | PoE++ input: 42W PoE+ input: 16W 60W adapter input: 52W 210W adapter input: 202W |
Max. PoE Wattage per Port | 30W (PoE+) |
Power Method | AC/DC adapter (included) or PoE++ input |
Power Supply | External AC/DC, 210W |
Supported Voltage Range | 50–57V DC |
Max. Power Consumption | 9W (excluding PoE output, PoE input) 8W (excluding PoE output, adapter input) 210W (including PoE output) |
Supported VLANs | 256 |
MAC Address Table | 4,000 entries |
Advanced Features | STP / RSTP, Jumbo Frames, Port Mirroring, Port Isolation Flow Control, Storm Control, Egress Rate Limiting Multicast & Broadcast Rate Limiting, Loop Protection |
Dimensions | 203 × 76 × 33 mm (8 × 3 × 1.3") |
Weight | Device: 320 g (11.3 oz) Wall Mount: 45 g (1.6 oz) Adapter: 770 g (1.7 lb) |
Enclosure Material | Polycarbonate |
Operating Temperature | PoE++ input: -30 to 60°C (-22 to 140°F) 210W adapter input: -20 to 60°C (-4 to 140°F) |
Operating Humidity | 10 to 90% noncondensing |
NDAA Compliant | ✓ |
Certifications | CE, FCC, IC, Anatel |
Management Platform | UniFi Network |
Software Version Required | v8.0.7 and later |
