Description
Overview

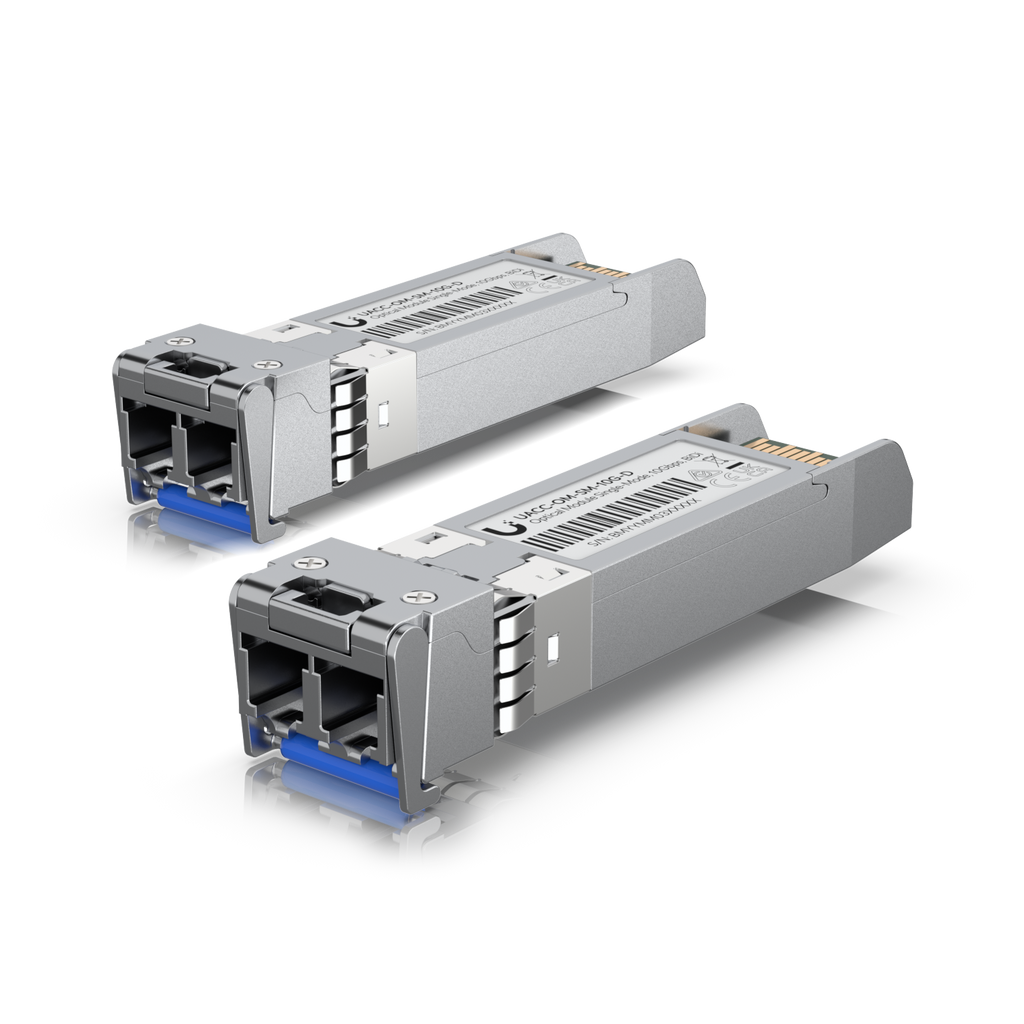

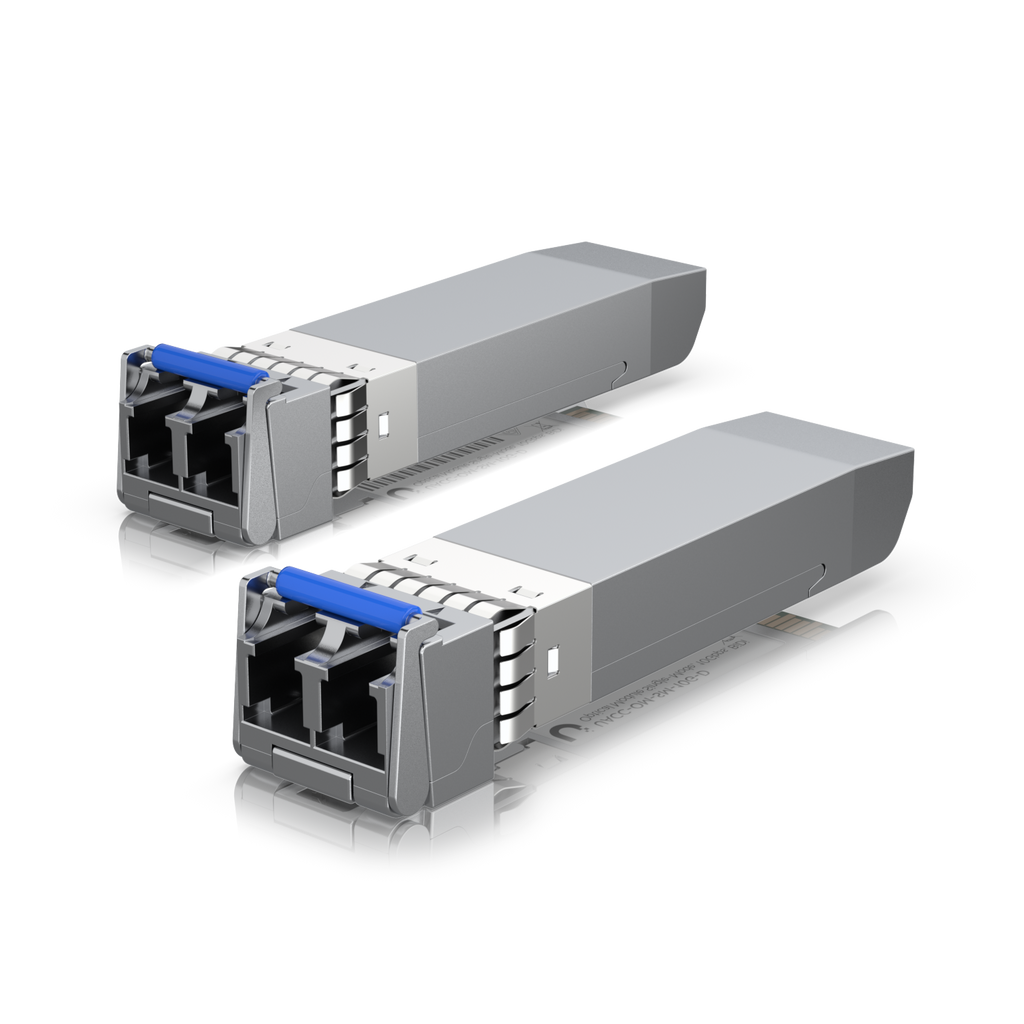

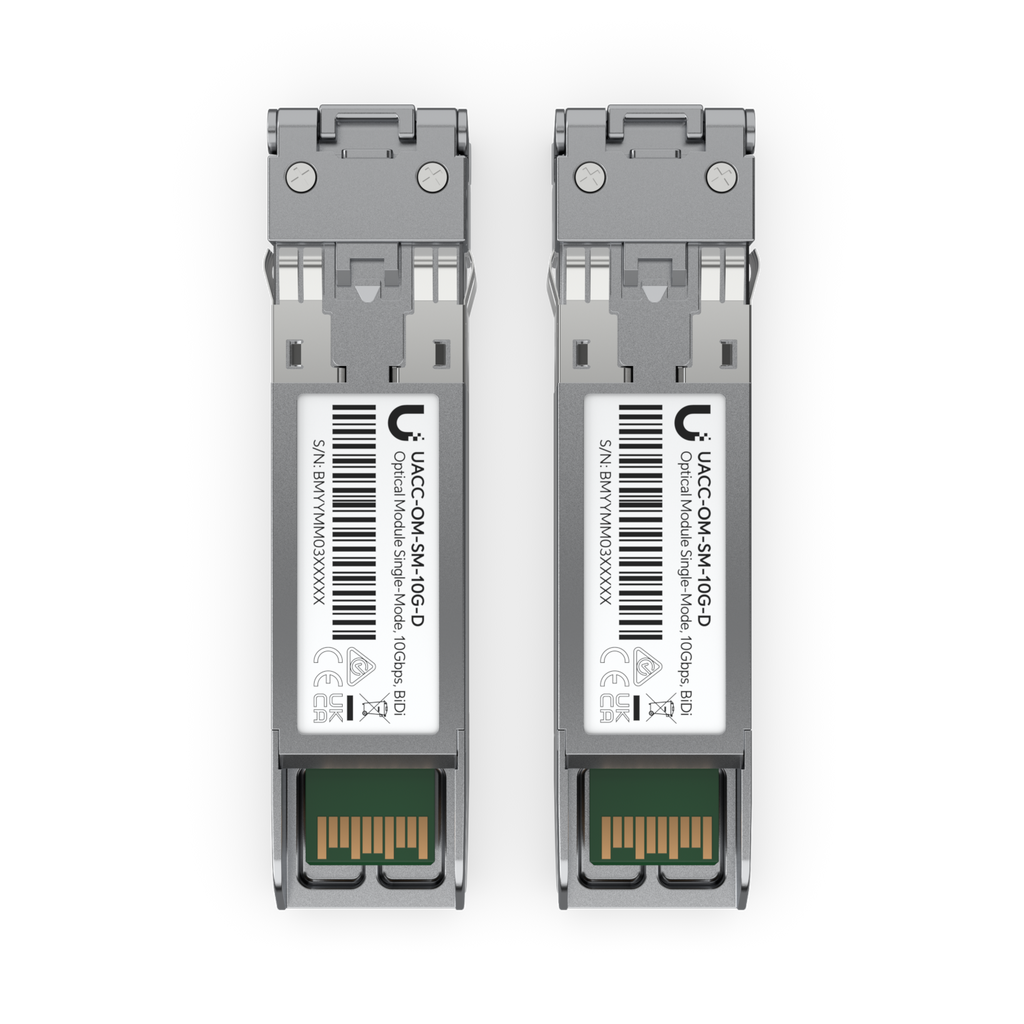

10G Single-Mode Optical Module
UACC-OM-SM-10G-D-2
SFP+ transceiver that supports 10G connections up to 10 km using single-mode fiber with a duplex LC UPC connector.
Max data rate: 10 Gbps
Compatible with SFP+ and SFP interfaces
Duplex LC UPC connector
Supports single-mode fiber connections up to 10 km*
*Fiber cable is not included.
10G Single-Mode Optical Module
UACC-OM-SM-10G-D-2
SFP+ transceiver that supports 10G connections up to 10 km using single-mode fiber with a duplex LC UPC connector.
Max data rate: 10 Gbps
Compatible with SFP+ and SFP interfaces
Duplex LC UPC connector
Supports single-mode fiber connections up to 10 km*
*Fiber cable is not included.
UACC-OM-SM-10G-D-2 Specifications | |
---|---|
Product Type | 10G Single-Mode Optical Module |
Pack Quantity | 2 units |
Application | 10G SFP+ fiber uplinks over single-mode fiber |
Form Factor | SFP+ |
Connector Type | Duplex LC UPC |
TX Wavelength | 1310 nm (Blue latch) |
RX Wavelength | 1310 nm (Blue latch) |
Supported Media | Single-mode fiber |
Max Cable Distance | 10 km (6.2 miles) |
Data Rate | 10 Gbps |
Max Power Consumption | 1W |
Operating Temperature | 0 to 70°C (32 to 158°F) |
Laser Safety | Class 1 Laser Product (IEC/EN 60825-1:2014) |
NDAA Compliant | ✓ |
