Description
Overview

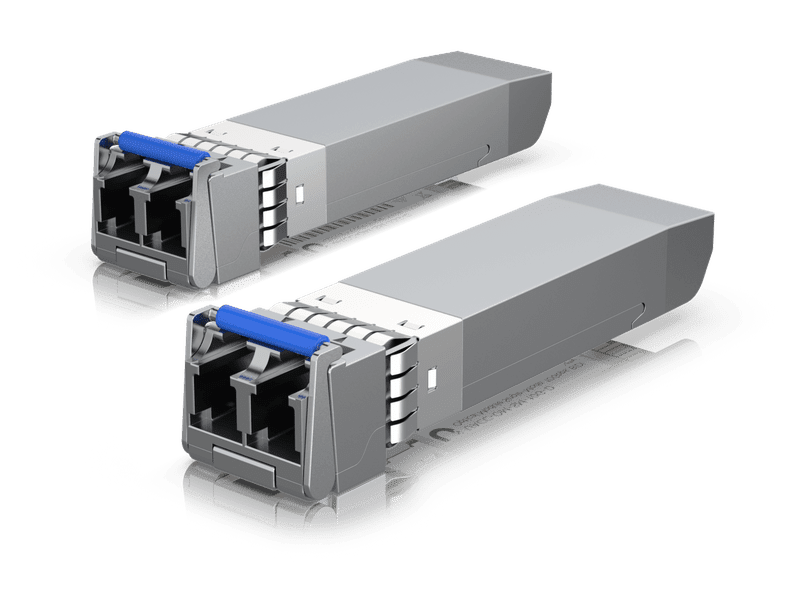

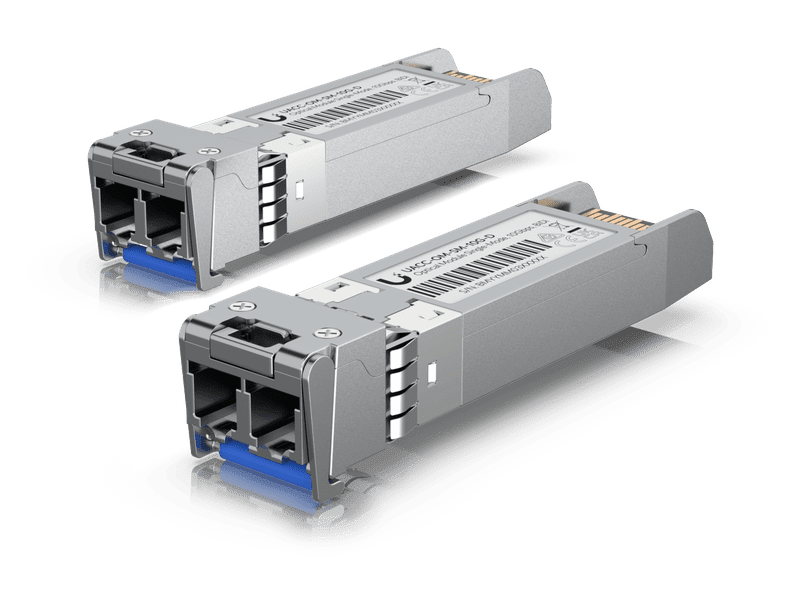

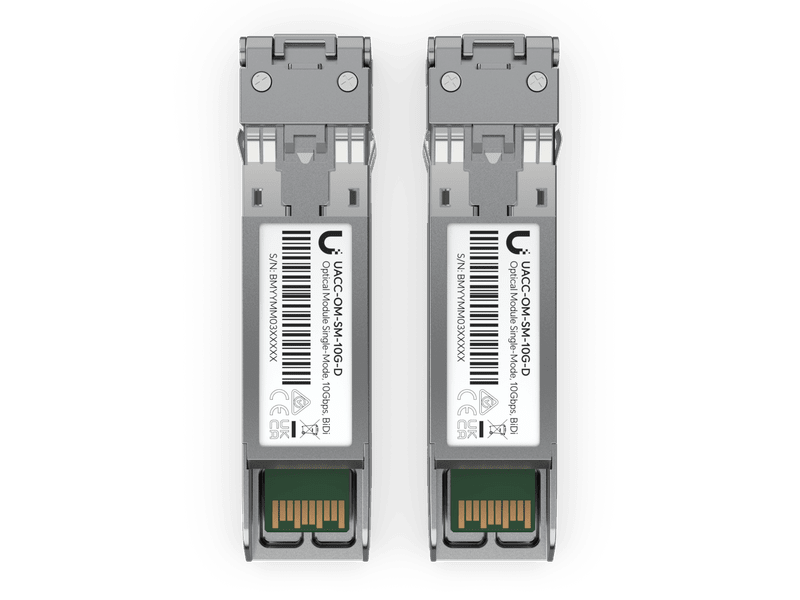

10G Single-Mode Optical Module
UACC-OM-SM-10G-D-2
SFP+ transceiver that supports 10G connections up to 10 km using single-mode fiber with a duplex LC UPC connector.
Max data rate: 10 Gbps
Compatible with SFP+ and SFP interfaces
Duplex LC UPC connector
Supports single-mode fiber connections up to 10 km*
*Fiber cable is not included.
10G Single-Mode Optical Module
UACC-OM-SM-10G-D-2
SFP+ transceiver that supports 10G connections up to 10 km using single-mode fiber with a duplex LC UPC connector.
Max data rate: 10 Gbps
Compatible with SFP+ and SFP interfaces
Duplex LC UPC connector
Supports single-mode fiber connections up to 10 km*
*Fiber cable is not included.
| UACC-OM-SM-10G-D-2 Specifications | |
|---|---|
| Product Type | 10G Single-Mode Optical Module |
| Pack Quantity | 2 units |
| Application | 10G SFP+ fiber uplinks over single-mode fiber |
| Form Factor | SFP+ |
| Connector Type | Duplex LC UPC |
| TX Wavelength | 1310 nm (Blue latch) |
| RX Wavelength | 1310 nm (Blue latch) |
| Supported Media | Single-mode fiber |
| Max Cable Distance | 10 km (6.2 miles) |
| Data Rate | 10 Gbps |
| Max Power Consumption | 1W |
| Operating Temperature | 0 to 70°C (32 to 158°F) |
| Laser Safety | Class 1 Laser Product (IEC/EN 60825-1:2014) |
| NDAA Compliant | ✓ |
