Description
Overview

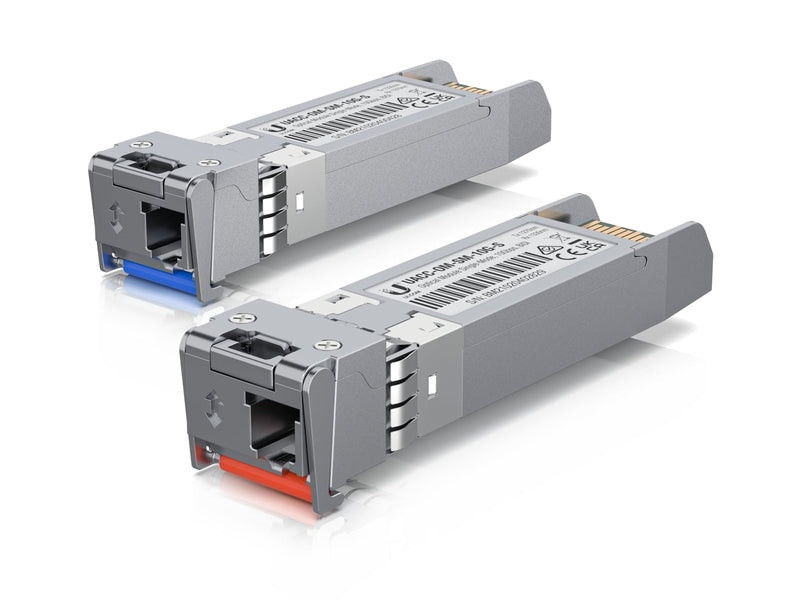

10G Bidirectional Single-Mode Optical Module
UACC-OM-SM-10G-S-20
SFP+ transceiver that supports 10G connections up to 10 km using single-mode fiber with a simplex LC UPC connector.
Max data rate: 10 Gbps
Compatible with SFP+ and SFP interfaces
Simplex LC UPC connector
Supports single-mode fiber connections up to 10 km*
*Fiber cable is not included.
10G Bidirectional Single-Mode Optical Module
UACC-OM-SM-10G-S-20
SFP+ transceiver that supports 10G connections up to 10 km using single-mode fiber with a simplex LC UPC connector.
Max data rate: 10 Gbps
Compatible with SFP+ and SFP interfaces
Simplex LC UPC connector
Supports single-mode fiber connections up to 10 km*
*Fiber cable is not included.
| UACC-OM-SM-10G-S-20 Specifications | |
|---|---|
| Product Type | 10G Bidirectional Single-Mode Optical Module |
| Pack Quantity | 20 modules |
| Connector Type | Simplex LC UPC |
| Supported Media | Single-Mode Fiber (BiDi) |
| Max. Data Rate | 10 Gbps |
| Supported Distance | Up to 10 km (6.2 miles) |
| TX Wavelength | Blue latch: 1270 nm Red latch: 1330 nm |
| RX Wavelength | Blue latch: 1330 nm Red latch: 1270 nm |
| Max. Power Consumption | 1W |
| Operating Temperature | 0 to 70°C (32 to 158°F) |
| Laser Classification | Class 1 Laser Product (IEC/EN 60825-1:2014) |
| NDAA Compliant | ✓ |
| Installation Warning | Do not look into fiber ends or powered SFP modules |
