Overview

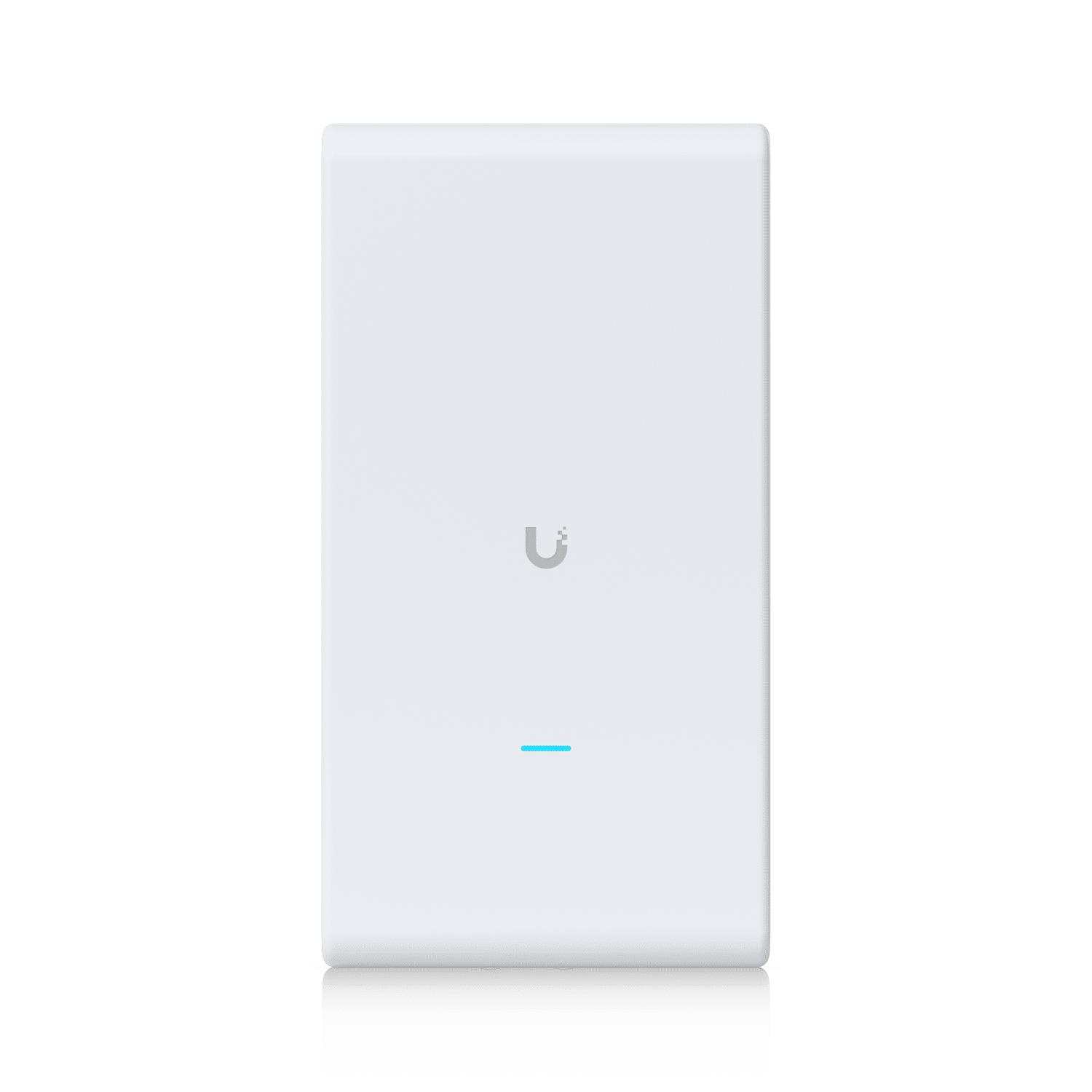

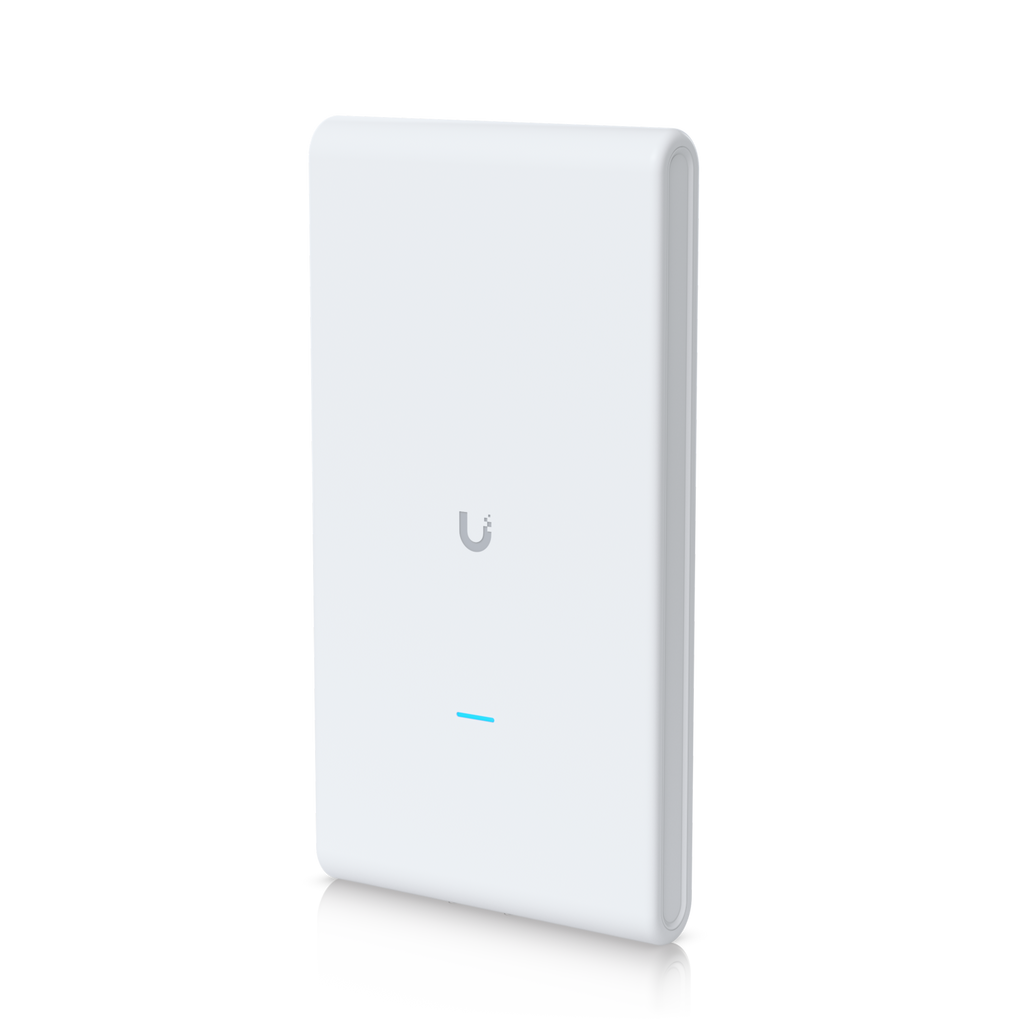

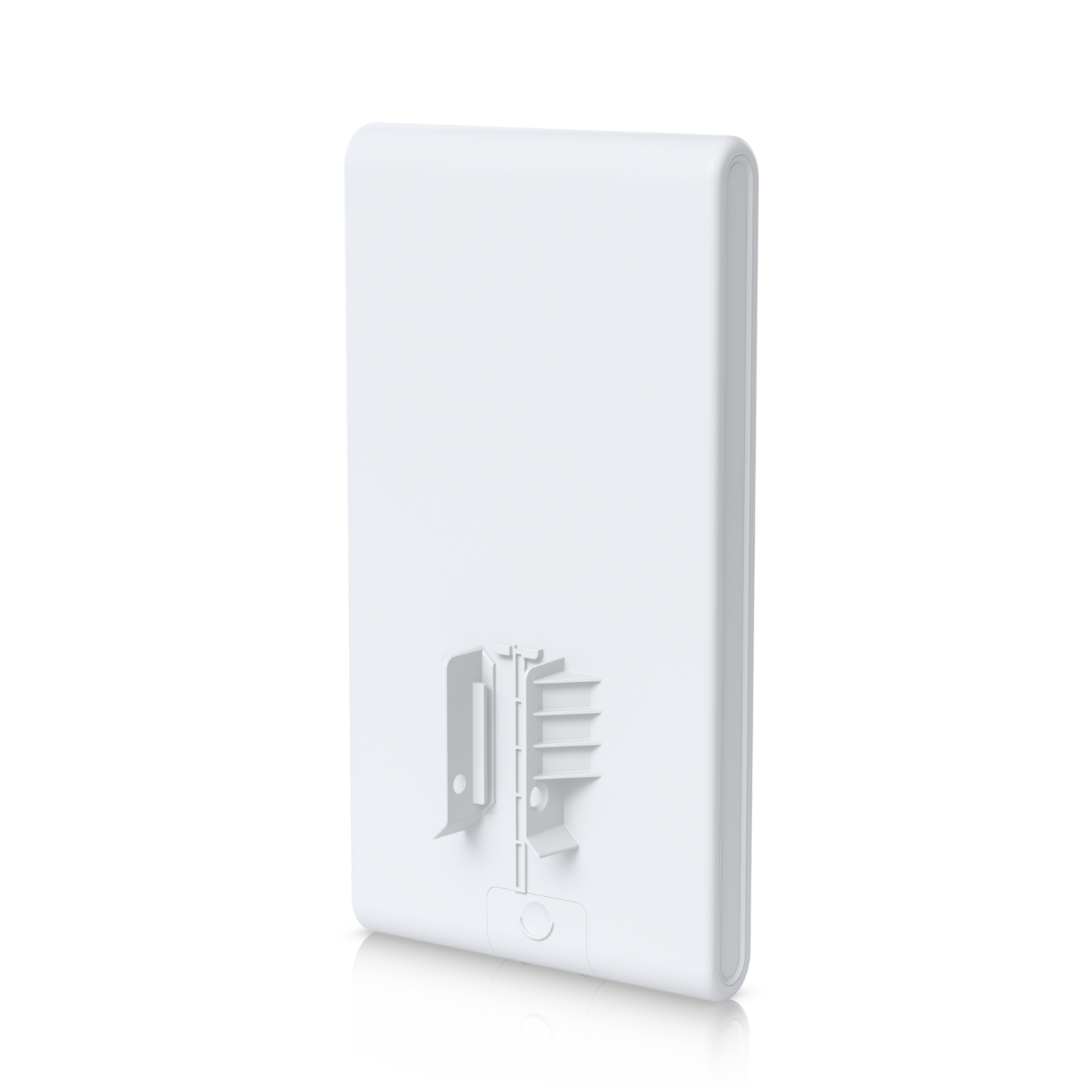

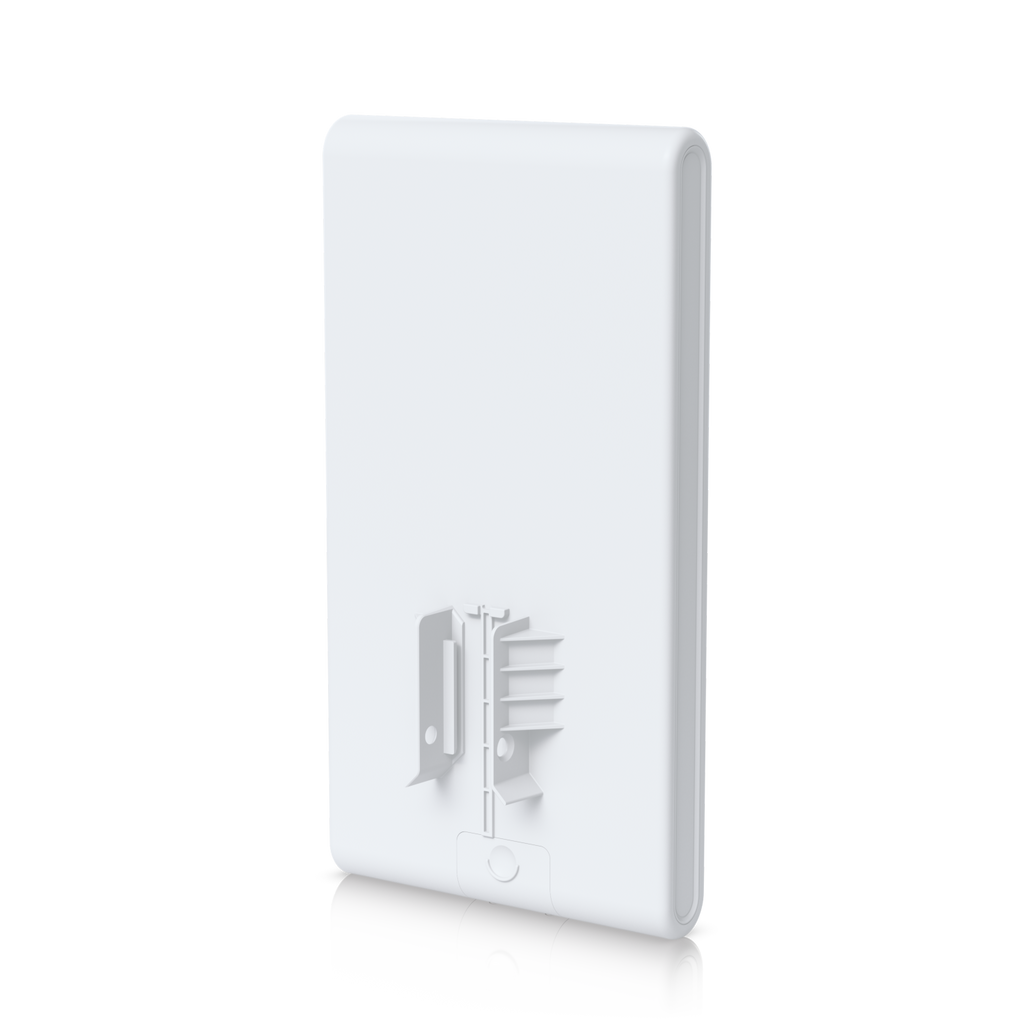

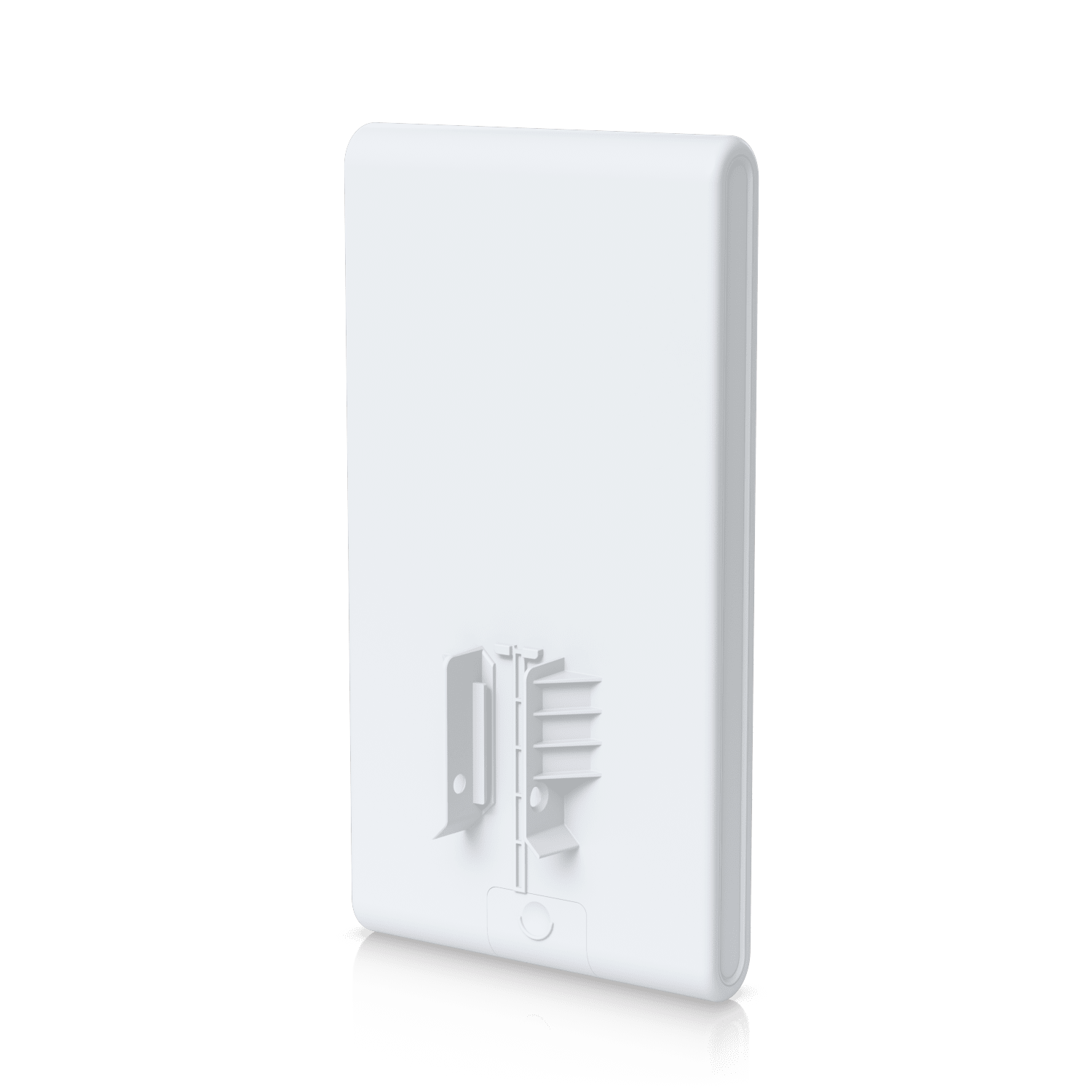

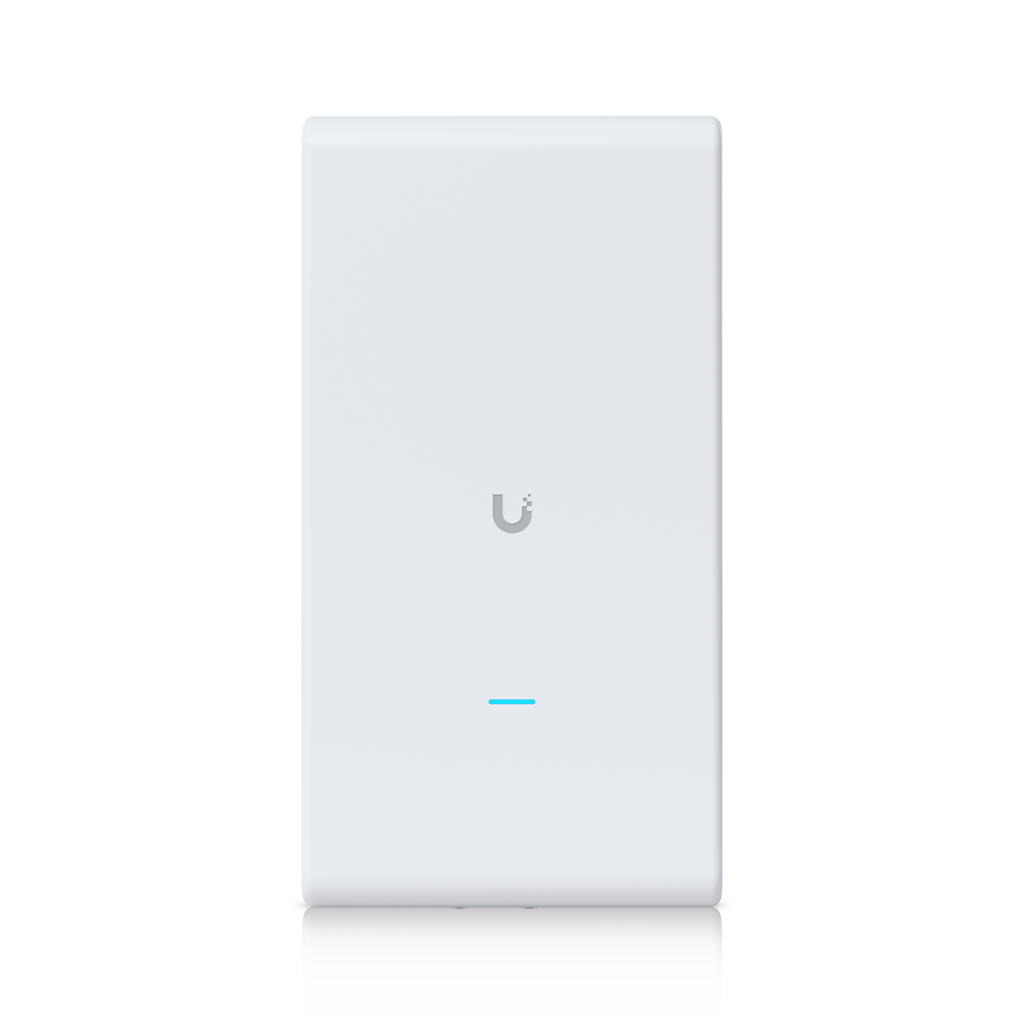

AC Mesh Pro
UAP-AC-M-PRO
Indoor/outdoor WiFi 5 AP with 6 spatial streams and extended signal range for maximum coverage.
Note. PoE power adapter included with single unit purchase.
AC Mesh Pro
UAP-AC-M-PRO
Indoor/outdoor WiFi 5 AP with 6 spatial streams and extended signal range for maximum coverage.
Note. PoE power adapter included with single unit purchase.
| UAP-AC-M-PRO Specifications | |
|---|---|
| Product Type | Dual-band Outdoor Mesh Access Point |
| Wi-Fi Standard | 802.11ac Wave 1 (WiFi 5) |
| Spatial Streams | 6 total (3×3 MIMO per band) |
| Coverage Area | 185 m² (2,000 ft²) |
| Max Client Capacity | 250+ clients |
| Wireless Performance | |
| 2.4 GHz Max Data Rate | 450 Mbps (HT40) |
| 5 GHz Max Data Rate | 1300 Mbps (VHT80) |
| Channel Bandwidths | HT 20/40, VHT 20/40/80 MHz |
| Max TX Power | 22 dBm (both bands) |
| Antenna Gain | 8 dBi (2.4 GHz and 5 GHz) |
| Max BSSIDs | 8 per radio |
| Interfaces | |

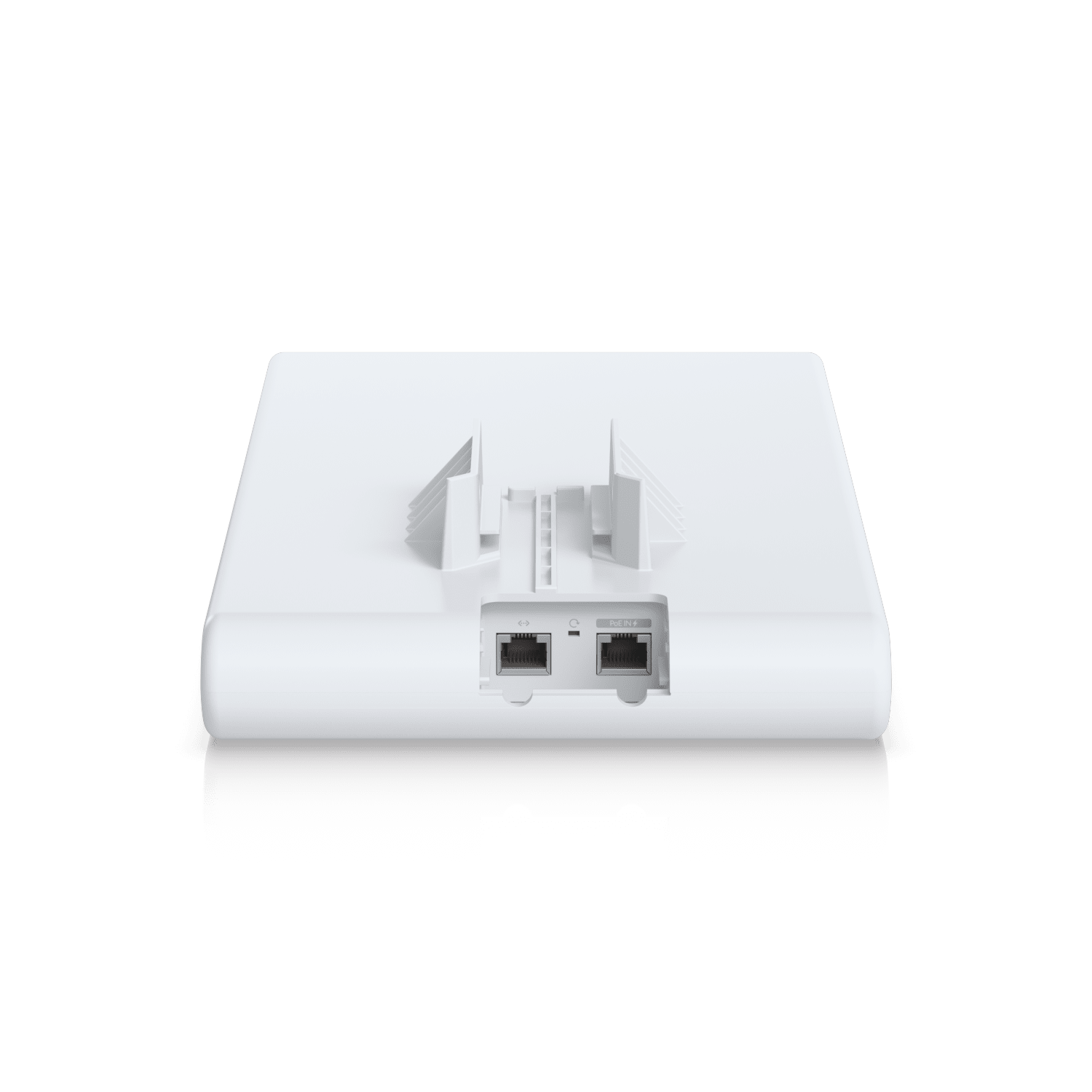

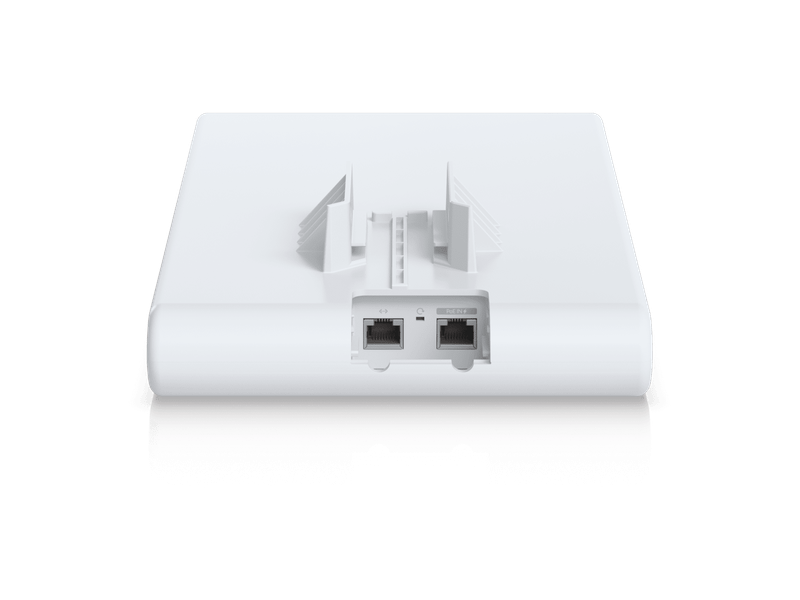

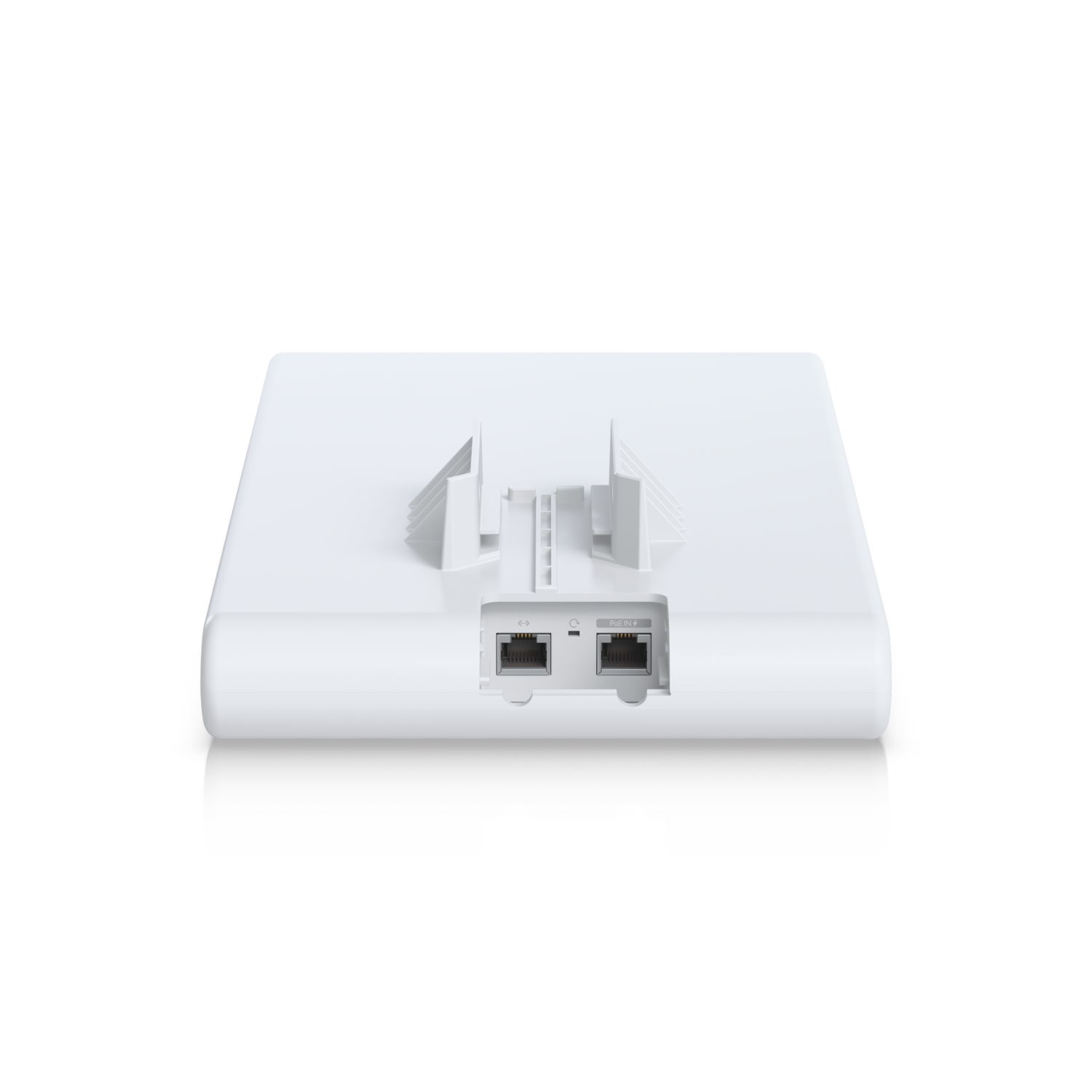

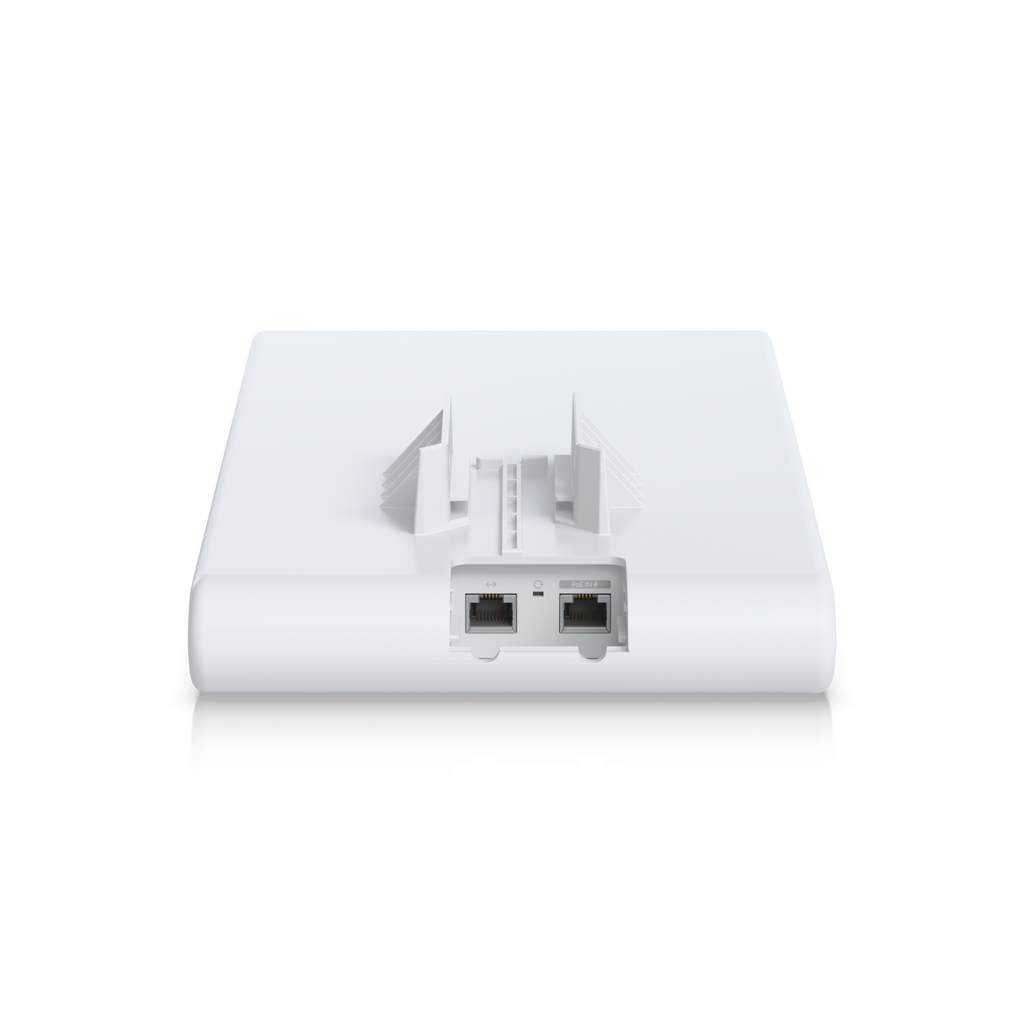

| Ethernet Ports | (2) Gigabit RJ45 |
| Management | Ethernet |
| Power | |
| Power Method | 802.3af PoE |
| Voltage Range | 44–57V DC |
| Max Power Consumption | 9W |
| PoE Adapter Included | ✓ |
| Mechanical | |
| Dimensions | 343.2 × 181.2 × 60.2 mm (13.5 × 7.1 × 2.4") |
| Weight | 633 g (1.4 lb) |

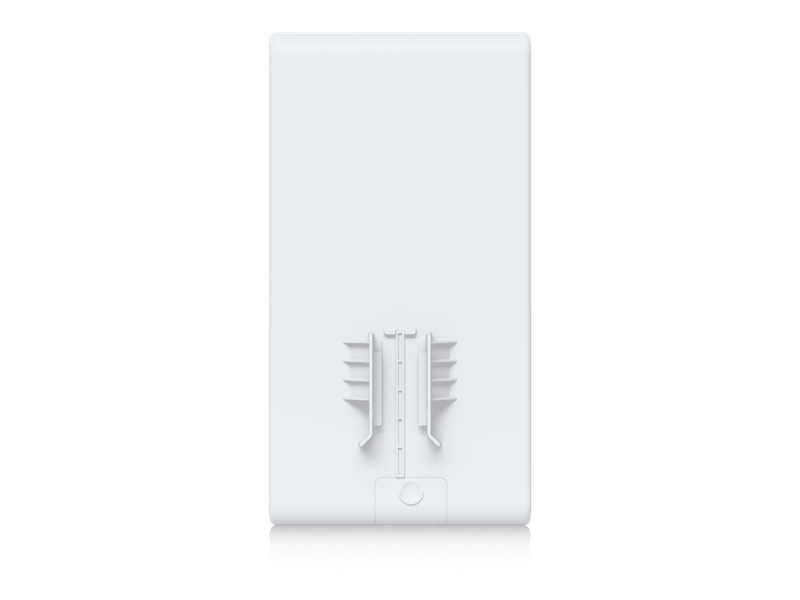

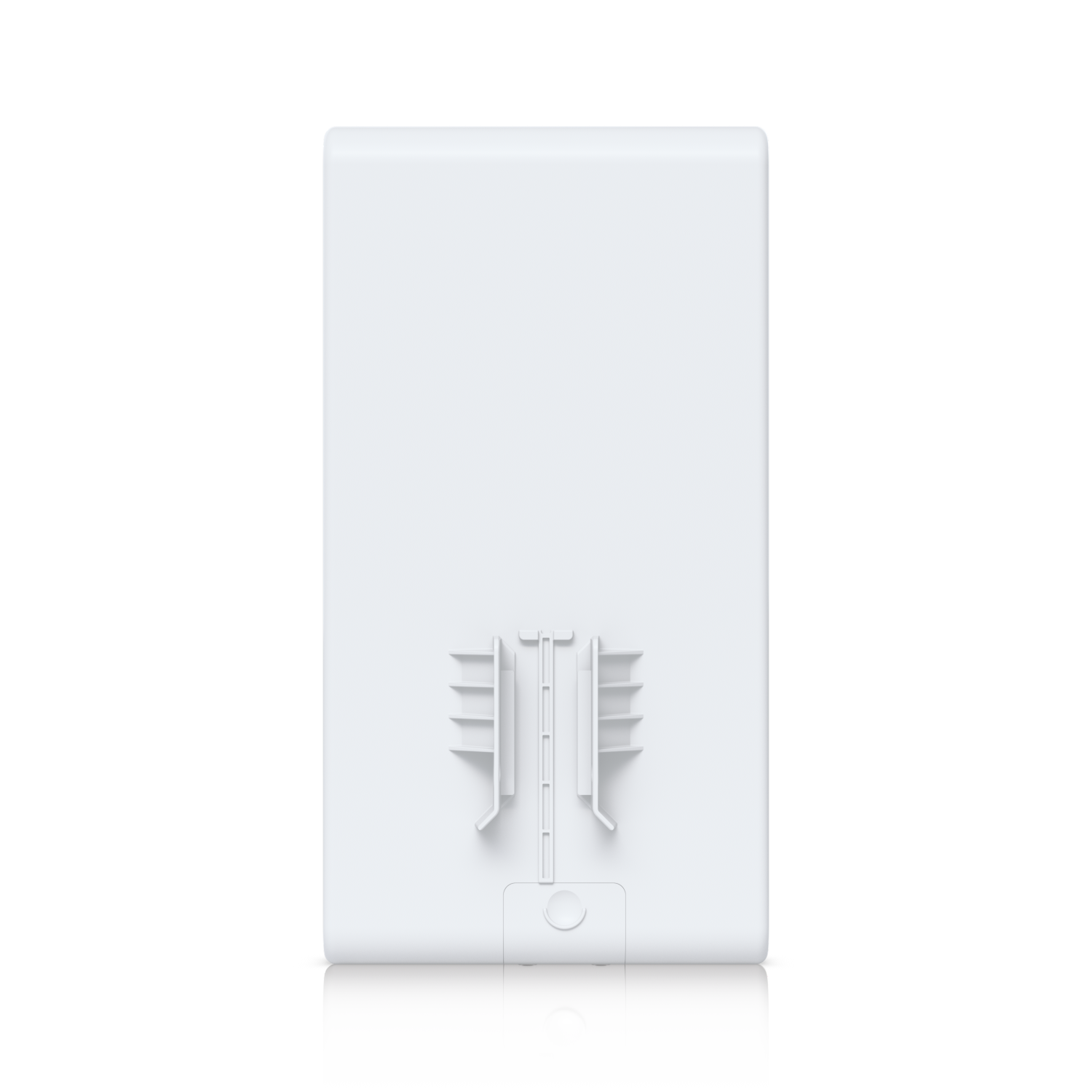

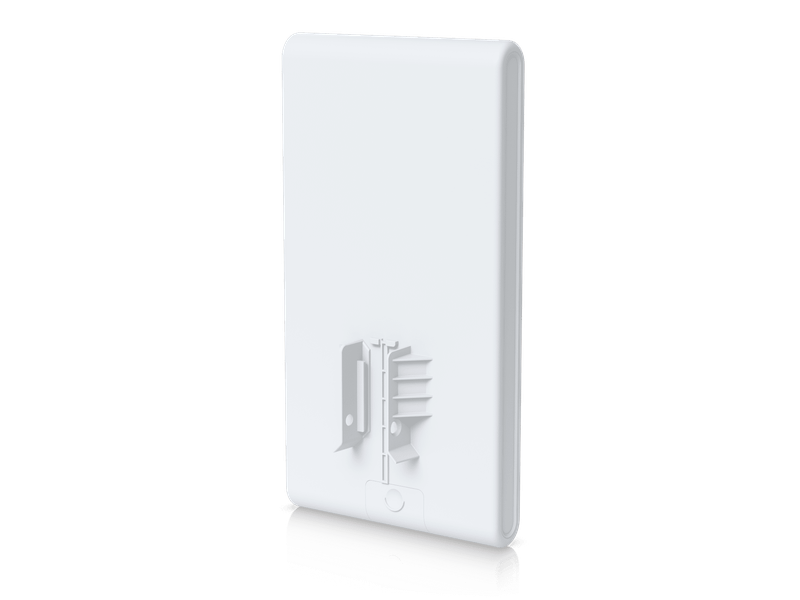

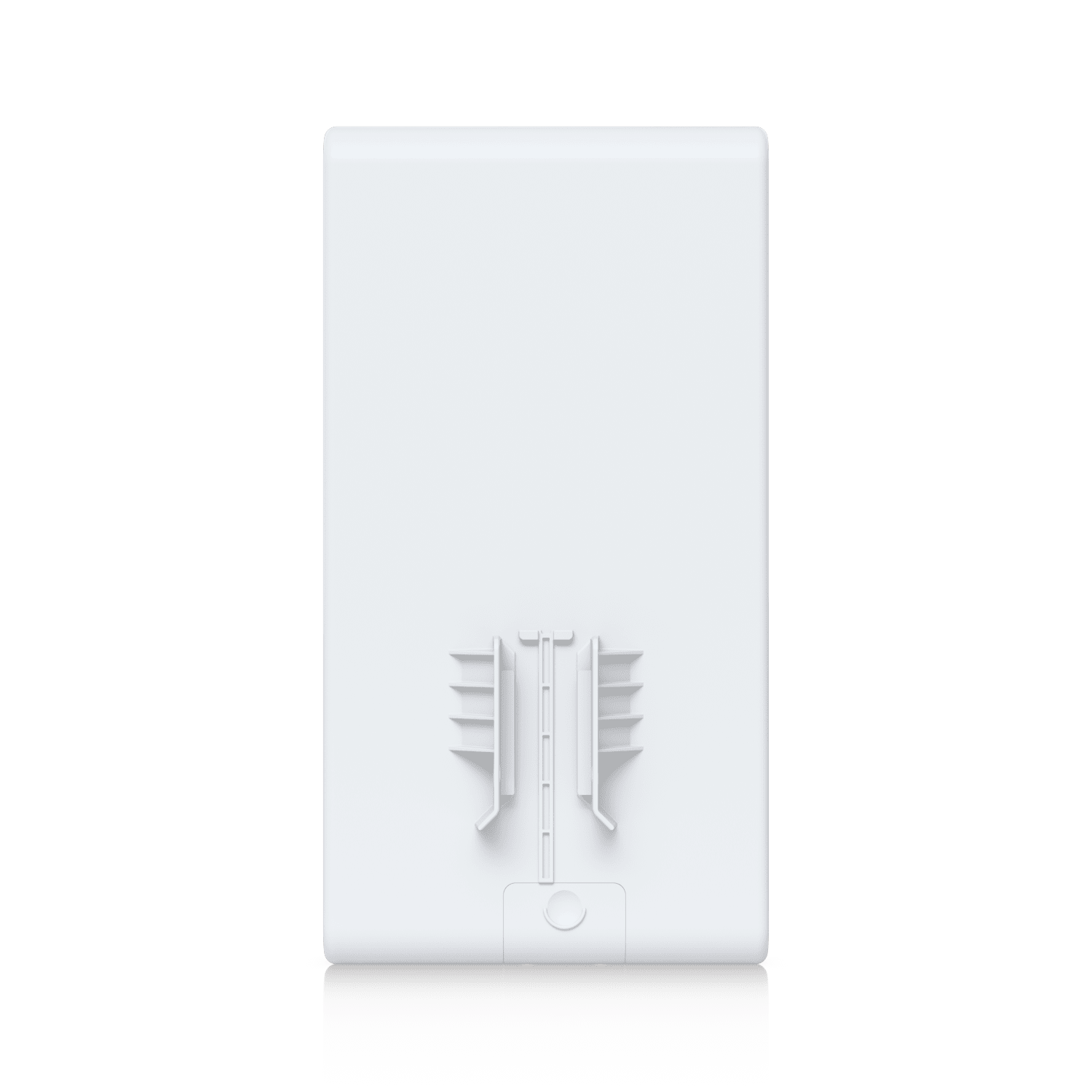

| Mounting Options | Wall or pole (mounts included) |
| Pole Diameter Range | 25–63.5 mm (1–2.5") |
| Enclosure Material | Polycarbonate |
| Weatherproofing | IPX4 |
| Environmental | |
| Operating Temperature | −40 to 70°C (−40 to 158°F) |
| Operating Humidity | 5 to 95% noncondensing |
| Software Features | |
| Wireless Meshing | ✓ |
| Band Steering | ✓ |
| Fast Roaming (802.11r) | ✓ |
| BSS Transition (802.11v) | ✓ |
| Radio Resource Management (802.11k) | ✓ |
| Captive Portal & Hotspot | ✓ (voucher, password, external server) |
| VLAN Assignment via RADIUS | ✓ |
| Compliance | |
| Certifications | CE, FCC, IC, Anatel |
| NDAA Compliant | ✓ |
