G2 Starter Kit Pro
UA-G2-SK-Pro
Starter kit that provides complete entry and exit control for a single door with two readers.
G2 Starter Kit Pro
UA-G2-SK-Pro
Starter kit that provides complete entry and exit control for a single door with two readers.
| UA-G2-SK-Pro Specifications | |
|---|---|

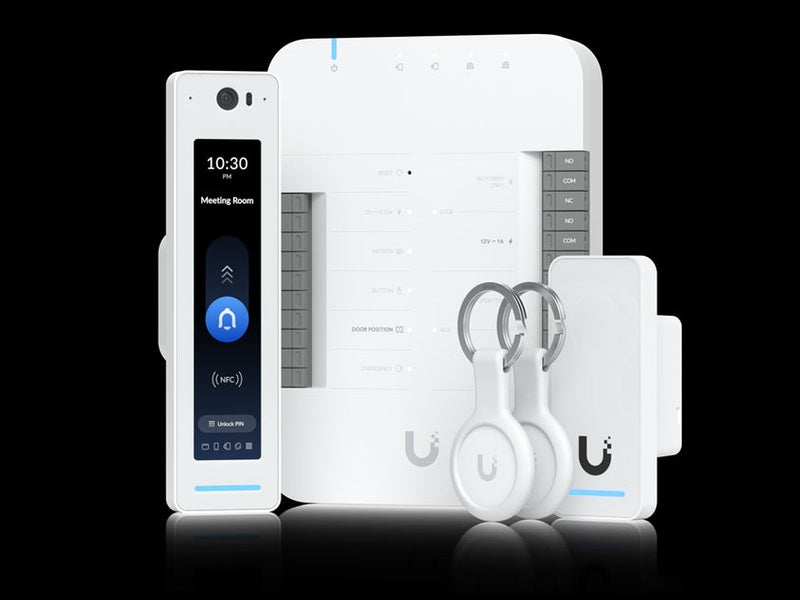

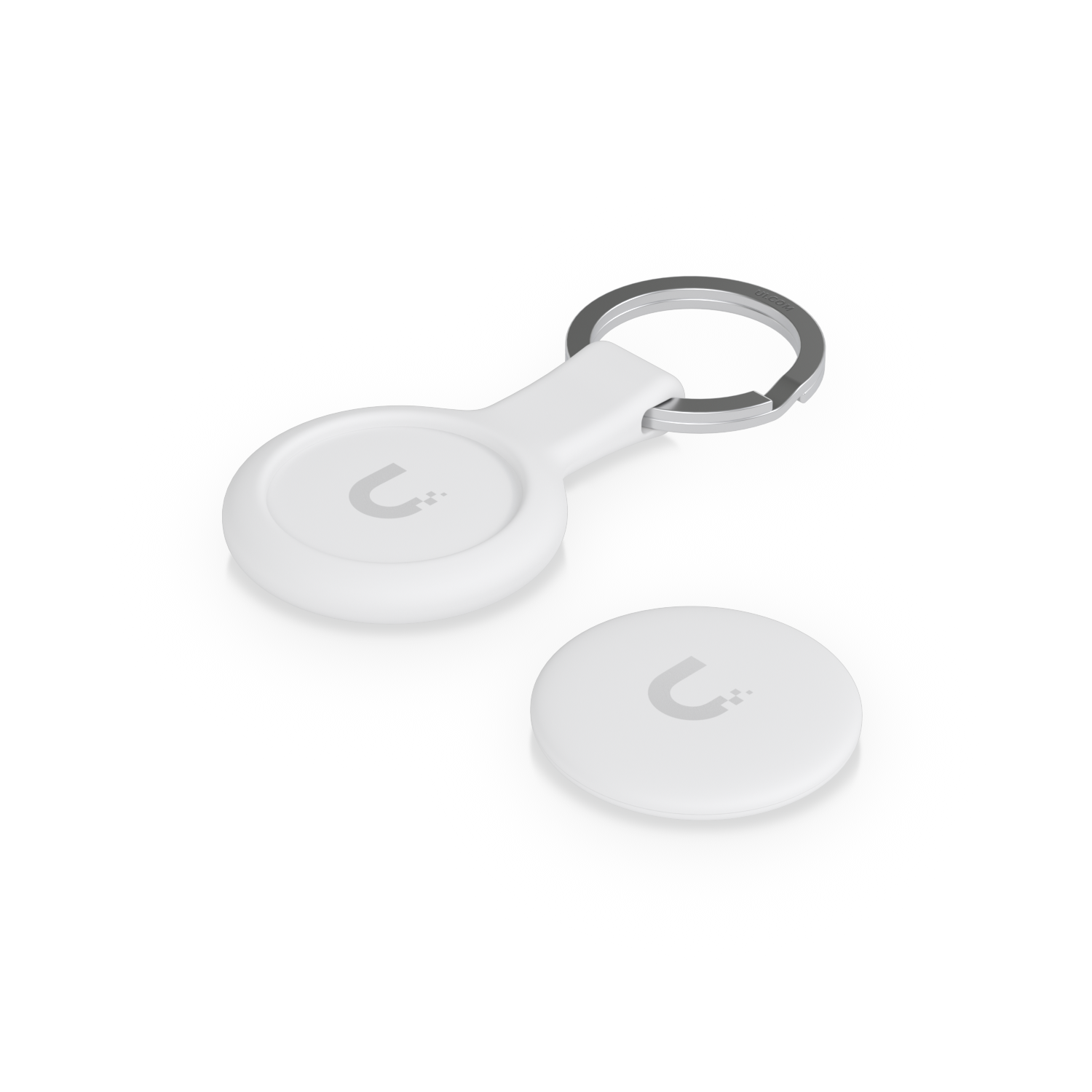

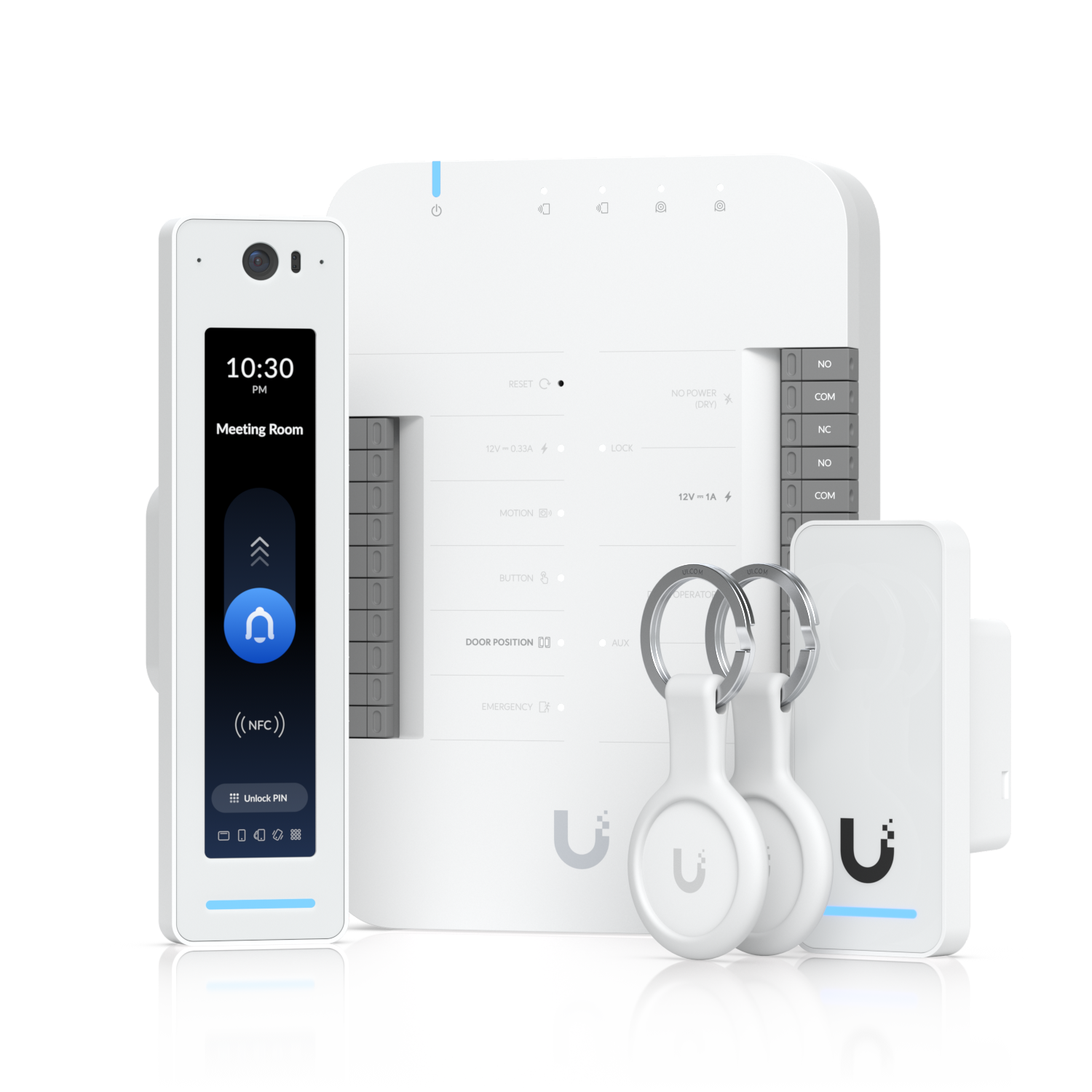

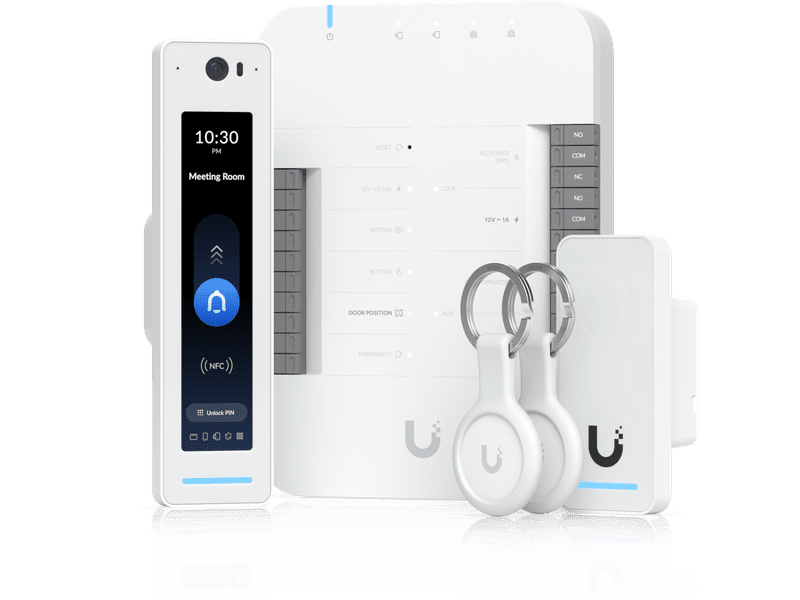

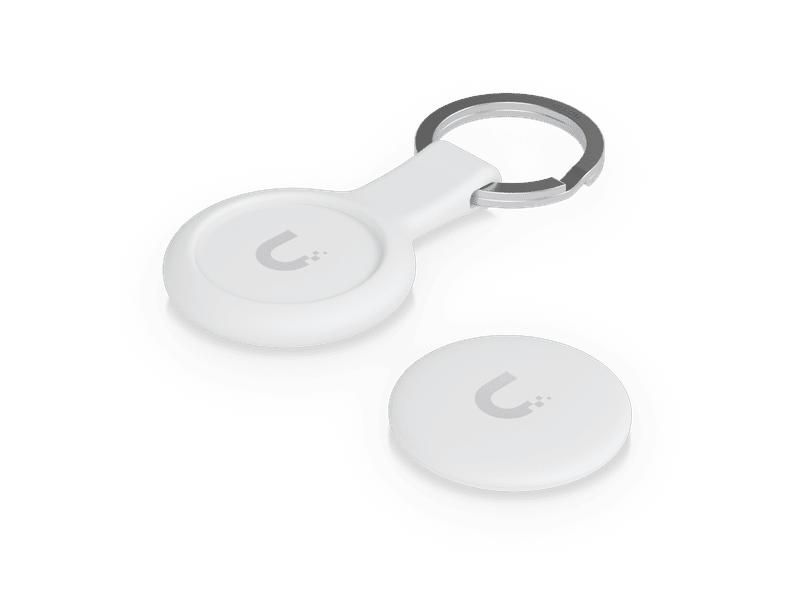

| Kit Contents | (1) UniFi Access Door Hub (1) G2 Reader Pro (1) G2 Reader (2) Pocket Keyfobs |
| Supported Doors | 1 |
| Mounting | DIN-rail (included) |

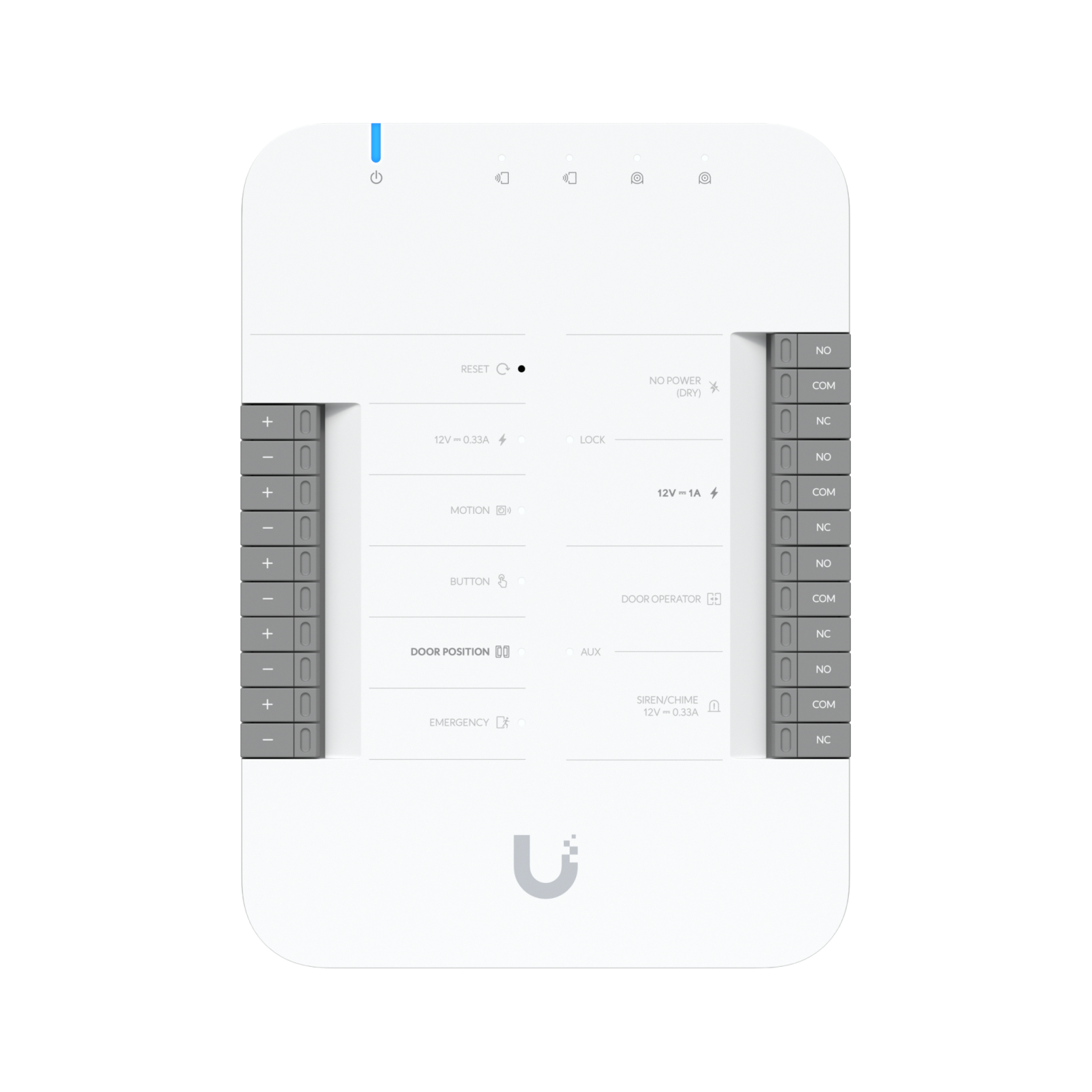

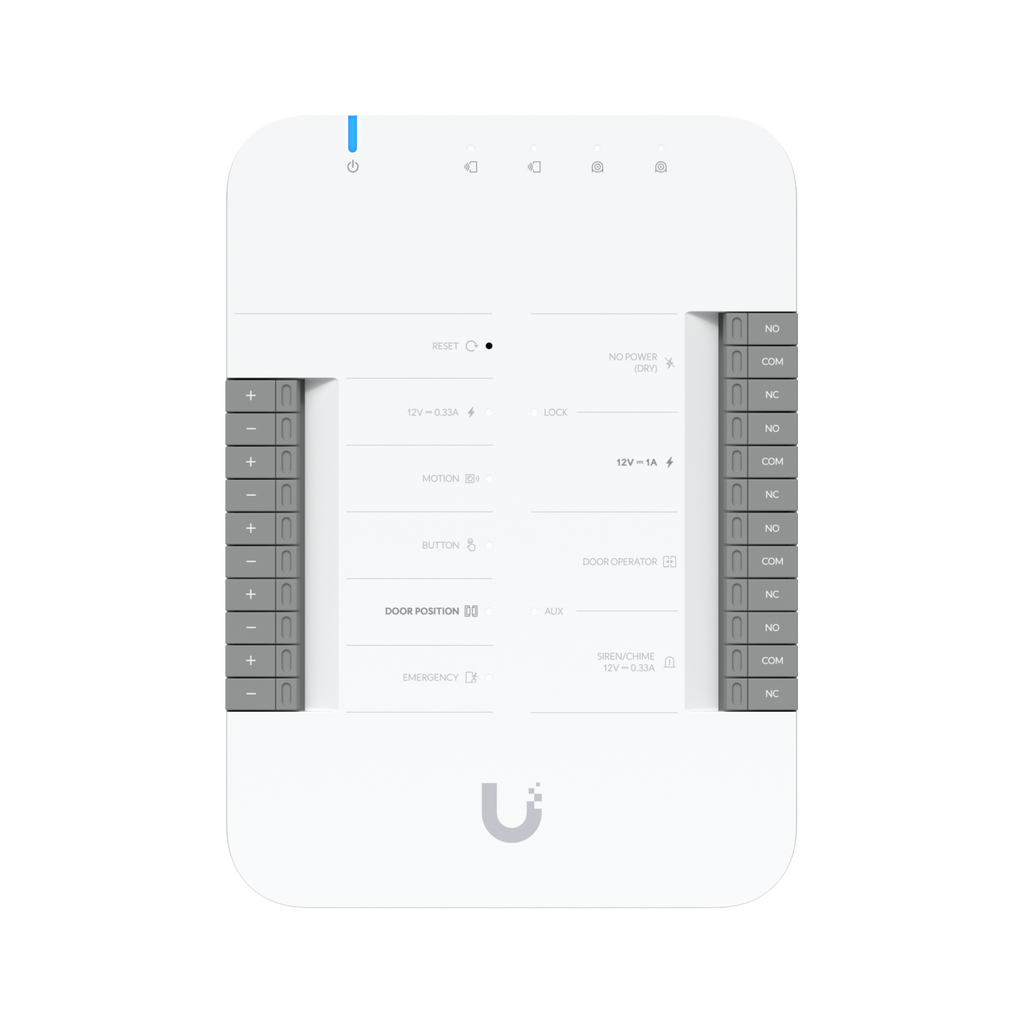

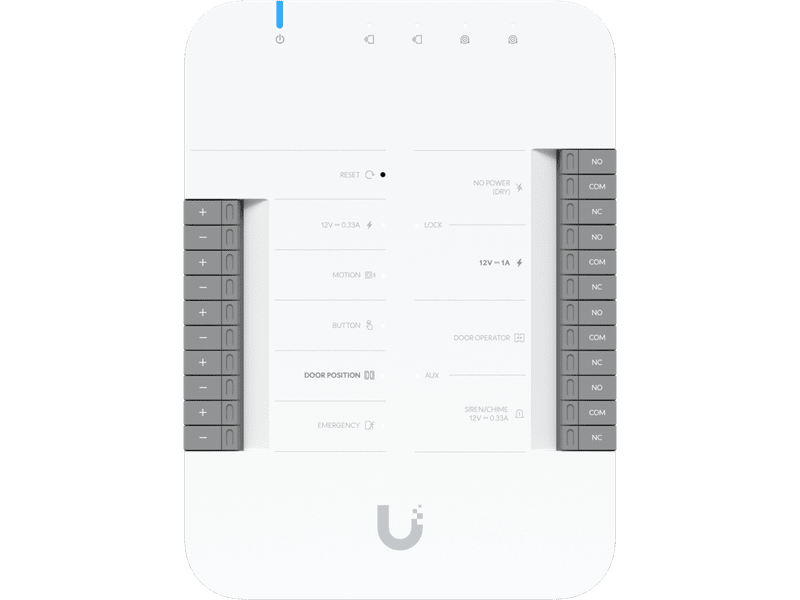

| Door Hub Specifications | |
| Dimensions | 174.9 × 126 × 32.9 mm (6.9 × 5 × 1.3") |
| Weight | 363 g (12.8 oz) |
| Enclosure Material | Polycarbonate |
| Networking Interface | (5) 10/100/1000 Base-T |
| PoE Interface | (1) PoE++ input, 50V DC, 1A (4) PoE outputs, 50V DC, 30W per port (Max 45W aggregated) |
| Max Power Consumption | 30W (without PoE output), 50W (with PoE output) |
| Digital Inputs | Request to exit, request to enter, remote release, door position sensor |
| Dry Output Relays | Lock: 30V DC, 1A; Aux: 30V DC, 1A |
| Powered Output Relays | Lock: 12V DC, 1A; Aux: 12V DC, 0.33A |
| Button | Factory-reset |
| LED Indicators | System: white/blue; Output relays: white |

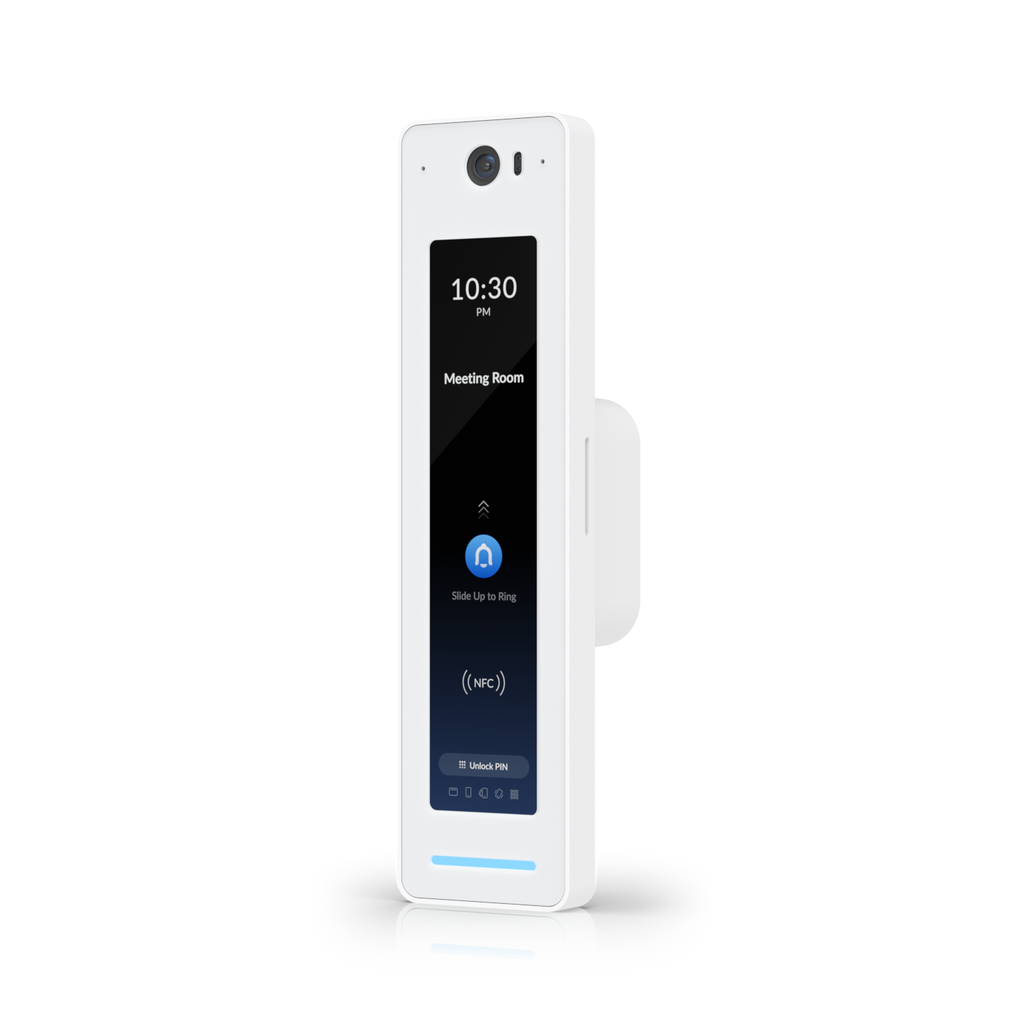

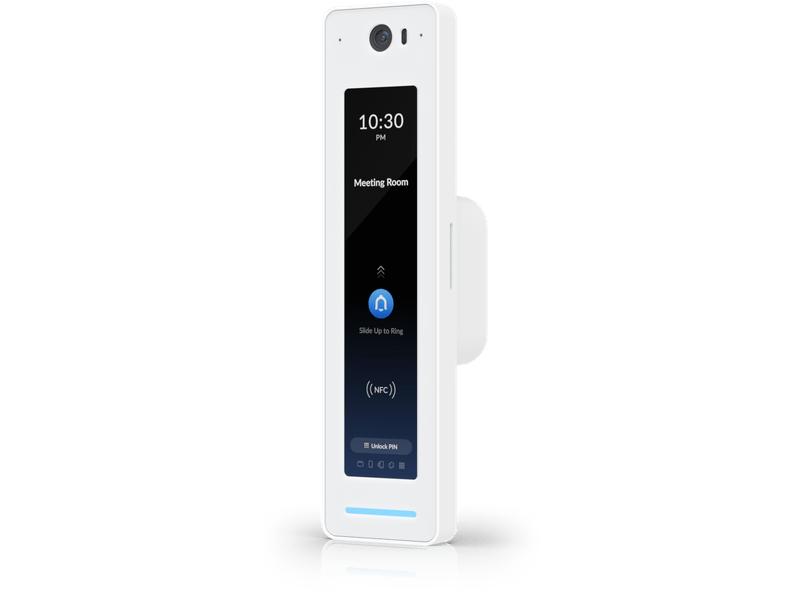

| G2 Reader Pro Specifications | |
| Dimensions | 160 × 40.4 × 40.55 mm (6.3 × 1.59 × 1.6") |
| Weight | 136 g (4.8 oz) |
| Enclosure Material | Polycarbonate, glass |
| Mount Material | Aluminum alloy |
| Networking Interface | (1) GbE RJ45 port |
| Connectivity | BLE 4.2, NFC |
| Power Method | PoE |
| Max Power Consumption | 6W |
| Camera | 12MP (4000 × 3000), 30 FPS |
| Microphone / Speaker | ✓ / 4Ω, 1.5W |
| Sensor | Proximity |
| LEDs | R/G/B/W |
| Button | Factory-reset |
| NFC Frequency | 13.56 MHz |
| NFC Standards | ISO 14443A/B, 15693 MIFARE Classic, DESFire, Ultralight, Plus NFC Tag Types 1–5 |
| NFC Read Range | < 30 mm |
| Environmental & Compliance | |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Operating Humidity | 5 to 95% noncondensing |
| UL 294 Level | Destructive Attack: Level I Line Security: Level I Endurance: Level I Standby Power: Level I |
| CAN/ULC-60839-11-1 Grade | Grade I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| NDAA Compliant | ✓ |
