G2 Starter Kit
UA-G2-SK
A simple, all-in-one kit for UniFi Access, designed to manage a single door with one reader. Supports seamless setup for modern, secure access control.
G2 Starter Kit
UA-G2-SK
A simple, all-in-one kit for UniFi Access, designed to manage a single door with one reader. Supports seamless setup for modern, secure access control.
UniFi Door Access Kit Specifications | |
---|---|

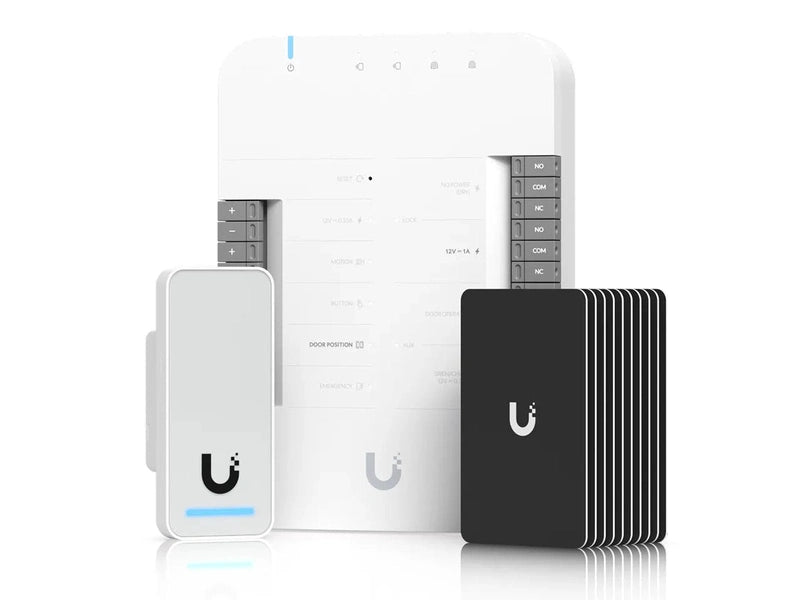

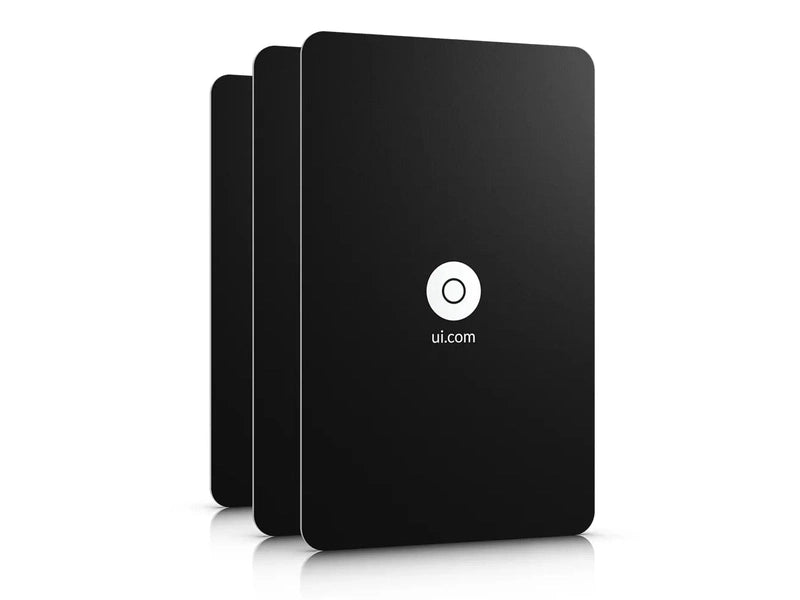

In the Box | (1) Door Hub (1) G2 Reader (10) Access Cards |

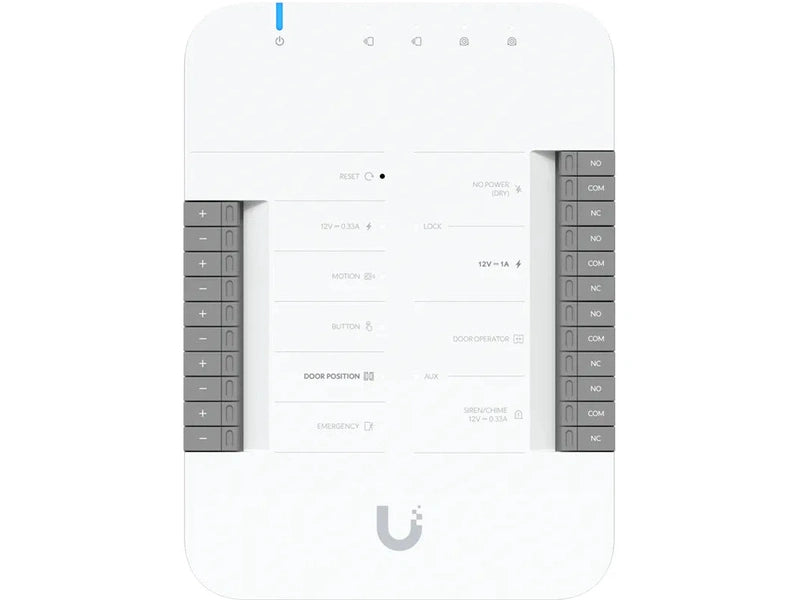

Door Hub | |
Dimensions | 174.9 × 126 × 32.9 mm (6.9 × 5 × 1.3") |
Supported Doors | 1 |
Input Terminals | (2) Door exit request, (1) Door position, (1) Emergency |
Power Method | PoE++ UL 294 Class 2 PSU UL 60950-1 / 62368-1 LPS/PS2 PSU |
UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
Weight | 363 g (12.8 oz) |
Enclosure Material | Polycarbonate |
Mounting | DIN-rail (Included) |
Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
Ambient Operating Humidity | 5 to 95% noncondensing |
Networking Interface | (5) 10/100/1000 Base-T |
PoE Interface | Input: (1) PoE++, 50V DC, 1A Output: (4) PoE+, 50V DC, 30W per port (Max 45W aggregated) |
Max. Power Consumption | 30W (Without PoE output) 50W (With PoE output) |
Digital Input | Request to exit, request to enter, remote release, door position sensor |
Dry Output Relay | Lock: 30V DC, 1A Aux: 30V DC, 1A |
Powered Output Relay | Lock: 12V DC, 1A Aux: 12V DC, 0.33A (×2) |
LEDs | B/W Learn More |
Button | (1) Factory-reset |
Recommended Max. Cable Length |
UA-Lock-Electric (400mA) 24 AWG: 25 m, 22 AWG: 42 m, 20 AWG: 66 m, 18 AWG: 100 m UA-Lock-Magnetic-540kg (500mA) 24 AWG: 20 m, 22 AWG: 32 m, 20 AWG: 51 m, 18 AWG: 80 m UA-Lock-Magnetic-270kg (800mA) 24 AWG: 12 m, 22 AWG: 20 m, 20 AWG: 30 m, 18 AWG: 46 m Other locks (1A) 24 AWG: 9 m, 22 AWG: 15 m, 20 AWG: 24 m, 18 AWG: 36 m |
PoE Cabling Requirements | Minimum Cat 5e; Patch cords ≥ 26 AWG, Horizontal/riser cable ≥ 24 AWG |
UL 294 Statement | Compliance with IEEE 802.3 (at/af) not verified; intended for NEC Article 725.121 Class 2/3 circuits |
CAN/ULC-60839-11-1 Grade | Grade 1 |
Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
Document Reference | UA-Hub-Door002, V01 |
Software Info | unifi.ui.com |

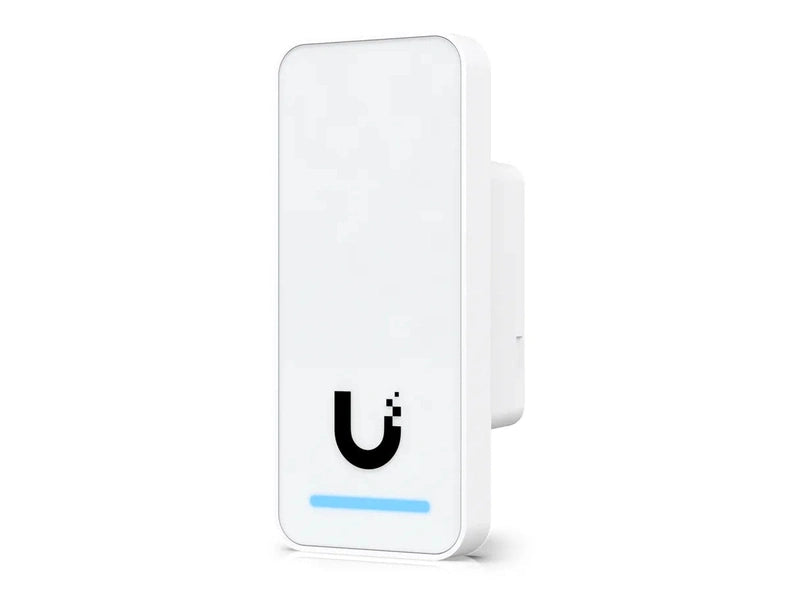

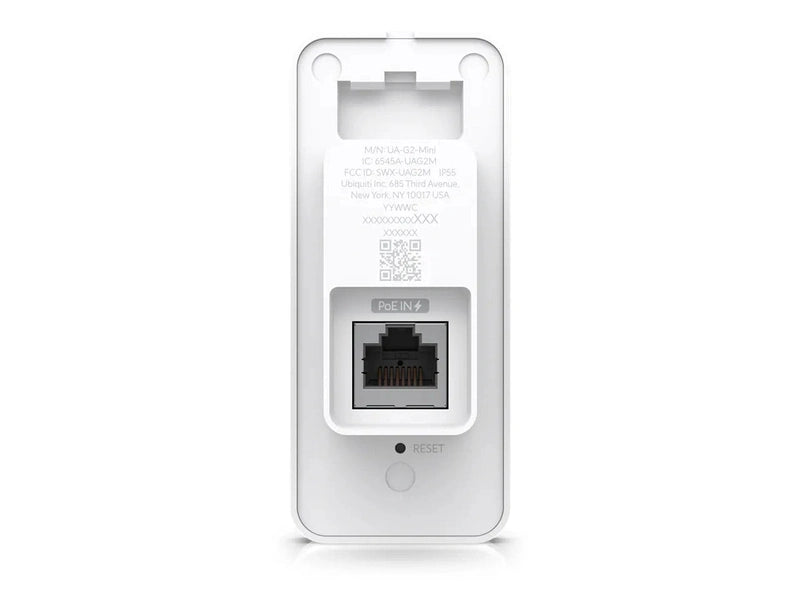

G2 Reader | |
Dimensions | 93 × 40 × 36.5 mm (3.7 × 1.6 × 1.4") |
Weight | 82 g (2.9 oz) |
Access Methods | NFC Card & Keyfob, Mobile Unlock, Handwave Exit |
Weatherproofing | IP55 |
Mounting | In-wall, gang box (Included); Junction box (Optional) |
Indoor/Outdoor Use | ✓ |
Networking Interface | (1) 10/100 MbE RJ45 |
Connectivity | BLE 4.1, NFC |
Power Method | PoE |
Max. Power Consumption | 5W |
Supported Voltage | 48V DC |
ESD/EMP Protection | Air: ±15kV, Contact: ±8kV |
Sensors | Proximity sensor |
Speaker | 0.7W |
LEDs | R/G/B/W Learn More |
Button | (1) Factory-reset |
NFC Read Range | < 30 mm (1.18") |
NFC Frequency | 13.56 MHz |
NFC Technology | ISO/IEC 14443A/B, 15693, 18092 (Ecma 340) MIFARE Classic / DESFire Sony FeliCa™ |
