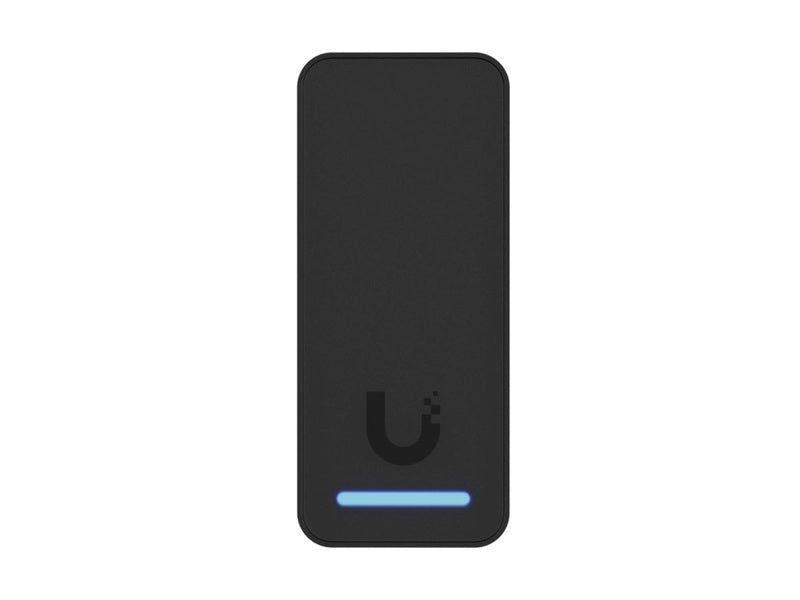

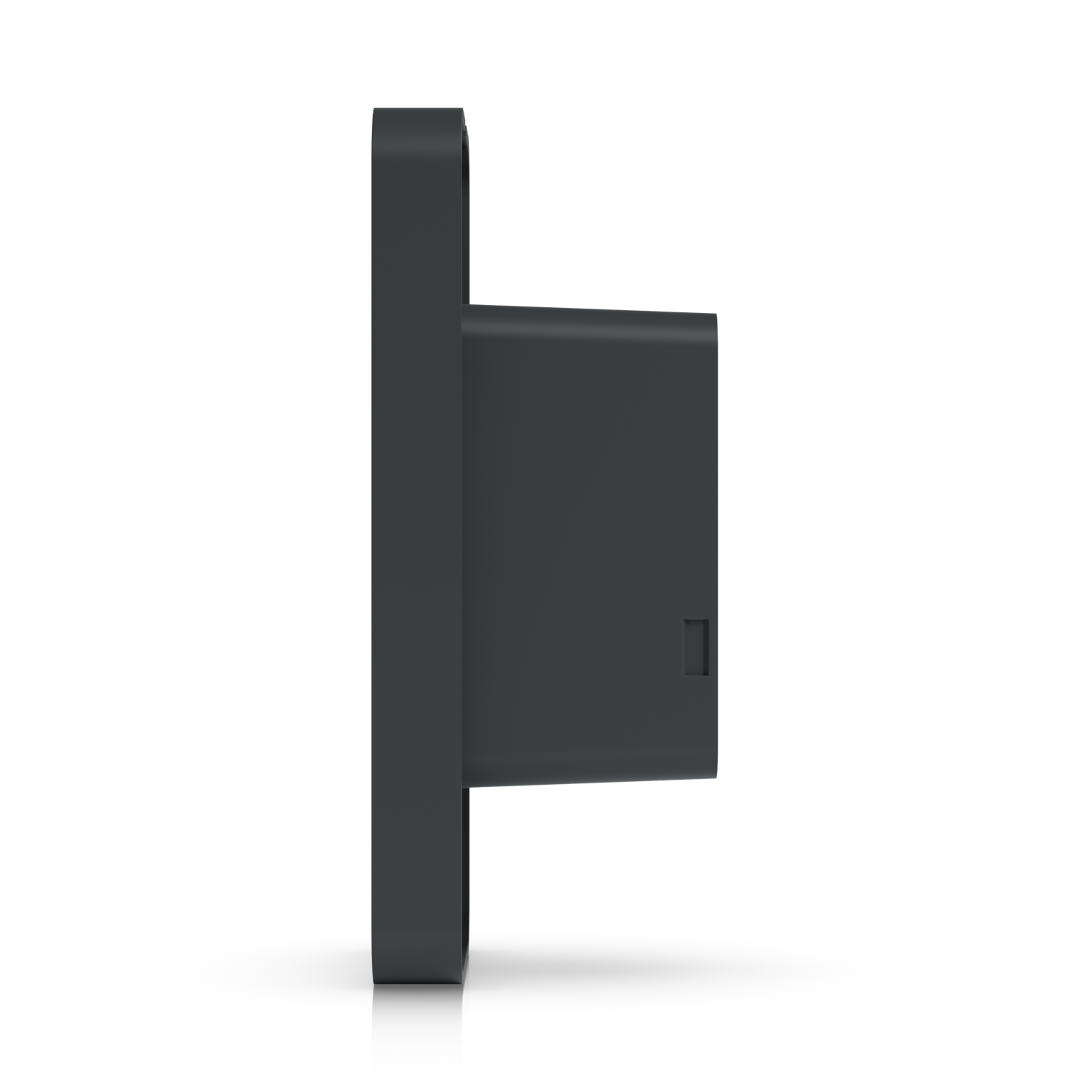

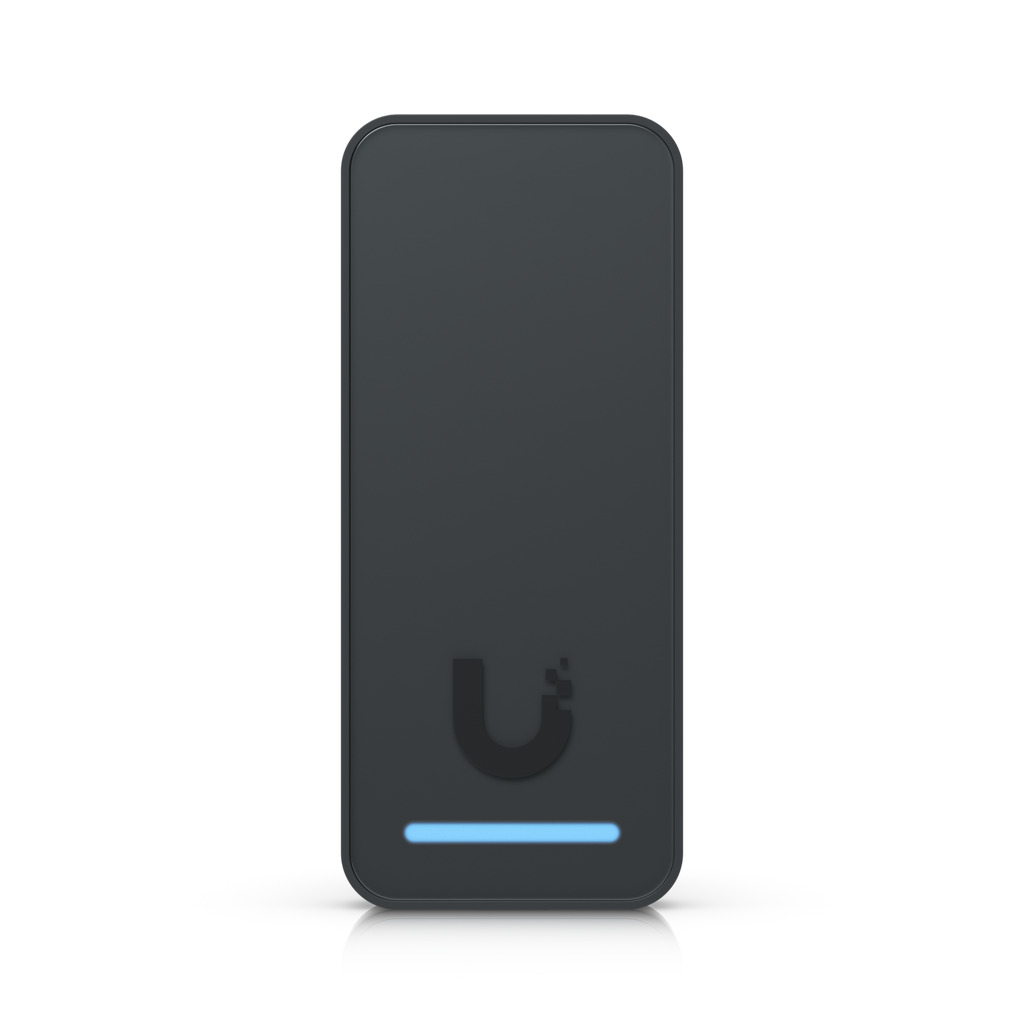

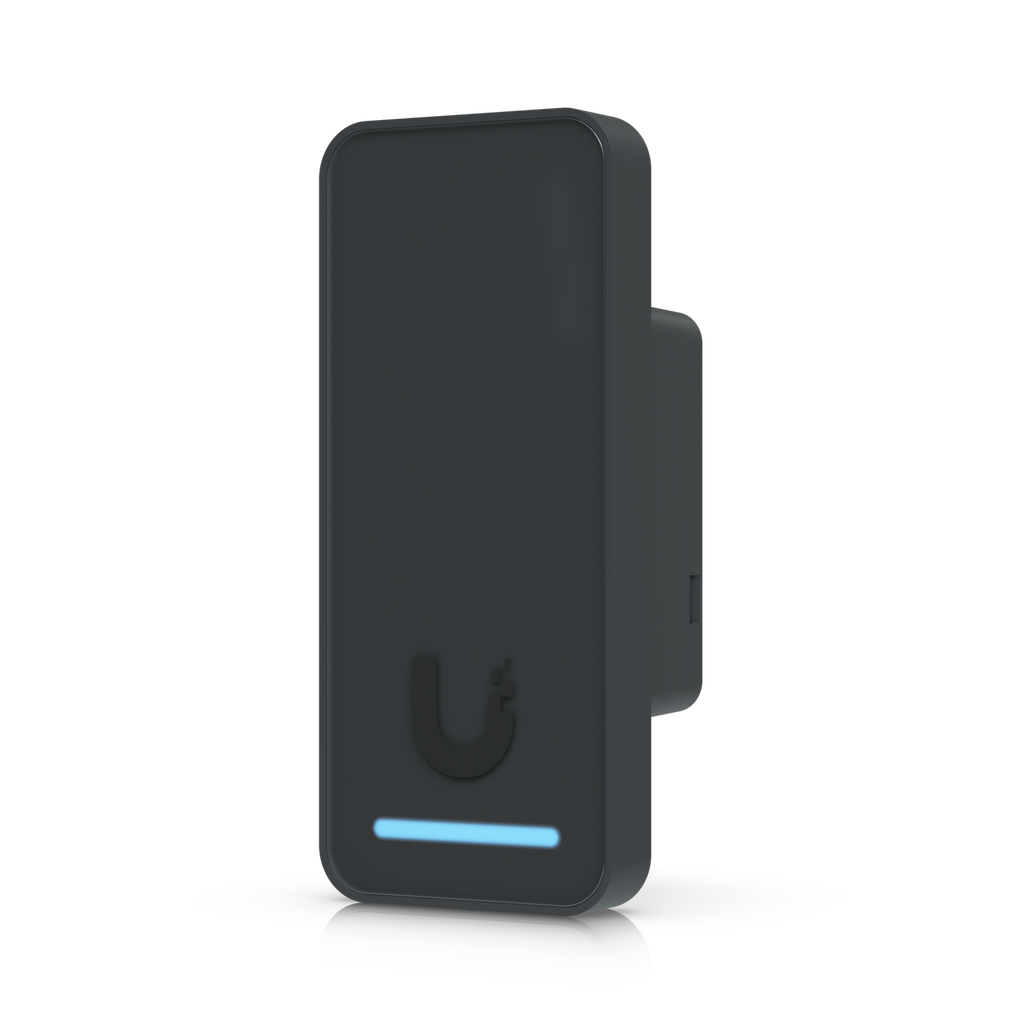

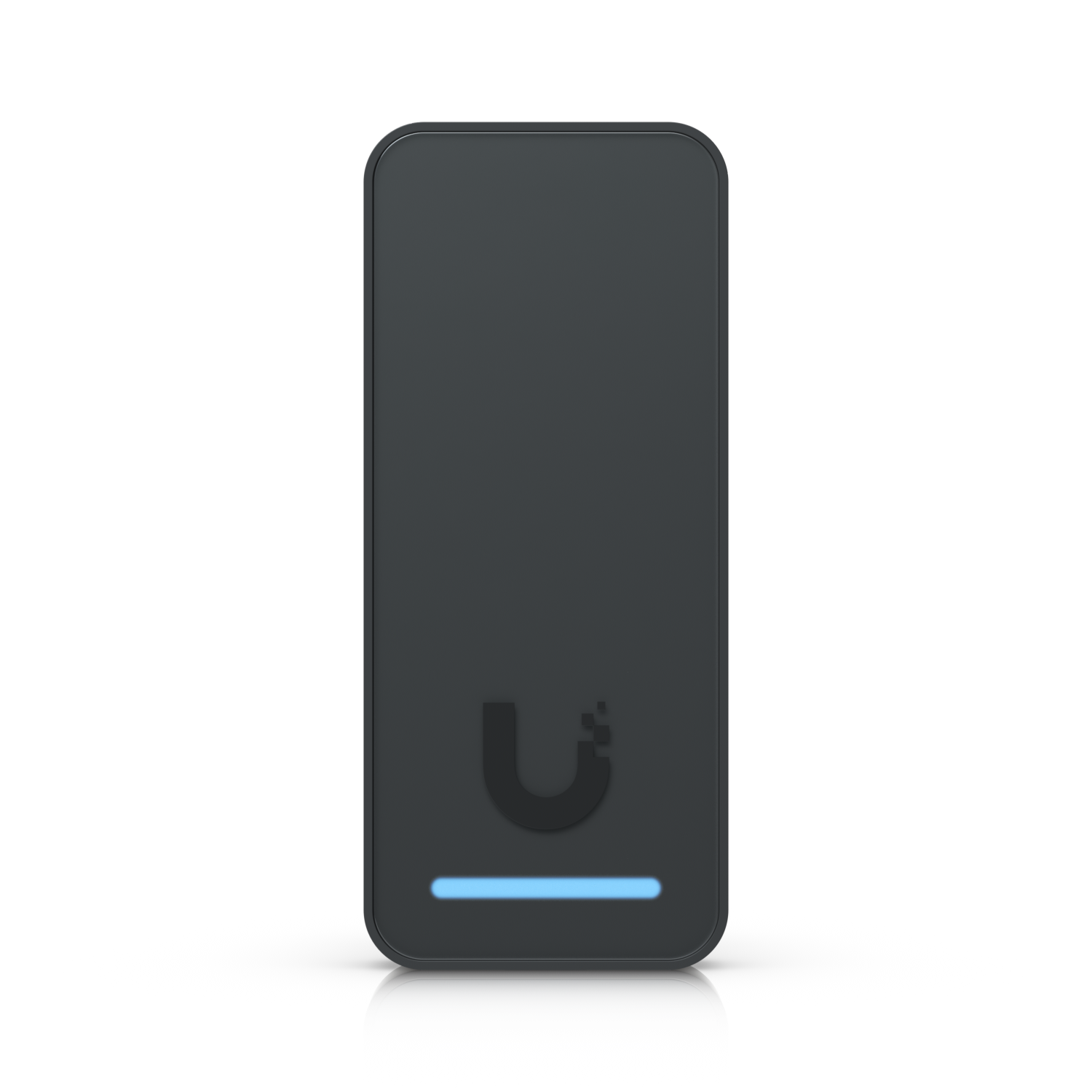

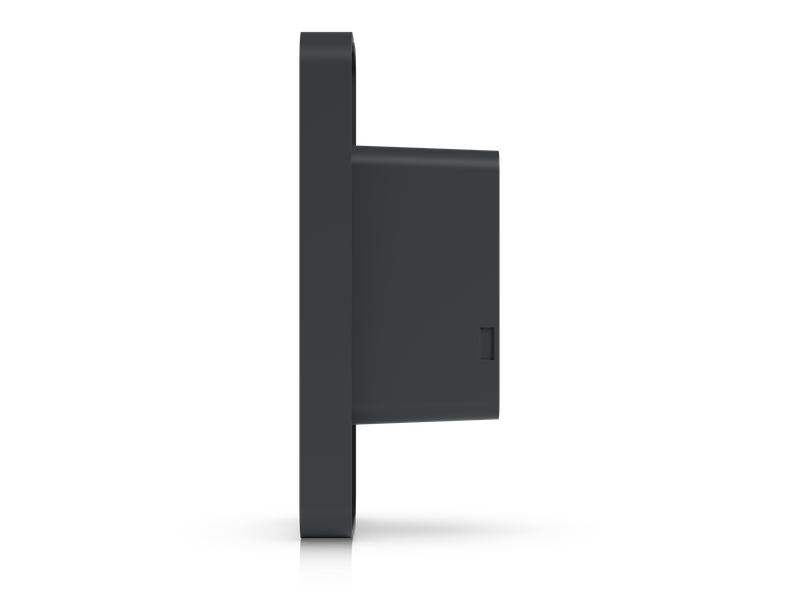

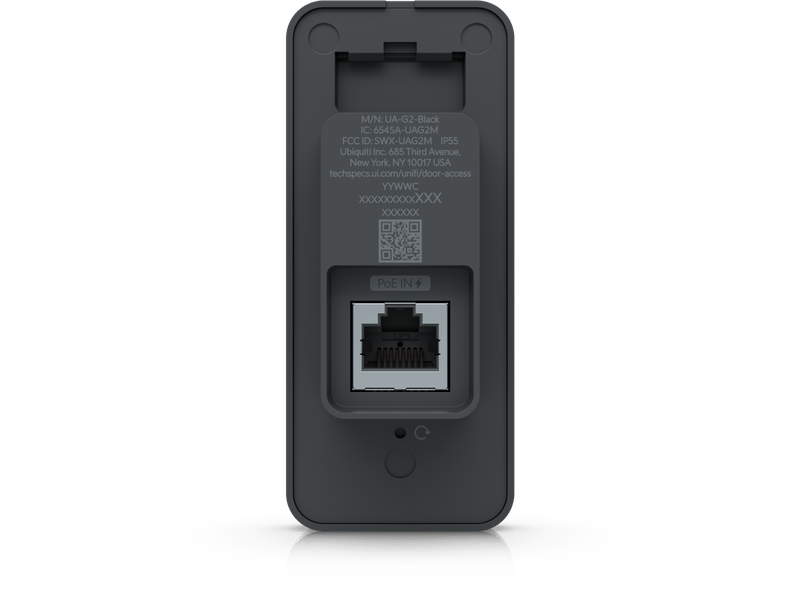

G2 Reader
UA-G2-Black
Compact second-generation access reader.
G2 Reader
UA-G2-Black
Compact second-generation access reader.
UA-G2-Black Specifications | |
---|---|
Product Type | Second-Generation NFC Access Reader |
Color | Black |
Function | Secure door access with NFC, mobile unlock, and request-to-exit |
Compatibility | UniFi Access ecosystem |
Mounting Options | In-wall, gang box (included); junction box (optional) |
Authentication | NFC card & keyfob Mobile unlock (UniFi Identity) Handwave request-to-exit |
NFC Frequency | 13.56 MHz |
NFC Read Range | < 30 mm (1.18") |
NFC Standards | ISO/IEC 14443A/B, 15693, 18092 (Ecma 340) MIFARE Classic / DESFire / Ultralight / Plus Sony FeliCa™ (ID only) NFC Forum Tags T1T–T5T |

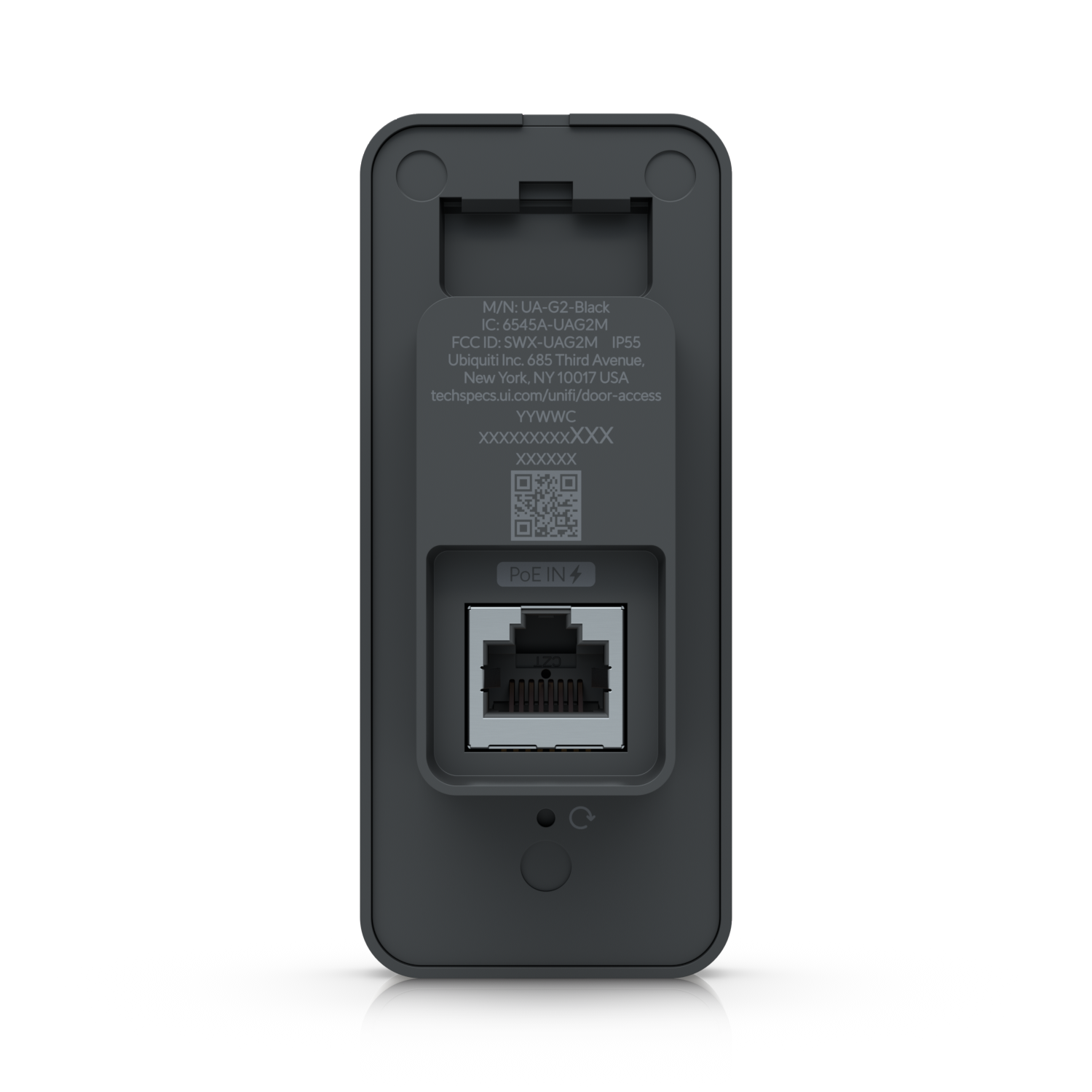

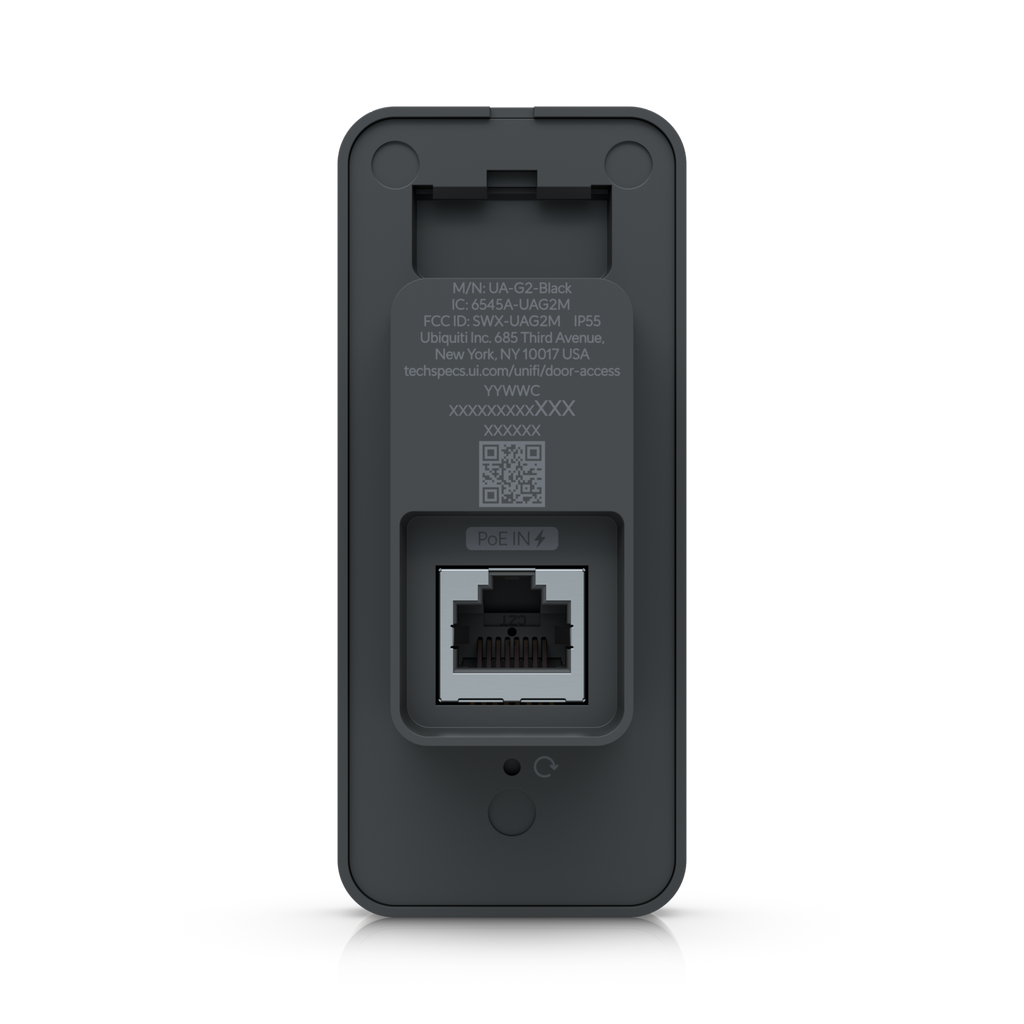

Networking Interface | (1) 10/100 MbE RJ45 port |
Connectivity | BLE 4.1, NFC |
Power Method | PoE (Class 2) |
Supported Voltage Range | 48V DC |
Max. Power Consumption | 5W |
ESD/EMP Protection | Air: ±15kV, Contact: ±8kV |
Sensors | Proximity sensor |
Speaker | ✓ |
LED Indicators | R/G/B/W |
Button | Factory-reset |
Dimensions | 93 × 40 × 36.5 mm (3.7 × 1.6 × 1.4") |
Weight | 82 g (2.9 oz) |
Enclosure Material | Polycarbonate, Glass |
Mount Material | Aluminum Alloy |
Weatherproofing | IP55 |
Operating Temperature | -30 to 45°C (-22 to 113°F) |
Operating Humidity | 5 to 90% noncondensing |
Installation Environment | Indoor / Outdoor |
UL 294 Level | Destructive Attack: Level I Line Security: Level I Endurance: Level I Standby Power: Level I |
CAN/ULC-60839-11-1 Grade | Grade I |
Certifications | CE, FCC, IC, SRRC, UL 294 |
NDAA Compliant | ✓ |
Management Platform | UniFi Access |
Software Version Required | v1.5.9 and later |
