Description
Overview

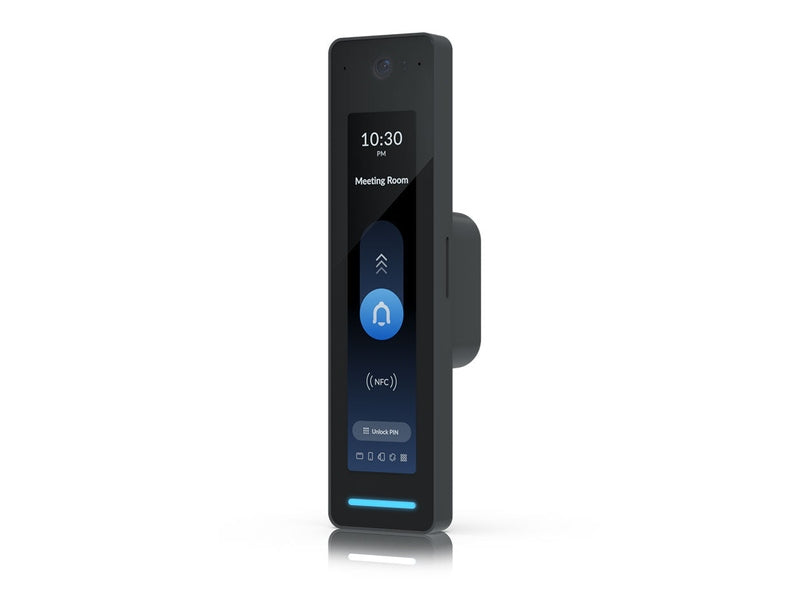

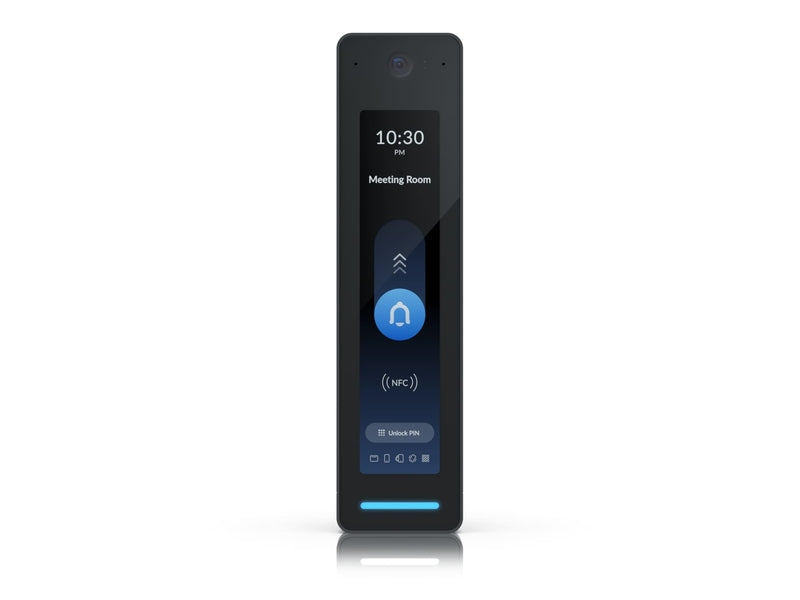

G2 Reader Pro
UA-G2-Pro-Black
Second generation, indoor/outdoor NFC reader and intercom.
G2 Reader Pro
UA-G2-Pro-Black
Second generation, indoor/outdoor NFC reader and intercom.
| UA-G2-Pro-Black Specifications | |
|---|---|
| Product Type | Second-generation NFC Reader & Intercom |
| Color Variant | Black |
| Function | Secure access control with video, audio, and mobile unlock |
| Compatibility | UniFi Access Hub, UniFi Access ecosystem |
| Mounting Options | Wall, gang-box (included); angle/junction box (optional) |
| Screen Size | 120 mm (4.7") diagonal |
| Resolution | 1280 × 286 px |
| Brightness | 480 nits (typical) |
| Touch Technology | Capacitive |
| Orientation | Portrait |
| Authentication | NFC card & keyfob PIN access Mobile unlock (UniFi Identity) Two-way intercom & doorbell |
| Camera | 12 MP (4000 × 3000), 30 FPS |
| Microphone | ✓ |
| Speaker | 4Ω, 1.5W |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm (1.18") |
| NFC Standards | ISO/IEC 14443A/B, 15693, 18092 (Ecma 340) MIFARE Classic / DESFire / Ultralight / Plus Sony FeliCa™ (ID only) NFC Forum Tags T1T–T5T |

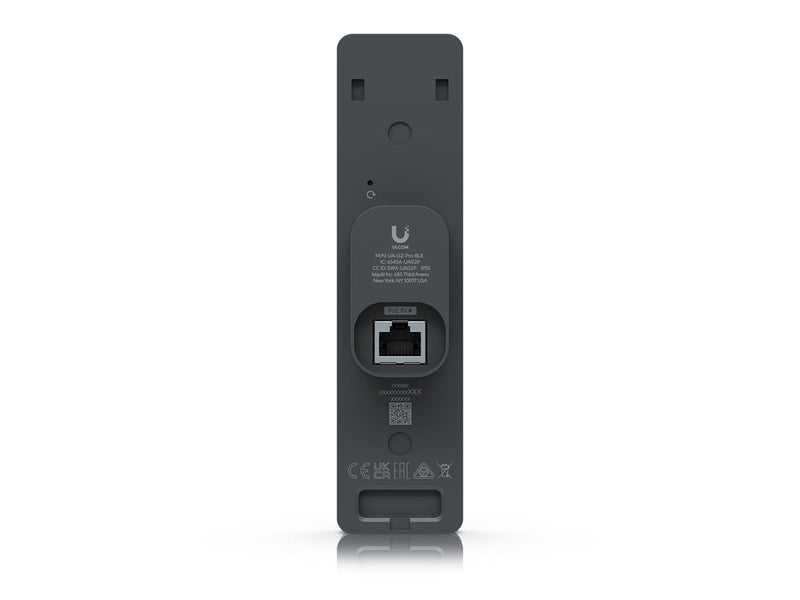

| Networking Interface | (1) GbE RJ45 port |
| Connectivity | BLE 4.2, NFC |
| Power Method | PoE (Class 2) |
| Supported Voltage Range | 48V DC |
| Max. Power Consumption | 6W |
| ESD/EMP Protection | Air: ±15kV, Contact: ±8kV |
| Sensors | Proximity sensor |
| LEDs | R/G/B/W/Amber |
| Button | Factory-reset |
| Dimensions | 160 × 40.4 × 40.55 mm (6.3 × 1.59 × 1.6") |
| Weight | 136 g (4.8 oz) |
| Enclosure Material | Polycarbonate, glass |
| Mount Material | Aluminum alloy |
| Weatherproofing | IP55 |
| Operating Temperature | Device: -30 to 45°C (-22 to 113°F) Display: -10 to 45°C (14 to 113°F) |
| Operating Humidity | 5 to 90% noncondensing |
| UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| CAN/ULC-60839-11-1 Grade | Grade I |
| Certifications | CE, FCC, IC, SRRC, UL 294 |
| NDAA Compliant | ✓ |
| Management Platform | UniFi Access |
| Software Version Required | v1.5.9 and later |
