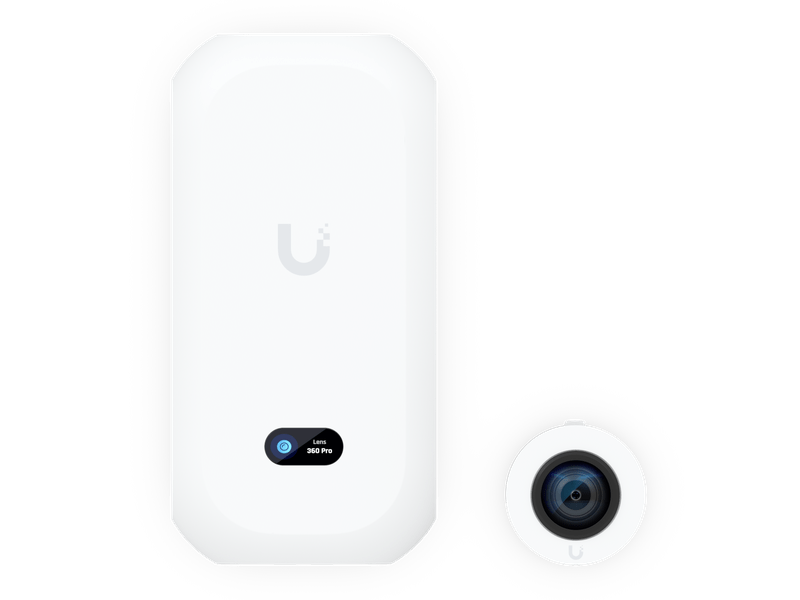

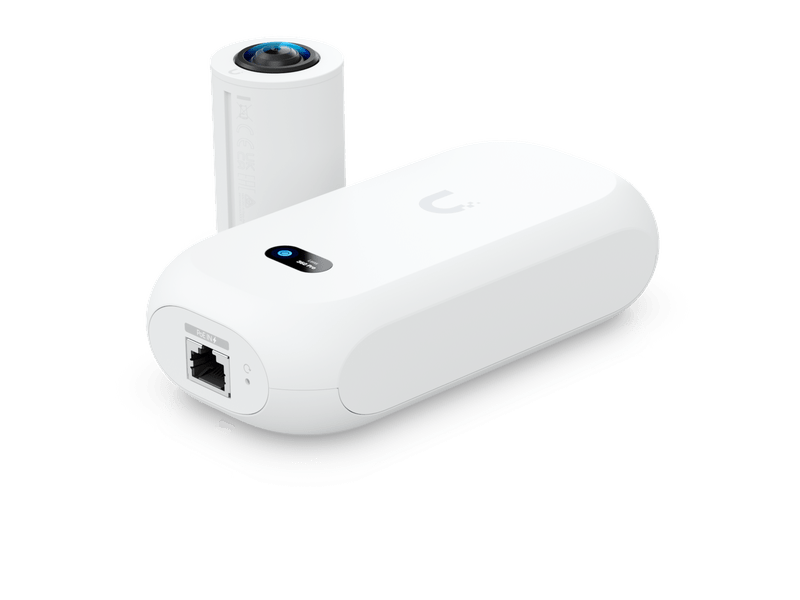

AI Theta Pro
UVC-AI-Theta-Pro
A complete ceiling 360° AI Theta system designed to discreetly provide a panoramic view of large, busy spaces.
Note. License plate recognition supported with Long-Distance and Wide-Angle lenses.
AI Theta Pro
UVC-AI-Theta-Pro
A complete ceiling 360° AI Theta system designed to discreetly provide a panoramic view of large, busy spaces.
Note. License plate recognition supported with Long-Distance and Wide-Angle lenses.
UVC-AI-Theta-Pro Specifications | |
---|---|
Product Type | AI-powered 360° Ceiling-Mount Camera System |
Smart Features | Face Recognition, License Plate Recognition, Smart Detections (People, Vehicles, Animals) |
Mounting Options | Wall, ceiling, flush mount (included); angle mount (optional) |
Audio | Two-way audio (via optional AI Theta Audio) |
Sensor | 8MP 1/1.8" CMOS |
Lens | Fixed focal length |
Field of View | H: 180°, V: 180°, D: 180° |
Resolution | 4MP (2160 × 2160, 1:1) |
Max. Frame Rate | 24 FPS |
Video Compression | H.264 |
Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control 2DNR, 3DNR, motion-based NR, masking, text overlay |
Processor | Quad-core Arm® Cortex®-A53 |

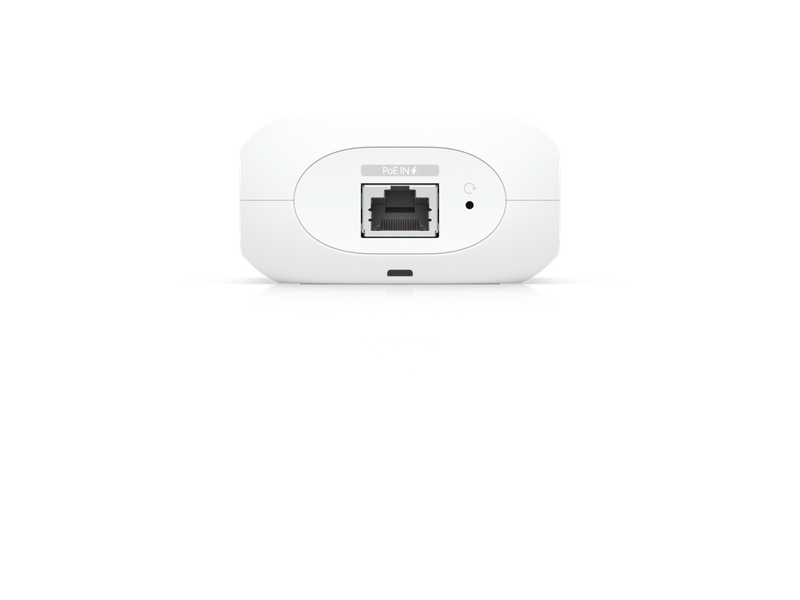

Networking Interface | Gigabit Ethernet (RJ45) |
Power Method | PoE |
Supported Voltage Range | 37–57V DC |
Max. Power Consumption | 12.5W |
Button | (1) Factory-reset |
Hub Dimensions | 140 × 70 × 38 mm (5.5 × 2.8 × 1.5") |
Lens Dimensions | Ø36.6 × 58.9 mm (Ø1.4 × 2.3") |
Flush Mount Dimensions | Ø54.6 × 60.4 mm (Ø2.2 × 2.4") |
Weight | Hub: 330 g (11.6 oz) Hub Mount: 35 g (1.2 oz) Lens: 58 g (2 oz) Flush Mount: 24 g (0.8 oz) |
Enclosure Material | Aluminum alloy, polycarbonate |
Operating Temperature | -20 to 40° C (-4 to 104° F) |
Operating Humidity | 10 to 90% noncondensing |
NDAA Compliant | ✓ |
Certifications | CE, FCC, IC |
Management Platform | UniFi Protect (Web & Mobile) |
