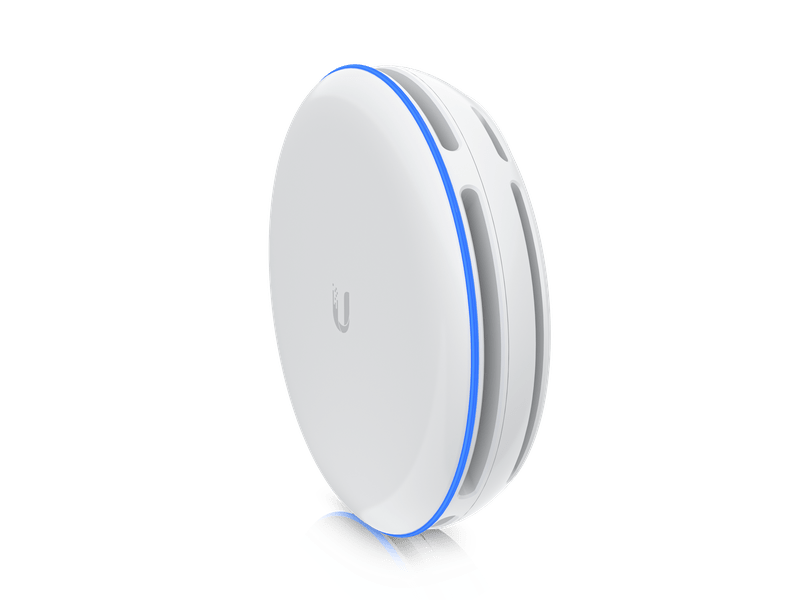

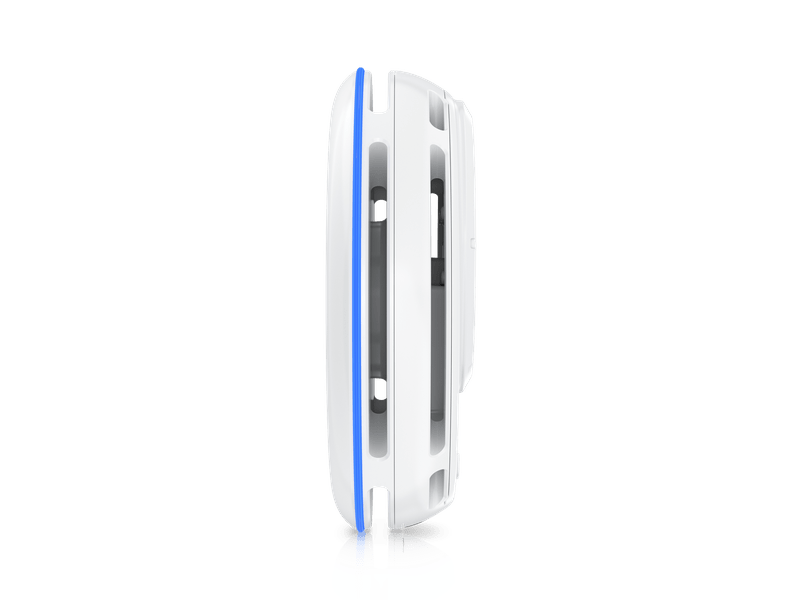

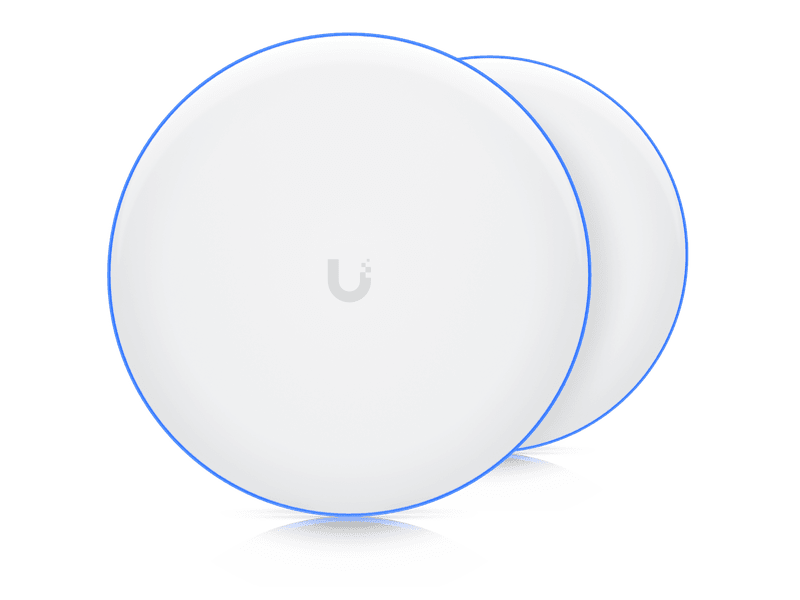

Building Bridge XG
UBB-XG
A 60 GHz wireless point-to-point bridge with 10G SFP+ uplink for maximum performance.
Note: Building Bridge is paired out of the box. Managed via UniFi Console, Official UniFi Hosting, or a Self-Hosted UniFi Network Server.
Includes (2) PoE power adapters.
Building Bridge XG
UBB-XG
A 60 GHz wireless point-to-point bridge with 10G SFP+ uplink for maximum performance.
Note: Building Bridge is paired out of the box. Managed via UniFi Console, Official UniFi Hosting, or a Self-Hosted UniFi Network Server.
Includes (2) PoE power adapters.
UBB-XG Specifications | |
---|---|
Dimensions | Ø191.8 × 59 mm (Ø7.6 × 2.3") |
WiFi Standard | WiFi 5 (802.11ac) |
Spatial Streams | 2 |
Coverage Area | 500 m (1,640 ft) |
Mounting Locations | Wall, pole |
Weatherproofing | IPX6 |
Power Method | PoE++, Passive PoE |
MIMO | 5 GHz: 2 × 2 DL MU-MIMO |
Max. Data Rate | 60 GHz: 6 Gbps 5 GHz: 866.6 Mbps (BW80) |
Antenna Gain | 60 GHz: 21 dBi 5 GHz: 14 dBi 2.4 GHz (BLE): 2 dBi |
Max. TX Power | 60 GHz: 16 dBm 5 GHz: 23 dBm |
Supported Data Rates | 802.11a/g: 6–54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps 802.11n: 6.5–300 Mbps (MCS0–MCS15, HT 20/40) 802.11ac: 6.5–867 Mbps (MCS0–MCS9, NSS1/2, VHT 20/40/80) |
Wireless Security | WPA2 AES |
Max. Power Consumption | 29W |
Includes PoE Adapter | ✓ |
Supported Voltage Range | 48V DC ±10% |

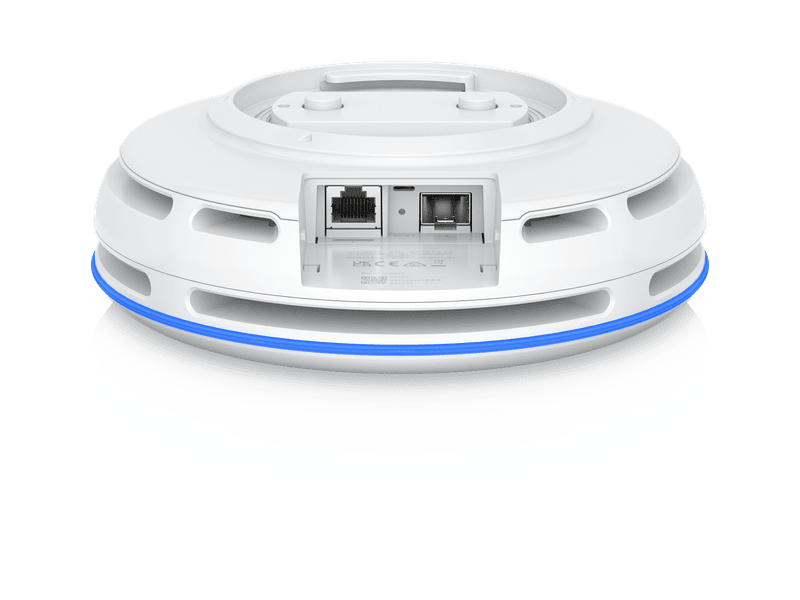

Networking Interface | (1) GbE RJ45 port (1) 1/10G SFP+ port |
Weight | Device: 1.7 kg (3.8 lb) With mount: 2.9 kg (6.3 lb) |
Operating Modes | PtP |
Wind Loading | 56 N @ 200 km/h (12.6 lbf @ 125 mph) |
Pole Mount Diameter | 25–63.5 mm (1–2.5") |
Management | Ethernet, Bluetooth |
Channel Bandwidth | 60 GHz: 2,160 / 4,320 MHz 5 GHz: HT 20/40, VHT 20/40/80 MHz |
Enclosure Material | Aluminum alloy, UV-resistant polycarbonate |
Mount Material | Stainless steel |
Button | (1) Factory-reset |
LEDs | System: R/G/B |
Operating Frequency | 60 GHz: 57–66 GHz 5 GHz (US/CA): 5150–5850 MHz (U-NII bands) 5 GHz (Worldwide): 5150–5725 MHz Bluetooth: 2400–2483.5 MHz |
Ambient Operating Temperature | -40 to 55° C (-40 to 131° F) |
Ambient Operating Humidity | 5 to 95% noncondensing |
NDAA Compliant | ✓ |
Certifications | CE, FCC, IC, Terragraph |
