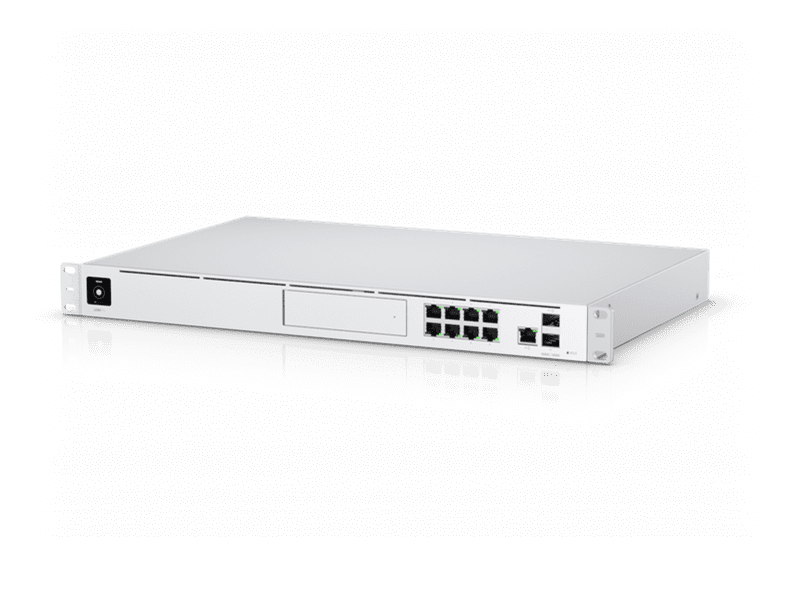

Ubiquiti Unifi Dream Machine Pro Security Gateway

UbiquitiSKU: UDM-Pro

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$821.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Estimate shipping

Description

Overview

All-in-one, enterprise-grade Ubiquiti UniFi Gateway Console designed to host the full UniFi application suite.
- Includes full UniFi application suite for device management
- 3.5+ Gbps routing
- (1) 10G SFP+, (8) GbE RJ45 LAN ports
- (1) 10G SFP+, (1) GbE RJ45 WAN ports
- 1.3" touchscreen
- 3.5" HDD bay

Specifications

Mechanical
Dimensions 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")
Weight 3.9 kg (8.6 lb)
Enclosure materials Aluminium CNC, SGCC steel
Mount material SGCC steel
Hardware
Processor Quad-core ARM® Cortex®-A57 at 1.7 GHz
System memory 4 GB DDR4
On-board storage 16 GB eMMC
Management interface Ethernet
Bluetooth
Networking interface (8) LAN: GbE RJ45 ports
(1) WAN: GbE RJ45 port
SFP+ interface (1) LAN: 10G SFP+
(1) WAN: 10G SFP+
IDS/IPS throughput 3.5 Gbps *
* Measured with iPerf3.
Power method (1) Universal AC Input, 100—240V AC, 50/60 Hz
(1) USP-RPS DC input
Power supply AC/DC, internal, 50W
Supported voltage range 100—240V AC
Max. power consumption 33W
ESD/EMP protection Air: ± 15kV, contact: ± 8kV
LCM display (1) 1.3" touchscreen
Button Factory reset
Operating temperature -10° to 40° C (14° to 104° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Gateway Features
Performance Redundant WAN with failover and load balancing
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting
Next-generation security Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall
Advanced networking License-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and UID VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IGMP proxy
IPv6 ISP support
LEDs
Ethernet Link/activity
Green: 1G
Amber: 10/100M
SFP+ Link/activity
White: 10G
Green: 1G
HDD White: disk activity
Amber: disk error
RPS Blue: ready
