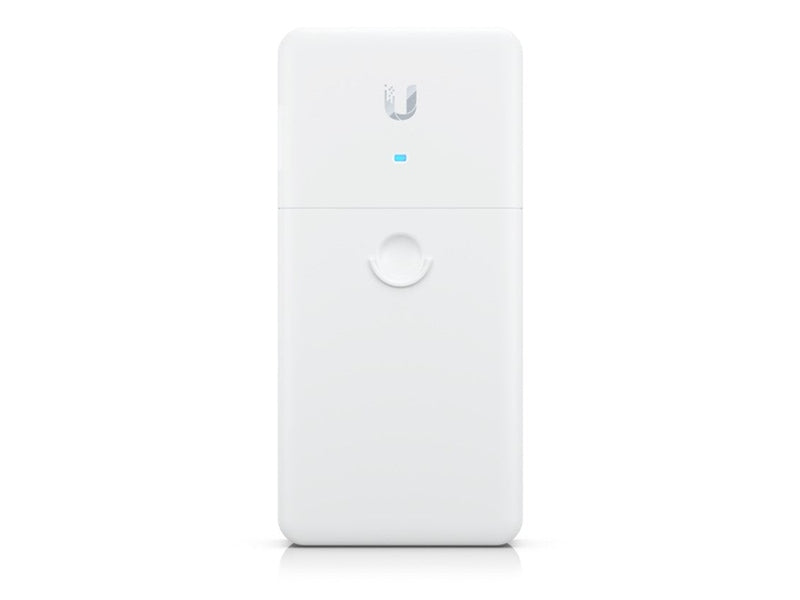

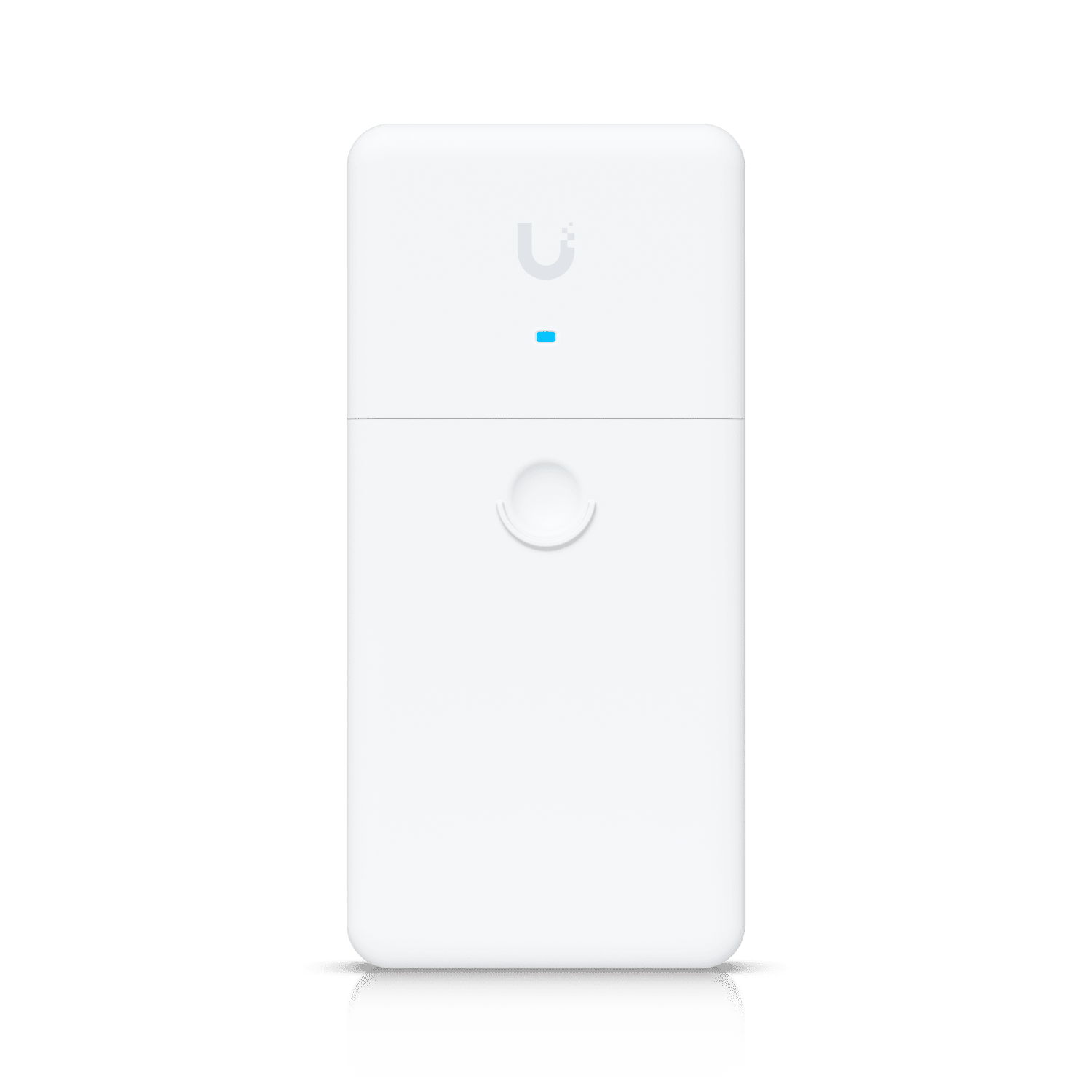

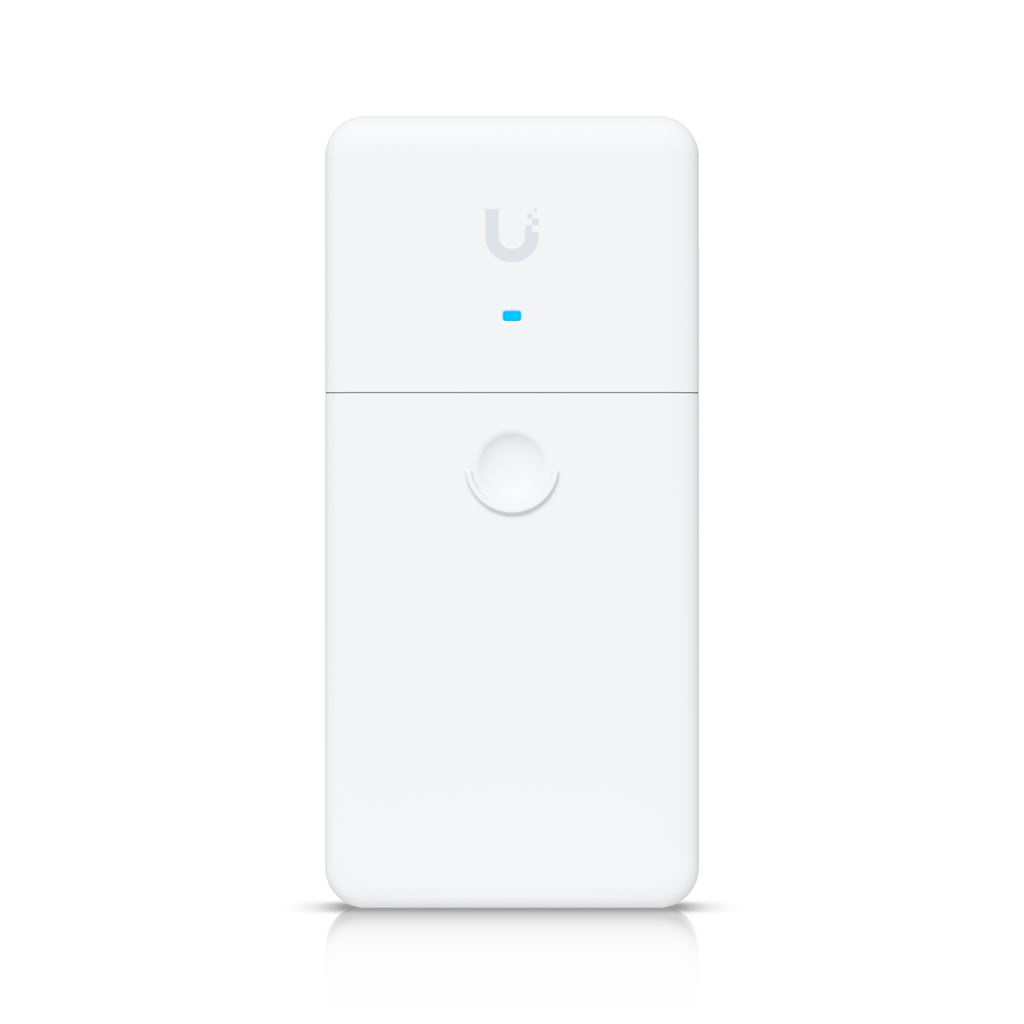

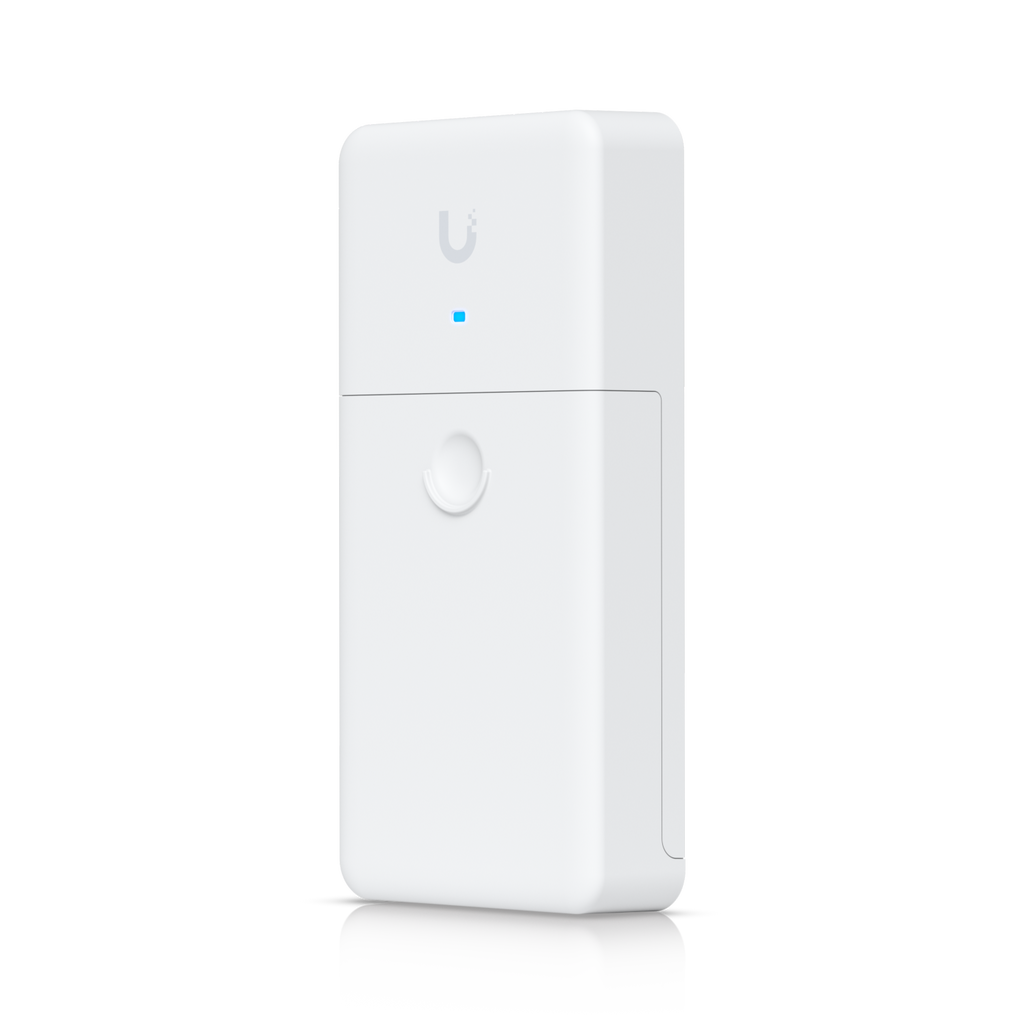

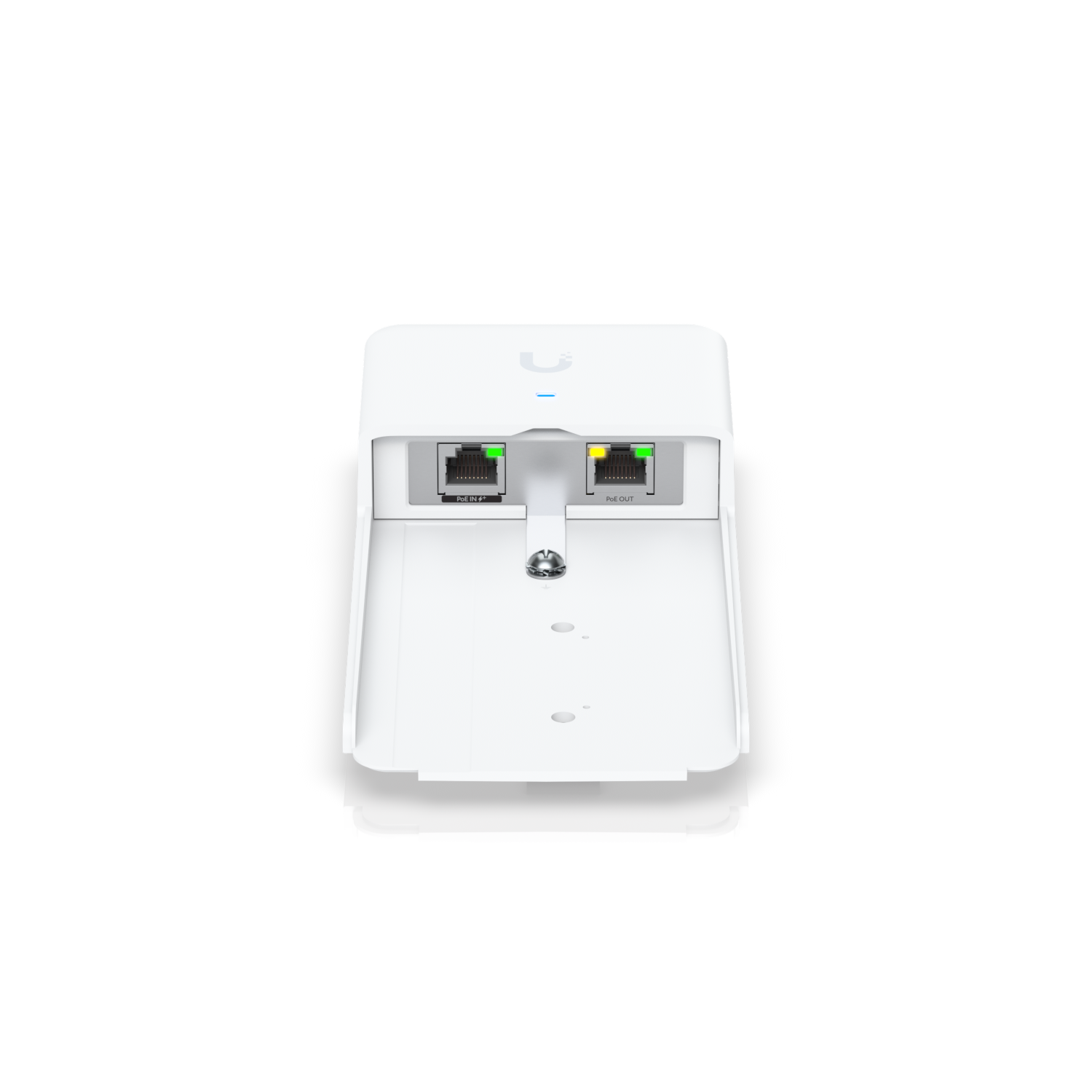

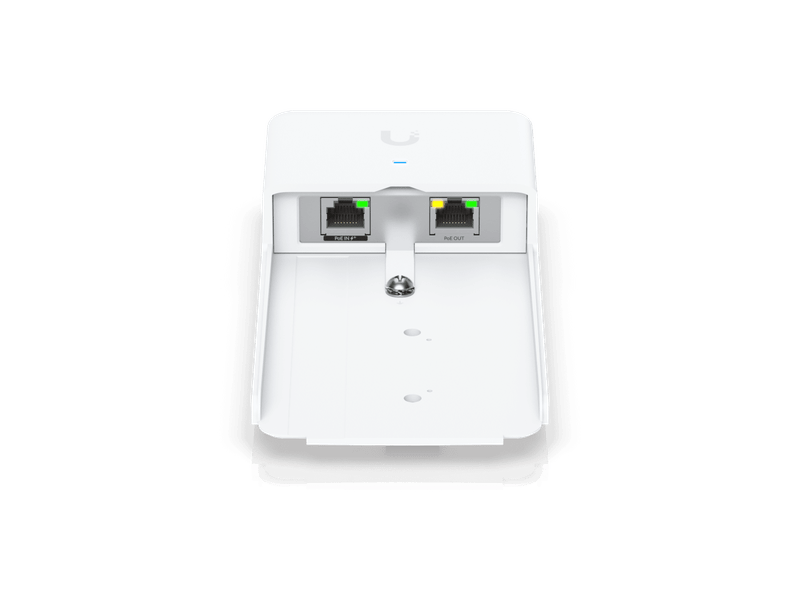

Long-Range Ethernet Repeater
UACC-LRE
Long-range Gigabit Ethernet adapter that receives PoE/PoE+ and offers passthrough PoE output.
Extend PoE connections up to 1 km*

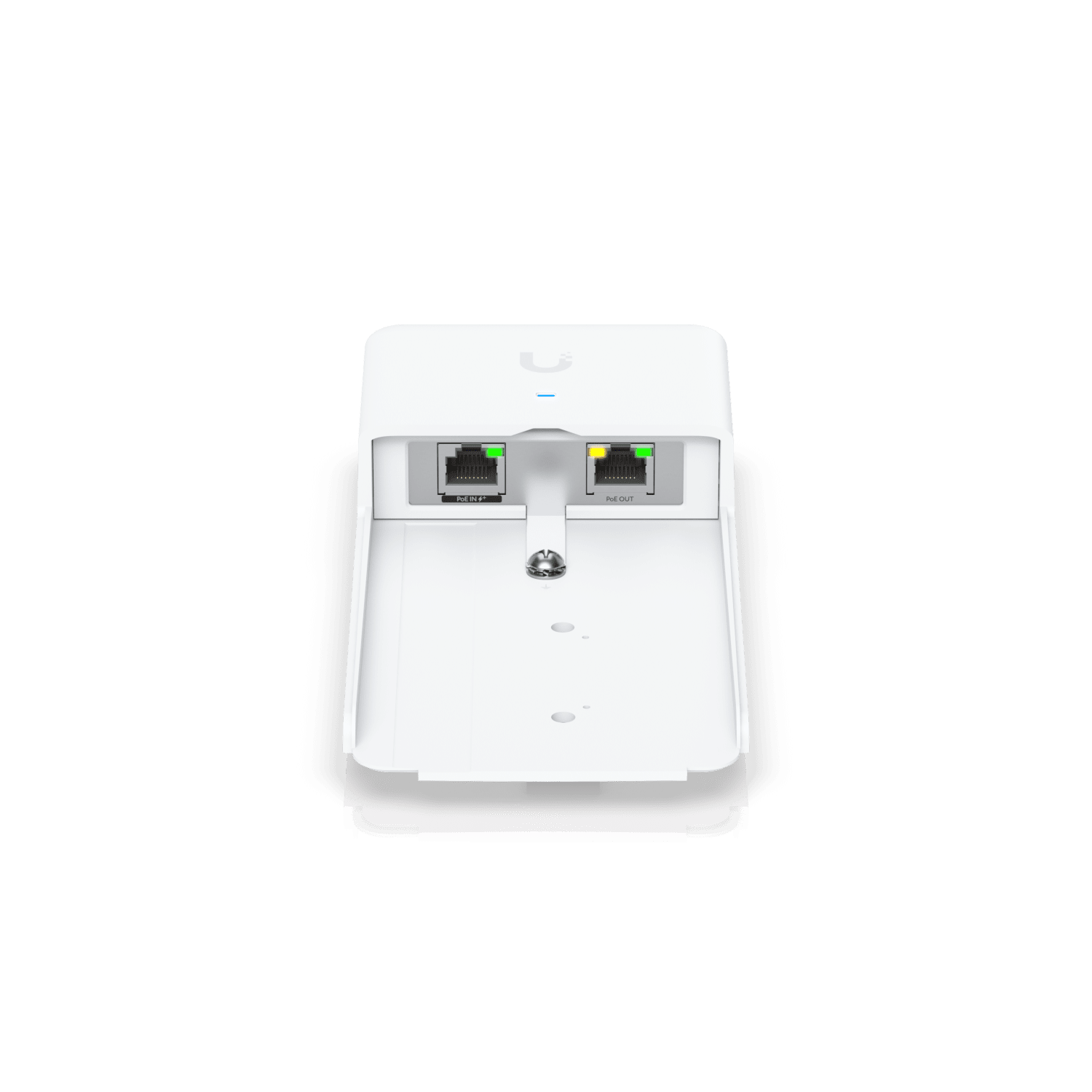

(1) GbE RJ45 port for PoE/PoE+ input**
(1) GbE RJ45 port for passthrough PoE output
10kA+ surge protection
Works reliably in extreme temperatures (-40 to 80° C)
*Repeaters must be placed in 100 m increments.
**Powered with pins 1, 2+; 3, 6- which may not be supported by certain third-party switches. We recommend using a UniFi switch to power the device.
Long-Range Ethernet Repeater
UACC-LRE
Long-range Gigabit Ethernet adapter that receives PoE/PoE+ and offers passthrough PoE output.
Extend PoE connections up to 1 km*
(1) GbE RJ45 port for PoE/PoE+ input**
(1) GbE RJ45 port for passthrough PoE output
10kA+ surge protection
Works reliably in extreme temperatures (-40 to 80° C)
*Repeaters must be placed in 100 m increments.
**Powered with pins 1, 2+; 3, 6- which may not be supported by certain third-party switches. We recommend using a UniFi switch to power the device.
UACC-LRE Specifications | |
---|---|
Product Type | Long-Range Ethernet Repeater |
Function | Extends Ethernet and PoE range with passthrough capability |
Compatibility | 802.3af/at PoE/PoE+ devices |
Deployment Range | Up to 1 km (with low-power endpoint devices) |
Networking Interfaces | (2) GbE RJ45 ports |
PoE Interface | (1) Passthrough PoE output (2-pairs: pins 1,2+; 3,6-) |
Power Method | 802.3af/at PoE/PoE+ (2-pairs) |
Voltage Range | 37–57V DC |
Max Power Consumption | 1.5W (excluding PoE output) |
Total Available PoE | 22.5W |
Switching Capacity | 4 Gbps |
Forwarding Rate | 1.488 Mpps |
Max MTU | 1,500 bytes |
ESD/EMP Protection | ±30kV (air/contact) |
DC Sparkover Voltage | 90V @ 100V/s |
Impulse Sparkover Voltage | 700V @ 1kV/μs |
Discharge Current | 10kA+ |
Dimensions | 196.5 × 93.5 × 39 mm (7.7 × 3.7 × 1.5") |
Weight | 350 g (12.3 oz) |
Enclosure Material | UV-stabilized polycarbonate |

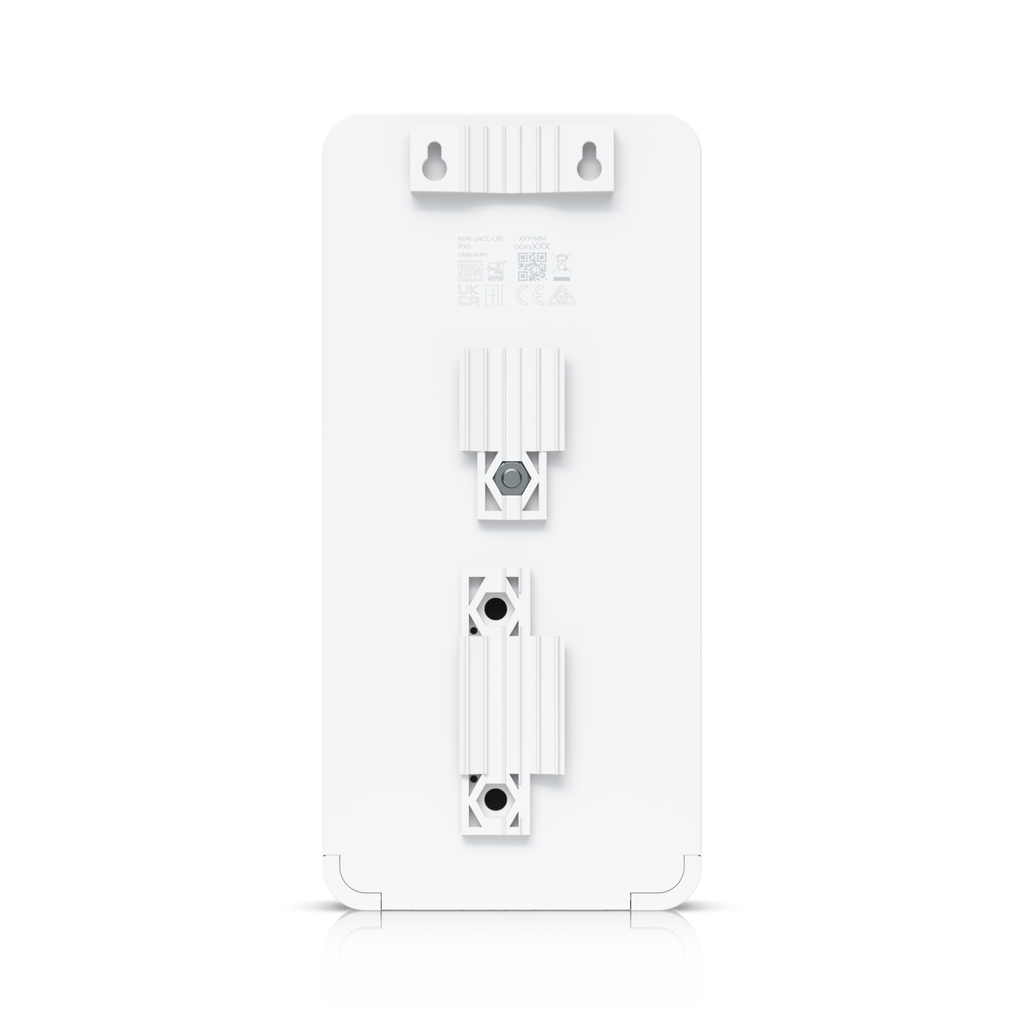

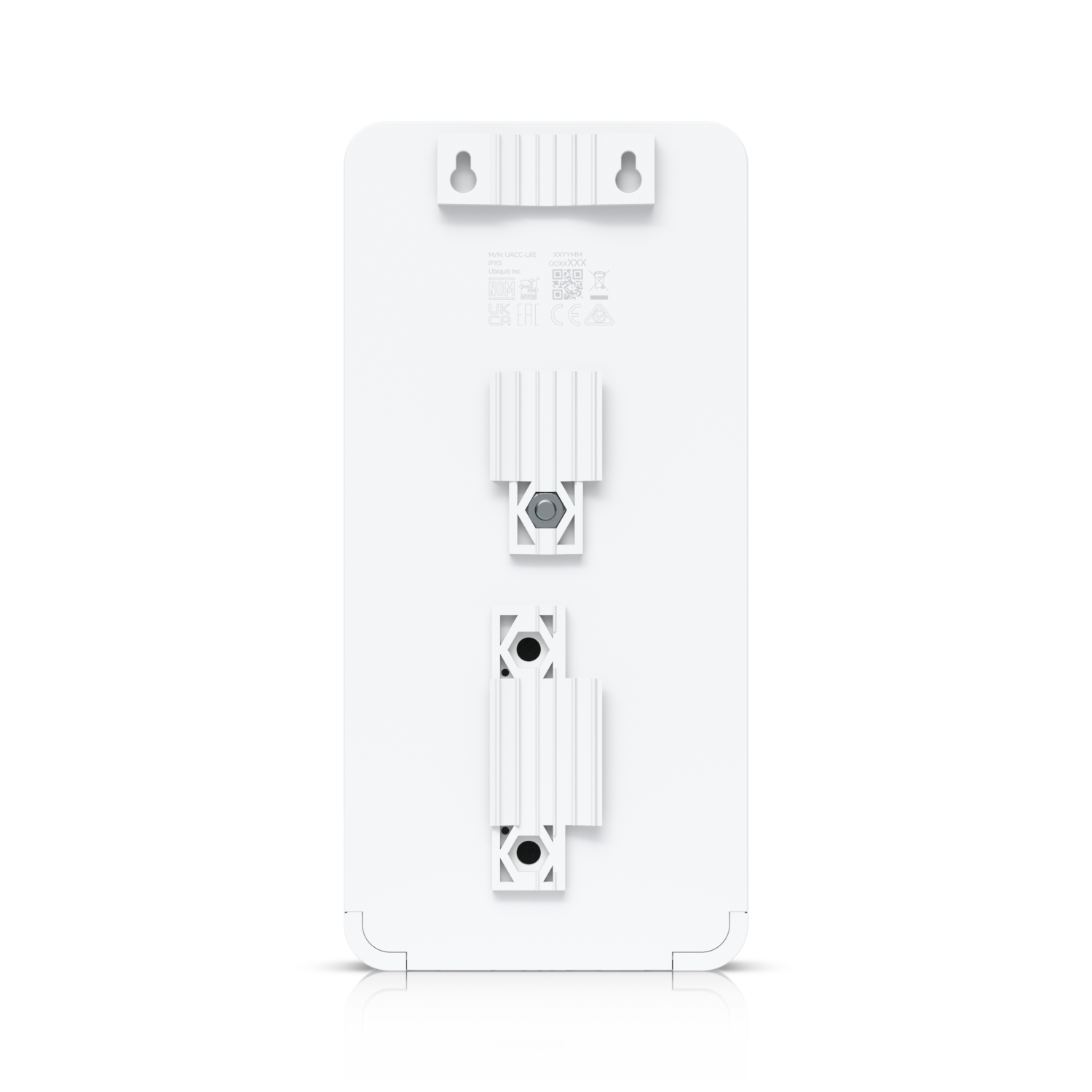

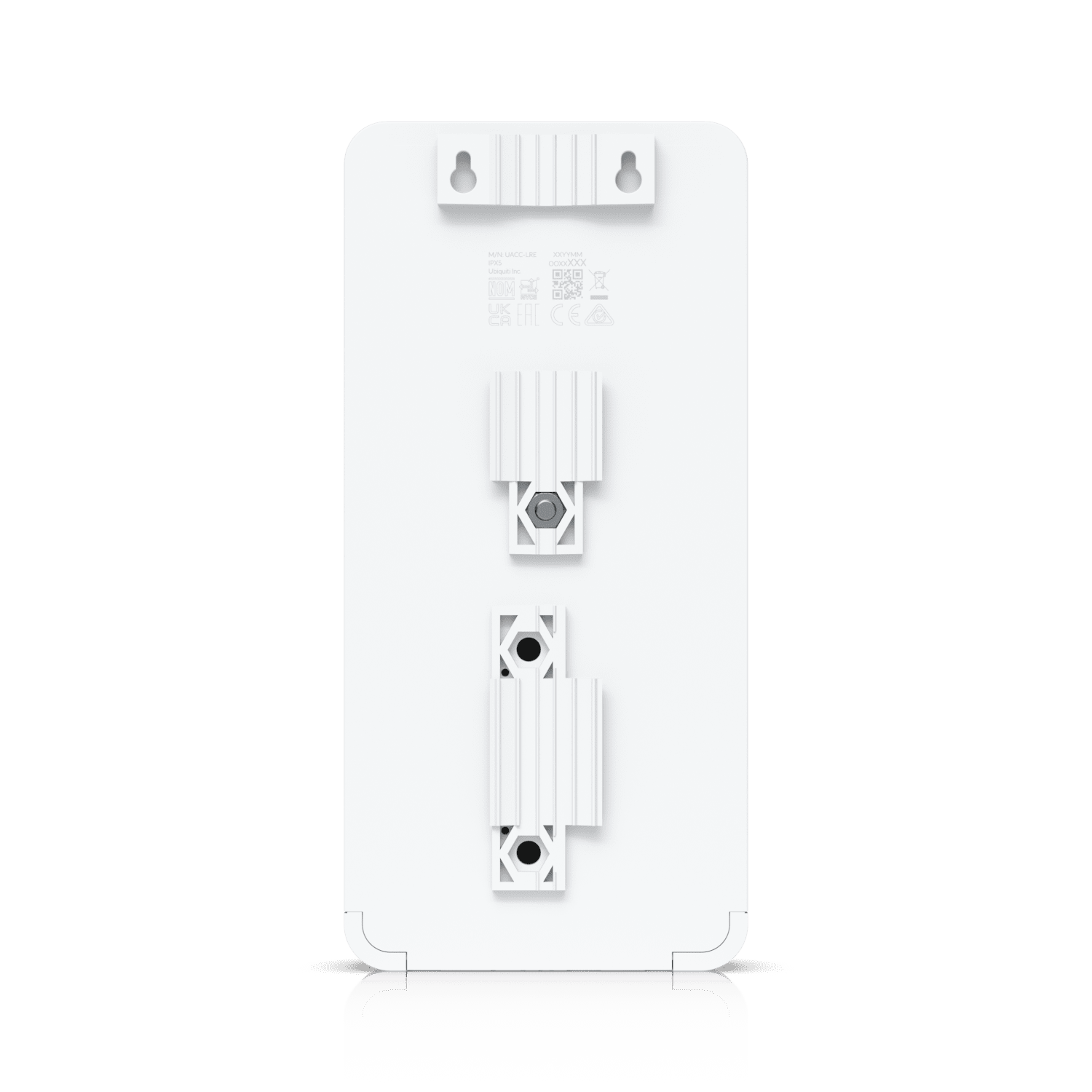

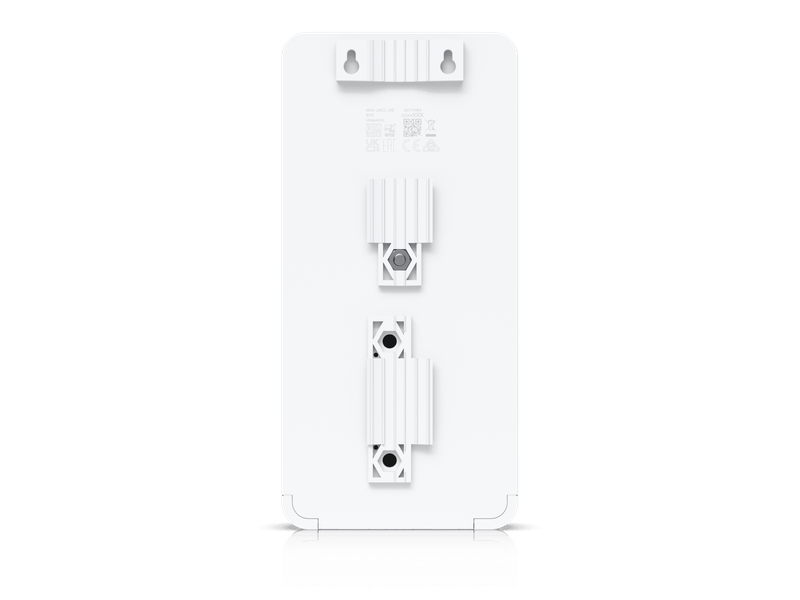

Mounting Material | Stainless steel |
Weatherproofing | IPX5 |
System LED | Blue (Power ON) |
Ethernet LEDs | Green: 1 Gbps, Amber: 10/100 Mbps |
PoE LED | Amber: Passthrough PoE active |
Operating Temperature | -40 to 80°C (-40 to 176°F) |
Operating Humidity | 10 to 95% noncondensing |
Certifications | CE, FCC, IC |
NDAA Compliant | ✓ |
