Ubiquiti UniFi Enterprise 24 Port Gigabit PoE+ 400W Switch

UbiquitiSKU: USW-Enterprise-24-PoE

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$1,537.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store or have access to your credit card details.
Enjoy 0% surcharge on credit card payments.

Description

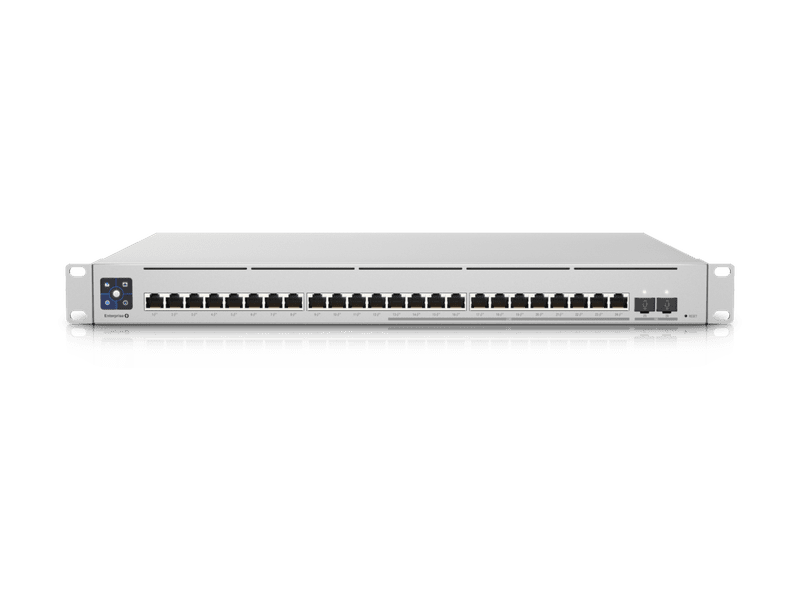

Ubiquiti UniFi Enterprise 24 Port Gigabit PoE+ 400W Switch [USW-Enterprise-24-PoE]

Enterprise 24 PoE

USW-Enterprise-24-PoE (400W)



Managed Layer 3 switch with (12) 2.5G RJ45 ports with PoE+ for WiFi 6 APs, (12) Gigabit RJ45 ports with PoE+, and (2) 10G SFP+ ports for fiber uplinks.

Configurable Gigabit Layer 3 switch with auto-sensing 802.3at PoE+. It offers (12) 2.5G RJ45 Ethernet ports, (12) 1G RJ45 Ethernet ports, and (2) 10G SFP+ ports, providing 2.5G PoE links to your WiFi 6 APs and 10G fiber uplinks to your network. Features include a 1.3" touchscreen, single-row RJ45 port layout for easy patch panel cable management, and UniFi SmartPower Redundant Power System* (USP-RPS) support for intelligent protection from internal PSU interruption or failure.

FEATURES:

(12) 2.5G 802.3af/at PoE+ RJ45 ports
(12) 1G 802.3af/at PoE+ RJ45 ports
(2) 10G SFP+ ports
400W total PoE capacity
1.3" touchscreen with AR switch management
UniFi SmartPower RPS DC input

Managed with UniFi Network Application Version: 5.14.12 or higher



Specifications


Mechanical
Dimensions 442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
Weight Without mounting brackets: 5.1 kg (11.3 lb)
With mounting brackets: 5.2 kg (11.5 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (12) GbE RJ45 ports
(12) 2.5 GbE RJ45 ports
(2) 10G SFP+ ports
PoE interface (24) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput 62 Gbps
Switching capacity 124 Gbps
Forwarding rate 92.25 Mpps
Power method (1) Universal input, 100—240V AC, 8.5A Max., 50/60 Hz
(1) USP-RPS DC input: 52V DC, 7.7A; 11.5V DC, 8.7A
Power supply AC/DC, internal, 550W
Supported voltage range 100—240V AC
Max. power consumption 60W (Excluding PoE output)
Total available PoE 400W
Max. PoE+ wattage per port by PSE 34.2W
Voltage range PoE mode PoE: 44— 57V
PoE+: 50—57V
Services SMB Layer 3 PoE GbE switch
ESD/EMP protection Air: ± 16kV, contact: ± 12kV
LCM display (1) 1.3" color touchscreen
Button Factory reset
Ambient operating temperature -5 to 40° C (23 to 104° F)
Ambient operating humidity 10 to 95% noncondensing
Certifications CE, FCC, IC
Switching Features
Layer 2 features IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 features DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLs
LEDs
System Status
Ethernet Link/activity
SFP+ Link/activity
Application Requirements
UniFi Network Version 5.14.12 and later
