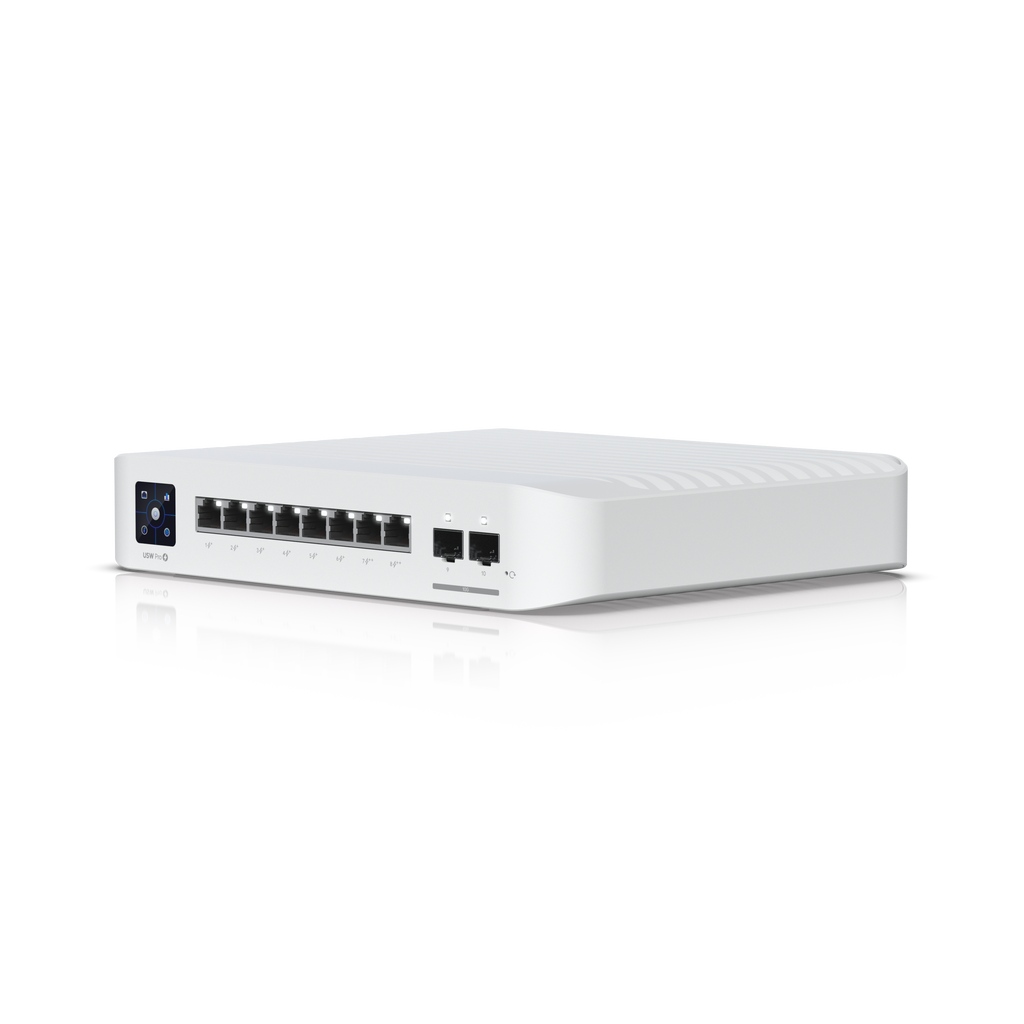

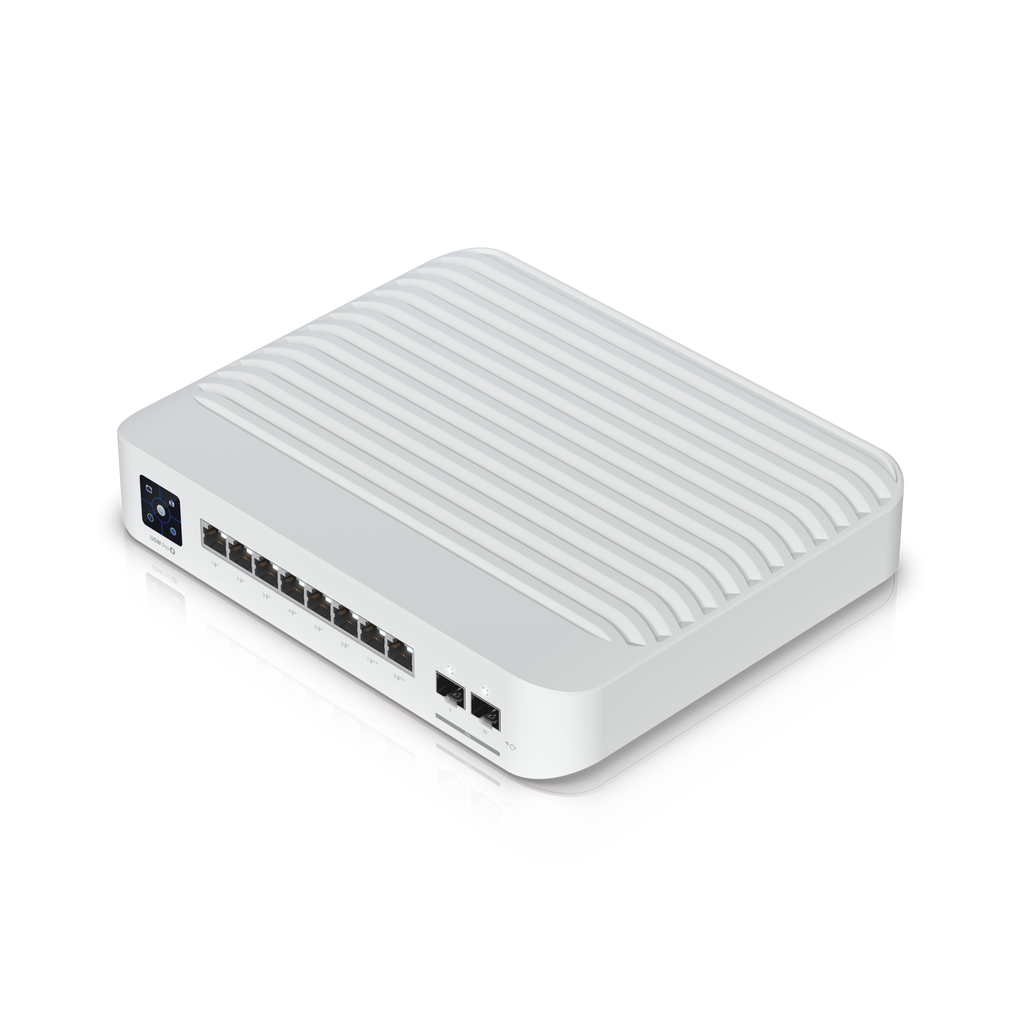

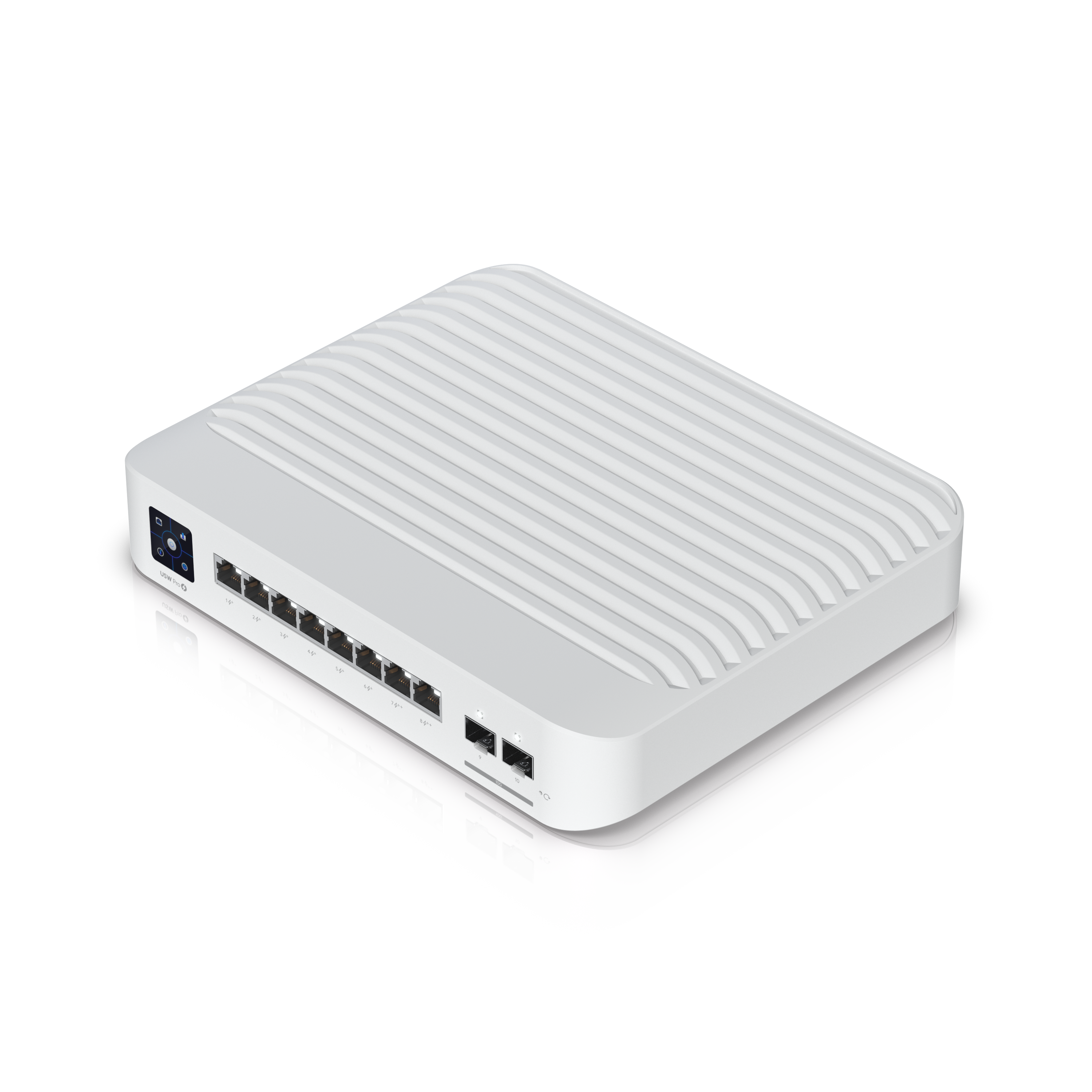

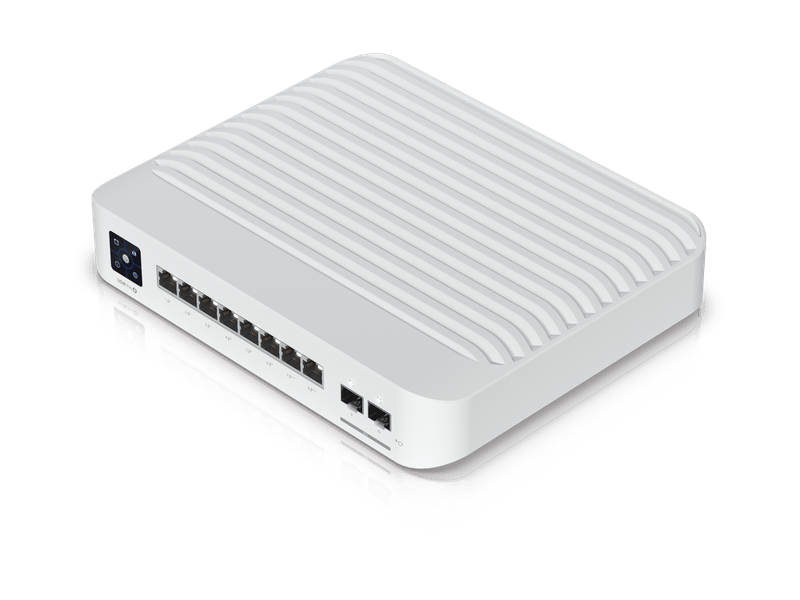

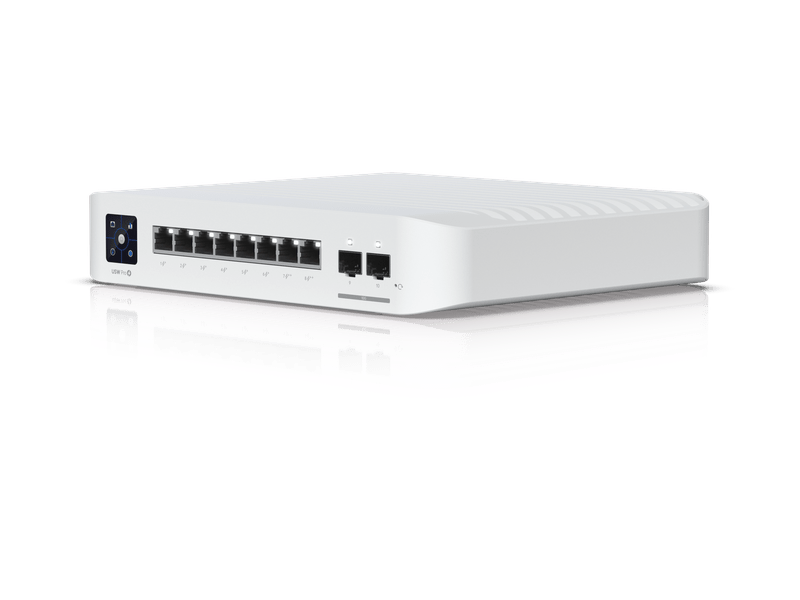

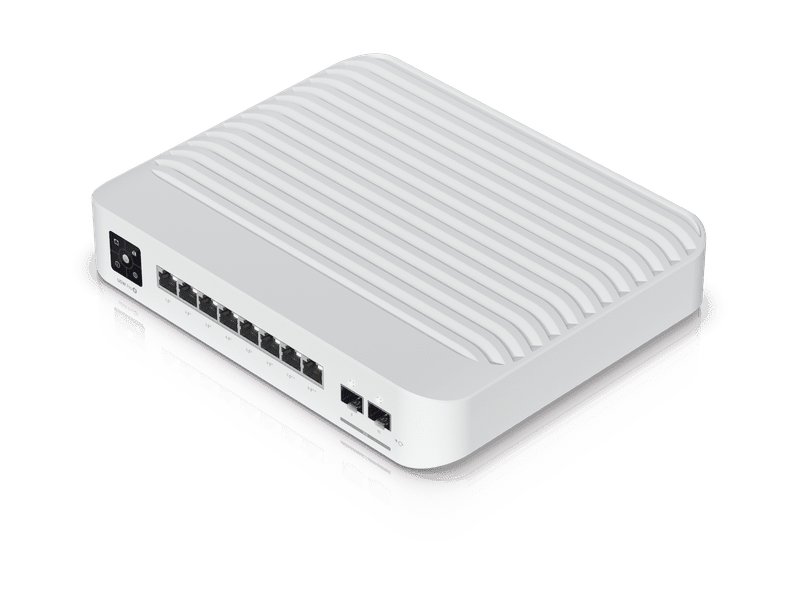

Pro 8 PoE
USW-Pro-8-PoE (120W)
An 8-port, Layer 3 switch with PoE+ and PoE++ output.
Pro 8 PoE
USW-Pro-8-PoE (120W)
An 8-port, Layer 3 switch with PoE+ and PoE++ output.
| USW-Pro-8-PoE Specifications | |
|---|---|
| Product Type | Layer 3 Managed PoE Switch |
| Form Factor | Compact desktop / wall-mount |
| Switching Capacity | 56 Gbps |
| Non-Blocking Throughput | 28 Gbps |
| Forwarding Rate | 42 Mpps |

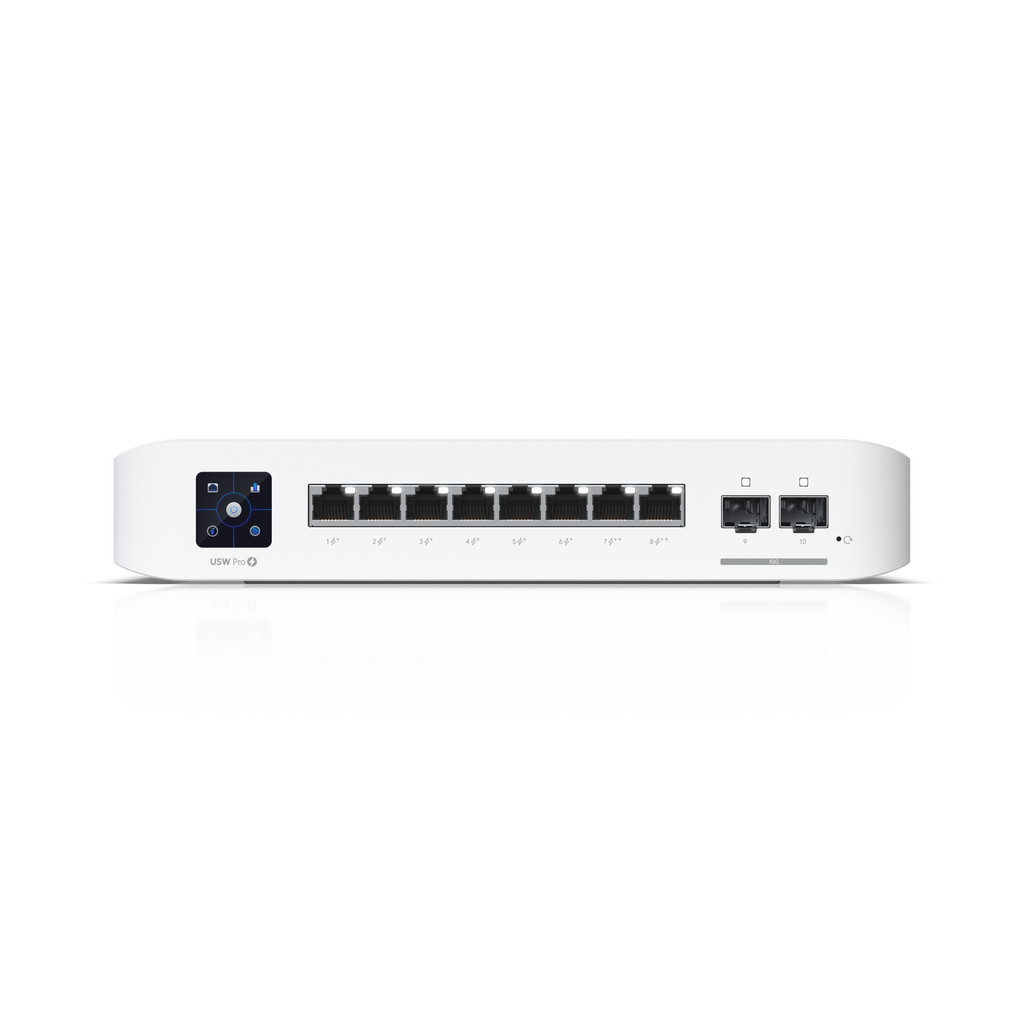

| RJ45 Ports | (8) GbE (6 × PoE+, 2 × PoE++) |
| SFP+ Ports | (2) 10G SFP+ |
| Max. PoE Output | PoE++ |
| Total PoE Budget | 120W |
| PoE Wattage per Port | PoE: 15.4W PoE+: 32W PoE++: 64W |

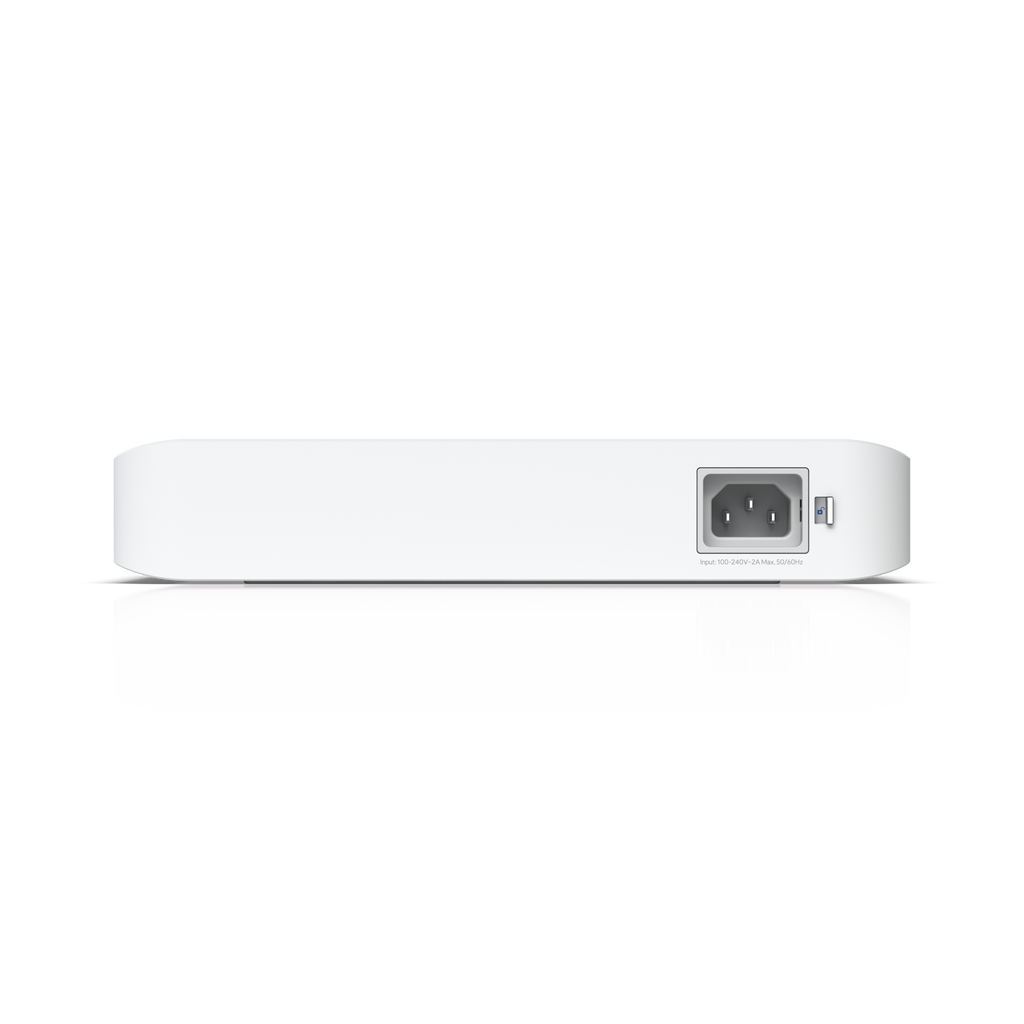

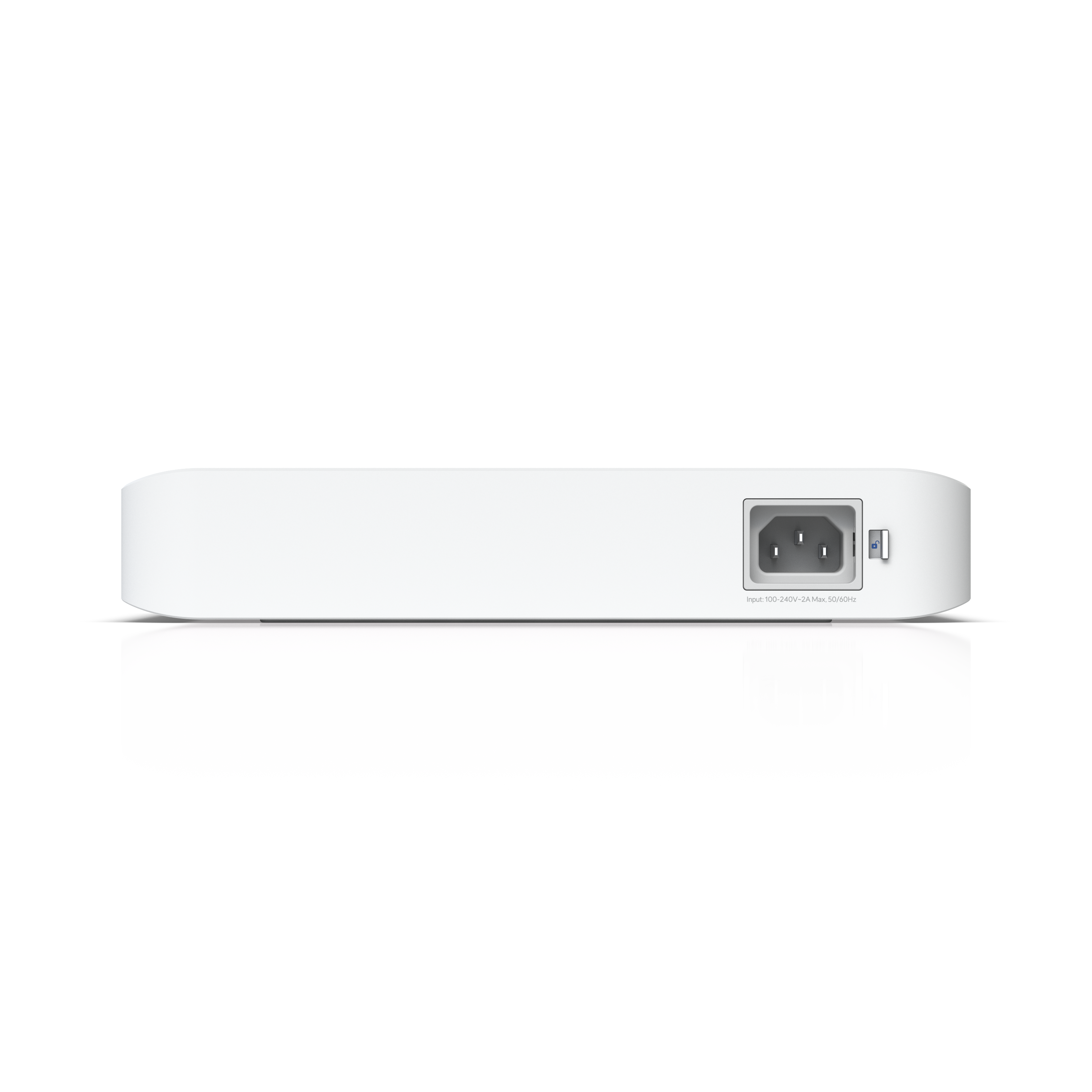

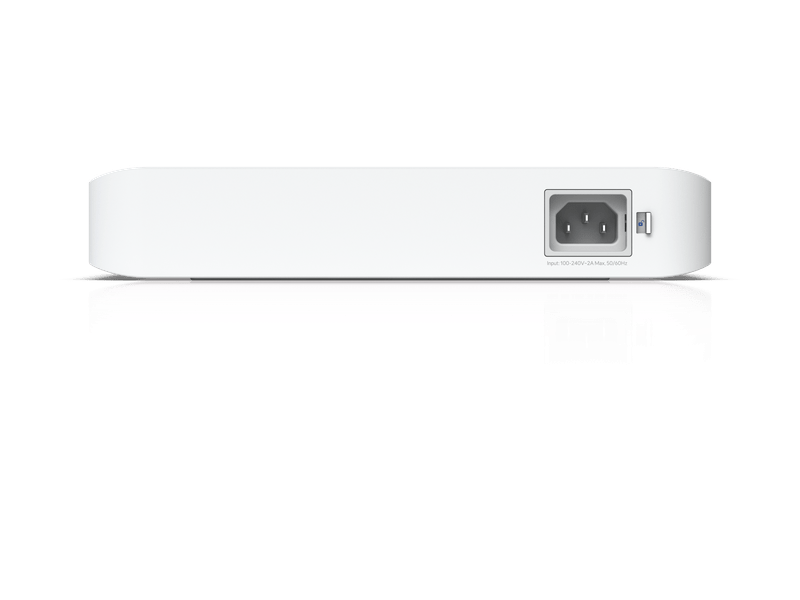

| Power Method | Universal AC input, 100–240V AC, 50/60 Hz |
| Power Supply | Internal AC/DC, 150W |
| Max. Power Consumption | 30W (excluding PoE) 150W (including PoE) |
| Routing | Static Routing Inter-VLAN Routing DHCP Server & Relay |
| ACLs | IPv4: 128 entries MAC: 128 entries |
| Supported VLANs | 1,000 |
| MAC Address Table | 16,000 entries |
| Jumbo Frames | ✓ |
| Advanced Features | LACP, STP/RSTP, IGMP Snooping Port Mirroring, Isolation, Rate Limiting 802.1X, LLDP-MED, Voice VLAN DHCP Snooping & Guarding |
| Dimensions | 200 × 248 × 44 mm (7.9 × 9.8 × 1.7") |
| Weight | 2.1 kg (4.6 lb) |
| Enclosure Material | Polycarbonate, metal |
| Operating Temperature | -5 to 45° C (23 to 113° F) |
| Operating Humidity | 10 to 90% noncondensing |
| LCM Display | 1.3" Touchscreen |
| Button | Factory Reset |
| Certifications | CE, FCC, IC, Anatel |
| NDAA Compliant | ✓ |
| Management Platform | UniFi Network |
| Software Version Required | v7.5.176 and later |
