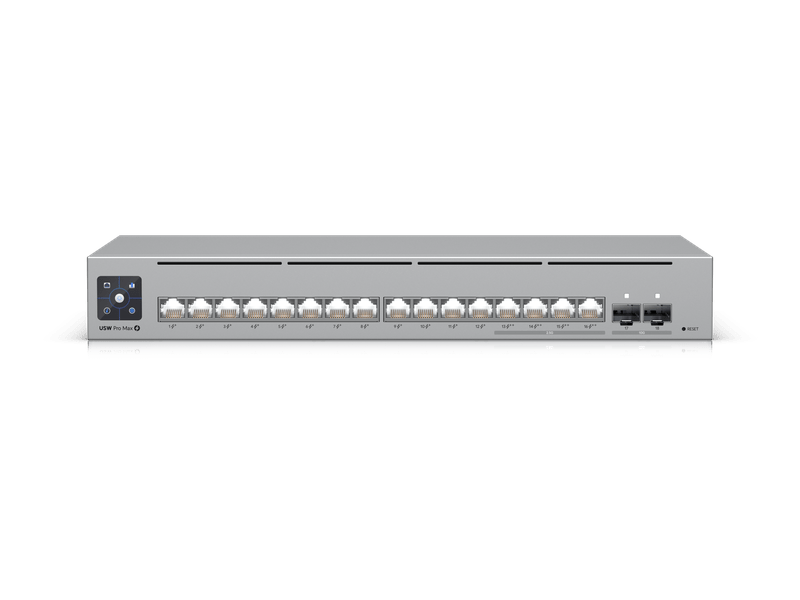

Pro Max 16 PoE
USW-Pro-Max-16-PoE (180W)
A 16-port, Layer 3 Etherlighting™ switch with 2.5 GbE, PoE++ output, and versatile mounting options.
Pro Max 16 PoE
USW-Pro-Max-16-PoE (180W)
A 16-port, Layer 3 Etherlighting™ switch with 2.5 GbE, PoE++ output, and versatile mounting options.
| USW-Pro-Max-16-PoE Specifications | |
|---|---|
| Dimensions | 325.1 × 160 × 43.7 mm (12.8 × 6.3 × 1.7") |
| Weight | 2.1 kg (4.6 lb) |
| Form Factor | Rack mount (1U), desktop, wall |
| Enclosure Material | SGCC steel |
| Supported Rack Depth | 400–1200 mm (15.7–47.2") |
| RJ45 Ports | 12 × 1 GbE RJ45 (PoE+) 4 × 2.5 GbE RJ45 (PoE++) 2 × 10G SFP+ |
| Max. PoE Output | Up to PoE++ |
| Total PoE Availability | 180W |
| Switching Capacity | 84 Gbps |
| Non-Blocking Throughput | 42 Gbps |
| Forwarding Rate | 62 Mpps |
| MAC Address Table | 16,000 entries |
| Supported VLANs | 1,000 |
| IPv4 Routes | 512 |
| ARP Entries | 6,000 |
| Packet Buffer Size | 1.5 MB |
| DHCP Server | ✓ |
| DHCP Relay | ✓ |
| Inter-VLAN Routing | ✓ |
| Static Routing | ✓ |
| Port Aggregation (LACP) | ✓ |
| STP & RSTP | ✓ |
| QoS (DSCP) | ✓ |
| Pro AV Profiles | Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron |
| IGMP Snooping & Querier | ✓ |
| 802.1X Control | ✓ |
| ACLs & Isolation | MAC/IP-based ACLs DHCP Snooping & Guarding Port Isolation, Mirroring, Restriction Rate Limiting, Flow & Storm Control |
| Jumbo Frames | ✓ |
| LLDP-MED | ✓ |
| Voice VLAN | ✓ |
| Loop Protection | ✓ |
| Power Method | AC adapter |
| Power Supply | AC/DC external, 210W |
| Supported Voltage Range | 50–54V DC |
| Max. Power Consumption | 25W (excluding PoE) 210W (including PoE) |
| Heat Dissipation | 68 BTU/hr (excluding PoE) |
| LCM Display | 1.3" touchscreen |
| Button | Factory-reset |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 10 to 90% noncondensing |
| Etherlighting™ | ✓ (Ethernet & SFP+) |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, Anatel |
| Application Requirements | UniFi Network version 8.1.127 and later |
