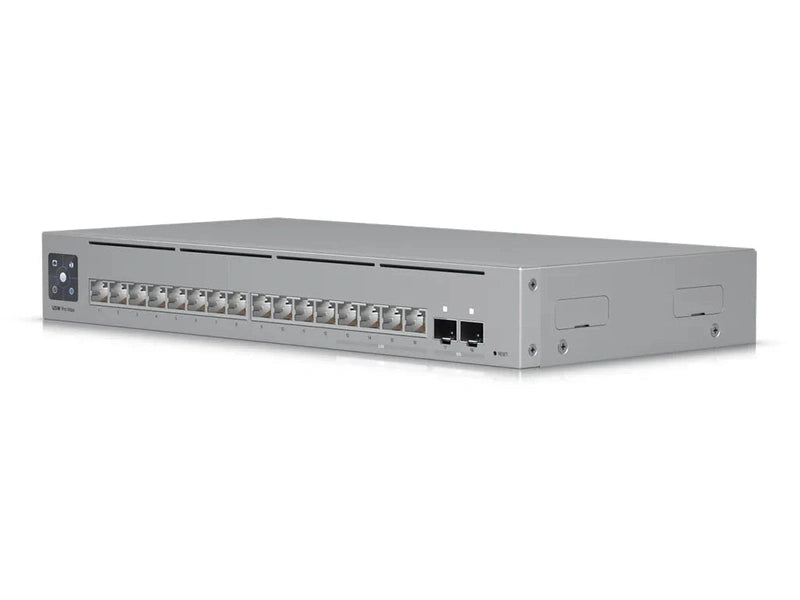

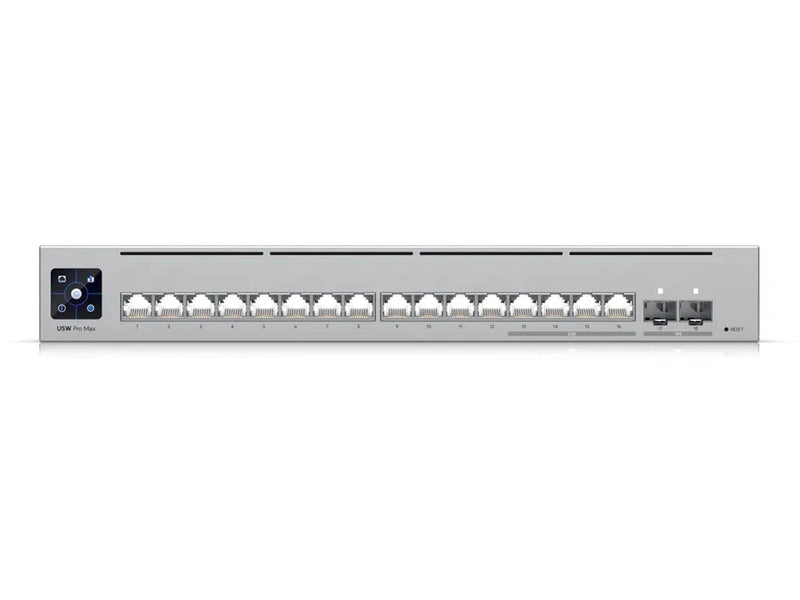

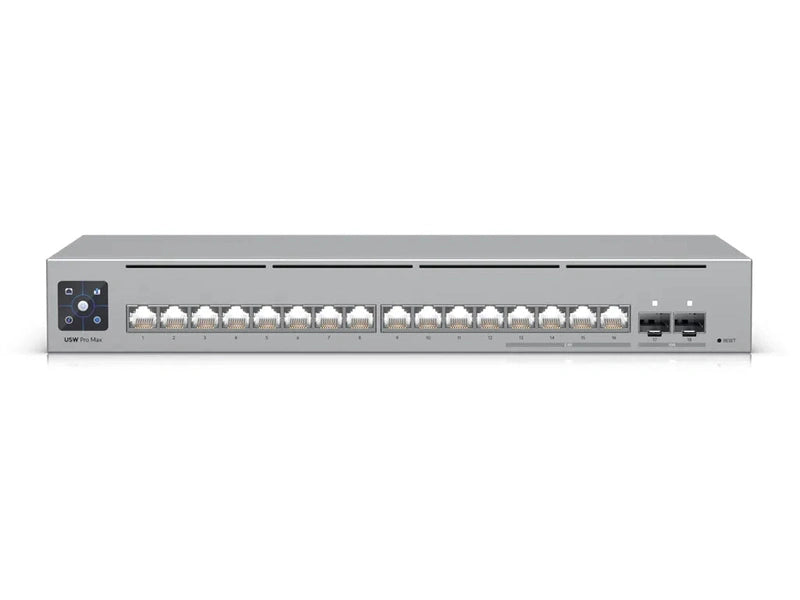

Pro Max 16
USW-Pro-Max-16
A 16-port, Layer 3 Etherlighting™ switch 2.5 GbE and versatile mounting options.
Pro Max 16
USW-Pro-Max-16
A 16-port, Layer 3 Etherlighting™ switch 2.5 GbE and versatile mounting options.
| Switch Specifications | |
|---|---|
| Dimensions | 325.1 × 160 × 43.7 mm (12.8 × 6.3 × 1.7") |
| Port Layout | 1 GbE RJ45: 12 ports (1G/100M/10M) 2.5 GbE RJ45: 4 ports (2.5G/1G/100M/10M) 10G SFP+: 2 ports (10G/1G) |
| Layer 3 | ✓ |
| Form Factor | Rack mount (1U), desktop, wall |
| Etherlighting™ | ✓ |
| Switching Capacity | 84 Gbps |
| Total Non-Blocking Throughput | 42 Gbps |
| Forwarding Rate | 62 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 16,000 |
| ARP Entries | 6,000 |
| IPv4 Routes | 512 |
| Packet Buffer Size | 1.5 MB |
| Access Lists | IPv4: 128 MAC: 128 |
| DHCP Server (Local Networks) | ✓ |
| DHCP Relay | ✓ |
| Inter-VLAN Routing (Local Networks) | ✓ |
| Static Routing (Local Networks) | ✓ |
| LACP Port Aggregation | ✓ |
| STP & RSTP | ✓ |
| QoS (DSCP) | ✓ |
| Pro AV Profiles | ✓ (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) |
| Advanced IGMP Configuration | ✓ (Querier, Fast Leave, Router Port) |
| IGMP Snooping | ✓ |
| 802.1X Control | ✓ |
| MAC-Based ACLs & Device Isolation | ✓ |
| DHCP Snooping & Guarding | ✓ |
| Egress Rate Limit | ✓ |
| Flow Control | ✓ |
| Storm Control | ✓ |
| Multicast & Broadcast Rate Limiting | ✓ |
| MAC Address Blocking | ✓ |
| IP-Based ACLs & Network Isolation | ✓ |
| MAC-Based Port Restriction | ✓ |
| Port Isolation | ✓ |
| Port Mirroring | ✓ |
| Jumbo Frames | ✓ |
| LLDP-MED | ✓ |
| Voice VLAN | ✓ |
| Loop Protection | ✓ |
| Max. Power Consumption | 25W |
| Power Method | AC/DC Adapter (included) |

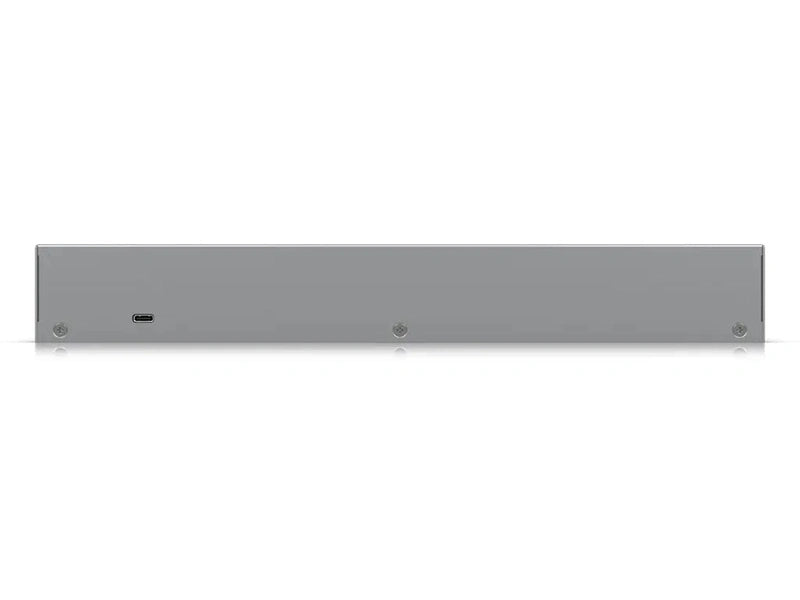

| Power Input Method | USB Type-C, 5V DC, 5A |
| Power Supply | AC/DC, external, 25W |
| Supported Voltage Range | 4.8–5.2V DC / USB |
| Management | Ethernet AR |
| Heat Dissipation | 85.3 BTU/hr (Excluding PoE Output) |
| Weight | 1.95 kg (4.3 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400–1200 mm (15.7–47.2") |
| LCM Display | 1.3" touchscreen |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Ethernet | ✓ |
| SFP+ | ✓ |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, Anatel |
| Application Requirements | UniFi Network Version 8.1.127 and later |
