Description
Overview

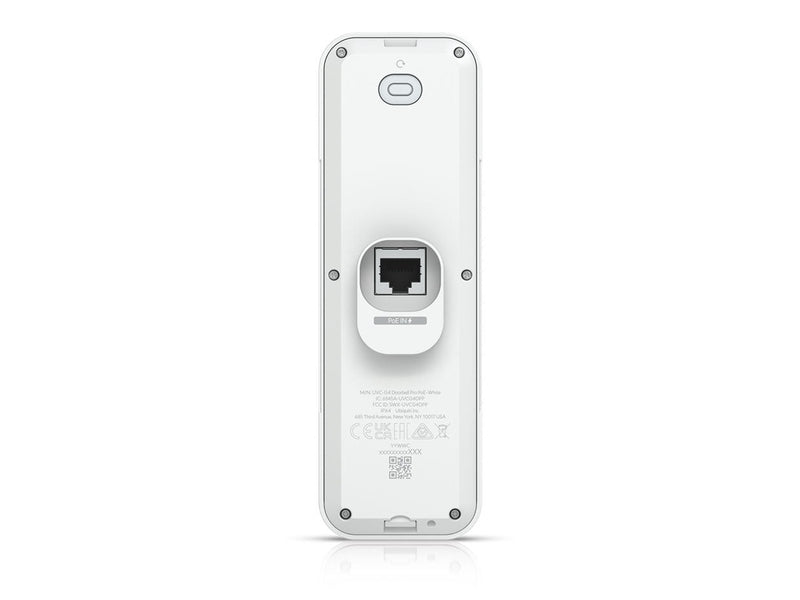

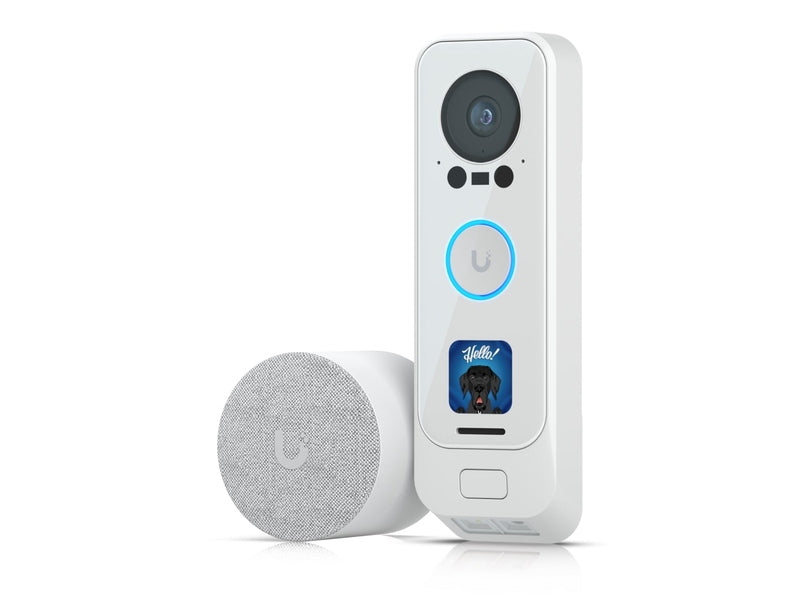

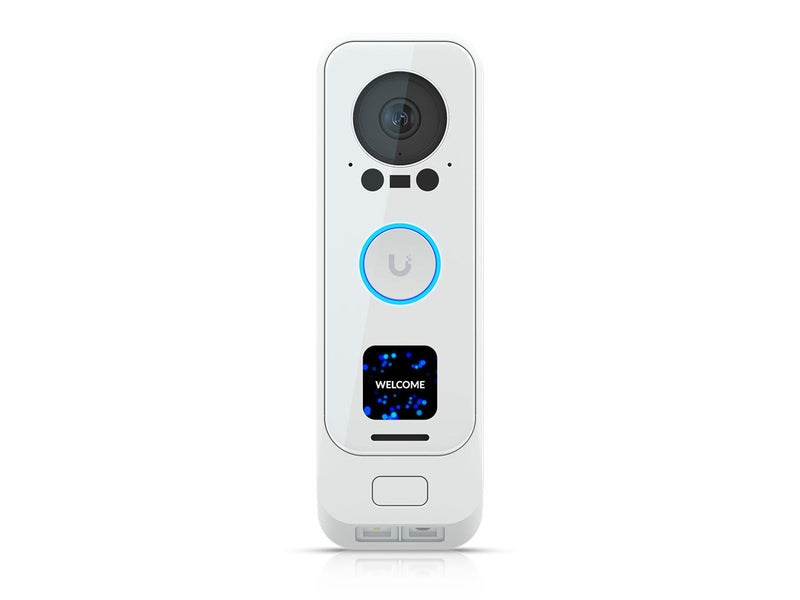

G4 Doorbell Pro PoE Kit
UVC-G4 Doorbell Pro PoE Kit-White
Premium UniFi doorbell with integrated PoE and included PoE chime for plug-and-play installation.
G4 Doorbell Pro PoE Kit
UVC-G4 Doorbell Pro PoE Kit-White
Premium UniFi doorbell with integrated PoE and included PoE chime for plug-and-play installation.
| Doorbell Specifications | |
|---|---|
| Dimensions | Device: 160.6 × 51.7 × 35.1 mm (6.3 × 2 × 1.4") Wall mount: 159.3 × 50.3 × 17.5 mm (6.3 × 1.9 × 0.7") Wedge: 161.1 × 52.1 × 25.7 mm (6.3 × 2.1 × 1") On-wall mount: 161.1 × 52.1 × 25.75 mm (6.3 × 2.1 × 1") |
| IR Night Vision | 6 m (20 ft) |
| Smart Detections | ✓ (People, Vehicles, Animals) |
| Resolution | FHD |
| Field of View | Main camera (LDC On): H: 138°, V: 114°, D: 155° Main camera (LDC Off): H: 160°, V: 117°, D: 160° Package camera: H: 97.5°, V: 79.4°, D: 118.2° |
| Audio | Two-way audio |
| Weatherproofing | IPX4 |
| Mounting | Wall, wedge (Included) Gang box, junction box (Optional) |
| UniFi Application Suite | Protect ✓ |
| Networking Interface | GbE RJ45 port |
| Max. Frame Rate | 30 FPS |
| Camera Resolution | Main: 2MP (1600 × 1200, 4:3) Package: 2MP (1600 × 1200, 4:3) |
| Sensor | Main: 5MP CMOS Package: 8MP CMOS |
| Lens | Fixed focal length |
| Night Mode | IR LED + IR cut filter |
| Max. Power Consumption | 7W |
| Supported Voltage Range | 37–57V DC |
| Power Method | PoE |
| Processor | Quad-core Arm® Cortex®-A53 |
| Weight | Device: 264 g (9.3 oz) Wall mount: 56 g (2 oz) Wedge: 33 g (1.2 oz) On-wall mount: 53 g (1.9 oz) |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Flat wall mount: aluminum alloy 20° wedge mount: polycarbonate |
| Buttons | (1) Ring button, (1) Factory-reset |
| Ambient Operating Temperature | -30 to 40° C (-22 to 104° F) |
| Ambient Operating Humidity | 0 to 90% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, SRRC |
| Mobile App | UniFi Protect (iOS™ and Android™) |
| Chime Specifications | |
| Dimensions | Device: Ø62 × 54 mm (Ø2.5 × 2.1") In-wall mount: Ø89 × 63.1 mm (Ø3.5 × 2.5") On-wall mount: Ø62 × 20.2 mm (Ø2.5 × 0.8") |
| Weight | Device: 158 g (5.6 oz) In-wall mount: 91 g (3.2 oz) On-wall mount: 28 g (1 oz) |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Polycarbonate, zinc alloy |
| Networking Interface | 10/100 MbE port |
| Power Method | PoE |
| Supported Voltage Range | 44–57V DC |
| Max. Power Consumption | 3W |
| LED | R/G/B/W |
| Buttons | (1) Factory-reset |
| Speaker | Yes |
| Buzzer | Yes |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| NDAA Compliant | ✓ |
