Overview
Network Video Recorder
UNVR

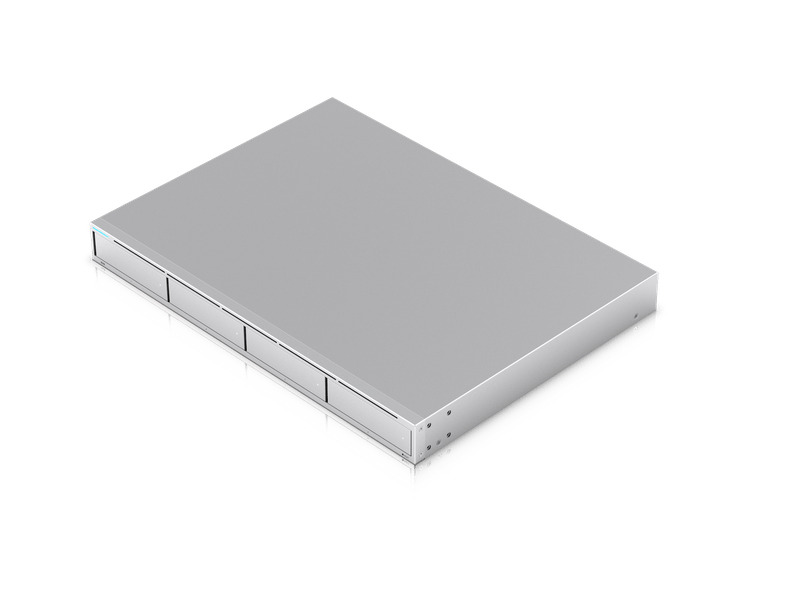

A video recorder with (4) 2.5/3.5" HDD bays that can support up to 30 days of storage for (18) 4K cameras or (60) Full HD cameras.
Network Video Recorder
UNVR
A video recorder with (4) 2.5/3.5" HDD bays that can support up to 30 days of storage for (18) 4K cameras or (60) Full HD cameras.
UNVR Specifications | |
---|---|
Product Type | Network Video Recorder |
Application Suite | UniFi Protect, UniFi Access |
Camera Capacity | Up to 60 HD cameras Up to 30 2K cameras Up to 18 4K cameras |
Storage Capacity | (4) 2.5"/3.5" HDD/SSD bays |
Data Protection | RAID support |
Processor | Quad-core ARM® Cortex®-A57 @ 1.7 GHz |
System Memory | 4 GB DDR4 |
Flash Storage | 32 GB |
Max Power Budget for Drives | 75W |
Max Power Consumption | 100W |
Ethernet Ports | (1) 10G SFP+ port (1) 1G RJ45 port |
Management Interface | In-band Ethernet |
Power Method | Universal AC input: 100–240V AC, 2A Max, 50/60 Hz USP-RPS DC input: 11.5V DC, 10.43A |
Power Supply | Internal AC/DC, 120W |
Redundancy | USP-RPS support |
Form Factor | Rackmount (1U) |
Dimensions | 442 × 325 × 44 mm (17.4 × 12.8 × 1.7") |
Weight | Without brackets: 5.1 kg (11.3 lb) With brackets: 5.2 kg (11.5 lb) |
Enclosure Material | SGCC steel |
Operating Temperature | -5 to 40°C (23 to 104°F) |
Operating Humidity | 5 to 95% noncondensing |
ESD/EMP Protection | ±12kV air / ±8kV contact |
LEDs | System: Blue/White Ethernet: Green (1G), Amber (10/100 Mbps) SFP+: White (10G), Green (1G) HDD: White (disk detected), Amber (disk error) RPS: Blue (ready) |
Certifications | CE, FCC, IC, SRRC |
NDAA Compliant | ✓ |
