Description
Overview

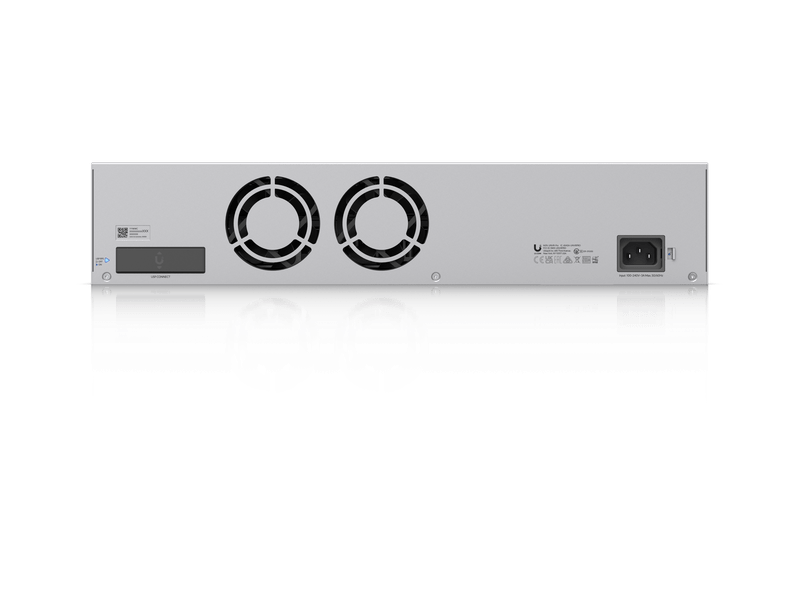

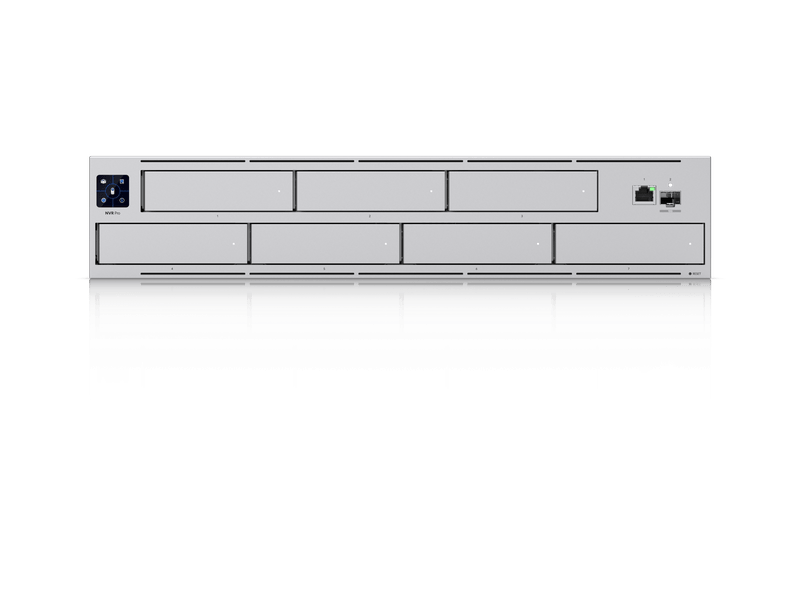

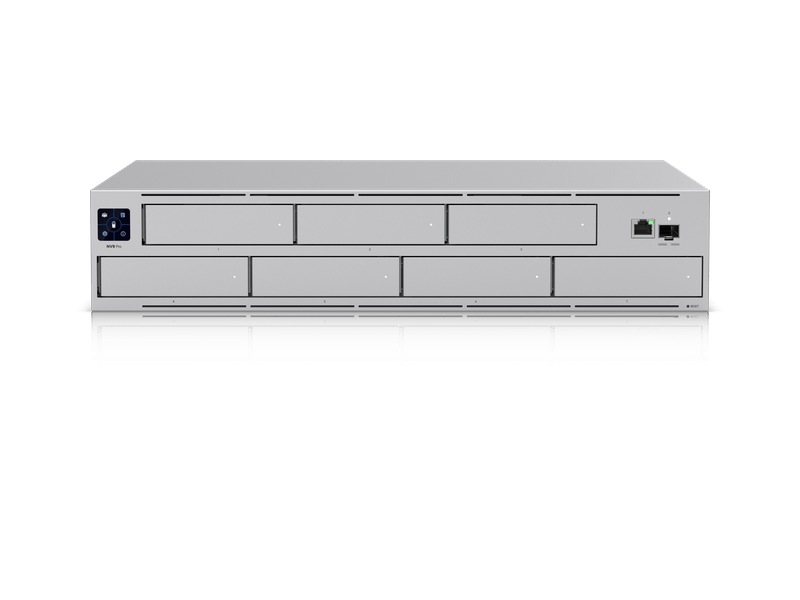

Network Video Recorder Pro
UNVR-Pro
A 2U-sized video recorder with (7) 2.5/3.5" HDD bays that can provide up to 60 days of storage for (24) 4K cameras or (70) Full HD cameras.
Network Video Recorder Pro
UNVR-Pro
A 2U-sized video recorder with (7) 2.5/3.5" HDD bays that can provide up to 60 days of storage for (24) 4K cameras or (70) Full HD cameras.
| UNVR-PRO Specifications | |
|---|---|
| Mechanical | |
| Dimensions | 442 × 325 × 87 mm (17.4 × 12.8 × 3.4") |
| Weight | Without brackets: 9.2 kg (20.3 lb) With brackets: 9.5 kg (20.8 lb) |
| Form Factor | Rackmount (2U) |
| Enclosure Material | SGCC steel |
| Hardware | |
| Processor | Quad ARM® Cortex®-A57 @ 1.7 GHz |
| Memory | 8 GB DDR4 |
| Storage Bays | (7) 2.5"/3.5" HDD/SSD bays |
| Max Drive Power Budget | 135W |
| Max Power Consumption | 160W |
| Touchscreen Display | 1.3" color touchscreen |
| Networking | |
| Interfaces | (1) 10G SFP+ port (1) 1G RJ45 Ethernet port |
| Power | |
| Power Method | Universal AC input: 100–240V AC, 3A Max, 50/60 Hz USP-RPS DC input: 11.5V DC, 13.91A |
| Power Supply | Internal AC/DC, 200W |
| Redundancy | USP-RPS support |
| Environmental | |
| Operating Temperature | -5 to 40°C (23 to 104°F) |
| Operating Humidity | 5 to 95% noncondensing |
| Software & Features | |
| Application Suite | UniFi Protect, UniFi Access |
| Camera Capacity | Up to 70 HD cameras Up to 35 2K cameras Up to 24 4K cameras |
| Data Protection | RAID support |
| Management Interface | Ethernet, touchscreen |
| Compliance | |
| Certifications | CE, FCC, IC |
| NDAA Compliant | ✓ |
