Flex Utility
USW-Flex-Utility

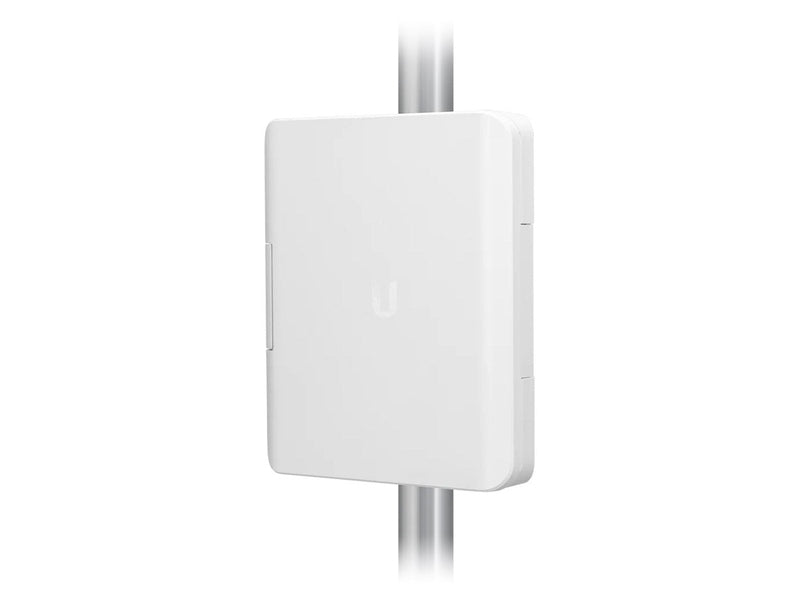

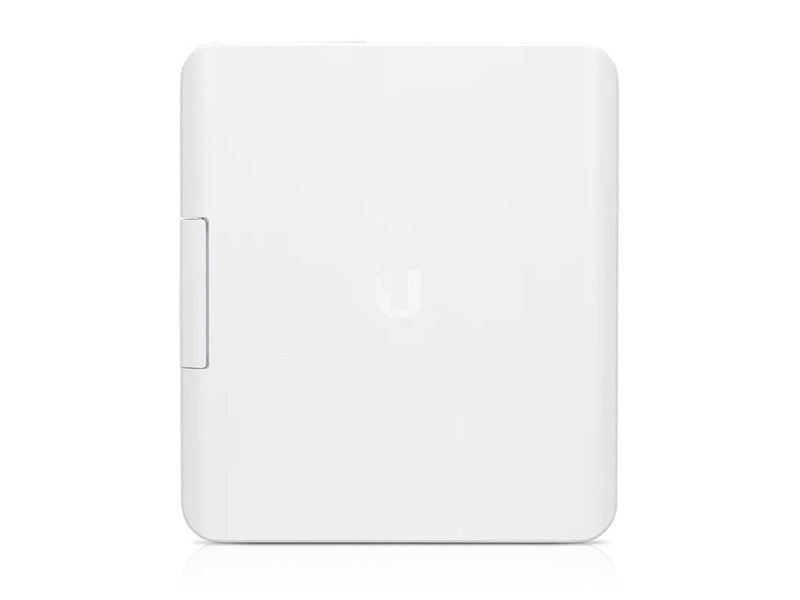

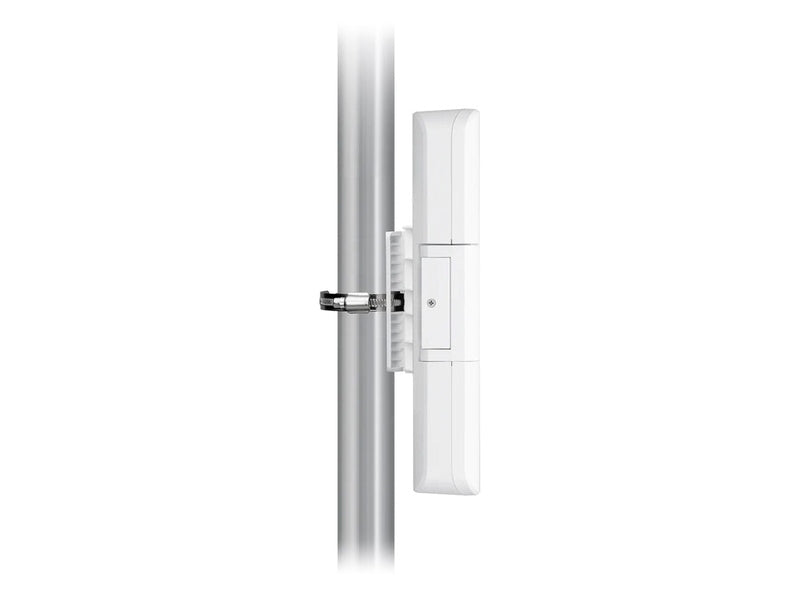

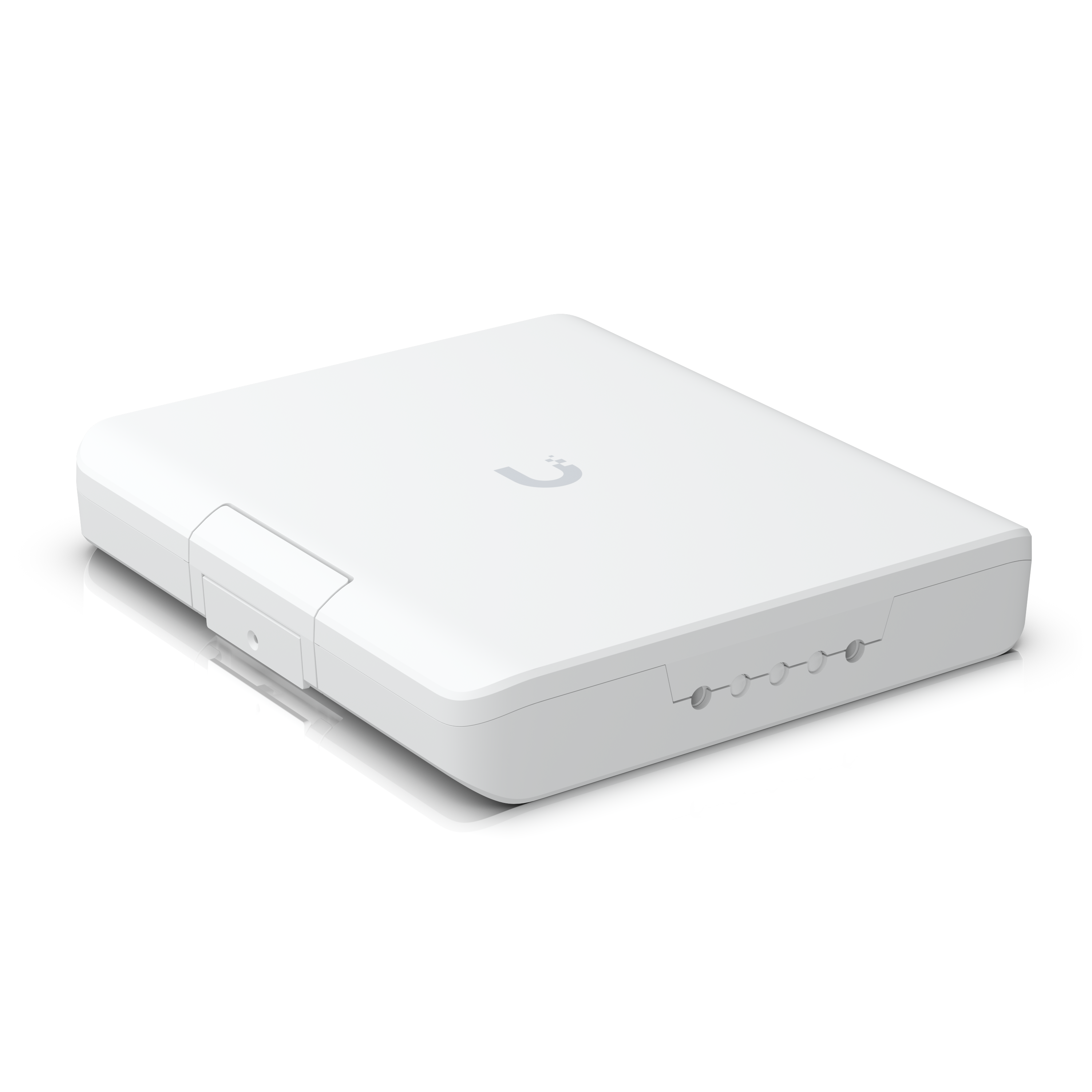

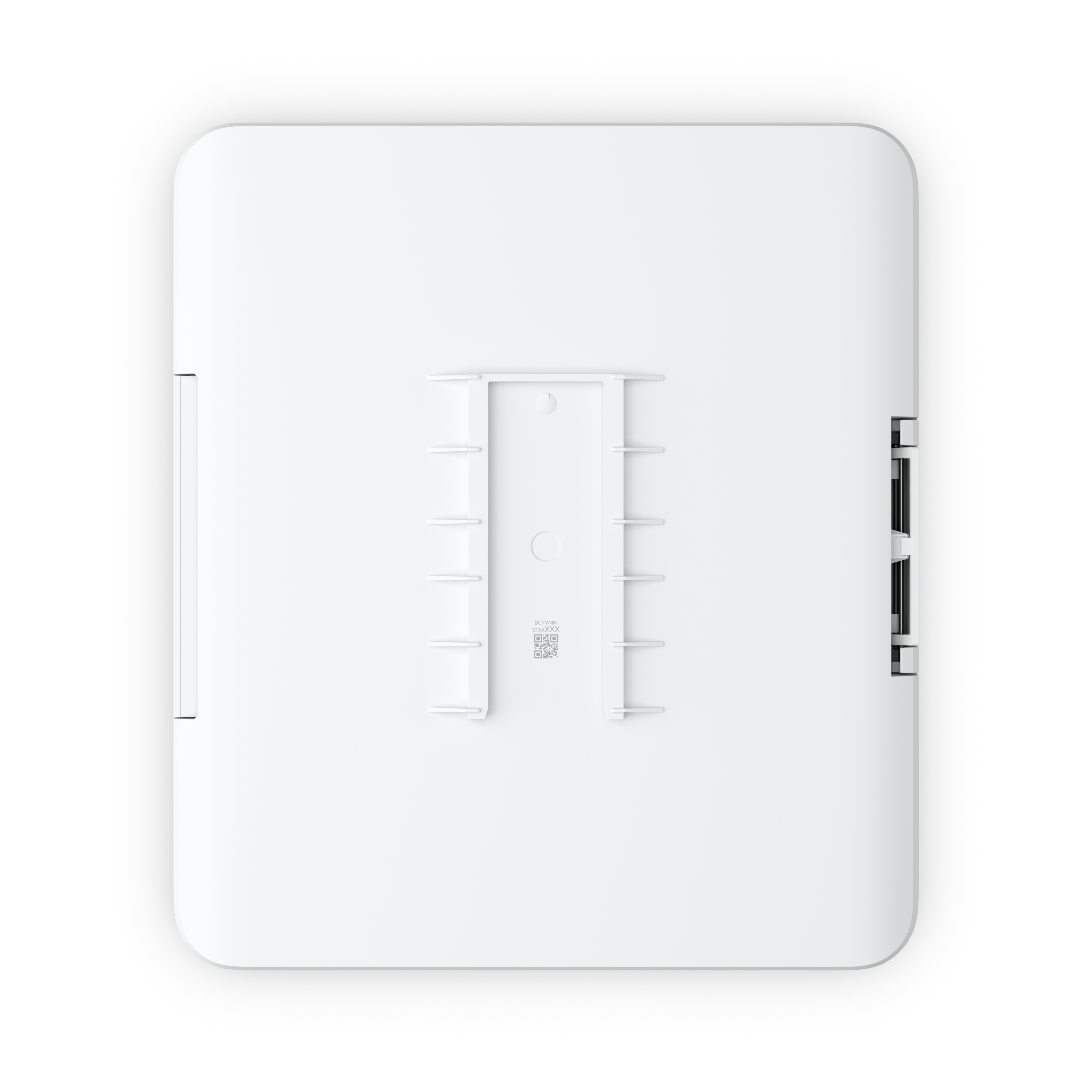

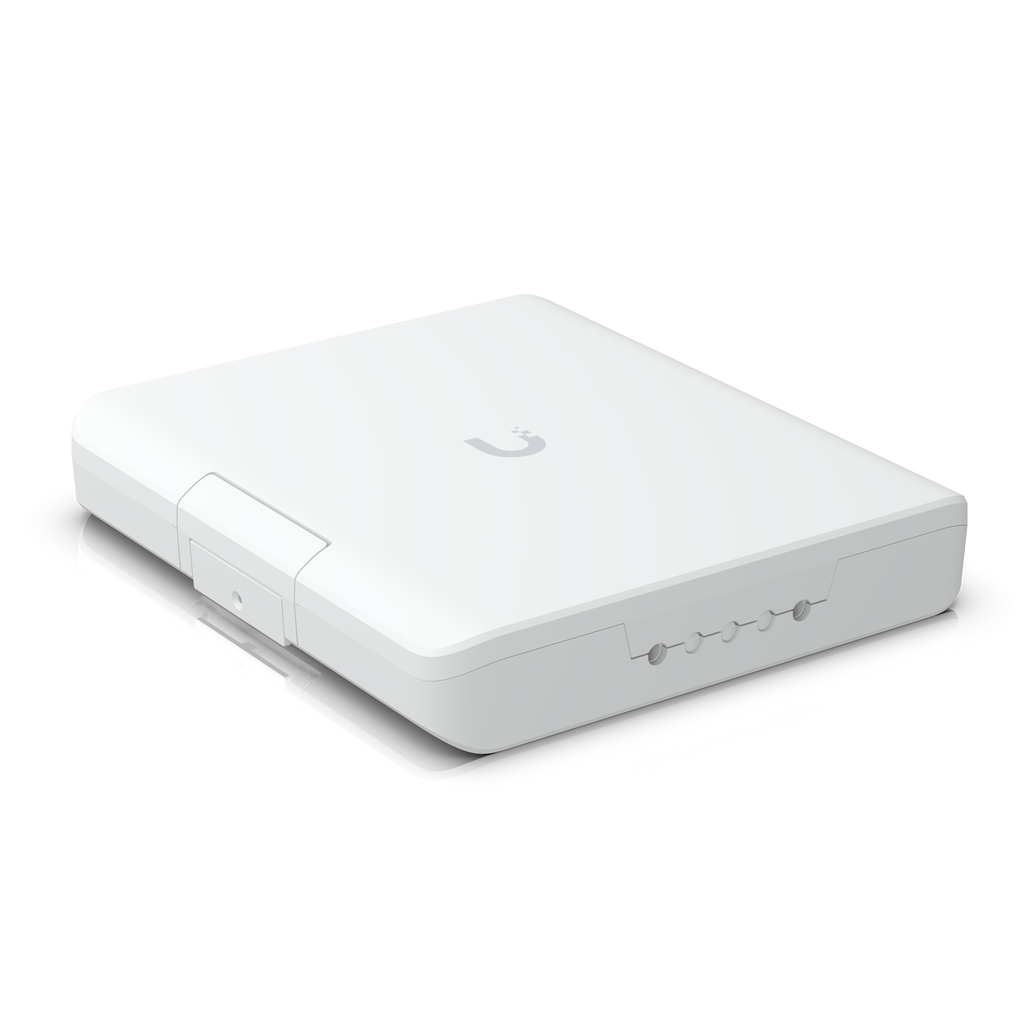

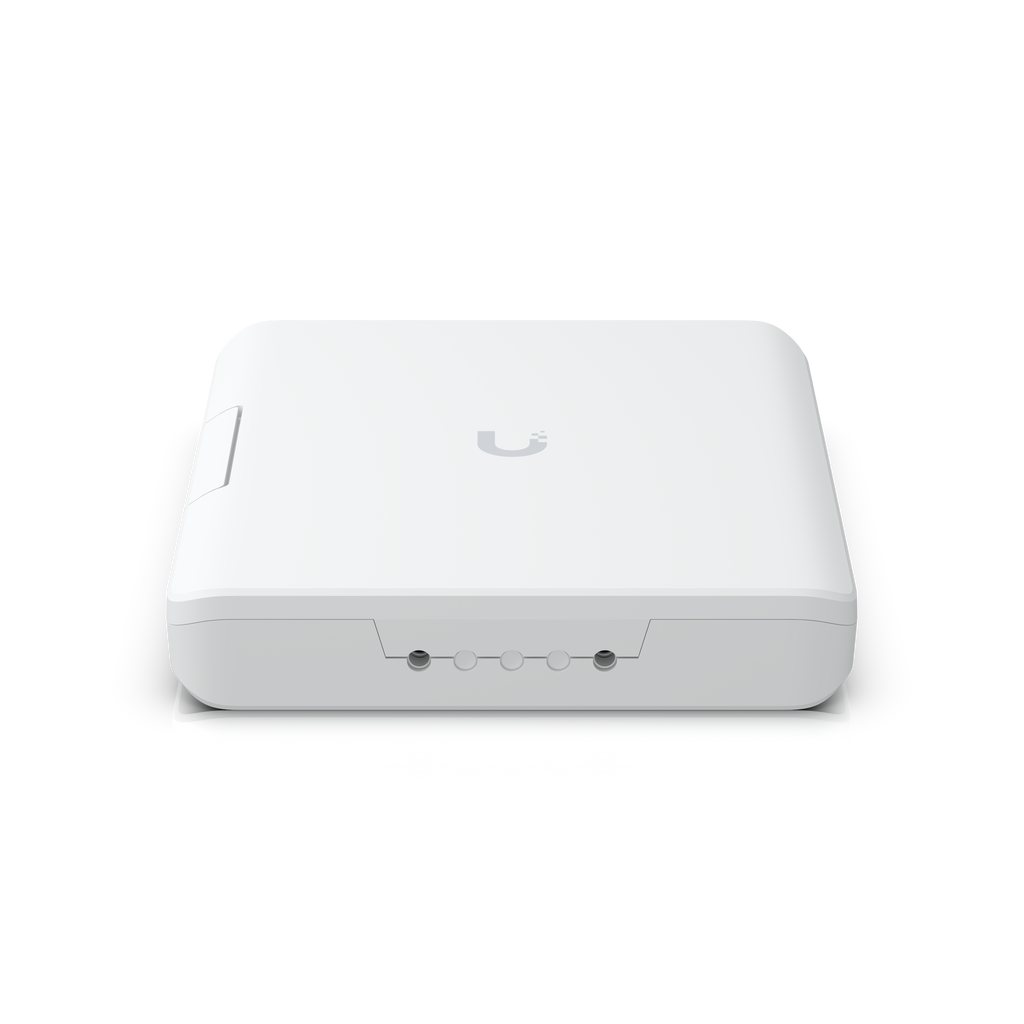

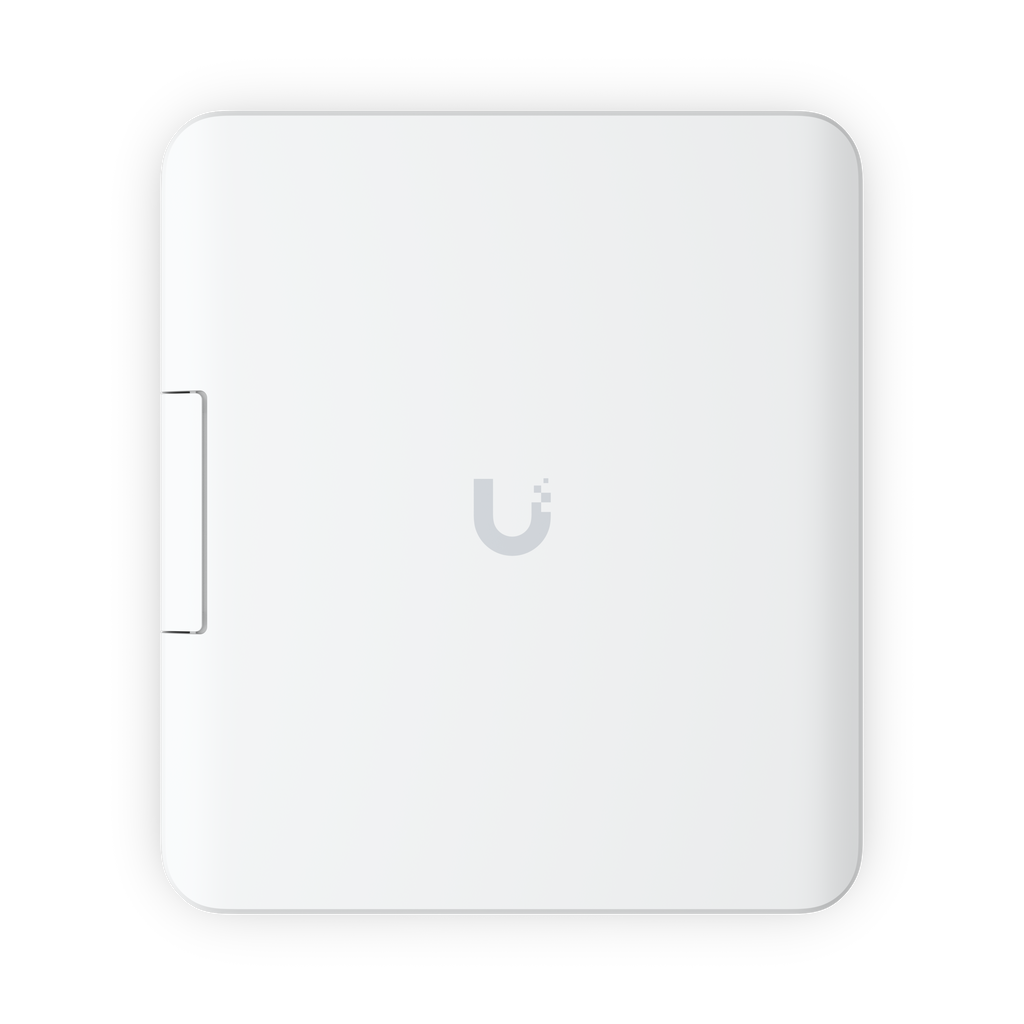

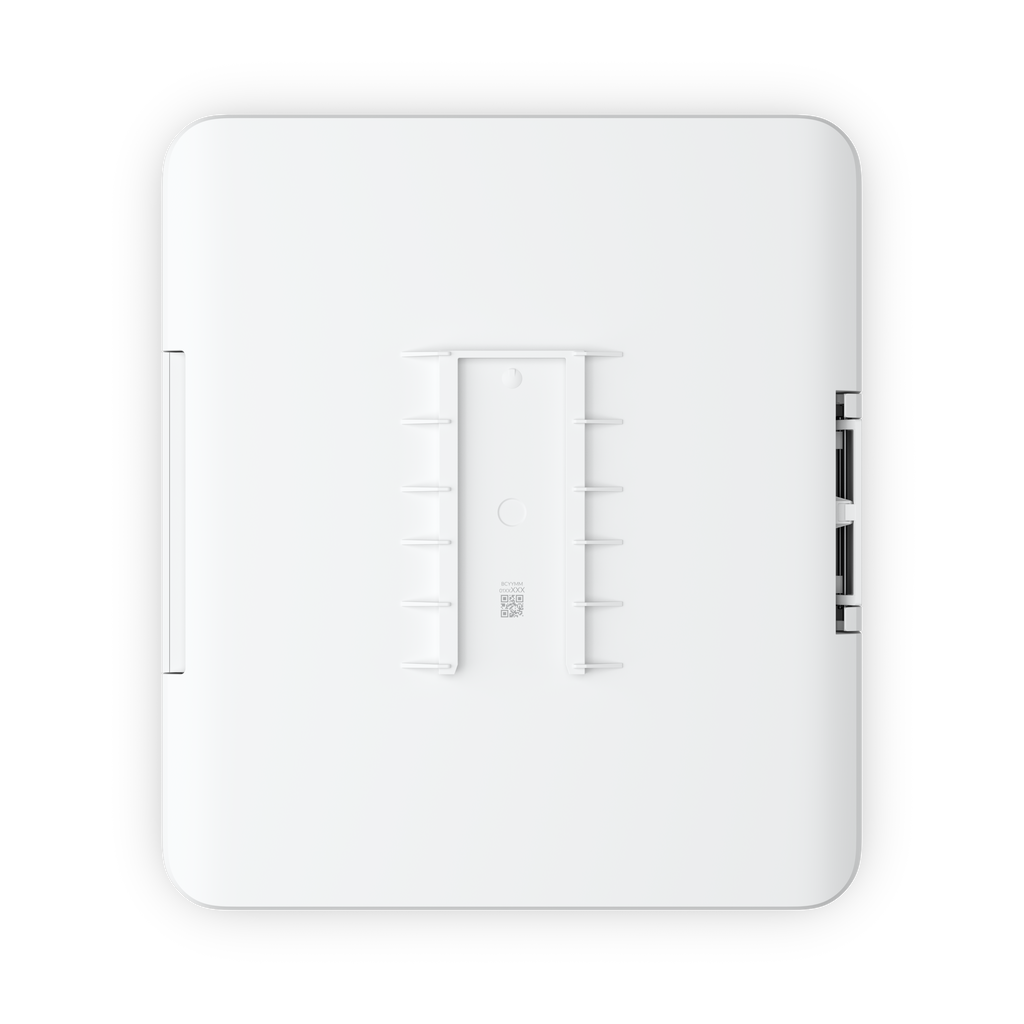

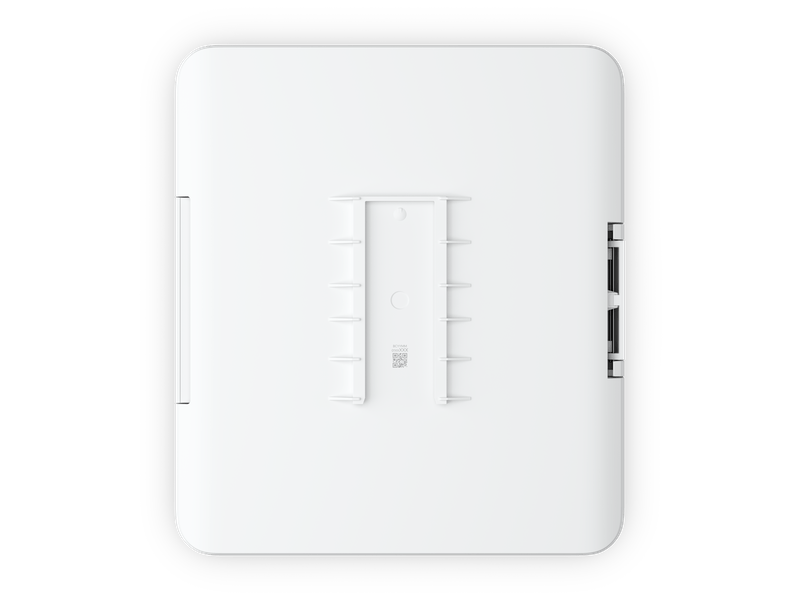

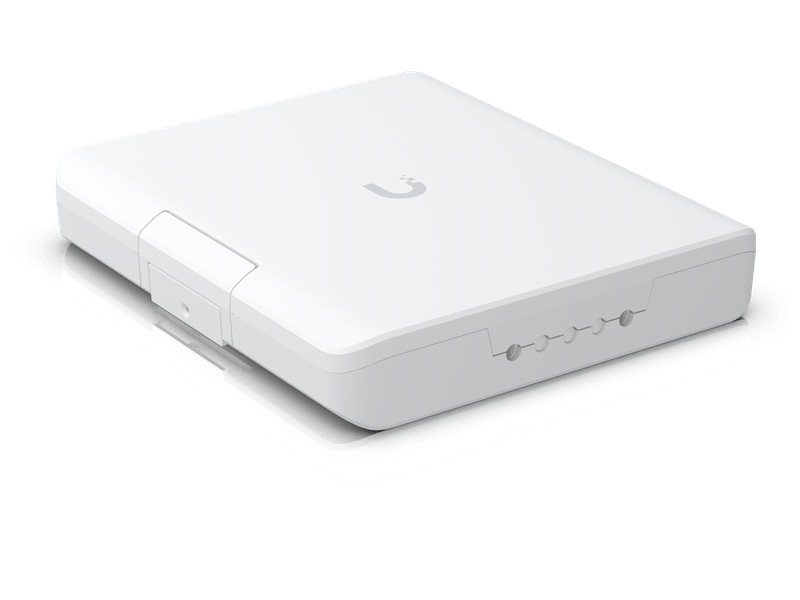

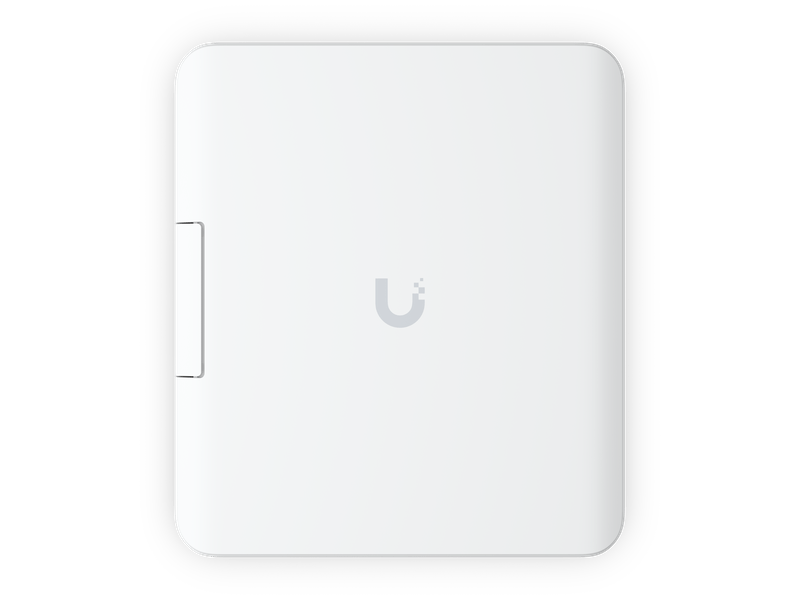

The Switch Flex Utility is an outdoor weatherproof enclosure designed for use with the Switch Flex.
Compatibility: USW-Flex
Flex Utility
USW-Flex-Utility
The Switch Flex Utility is an outdoor weatherproof enclosure designed for use with the Switch Flex.
Compatibility: USW-Flex
USW-Flex-Utility Specifications | |
---|---|

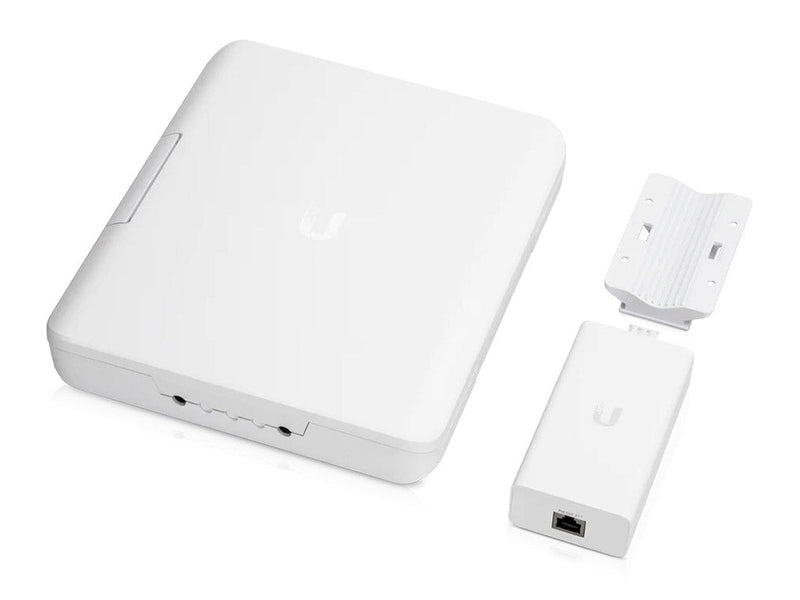

Product Type | Outdoor Weatherproof Enclosure with PoE Adapter |
Designed For | UniFi Switch Flex (USW-Flex) |
Mechanical | |
Enclosure Dimensions | 249 × 218 × 60 mm (9.8 × 8.6 × 2.4") |
Adapter Dimensions | 118.5 × 63 × 34.7 mm (4.7 × 2.5 × 1.4") |
Enclosure Weight | 740 g (1.6 lb) |
Adapter Weight | 206 g (7.3 oz) |
Electrical | |
Rated Voltage | 100–240V AC |
Input Current | 1.5A max |
Output Voltage | 54V DC, 1.11A |
Max PoE Power | 60W |
Powering Pins | 1,2,4,5 (+) and 3,6,7,8 (−) |
Efficiency | ≥ 86% |
Output Ripple | 200 mVpp |
Line Regulation | ≤ 1% |
Load Regulation | ≤ 3% |
Surge Protection | 4kV differential and common mode |
Environmental | |
Operating Temperature | −20 to 60°C (−4 to 140°F) |
Storage Temperature | −30 to 70°C (−22 to 158°F) |
Operating Humidity | 5 to 90% noncondensing |
Compliance | |
Certifications | CE, FCC, IC |
NDAA Compliant | ✓ |
