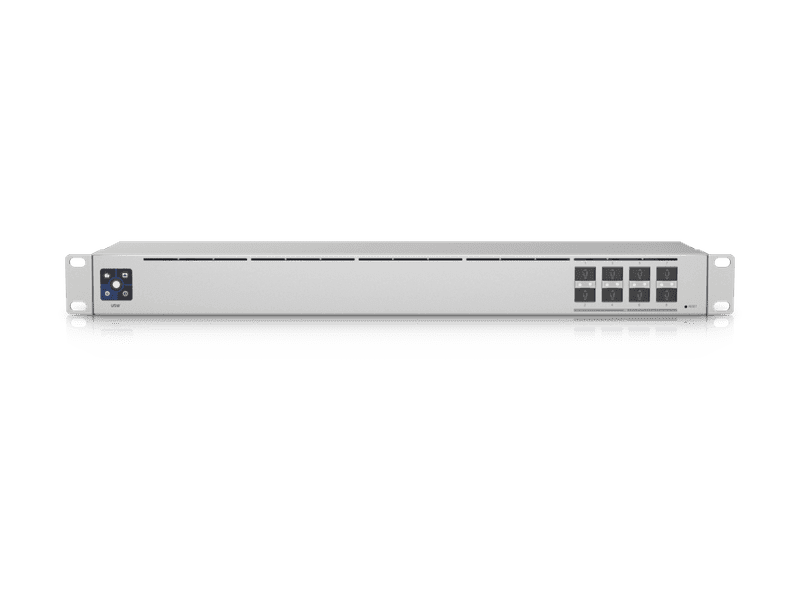

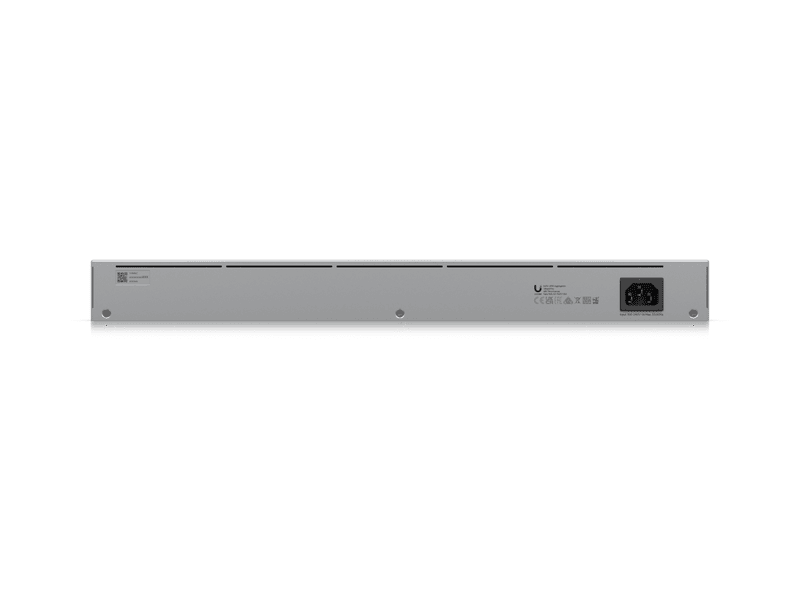

Ubiquiti UniFi USW-Aggregation 8-Port 10G SFP+ Aggregation Switch

UbiquitiSKU: USW-Aggregation

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$530.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Estimate shipping

Description

Ubiquiti UniFi USW-Aggregation 8-Port 10G SFP+ Aggregation Switch [USW-Aggregation]

An 8-port, Layer 2 switch made for 10G SFP+ connections.

- (8) 10G SFP+ ports
- Fanless, silent cooling

Specifications


Mechanical
Dimensions 442 x 120 x 43.7 mm (17.4 x 4.7 x 1.7")
Weight Without mounting brackets: 2.6 kg (5.8 lb)
With mounting brackets: 2.7 kg (6 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (8) 10G SFP+ ports
Total non-blocking throughput 80 Gbps
Switching capacity 160 Gbps
Forwarding rate 119.04 Mpps
Power method Universal input, 100—240V AC, 50/60 Hz
Power supply AC/DC, internal, 36W
Supported voltage range 100—240V AC
Max. power consumption 30W
ESD/EMP protection Air: ± 16kV, contact: ± 12kV
Max. number of supported SFP+ modules UACC-OM-MM-10G: 8
UACC-OM-SM-10G: 8
UACC-CM-RJ45-10G: 4
UACC-CM-RJ45-MG: 4
Services SMB Layer 2 GbE switch
LCM display (1) 1.3" LCM color touchscreen
Button Factory reset
Ambient operating temperature -5 to 40° C (23 to 104° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Switching Features
Layer 2 features IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 features
LEDs
System Status
SFP+ Link/activity
Application Requirements
UniFi Network Version 5.14.12 and later
