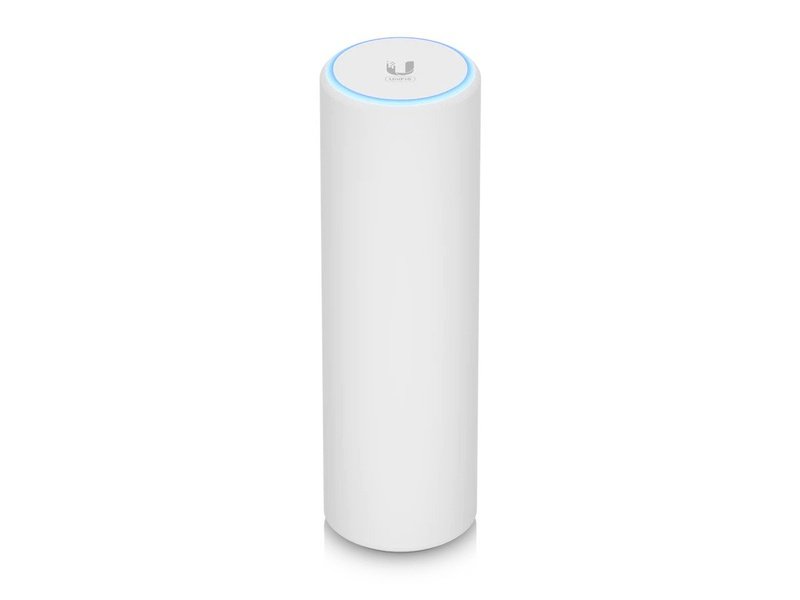

Ubiquiti Unifi Wi-Fi 6 Mesh Access Point

UbiquitiSKU: U6-MESH

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$370.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Estimate shipping

Description

Overview

Sleek, indoor/outdoor WiFi 6 access point designed for mesh applications.
- 140 m² (1,500 ft²) coverage
- 300+ connected devices
- WiFi6 (4x4 MIMO)
- Powered using PoE
- Compact form-factor
- Versatile tabletop, wall, or pole mounting

Specifications

Mechanical
Dimensions Ø48.5 x 159.5 mm (Ø1.9 x 6.28")
Weight 400 g (0.88 lb)
Enclosure material Plastic, aluminum
Mount materials Plastic
Weatherproofing IPX5
Hardware
Networking interface (1) GbE RJ45 port
Management interfaces Ethernet
Bluetooth
Power method PoE
Power supply UniFi PoE switch
48V, 0.32A PoE adapter (included)
Supported voltage range 44—57V DC
Max. power consumption 11.4W
Max. TX power
2.4 GHz
5 GHz

22 dBm
26 dBm
MIMO
2.4 GHz
5 GHz

2 x 2 (UL MU-MIMO)
4 x 4 (DL/UL MU-MIMO)
Throughput rate
2.4 GHz
5 GHz

573.5 Mbps
4.8 Gbps
Antenna gain
2.4 GHz
5 GHz

3 dBi
5 dBi
LEDs White/blue
Button Factory reset
Mounting Wall, desktop, pole mount (Included)
Ceiling mount (Optional)
Operating temperature -30 to 60° C (-22 to 140° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11a/b/g
WiFi 4/WiFi 5/WiFi 6
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 300+
Zero wait DFS Yes*
*Supported with upcoming firmware versions
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4) 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
Application Requirements
UniFi Network Version 6.2.51 and later
