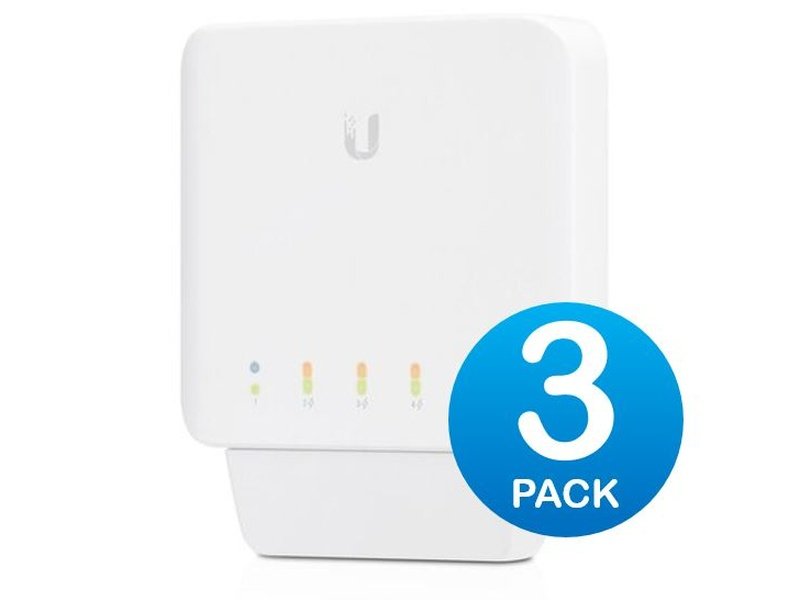

Ubiquiti USW Flex 3 Pack- Managed Layer 2 Gigabit switch with PoE 46W

UbiquitiSKU: USW-Flex-3

Availability:

❌ Back Order - Contact Us for ETA

Price:
Sale price$544.00
Contact Us for ETA

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Description

Ubiquiti USW Flex 3 Pack- Managed Layer 2 Gigabit switch with PoE support [USW-Flex-3]



Flexible 5-port, Layer 2 PoE switch for indoor and outdoor use, that can be powered with PoE++.

- (4) GbE PoE+ ports
- (1) GbE PoE++ input port for power
— 46W PoE availability* PoE++ input
— 20W PoE availability PoE+ input
— 8W PoE availability PoE input
- Indoor/Outdoor

*When powered with a PoE++ switch or a 60W PoE adapter (sold separately).


Specifications


Mechanical
Dimensions 122.5 x 107.1 x 28 mm (4.8 x 4.2 x 1.1")
Weight 230 g (8.1 oz)
Hardware
Management interface Ethernet In-Band

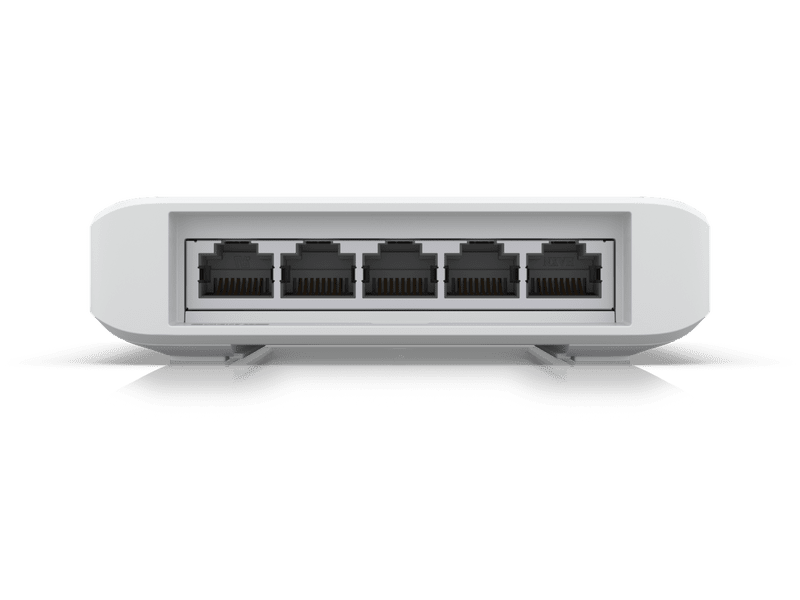

Networking interface (5) GbE RJ45 ports
PoE interface (4) PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput 5 Gbps
Switching capacity 10 Gbps
Power method PoE++
Power supply PoE/PoE+ (Pins 1, 2+; 3, 6-)
PoE++ (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)
50V/60W PoE adapter (Not included)
Supported voltage range PoE: 44—57V DC
PoE+/PoE++: 50—57V DC
Max. power consumption 5W (Excluding PoE output)
Total available PoE 46W*
*When powered with a PoE++ switch or a 60W PoE adapter (Sold separately).
Max. PoE wattage per port by PSE 25W
ESD/EMP protection Air/contact: ± 16kV
Button Factory reset
Ambient operating temperature 46W PoE output: -40 to 55° C (-40 to 131° F)
25W PoE output: -40 to 65° C (-40 to 149° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Switching Features
Layer 2 features Port isolation
Port mirroring
Multicast / broadcast rate limiting
Flow control
Jumbo frames
Egress rate limit
Layer 3 features

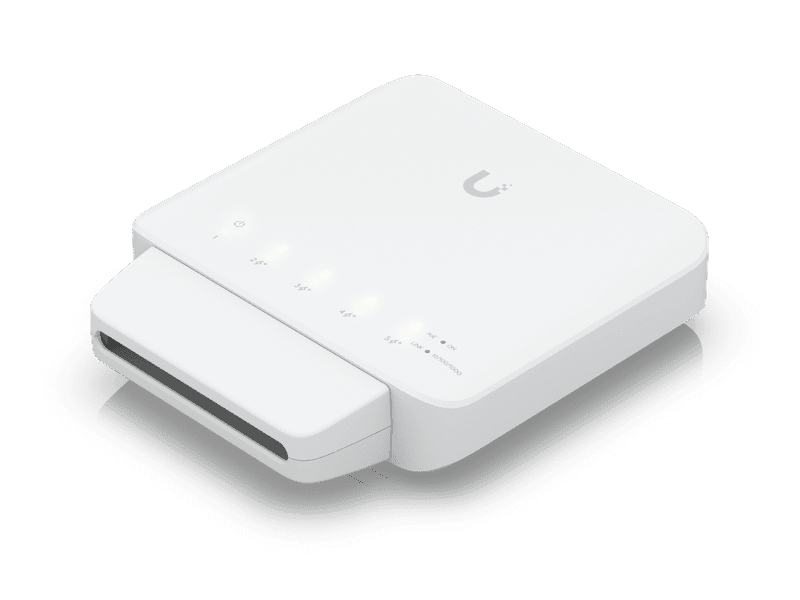

LEDs
System Status
Ethernet PoE
Speed/link/activity
PoE Link/activity
Application Requirements
UniFi Network Version 5.10.3 and later
