Overview

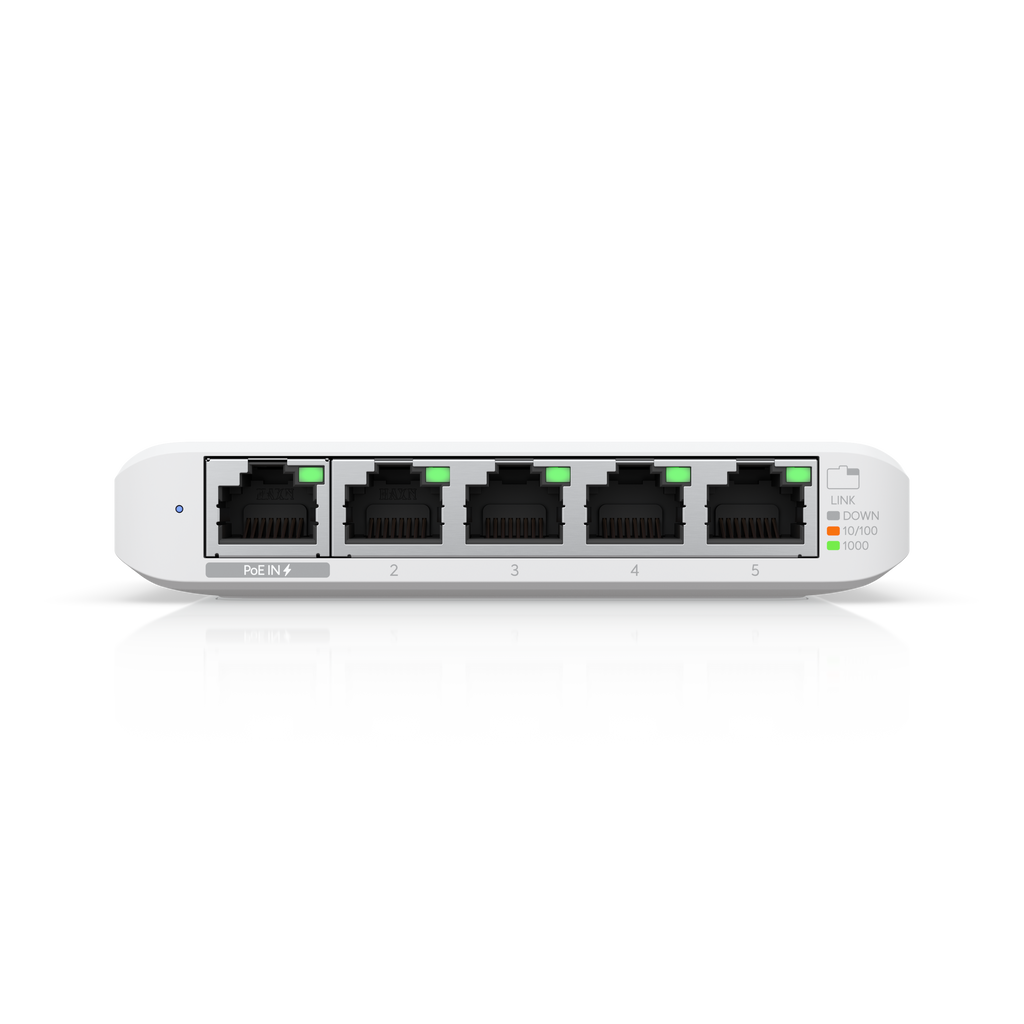

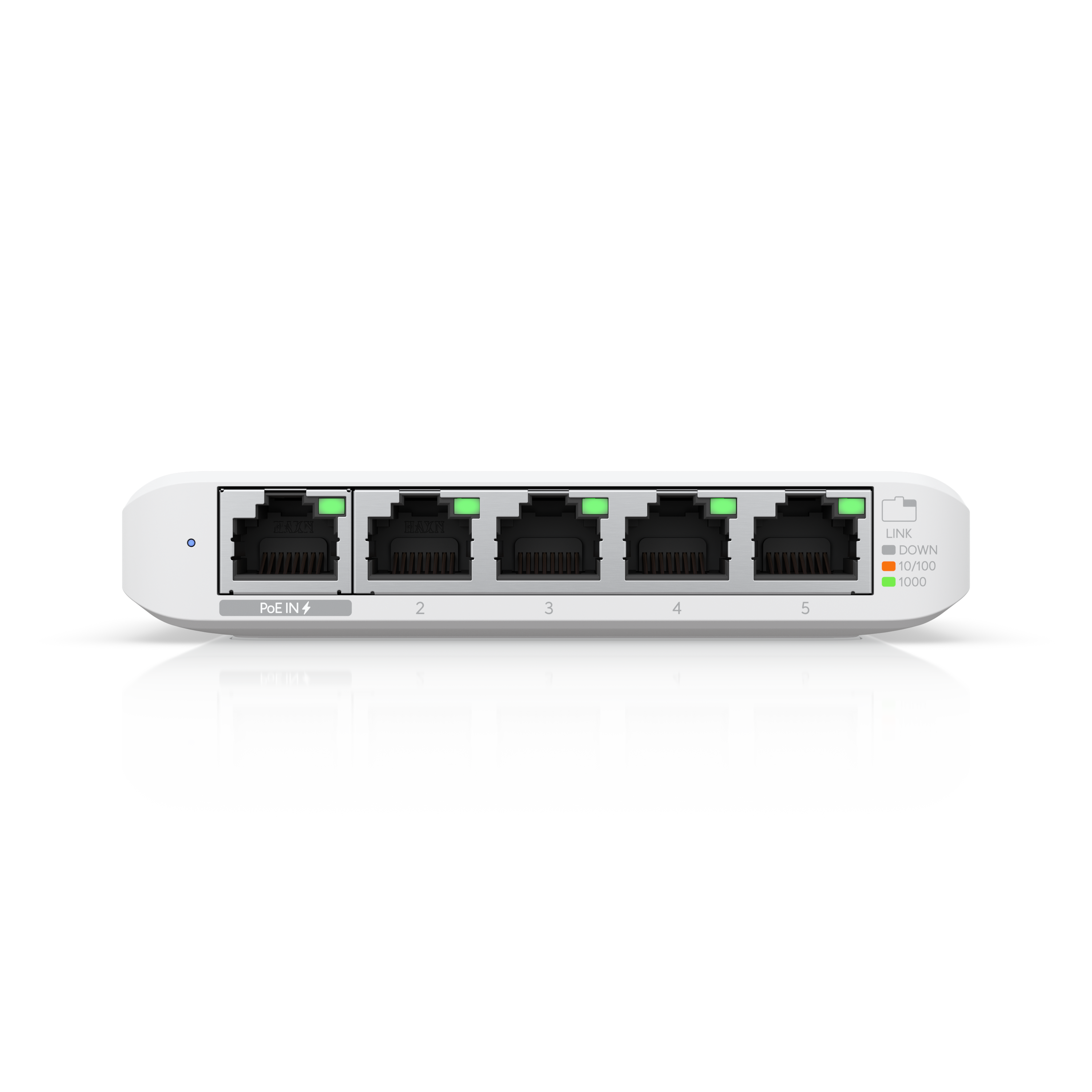

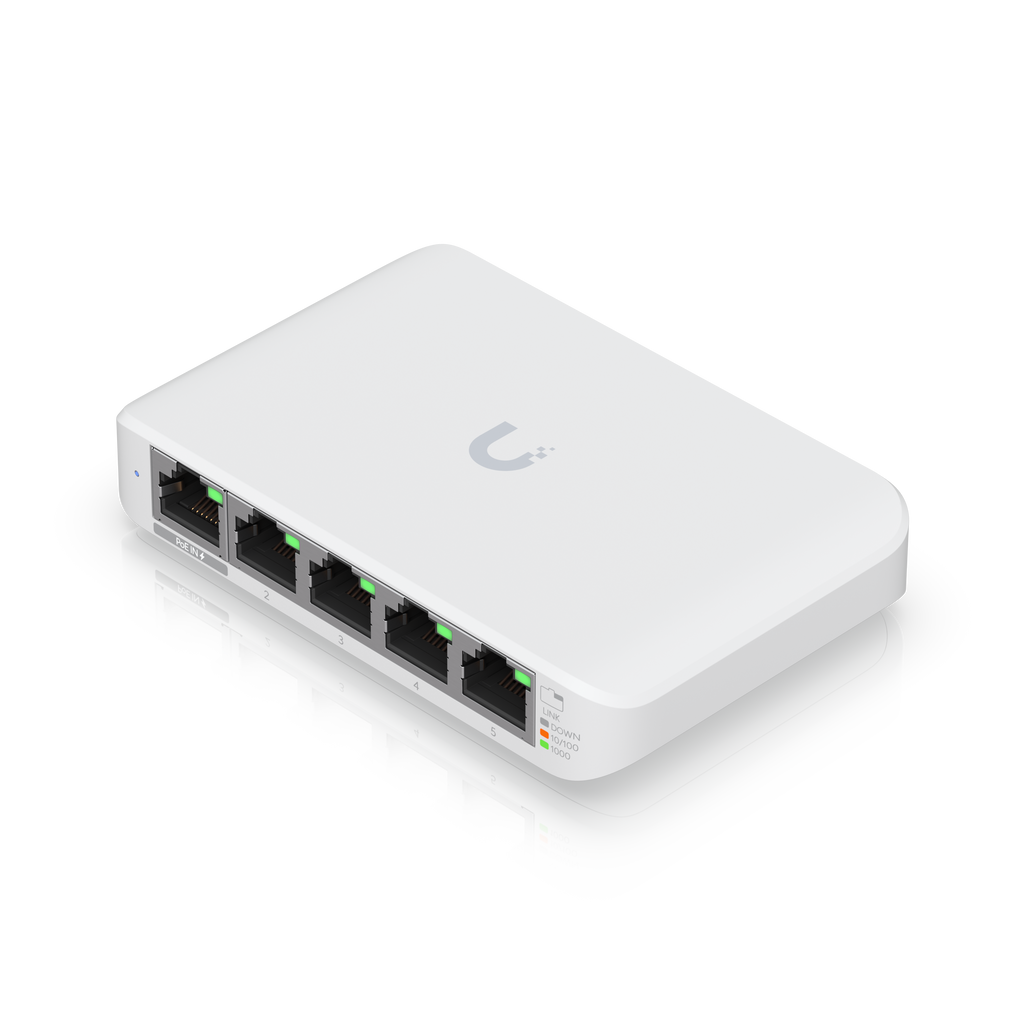

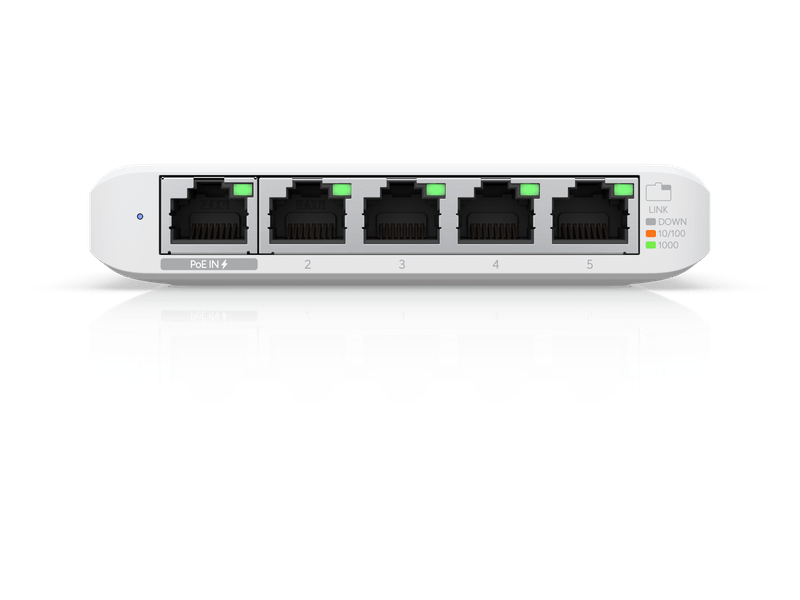

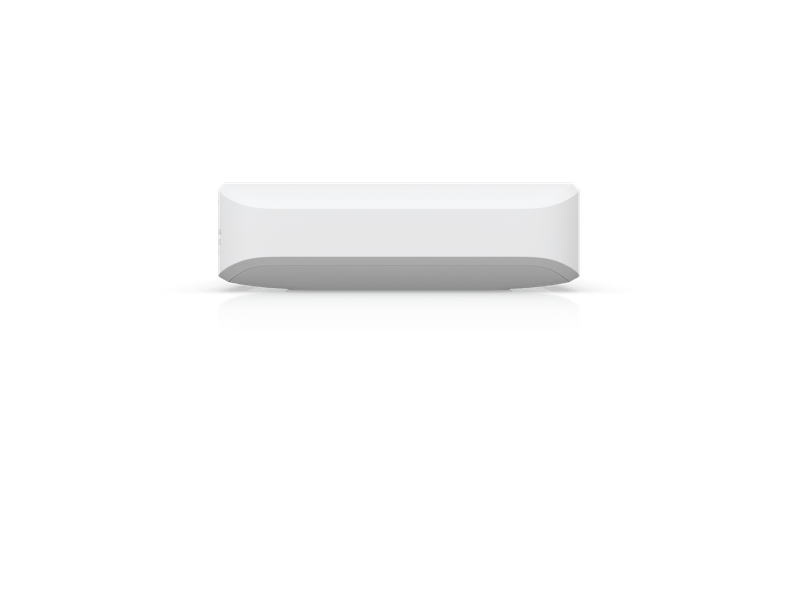

Flex Mini
USW-Flex-Mini-5
A compact, 5-port, Layer 2 switch that can be powered with PoE or a 5V USB-C adapter.
Note. USB-C adapter included with single unit purchases.
Flex Mini
USW-Flex-Mini-5
A compact, 5-port, Layer 2 switch that can be powered with PoE or a 5V USB-C adapter.
Note. USB-C adapter included with single unit purchases.
| USW-Flex-Mini-5 Specifications | |
|---|---|
| Product Type | Managed Layer 2 Gigabit Switch |

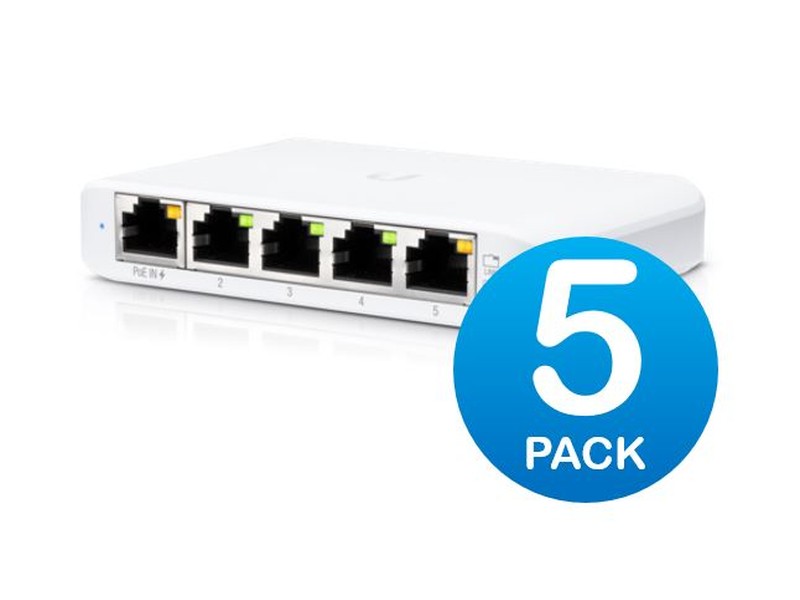

| Pack Quantity | 5 units |
| Switching Capacity | 10 Gbps |
| Forwarding Rate | 7.44 Mpps |
| MAC Address Table Size | 8K entries |
| Ethernet Ports | (5) 10/100/1000 Mbps RJ45 |
| PoE Input | (1) Port supports 802.3af/at PoE |

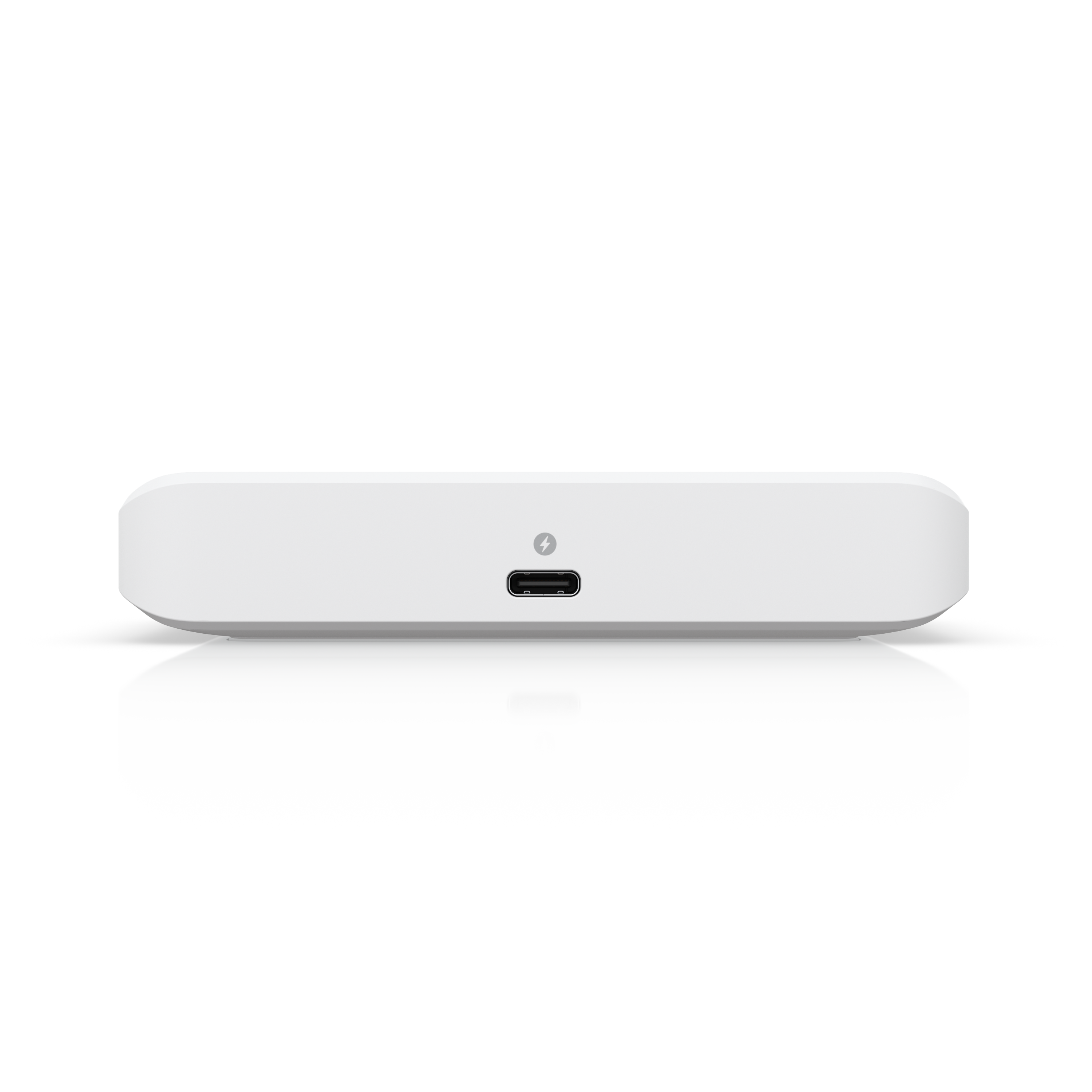

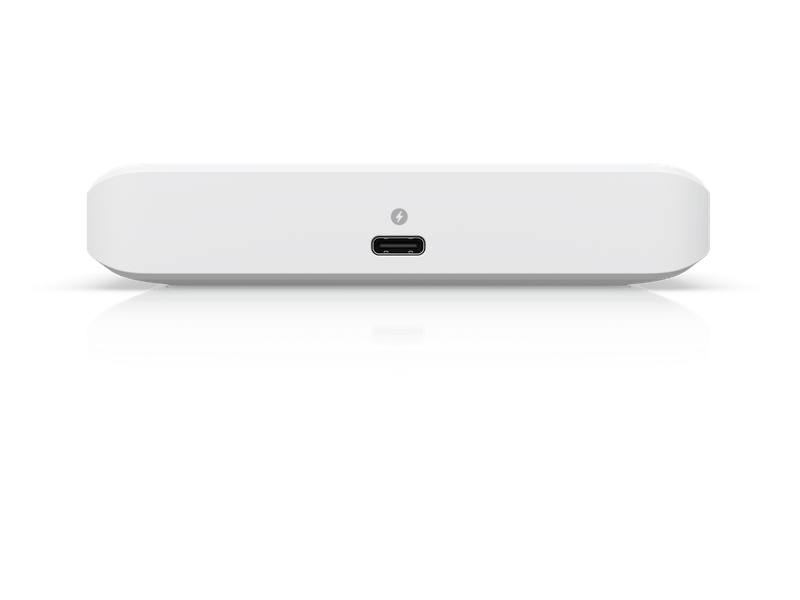

| USB Power Option | 5V, 1A USB Type-C (adapter not included in 5-pack) |
| Management Platform | UniFi Network Controller (v5.12.5 or later) |
| Features | VLAN configuration Port mirroring Storm control Jumbo frames Auto-MDIX |
| Dimensions | 107 × 70 × 21 mm (4.2 × 2.8 × 0.8") |
| Weight | 130 g (4.6 oz) per unit |
| Enclosure Material | Polycarbonate |
| Cooling | Fanless |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Operating Humidity | 10 to 90% noncondensing |
| Max Power Consumption | 2.5W |
| Power Efficiency | Energy-efficient design |
| Certifications | CE, FCC, IC |
| NDAA Compliant | ✓ |
