Ubiquiti USW-Flex-Mini 5-Port Managed Gigabit PoE Switch

UbiquitiSKU: USW-Flex-Mini

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$70.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Estimate shipping

Description

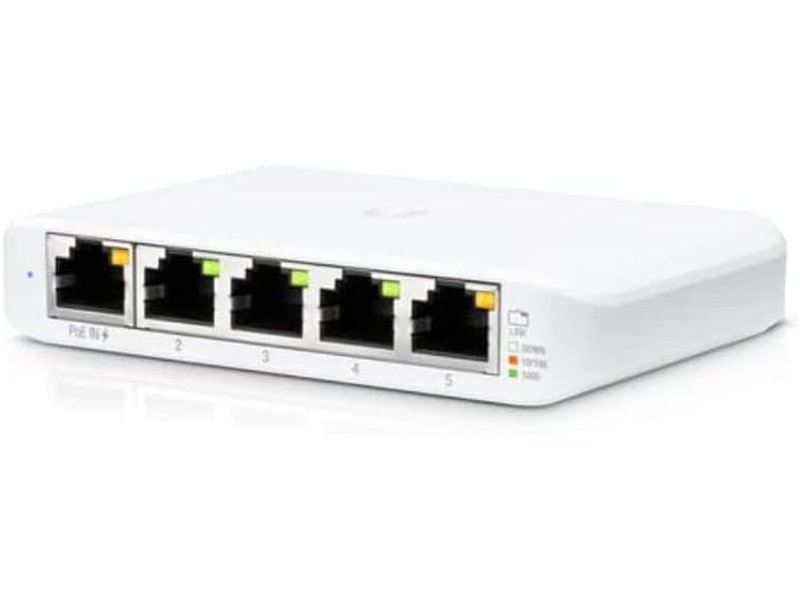

Ubiquiti USW-Flex-Mini 5-Port Managed Gigabit PoE Switch [USW-Flex-Mini]


A compact, 5-port, Layer 2 switch that can be powered with PoE or a 5V USB-C adapter.

- (4) GbE ports
- (1) GbE PoE input port for power
- Optional powering with included 5V, 1A USB-C adapter*

*Adapter included with single unit purchases.

Specifications


Mechanical
Dimensions 107 x 70 x 21 mm (4.2 x 2.8 x 0.8")
Weight 150 g (5.3 oz)
Enclosure material Polycarbonate
Hardware
Management interface Ethernet In-Band
Networking interface (5) GbE RJ45 ports
Total non-blocking throughput 5 Gbps
Switching capacity 10 Gbps
Forwarding rate 7.44 Mpps
Power method (1) USB Type C, 5V
(1) PoE/PoE+, 44—57V DC, 0.05—0.04A
Power supply 5V, 1A power adapter*
*Only single-unit packages include the 5V, 1A USB-C power adapter.
Supported voltage range USB Type C: 4.7—5.3V DC
PoE/PoE+: 44—57V DC
Max. power consumption 2.5W
ESD/EMP protection Air: ± 16kV, contact: ± 12kV
Button Factory reset
Ambient operating temperature -5 to 45° C (23 to 113° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Switching Features
Layer 2 features Port isolation
Storm control
Port mirroring
Multicast / broadcast rate limiting
Flow control
Jumbo frames
Egress rate limit
Layer 3 features
LEDs
System Status
Ethernet Speed/link/activity
Application Requirements
UniFi Network Version 5.12.5 and later
