Ubiquiti USW-Pro-48-POE UniFi 48-Port PoE+ 600W Managed Gigabit Switch w/ 4x SFP+

UbiquitiSKU: USW-Pro-48-POE

Ubiquiti UniFi 48 Ports Managed Gigabit Switch -USW-Pro-48-POE, PoE+, 4x SFP+ *Bundle with 3 years warranty*

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$2,129.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Estimate shipping

Description

Ubiquiti UniFi 48 Ports Managed Gigabit PoE+ Switch [USW-Pro-48-POE]

48-port switch with (48) Gigabit RJ45 ports and (4) 10G SFP+ ports. Powerful second-generation UniFi switching

UniFi Switch Pro 48 is a fully managed Layer 3 switch with (24) Gigabit Ethernet ports. (4) 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability. The UniFi Switch Pro 48 features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server. The UniFi Switch Pro 48 is an ideal aggregation and access layer switch for any UniFi solution – it combines innovative near-silent cooling with UniFi SmartPower RPS power redundancy. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.

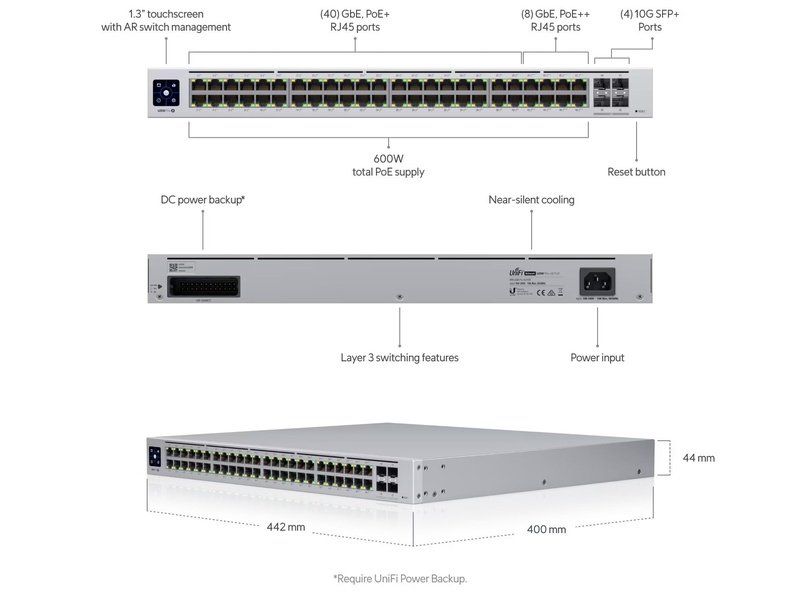

UniFi Pro 48-Port Switch
• (4) 10G SFP+ ports
• Layer 2 and Layer 3 features
• UniFi SmartPower RPS DC input
• Near-silent cooling
• 1.3" touchscreen display
• Managed by UniFi Network Controller
• Managed by UniFi Network Controller version: 5.12.11 or higher

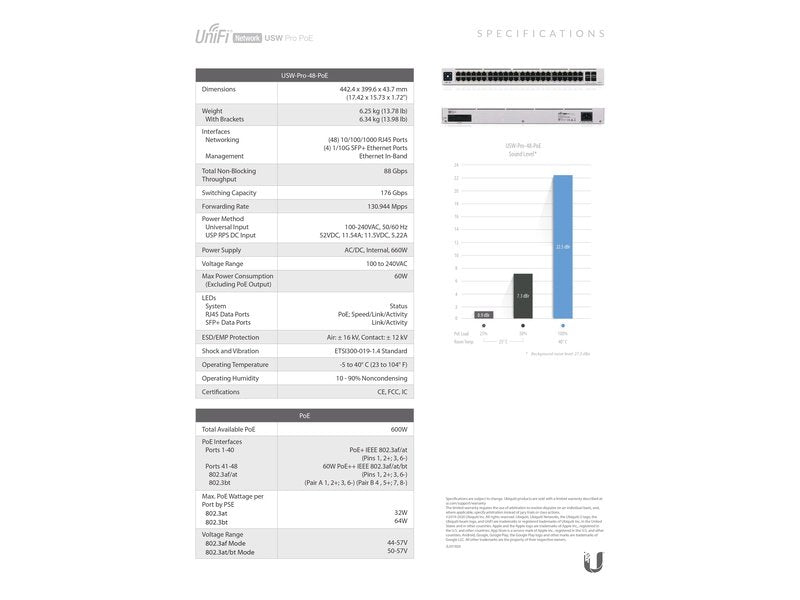

Specifications

Mechanical
Dimensions 442.4 x 399.6 x 43.7 mm (17.4 x 15.7 x 1.7")
Weight Without mounting brackets: 6.2 kg (13.8 lb)
With mounting brackets: 6.3 kg (14 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (48) GbE RJ45 ports
(4) 1/10G SFP+ ports
PoE interface (40) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(8) 60W PoE++; PoE/PoE+ (Pins 1, 2+; 3, 6-) / PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput 88 Gbps
Switching capacity 176 Gbps
Forwarding rate 130.944 Mpps
Power method Universal input, 100—240V AC, 50/60 Hz
USP RPS DC input, 52V DC, 11.54A / 11.5V DC, 5.22A
Power supply AC/DC, internal, 660W
Supported voltage range 100—240V AC
Max. power consumption 60W (Excluding PoE output)
Total available PoE 600W
Max. PoE wattage per port by PSE PoE+: 32W
PoE++: 64W
Voltage range PoE mode PoE: 44—57V
PoE+: 50—57V
ESD/EMP protection Air: ± 16kV, contact: ± 12kV
LCM display (1) 1.3" touchscreen
Button Factory reset
Shock and vibration ETSI300-019-1.4 Standard
Operating temperature -5 to 40° C (23 to 104° F)
Operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
LEDs
System Status
Ethernet PoE
Speed/link/activity
SFP+ Link/activity
RPS Status
Application Requirements
UniFi Network Version 5.10.5 and later
