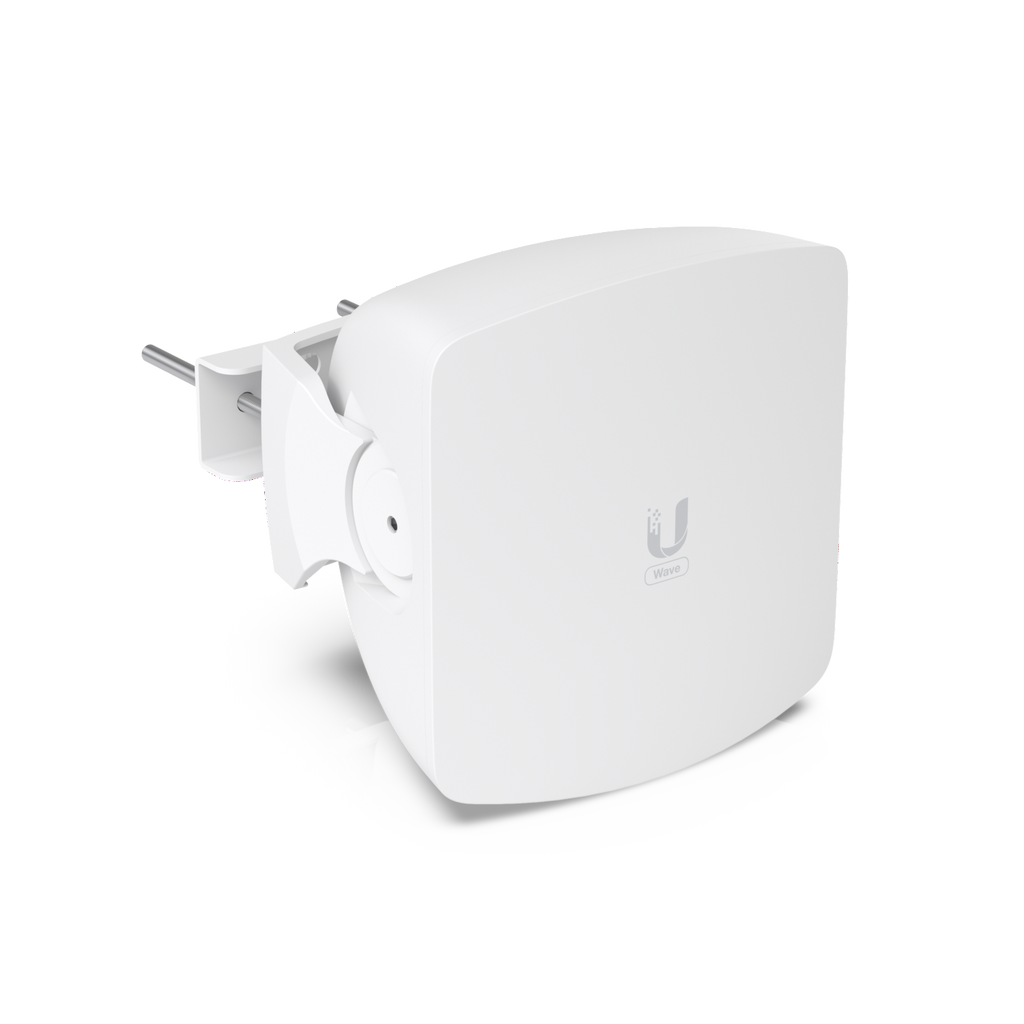

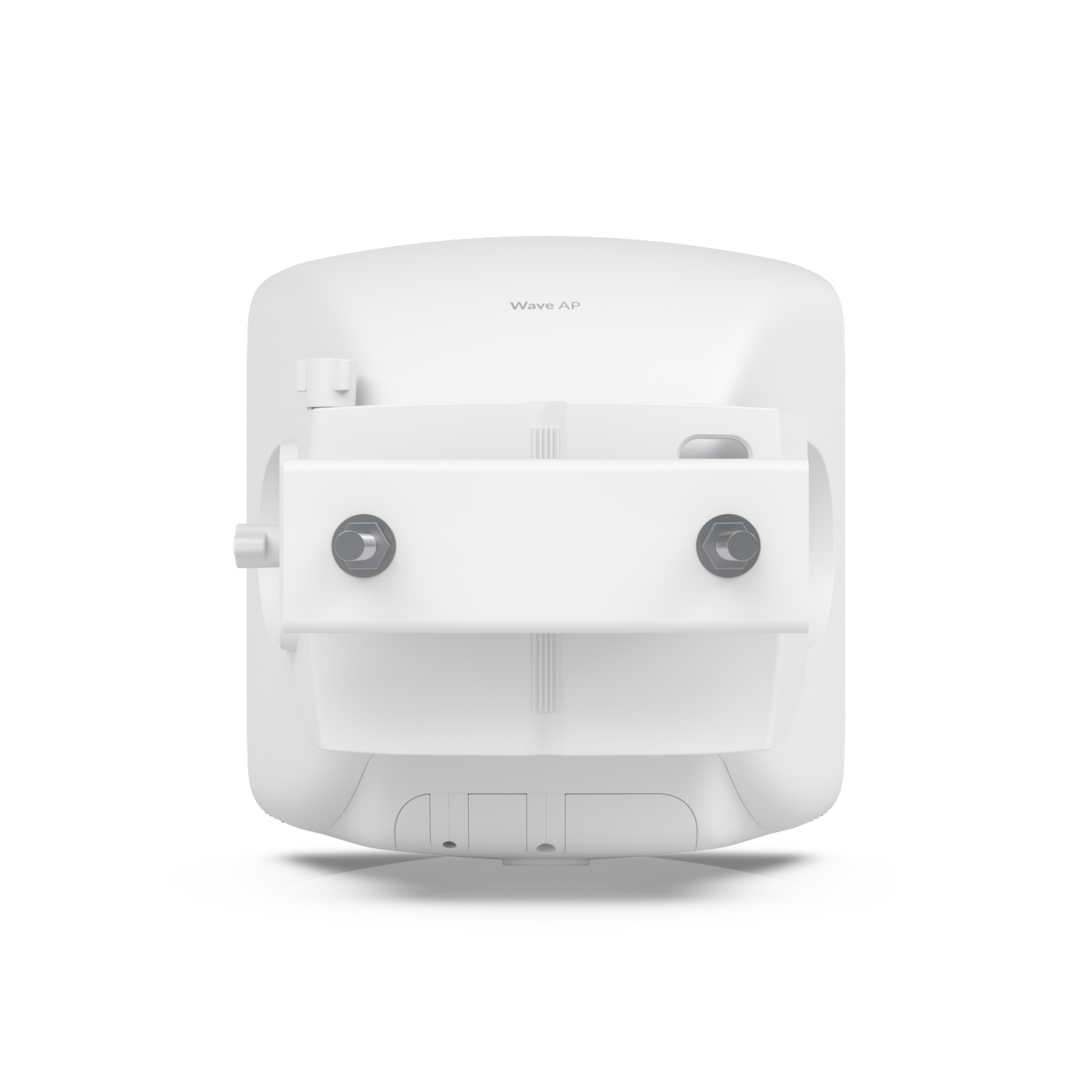

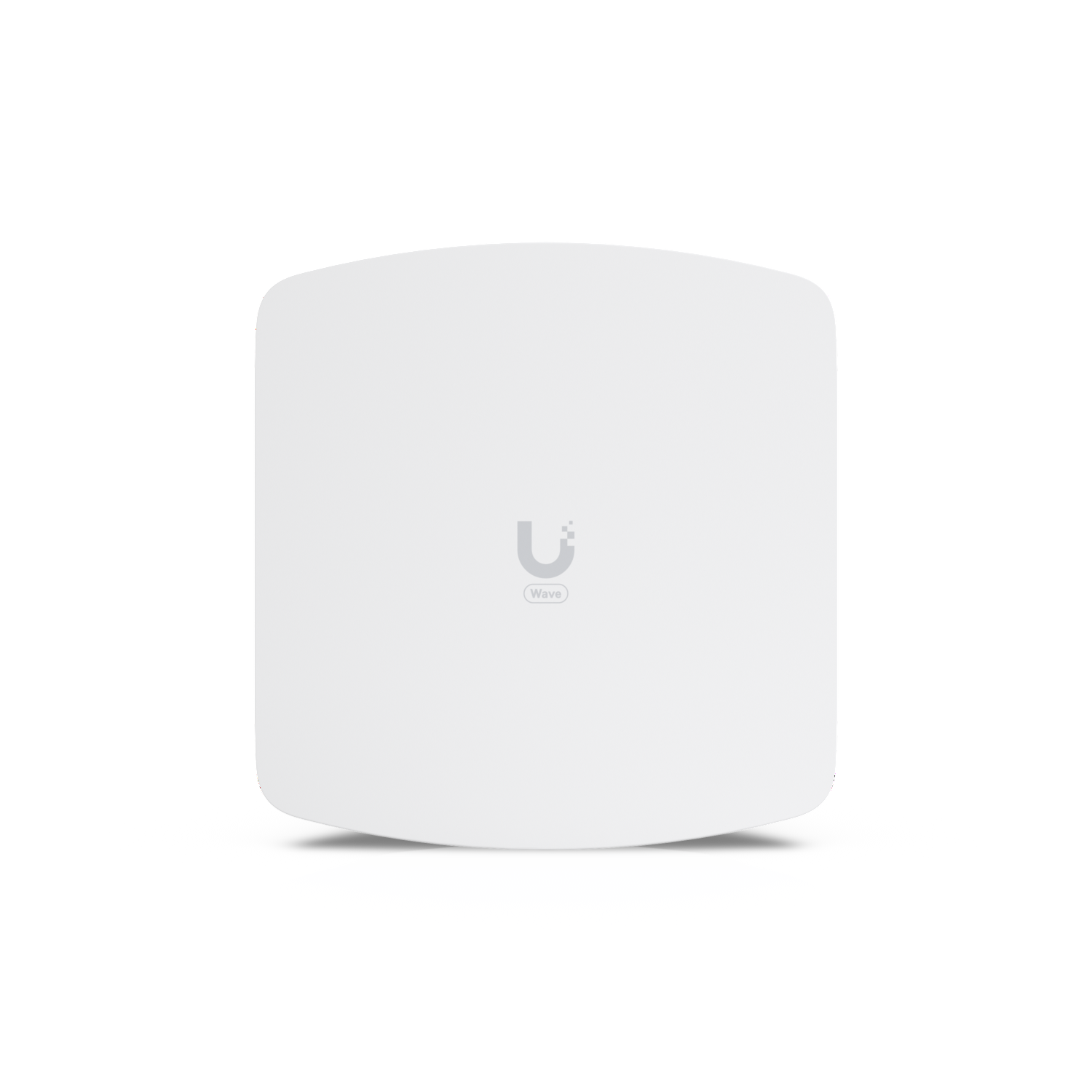

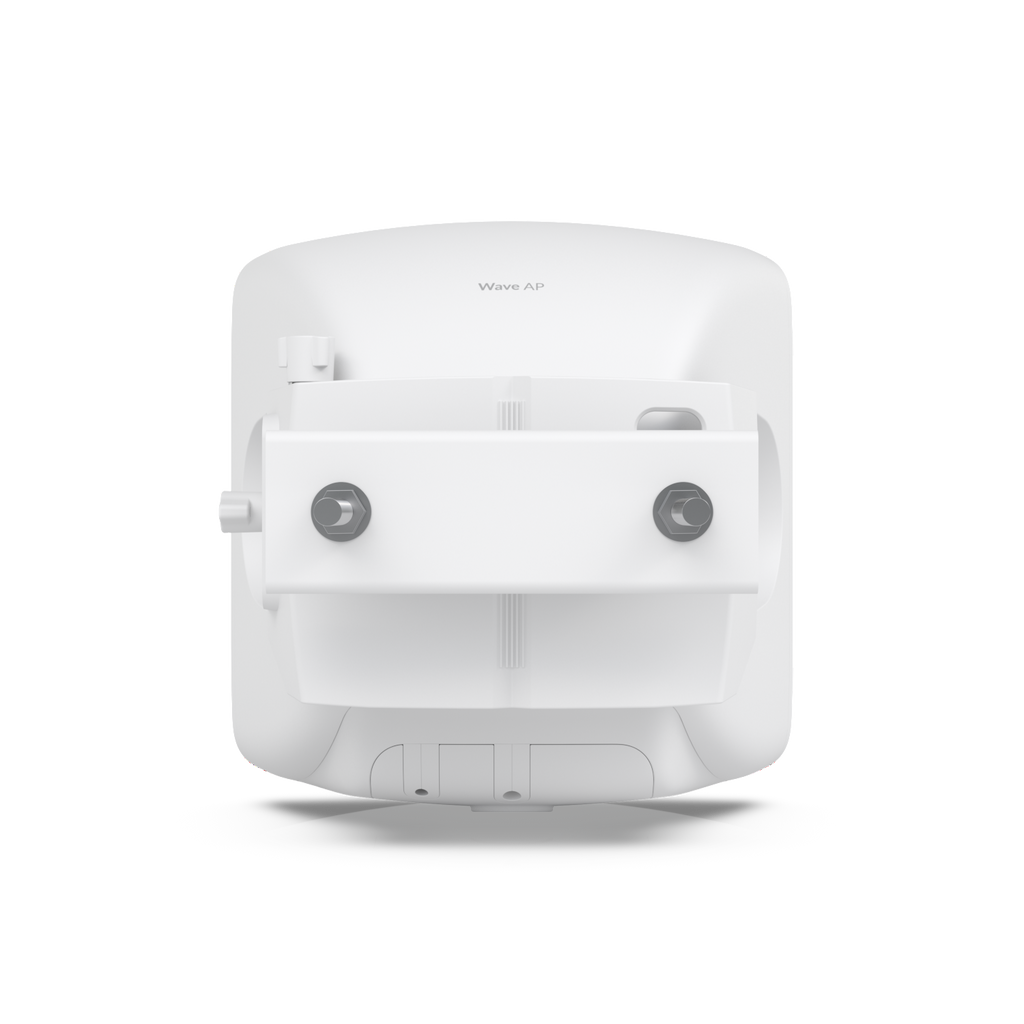

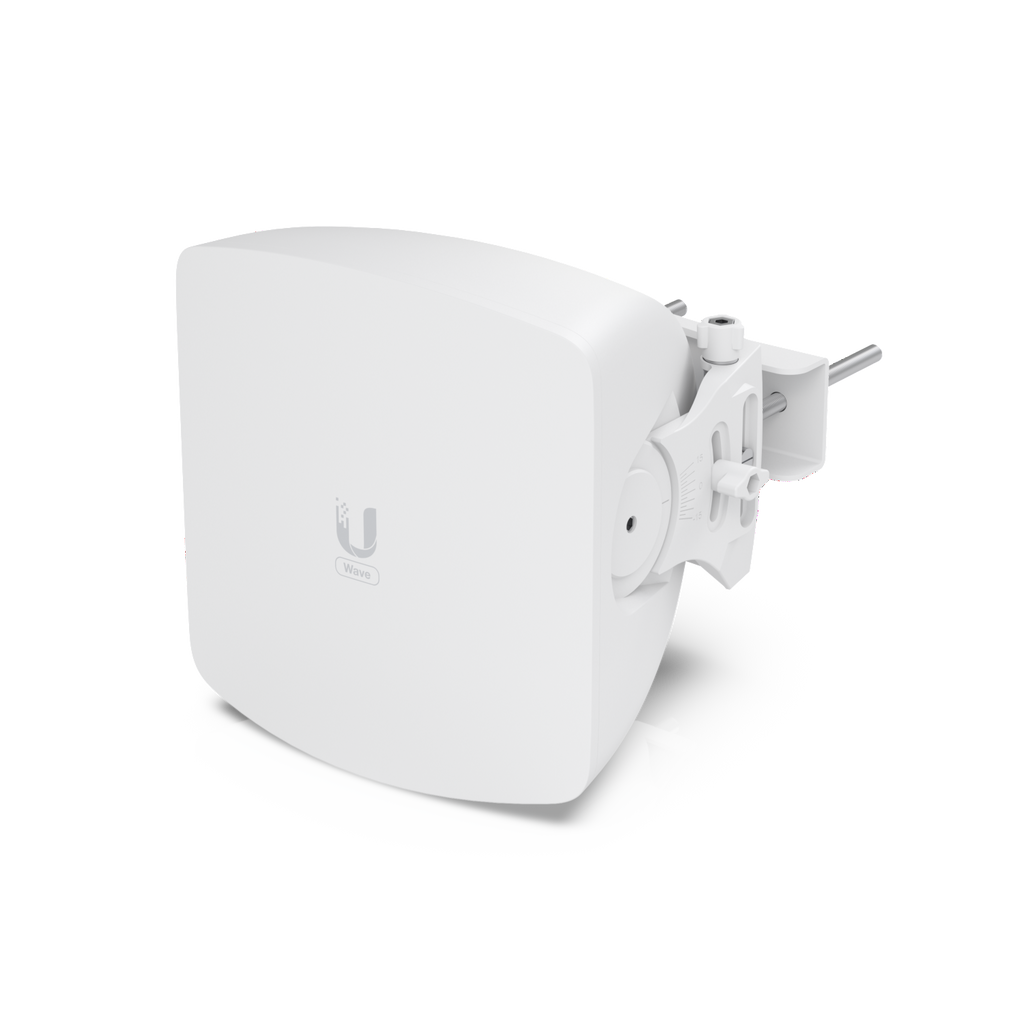

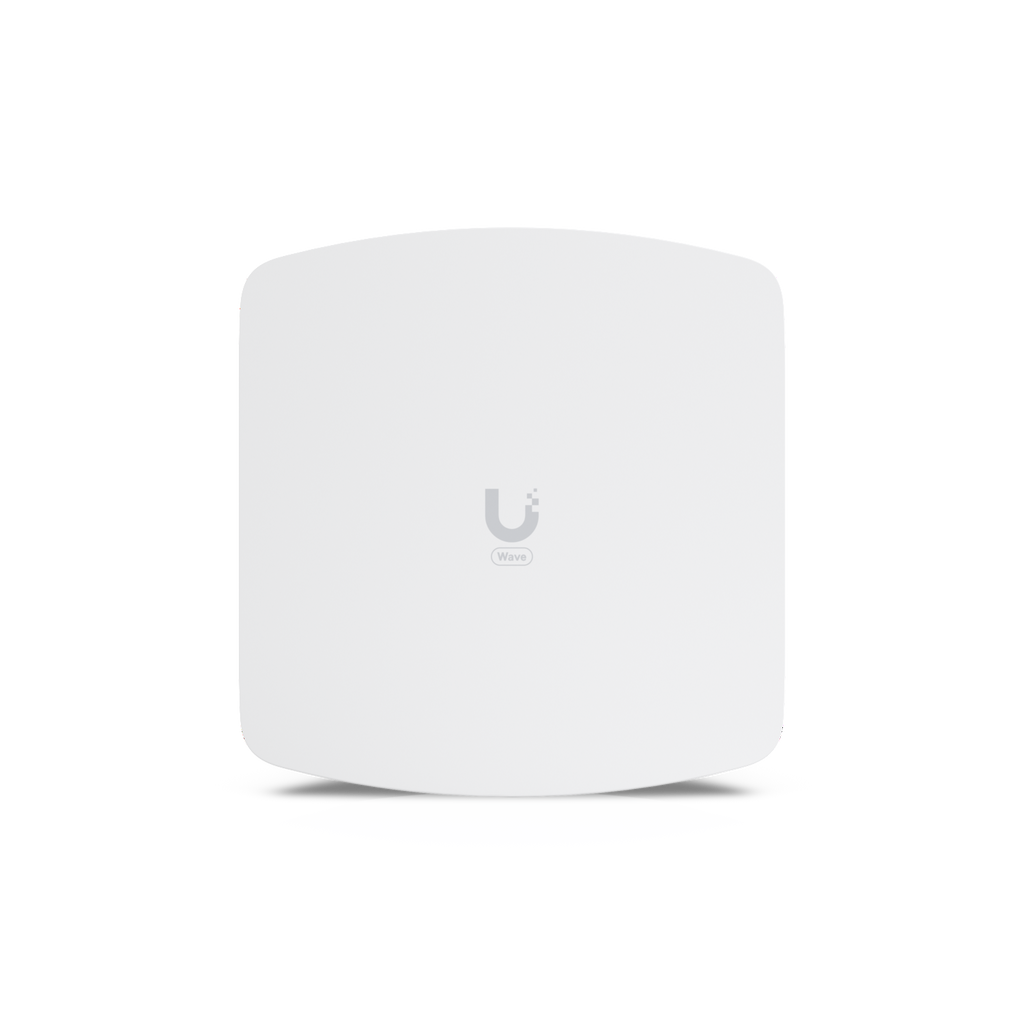

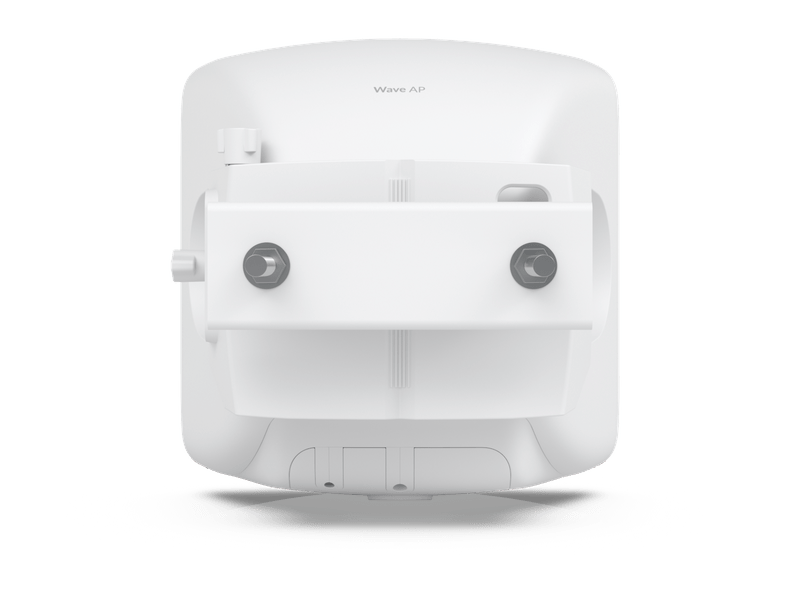

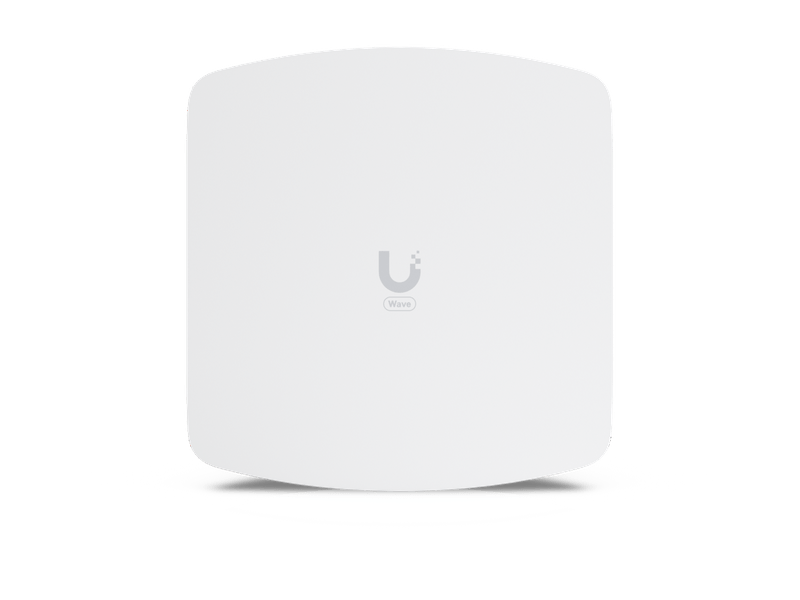

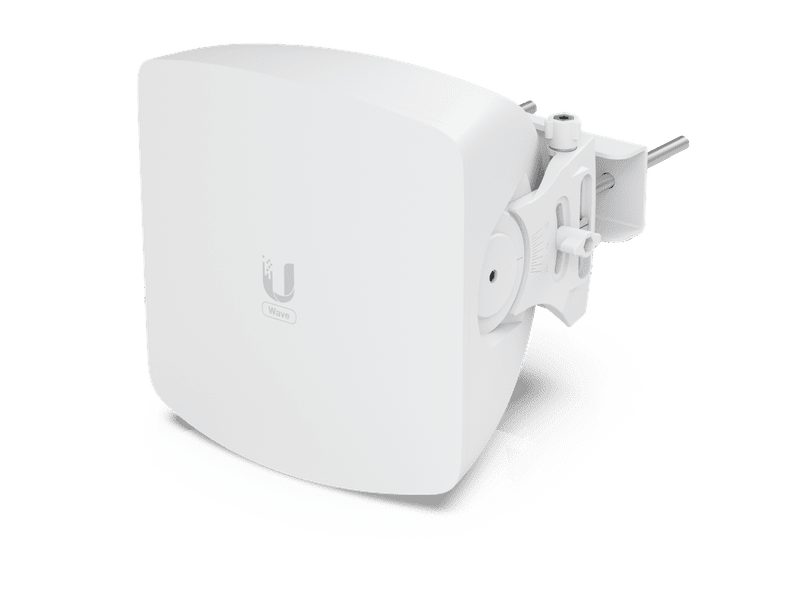

Wave AP
Wave-AP
60 GHz PtMP access point powered by Wave Technology.
Wave AP
Wave-AP
60 GHz PtMP access point powered by Wave Technology.
Wave-AP Specifications | |
---|---|
Product Type | 60 GHz PtMP Access Point |
Operating Mode | Point-to-MultiPoint (PtMP) |
Total Throughput | 5.4 Gbps (2.7 Gbps duplex) |
Max Client Count | Up to 31 clients (FW 3.4.0+) |
Max Range | Wave Pro / Long-Range: up to 8 km Wave Nano: up to 5 km Wave Pico: up to 1.3 km |
Primary Frequency | 57–71 GHz (region-dependent) |
Channel Bandwidth | 2160 / 1080 / 540 MHz |
Modulation | 16QAM, QPSK |
Antenna Gain | 24 dBi |
Beamwidth | Azimuth: 30° / Elevation: 3° |
Polarization | Vertically linear |
Encryption | WPA2-PSK (AES) |
WiFi Standard | 802.11ax (WiFi 6) |
Frequency Bands | U-NII-1: 5150–5250 MHz U-NII-2A: 5250–5350 MHz U-NII-2C: 5470–5725 MHz U-NII-3: 5725–5850 MHz |
Channel Bandwidth | 20 / 40 / 80 MHz |
Modulation | Up to 1024QAM |
Antenna Gain | 12 dBi |
Beamwidth | Azimuth: 35° / Elevation: 60° |
Polarization | Dual-linear |
Processor | Quad-core ARM® Cortex®-A53 @ 1.4 GHz |
Memory | 512 MB DDR3L |
Networking Interfaces | (1) 2.5GbE RJ45 (active when SFP+ is down) (1) 10G SFP+ port |
Power Method | Passive PoE (2-pair or 4-pair) |
Power Supply | 48V DC, 0.65A PoE adapter (included) |
Max Power Consumption | 24W |
Supported Voltage Range | 44–54V DC / 22–27V DC |
GPS | ✓ |
Button | Factory reset |
LED Indicators | Power, Ethernet, GPS |
Dimensions | 212 × 205 × 187 mm (8.3 × 8.1 × 7.4") |
Weight | 2.3 kg (5.1 lb) |
Enclosure Material | Aluminum alloy, UV-stabilized polycarbonate |
Pole Mount Diameter | 25–76 mm (1–3") |
Wind Loading | 98 N @ 200 km/h (22 lbf @ 125 mph) |
Weatherproofing | IPX6 |
Operating Temperature | -40 to 60°C (-40 to 140°F) |
Operating Humidity | 5 to 95% noncondensing |
Management Platform | UISP (v1.5.7+) |
Services | Ping watchdog, NTP client, SNMP |
Tools | Antenna alignment, discovery, ping, trace route, speed test, cable test, site survey |
Operating Mode | Bridge mode |
Certifications | FCC, IC, CE |
NDAA Compliant | ✓ |
