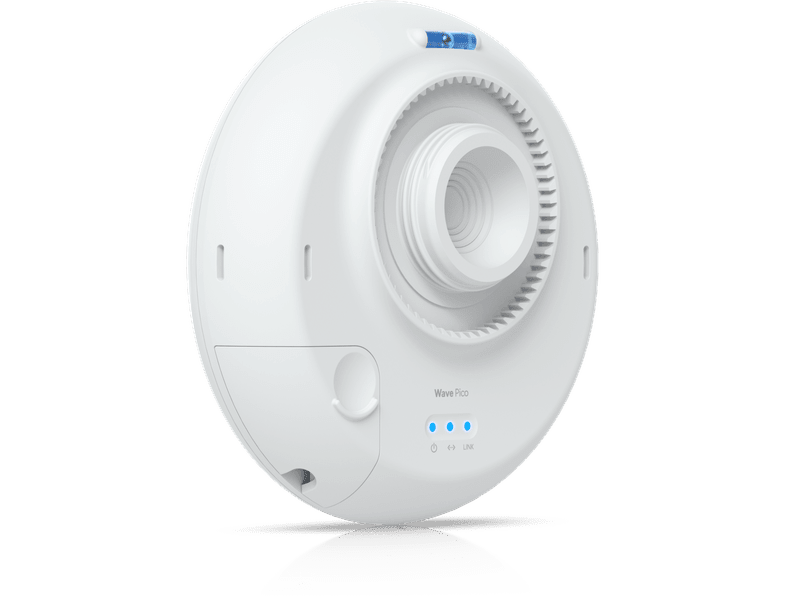

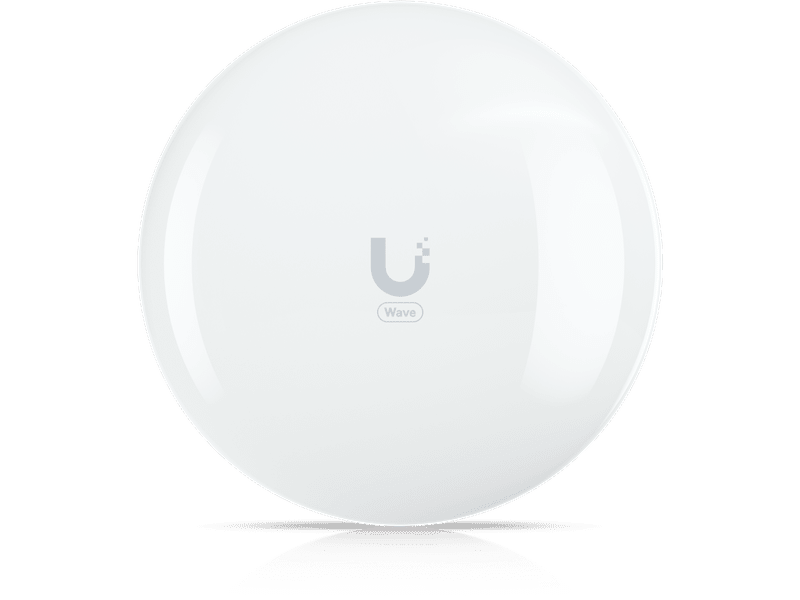

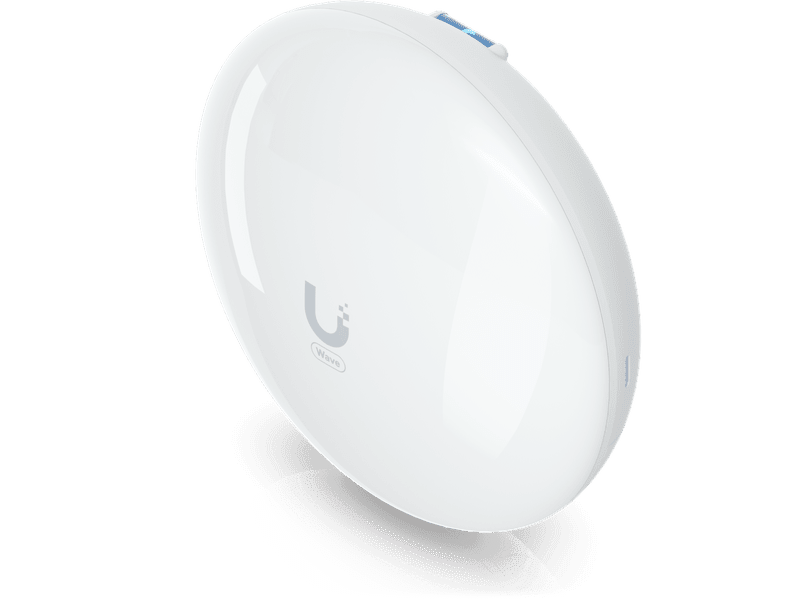

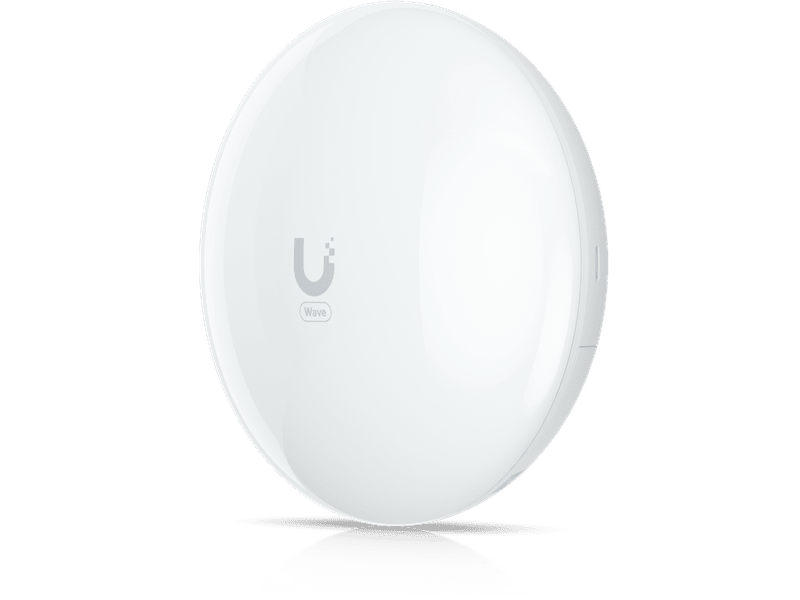

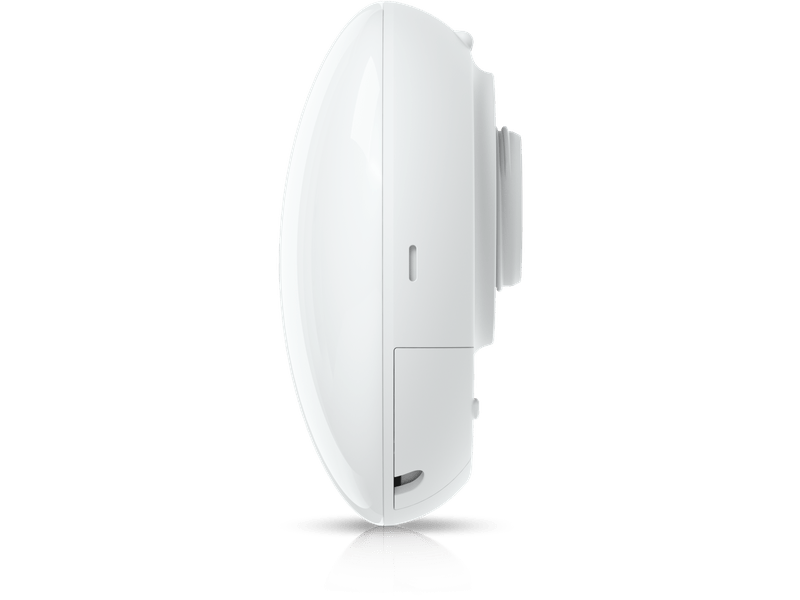

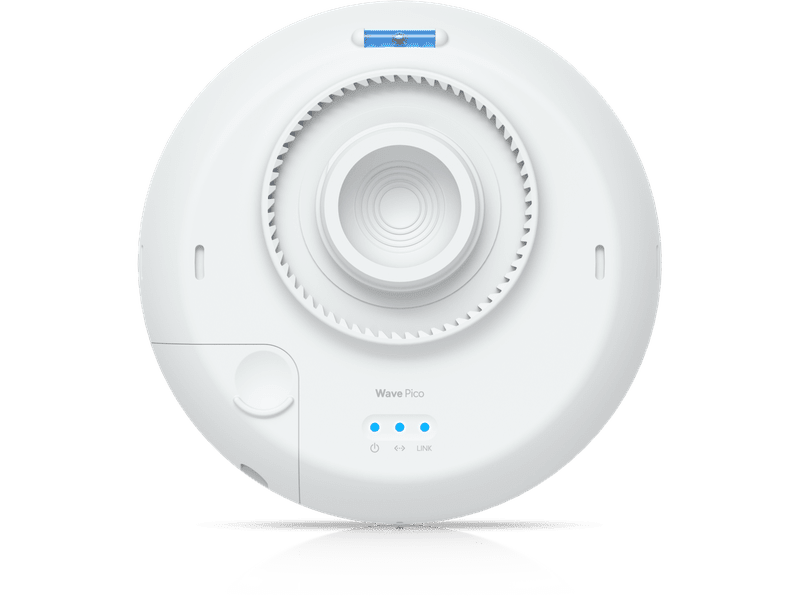

Wave Pico
Wave-Pico
Wave Pico
Wave-Pico
| Wave-Pico Specifications | |
|---|---|
| Dimensions | Ø152.1 × 55.8 mm (Ø6 × 2.2") |
| Weight | 347 g (12.2 oz) without mount; 409 g (14.4 oz) with mount |
| Enclosure Material | UV-stabilized polycarbonate |
| Mount Material | UV-stabilized polycarbonate |
| Pole Mount Diameter | 20–53.1 mm (0.8–2.1") |
| Weatherproofing | IPX6 |
| Wind Loading | 31.3 N @ 200 km/h (7 lbf @ 125 mph) |
| Processor | Dual-core ARM® Cortex®-A53 @ 1 GHz |
| Memory | 512 MB DDR3L |
| Networking Interface | (1) GbE RJ45 port |
| Max Power Consumption | 10W |
| Power Method | Passive PoE 4-pair (1,2+; 3,6– and 4,5+; 7,8–) Passive PoE 2-pair (4,5+; 7,8–) for 44–54V DC only |
| Power Supply | 48V DC, 0.5A Gigabit PoE adapter (included) |
| Supported Voltage Range | 44–54V DC |
| Button | Factory-reset |
| LEDs | Power, Ethernet, Link |
| Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Operating Humidity | 5 to 95% noncondensing |
| Operating Frequency | 57–71 GHz (region-dependent) |
| Channel Bandwidth | 2160, 1080, 540 MHz |
| Modulation | 16QAM, QPSK |
| Antenna Gain | 27.7 dBi |
| Polarization | Vertically linear |
| Beamwidth | Azimuth: 6°; Elevation: 6° |
| Max Range | Up to 1.3 km (Wave AP); 0.9 km (Wave AP Micro) |
| Total Throughput | 2 Gbps (1 Gbps duplex) |
| WiFi Standard | 802.11ax (WiFi 6) |
| Operating Frequency | 5180–5875 MHz (region-dependent) |
| Channel Bandwidth | 20, 40, 80 MHz |
| Modulation | BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM (various coding rates) |
| Antenna Gain | 9 dBi |
| Polarization | Dual-linear |
| Beamwidth | Azimuth: 50°; Elevation: 50° |
| Cross-Pol Isolation | 15 dB |
| Operating Modes | PtMP Station, PtP |
| Services | UISP, SNMP, NTP Client, Ping Watchdog |
| Tools | Antenna alignment, speed test, trace route, cable test, site survey |
| Encryption | WPA2-PSK (AES) |
| Application Requirements | UISP Web: v2.4.61+ UISP Mobile iOS: v2.32.0+ UISP Mobile Android: v2.31.9+ |
| NDAA Compliant | ✓ |
| Certifications | FCC, IC, CE |
