Overview

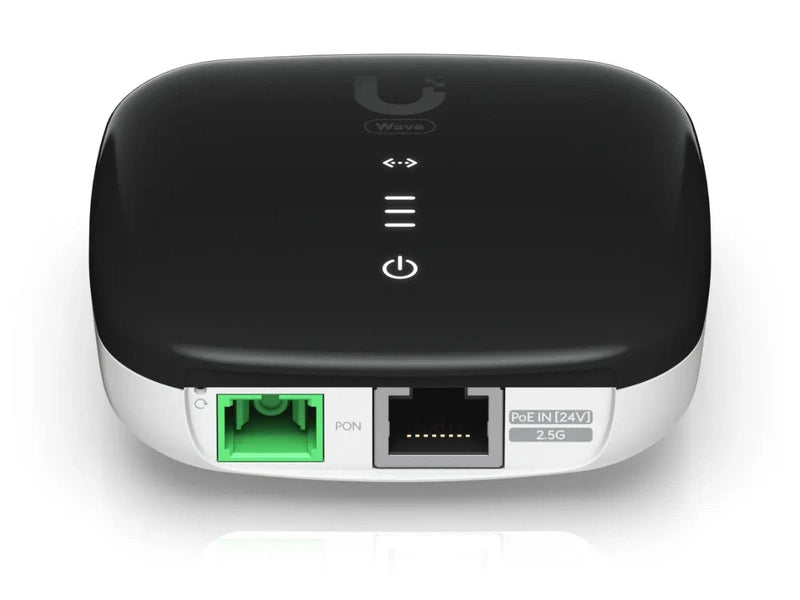

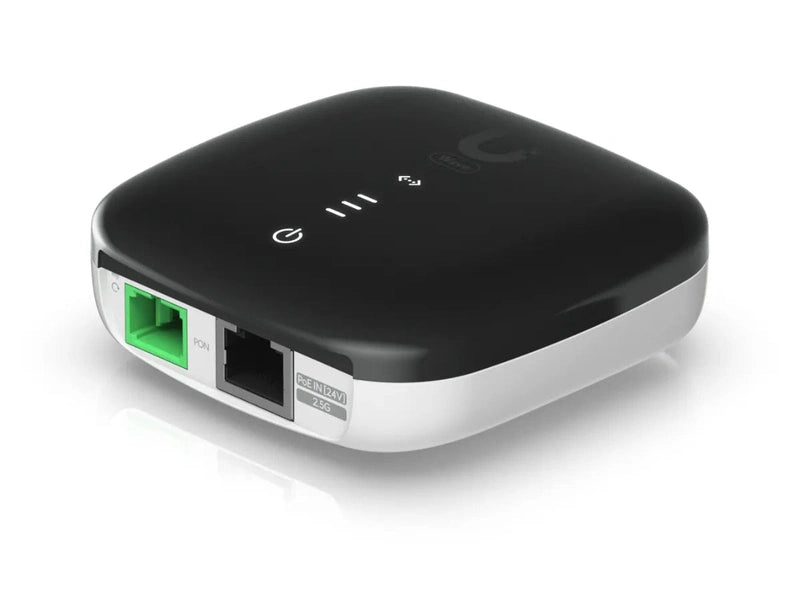

WaveFiber ONU
Wave-Fiber-ONU
A GPON optical network unit with a 2.5 GbE port that delivers 1.2 Gbps uplink / 2.5 Gbps downlink speeds at distances up to 20 km.
Compatibility: UISP-FIBER-OLT-XGS, UF-OLT, UF-OLT-4
WaveFiber ONU
Wave-Fiber-ONU
A GPON optical network unit with a 2.5 GbE port that delivers 1.2 Gbps uplink / 2.5 Gbps downlink speeds at distances up to 20 km.
Compatibility: UISP-FIBER-OLT-XGS, UF-OLT, UF-OLT-4
| Wave-Fiber-ONU Specifications | |
|---|---|
| Dimensions | 76.5 × 76.5 × 26.4 mm (3 × 3 × 1") |
| Weight | 78 g (2.8 oz) |
| Enclosure Material | Polycarbonate |
| Mounting | Desktop, wall |

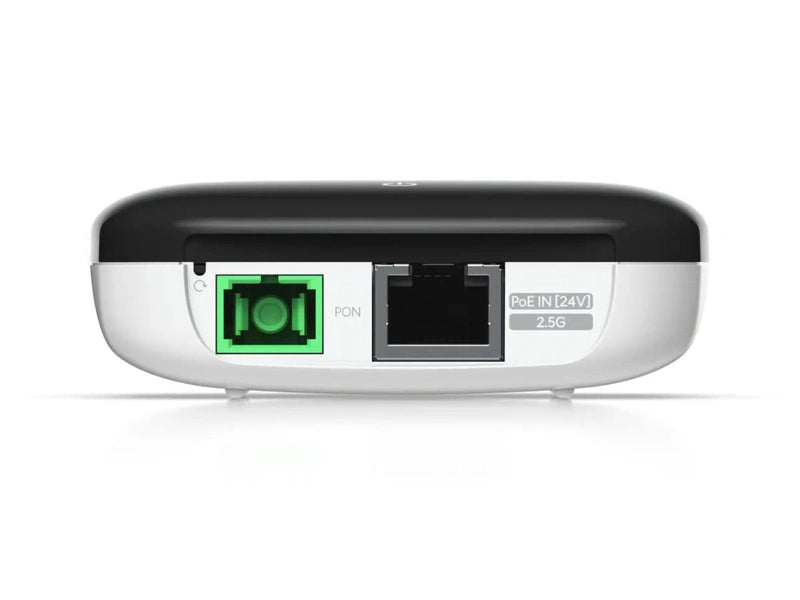

| Networking Interface | (1) SC/APC, ITU-G.984 GPON WAN port (1) 1/2.5 GbE RJ45 LAN port |
| Management Interface | Ethernet In-Band PON |
| Power Method | 24V passive PoE (2-pair: pins 4,5+ and 7,8−) |
| Supported Voltage Range | 20–28V DC |
| Max. Power Consumption | 5W |
| Total Line Rate | Downstream: 2.488 Gbps Upstream: 1.244 Gbps |
| TX Optical Power | 1.5 to 5 dBm |
| RX Sensitivity | -8 to -28 dBm |
| Operating Wavelength | TX: 1310 nm RX: 1490 nm |
| Line Code | Scrambled NRZ |
| Nominal Bit Rate | Downstream: 2488.32 Mbit/s Upstream: 1244.16 Mbit/s |
| Physical Reach | Up to 20 km |

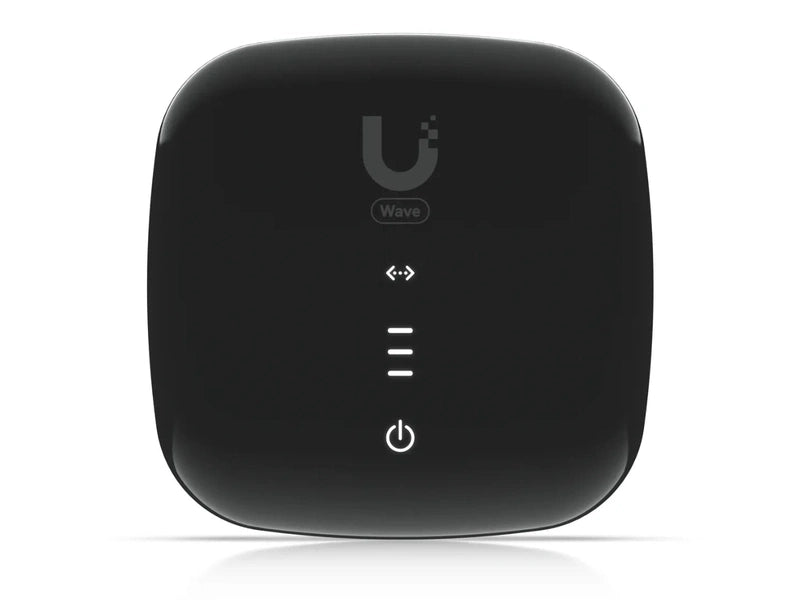

| LEDs | PON Signal Strength: 3 white (strong), 2 white (good), 1 white (low), 1 red (too low), 3 red (no signal) Ethernet: Steady white (link), blinking white (activity), off (no link) Power: White (on) |
| Button | (1) Factory-reset |
| Software Mode | ONU/ONT Layer 2/3 Ethernet switch |
| Services | Web server, telnet, NAT, bridging, routing, firewall, passthrough |
| Utilities | Dashboard, monitoring, alarms, logs |
| Security | GEM Port Encryption |
| Remote Features | Reset, reboot, firmware upgrade, VLAN support |
| Ambient Operating Temperature | -15 to 45° C (5 to 113° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| NDAA Compliant | ✓ |
