Description

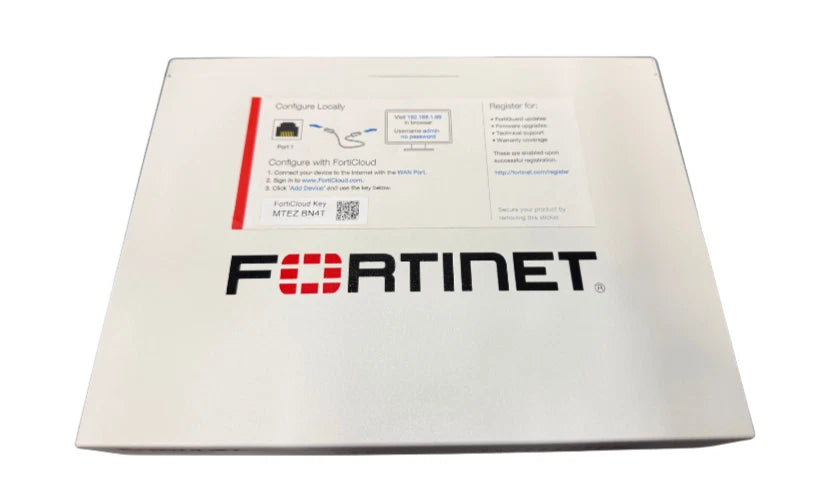

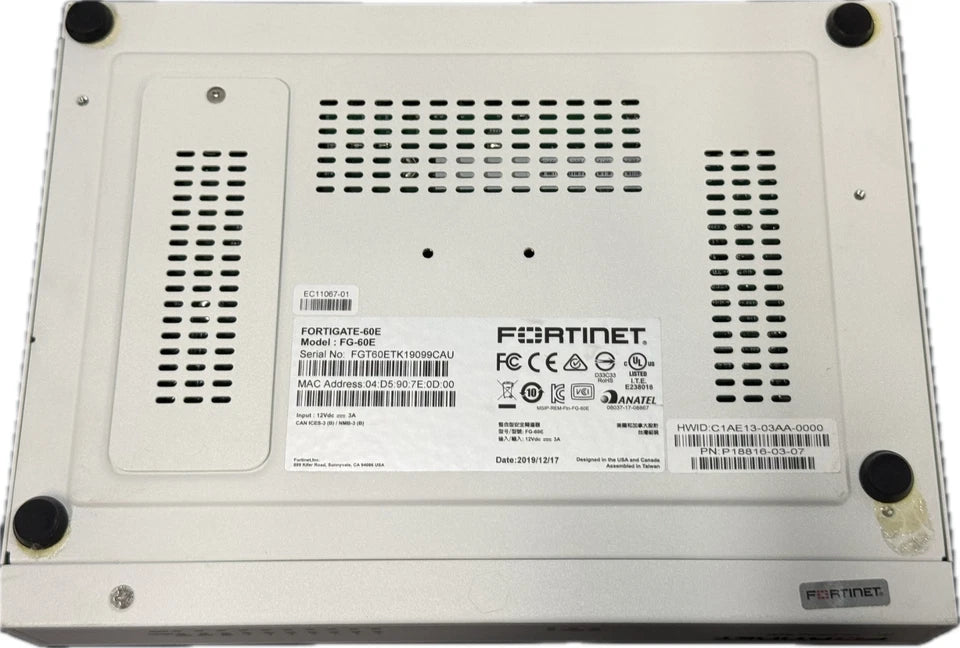

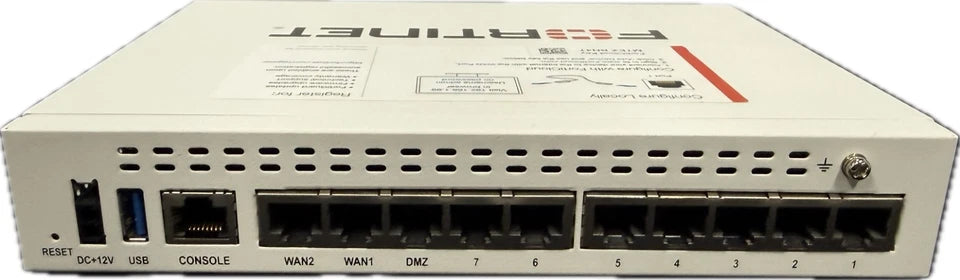

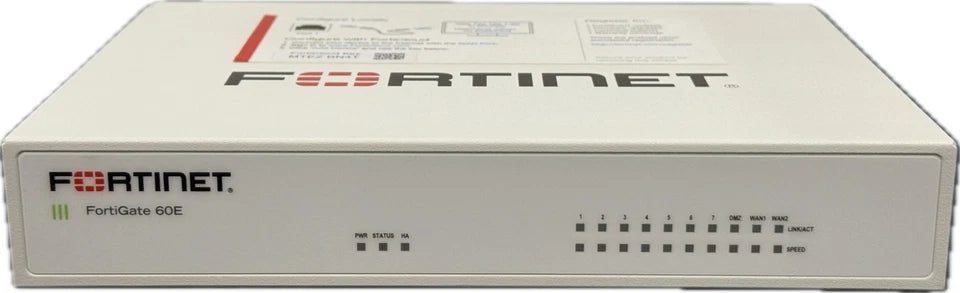

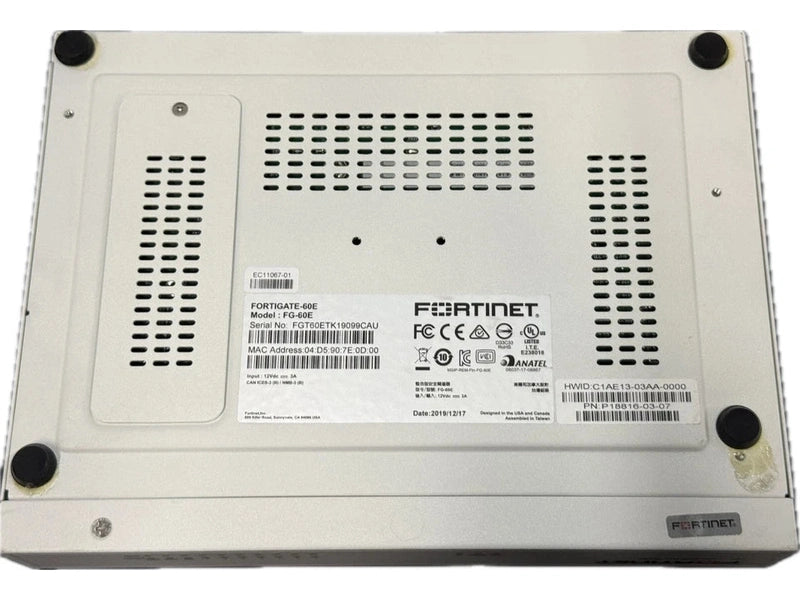

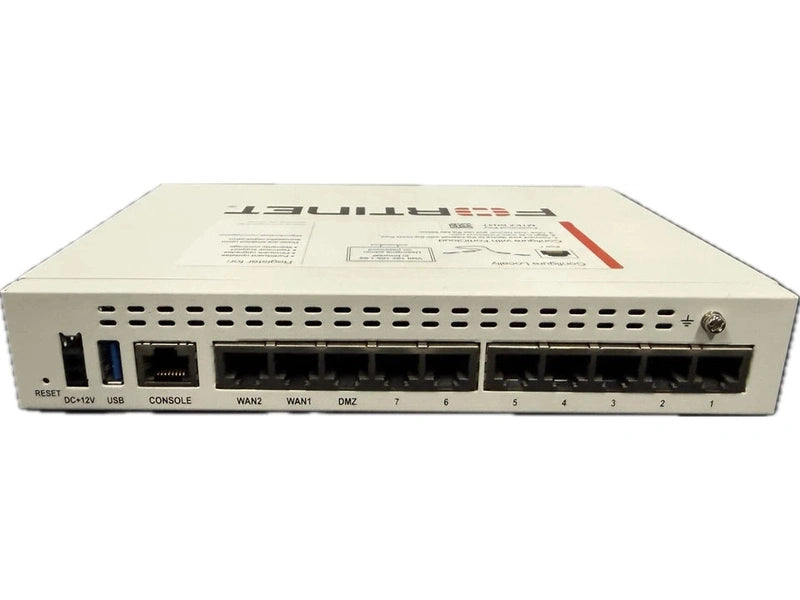

*Used Fortinet FortiGate 60E 10 x GE RJ45 ports 7 x Internal Ports, 2 x WAN Ports, 1 x DMZ Ports
--Condition--
- Minor scratch
- Power cable is Included
- Used with 3 month warranty
The Fortinet Enterprise Firewall Solution
The Fortinet Enterprise Firewall Solution delivers end-to-end network security with one platform, one network security operating system and unified policy management with a single pane of glass - for the industry's best protection against the most advanced security threats and targeted attacks.
One Enterprise Firewall Solution across the Extended Enterprise
The FortiGate family of network appliances represents the industry's broadest range of enterprise firewall platforms. FortiGate is based on FortiASIC, a purpose-built integrated architecture that provides extremely high throughput and exceptionally low latency, while delivering industry-leading security effectiveness and consolidation which is routinely validated by independent real-world tests. Targeted for distributed enterprises, the FortiGate 60E series contains consolidated security and networking functionality, various connectivity options along with Industry's best performance in a compact form factor.
Specification
FG-60E Specification |
|
|
Type |
FORTIGATE 60E |
|
Hardware Specifications |
|
|
GE RJ45 WAN / DMZ Ports |
2 / 1 |
|
GE RJ45 Internal Ports |
7 |
|
GE RJ45 PoE/+ Ports |
- |
|
Wireless Interface |
- |
|
USB Ports |
1 |
|
Console (RJ45) |
1 |
|
Internal Storage |
- |
|
System Performance and Capacity |
|
|
Firewall Throughput (1518 / 512 / 64 byte UDP packets) |
3 / 3 / 3 Gbps |
|
Firewall Latency (64 byte UDP Packets) |
3 μs |
|
Firewall Throughput (Packet per Second) |
4.5 Mpps |
|
Concurrent Sessions (TCP) |
1.3 Million |
|
New Sessions/Second (TCP) |
30,000 |
|
Firewall Policies |
5,000 |
|
IPsec VPN Throughput (512 byte) |
2 Gbps |
|
Gateway-to-Gateway IPsec VPN Tunnels |
200 |
|
Client-to-Gateway IPsec VPN Tunnels |
500 |
|
SSL-VPN Throughput |
150 Mbps |
|
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) |
200 |
|
SSL Inspection Throughput (IPS, avg. HTTPS) |
135 Mbps |
|
SSL Inspection CPS (IPS, avg. HTTPS) |
135 |
|
SSL Inspection Concurrent Session (IPS, avg. HTTPS) |
75,000 |
|
Application Control Throughput (HTTP 64K) |
650 Mbps |
|
CAPWAP Throughput (HTTP 64K) |
890 Mbps |
|
Virtual Domains (Default / Maximum) |
10 / 10 |
|
Maximum Number of FortiSwitches Supported |
8 |
|
Maximum Number of FortiAPs (Total / Tunnel Mode) |
30 / 10 |
|
Maximum Number of FortiTokens |
500 |
|
Maximum Number of Registered FortiClients |
200 |
|
High Availability Configurations |
Active / Active, Active / Passive, Clustering |
|
System Performance |
|
|
IPS Throughput |
400 Mbps |
|
NGFW Throughput |
250 Mbps |
|
Threat Protection Throughput |
200 Mbps |
|
Dimensions and Power |
|
|
Height x Width x Length |
1.5 x 8.5 x 6.3 inches 38 x 216 x 160 mm |
|
Form Factor |
Desktop |
|
Power Required |
100–240V AC, 50–60 Hz |
|
Maximum Current |
110V AC / 1.5 A, 220V AC / 0.75 A |
|
Total Available PoE Power Budget |
N/A |
|
Power Consumption (Average / Maximum) |
11.7 / 14 W |
|
Heat Dissipation |
40 BTU/h |
|
Operating Environment and Certifications |
|
|
Operating Temperature |
32–104°F (0–40°C) |
|
Storage Temperature |
-31–158°F (-35–70°C) |
|
Humidity |
10–90% non-condensing |
|
Noise Level |
Fanless 0 dBA |
|
Operating Altitude |
Up to 7,400 ft (2,250 m) |
|
Compliance |
FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB |
|
Certifications |
ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN |
