Ubiquiti USW-Flex 5-Port Managed Gigabit PoE Switch

UbiquitiSKU: USW-Flex

Ubiquiti UniFi Switch Flex Utlility, For use with USW-Flex, PoE Injector Included

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$198.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Estimate shipping

Description

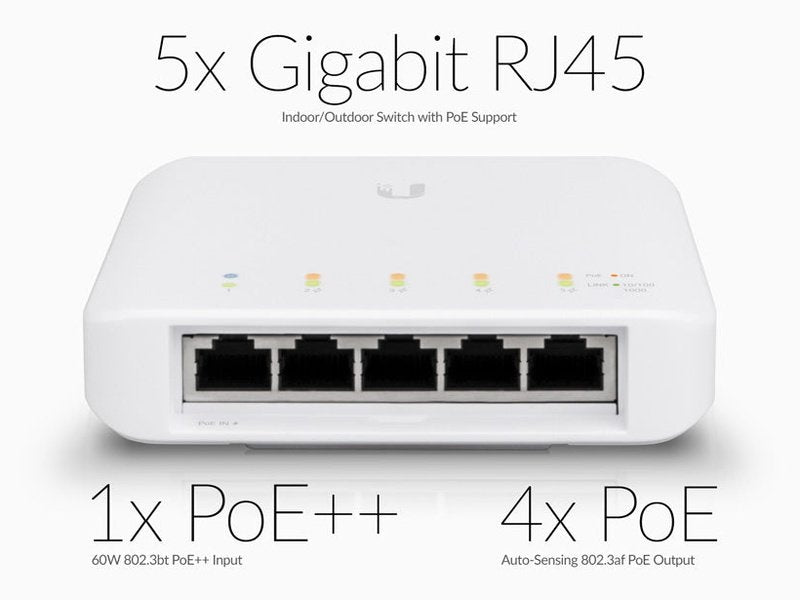

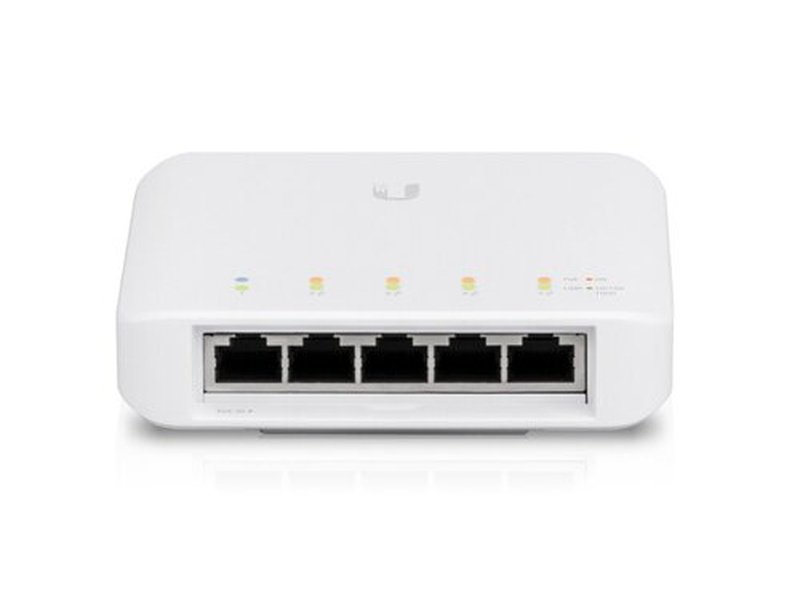

Ubiquiti USW Flex 5-Port Layer 2 PoE Gigabit Switch - (USW-FLEX) 46W with PoE++

Flexible 5-port, Layer 2 PoE switch for indoor and outdoor use, that can be powered with PoE++.


  • (4) GbE PoE+ ports
  • (1) GbE PoE++ input port for power
  • 46W PoE availability* PoE++ input2
  • 20W PoE availability PoE+ input
  • 8W PoE availability PoE input
  • Indoor/Outdoor

Build and expand your network with the UniFi® Switch, part of the UniFi Enterprise System. The UniFi Switch, model USW-Flex, is a configurable Layer 2 Gigabit switch with auto-sensing 802.3af PoE. It offers 5 RJ45 Gigabit Ethernet ports, providing 1 PoE input and 4 PoE output links to your devices.


Managed and configured by the UniFi Controller or UniFi Mobile app, the UniFi Switch Flex offers basic Layer 2 switching protocols and features. The UniFi Controller and mobile app allow admins to configure and monitor virtually all of the switch features using a graphical user interface from anywhere.

Specifications

Mechanical
Dimensions 122.5 x 107.1 x 28 mm (4.8 x 4.2 x 1.1")
Weight 230 g (8.1 oz)
Hardware
Management interface Ethernet In-Band
Networking interface (5) GbE RJ45 ports
PoE interface (4) PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput 5 Gbps
Switching capacity 10 Gbps
Power method PoE++
Power supply PoE/PoE+ (Pins 1, 2+; 3, 6-)
PoE++ (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)
50V/60W PoE adapter (Not included)
Supported voltage range PoE: 44—57V DC
PoE+/PoE++: 50—57V DC
Max. power consumption 5W (Excluding PoE output)
Total available PoE 46W*
*When powered with a PoE++ switch or a 60W PoE adapter (Sold separately).
Max. PoE wattage per port by PSE 25W
ESD/EMP protection Air/contact: ± 16kV
Button Factory reset
Ambient operating temperature 46W PoE output: -40 to 55° C (-40 to 131° F)
25W PoE output: -40 to 65° C (-40 to 149° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Switching Features
Layer 2 features Port isolation
Port mirroring
Multicast / broadcast rate limiting
Flow control
Jumbo frames
Egress rate limit
Layer 3 features
LEDs
System Status
Ethernet PoE
Speed/link/activity
PoE Link/activity
Application Requirements
UniFi Network Version 5.10.3 and later
