Description

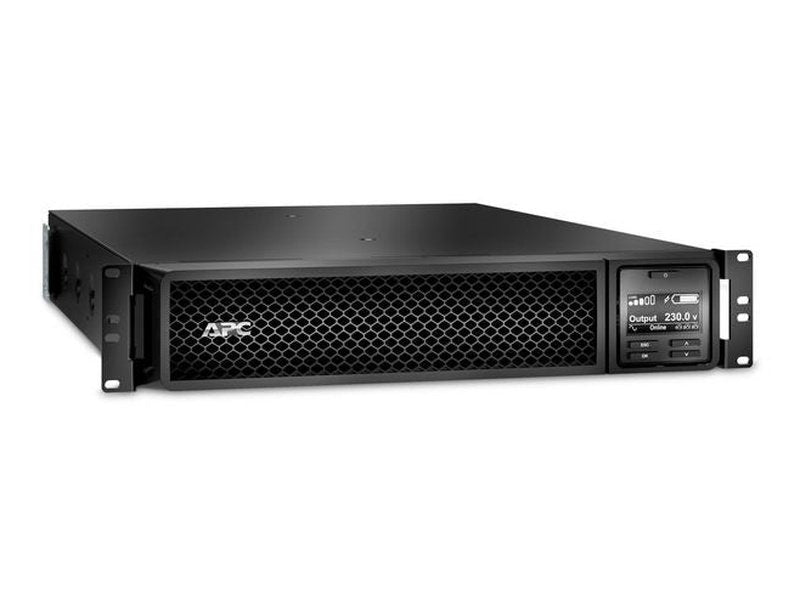

APC Smart-UPS SRT 2200VA RM 230V
- Battery failure notification Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- ECO Mode Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
- LCD graphics display Text and mimic diagrams that display modes of operation, system parameters and alarms.
- Rack/Tower convertible Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Output
- Output power capacity 1.98 KWatts / 2.2 kVA
- Max Configurable Power (Watts) 1.98 KWatts / 2.2 kVA
- Nominal Output Voltage 230V
- Output Voltage Distortion Less than 2%
- Output Frequency (sync to mains) 50/60Hz +/- 3 Hz
- Other Output Voltages 220, 240
- Load Crest Factor 3 : 1
- Topology Double Conversion Online
- Waveform type Sine wave
- Output Connections (8) IEC 320 C13 (Battery Backup) (2) IEC Jumpers (Battery Backup) (2) IEC 320 C19 (Battery Backup)
- Bypass Built-in Bypass
Input
- Nominal Input Voltage 230V
- Input frequency 40 - 70 Hz (auto sensing)
- Input Connections IEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A
- Cord Length 2.44meters
- Input voltage range for main operations 160 - 275V
- Input voltage adjustable range for mains operation 100 - 275 (half load)V
- Number of Power Cords 1
- Other Input Voltages 220, 240
Batteries & Runtime
- Battery type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
- Included Battery Modules 1
- Typical recharge time 3hour(s)
- Replacement Battery APCRBC141
- Expected Battery Life (years) 3 - 5
- RBC Quantity 1
- Extendable Run Time 1
- Battery Volt-Amp-Hour Capacity 367
- Extended Run Options APC-Smart-UPS-SRT-2200VA-RM-230V
- Runtime View Runtime Graph View Runtime Chart
- Efficiency View Efficiency Graph
Communications & Management
- Interface Port(s) RJ-45 Serial , Smart-Slot , USB
- Control panel Multi-function LCD status and control console
- Audible Alarm Audible and visible alarms prioritized by severity
- Emergency Power Off (EPO) Yes
- Available SmartSlot™ Interface Quantity 1
Surge Protection and Filtering
- Surge energy rating 340Joules
- Filtering --
Physical
- Maximum Height 85mm , 8.5cm
- Maximum Width 432mm , 43.2cm
- Maximum Depth 584mm , 58.4cm
- Rack Height 2U
- Net Weight 25.0kg
- Shipping weight 34.02kg
- Shipping Height 246mm , 24.6cm
- Shipping Width 599mm , 59.9cm
- Shipping Depth 810mm , 81.0cm
- Color Black
- Units per Pallet 12.0
Environmental
- Operating Environment 0 - 40 °C
- Operating Relative Humidity 0 - 95% non-condensing %
- Operating Elevation 0-3000meters
- Storage Temperature -20 - 50 °C
- Storage Relative Humidity 0 - 95% non-condensing %
- Storage Elevation 0-15000meters
- Audible noise at 1 meter from surface of unit 55.0dBA
- Online thermal dissipation 535.0BTU/hr
- Protection Class IP 20
Conformance
- Approvals CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, ENERGY STAR (EU),
- RCM, VDE
- Standard warranty 3 years repair or replace (excluding battery) and 2 years for battery
Sustainable Offer Status
- RoHS Compliant
- REACH REACH: Contains No SVHCs
- Battery Directive Compliant
- Battery Notes ts_Battery_Notes
