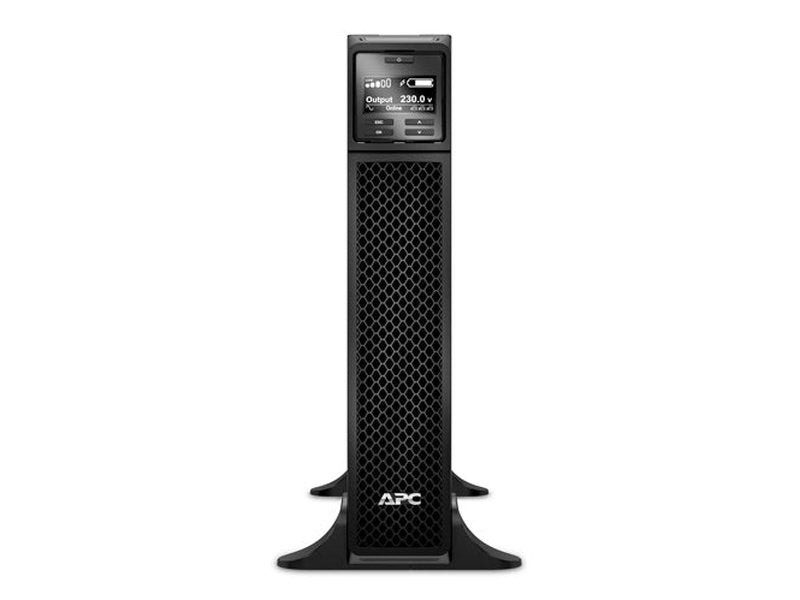

APC SMART-UPS (SRT), 3000VA, IEC(8), SMART SLOT, LCD, TWR, 3YR

APCSKU: SRT3000XLI

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$4,999.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Estimate shipping

Description

APC Smart-UPS SRT 3000VA 230V

  • Battery failure notification Provides early-warning fault analysis on batteries enabling timely preventive maintenance
  • ECO Mode Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
  • Green mode Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
  • LCD graphics display Text and mimic diagrams that display modes of operation, system parameters and alarms.
  • Rack/Tower convertible Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

Output

  • Output power capacity 2.7 KWatts / 3.0 kVA
  • Max Configurable Power (Watts) 2.7 KWatts / 3.0 kVA
  • Nominal Output Voltage 230V
  • Output Voltage Note Configurable for 220 : 230 or 240 nominal output voltage
  • Output Voltage Distortion Less than 2%
  • Output Frequency (sync to mains) 50/60Hz +/- 3 Hz
  • Other Output Voltages 220, 240
  • Load Crest Factor 3 : 1
  • Topology Double Conversion Online
  • Waveform type Sine wave
  • Output Connections (8) IEC 320 C13 (Battery Backup) (2) IEC Jumpers (Battery Backup) (2) IEC 320 C19 (Battery Backup)
  • Bypass Internal Bypass (Automatic and Manual)

Input

  • Nominal Input Voltage 230V
  • Input frequency 40 - 70 Hz (auto sensing)
  • Input Connections British BS1363A, IEC-320 C20, Schuko CEE 7/EU1-16P
  • Cord Length 2.44meters
  • Input voltage range for main operations 160 - 275V
  • Input voltage adjustable range for mains operation 100 - 275 (half load)V
  • Number of Power Cords 3
  • Other Input Voltages 220, 240

Batteries & Runtime


Communications & Management

  • Interface Port(s) RJ-45 Serial , Smart-Slot , USB
  • Control panel Multi-function LCD status and control console
  • Audible Alarm Audible and visible alarms prioritized by severity
  • Emergency Power Off (EPO) Yes
  • Available SmartSlot™ Interface Quantity 1

Surge Protection and Filtering

  • Surge energy rating 340Joules
  • Filtering --

Physical

  • Maximum Height 432mm , 43.2cm
  • Maximum Width 85mm , 8.5cm
  • Maximum Depth 635mm , 63.5cm
  • Net Weight 31.3kg
  • Shipping weight 36.74kg
  • Shipping Height 246mm , 24.6cm
  • Shipping Width 599mm , 59.9cm
  • Shipping Depth 871mm , 87.1cm
  • Color Black
  • Units per Pallet 6.0

Environmental

  • Operating Environment 0 - 40 °C
  • Operating Relative Humidity 0 - 95% non-condensing %
  • Operating Elevation 0-3000meters
  • Storage Temperature -15 - 45 °C
  • Storage Relative Humidity 0 - 95% non-condensing %
  • Storage Elevation 0-15000meters
  • Audible noise at 1 meter from surface of unit 55.0dBA
  • Online thermal dissipation 703.0BTU/hr
  • Protection Class IP 20

Conformance

  • Approvals CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, ENERGY STAR (EU),
  •  RCM, VDE
  • Standard warranty 3 years repair or replace (excluding battery) and 2 years for battery

Sustainable Offer Status

  • RoHS Compliant
  • REACH REACH: Contains No SVHCs
  • Battery Directive Compliant
  • Battery Notes ts_Battery_Notes
