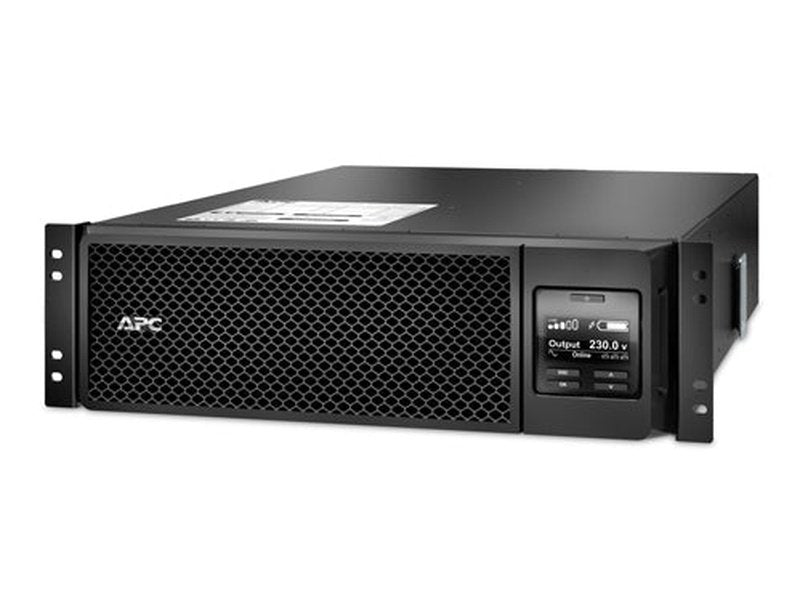

APC SMART-UPS (SRT), 5000VA, IEC(10), NETWORK, LCD, 3U RACK/TWR, 3YR

APCSKU: SRT5KRMXLI

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$8,922.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Estimate shipping

Description

APC Smart-UPS SRT 5000VA RM 230V

High density, double-conversion on-line power protection with scalable runtime

Includes : Documentation CD , Installation guide , Rack Mounting brackets , Rack mounting hardware , Rack Mounting support rails , Temperature Probe , Warranty card , Web/SNMP Management Card

  • 10/100 BaseT Connection Connect the device to a network using a 10 or 100 BaseT connection
  • Battery failure notification Provides early-warning fault analysis on batteries enabling timely preventive maintenance
  • ECO Mode Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
  • Green mode Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
  • LCD graphics display Text and mimic diagrams that display modes of operation, system parameters and alarms.

Output

  • Output power capacity 4.5 KWatts / 5.0 kVA
  • Max Configurable Power (Watts) 4.5 KWatts / 5.0 kVA
  • Nominal Output Voltage 230V
  • Output Voltage Distortion Less than 2%
  • Output Frequency (sync to mains) 50/60Hz +/- 3 Hz
  • Other Output Voltages 220, 240
  • Load Crest Factor 3 : 1
  • Topology Double Conversion Online
  • Waveform type Sine wave
  • Output Connections (6) IEC 320 C13 (Battery Backup) (4) IEC 320 C19 (Battery Backup) (2) IEC Jumpers (Battery Backup)
  • Bypass Internal Bypass (Automatic and Manual)

Input

  • Nominal Input Voltage 230V
  • Input frequency 40 - 70 Hz (auto sensing)
  • Input Connections Hard Wire 3 wire (1PH+N+G)
  • Input voltage range for main operations 160 - 275V
  • Input voltage adjustable range for mains operation 100 - 275 (half load)V
  • Other Input Voltages 220, 240

Batteries & Runtime


Communications & Management

  • Interface Port(s) RJ-45 10/100 Base-T , RJ-45 Serial , Smart-Slot , USB
  • Control panel Multi-function LCD status and control console
  • Audible Alarm Audible and visible alarms prioritized by severity
  • Emergency Power Off (EPO) Yes
  • Available SmartSlot™ Interface Quantity 1

Surge Protection and Filtering

  • Surge energy rating 480Joules

Physical

  • Maximum Height 130mm , 13.0cm
  • Maximum Width 432mm , 43.2cm
  • Maximum Depth 719mm , 71.94cm
  • Rack Height 3U
  • Net Weight 54.43kg
  • Shipping weight 66.86kg
  • Shipping Height 330mm , 33.0cm
  • Shipping Width 610mm , 61.0cm
  • Shipping Depth 960mm , 96.0cm
  • Color Black
  • Units per Pallet 6.0

Environmental

  • Operating Environment 0 - 40 °C
  • Operating Relative Humidity 0 - 95% non-condensing %
  • Operating Elevation 0-3000meters
  • Storage Temperature -15 - 45 °C
  • Storage Relative Humidity 0 - 95% non-condensing %
  • Storage Elevation 0-15000meters
  • Audible noise at 1 meter from surface of unit 55.0dBA
  • Online thermal dissipation 931.0BTU/hr
  • Protection Class IP 20

Conformance

  • Approvals CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, ENERGY STAR (EU),
  •  IRAM, RCM, VDE
  • Standard warranty 3 years repair or replace (excluding battery) and 2 years for battery

Sustainable Offer Status

  • RoHS Compliant
  • REACH REACH: Contains No SVHCs
