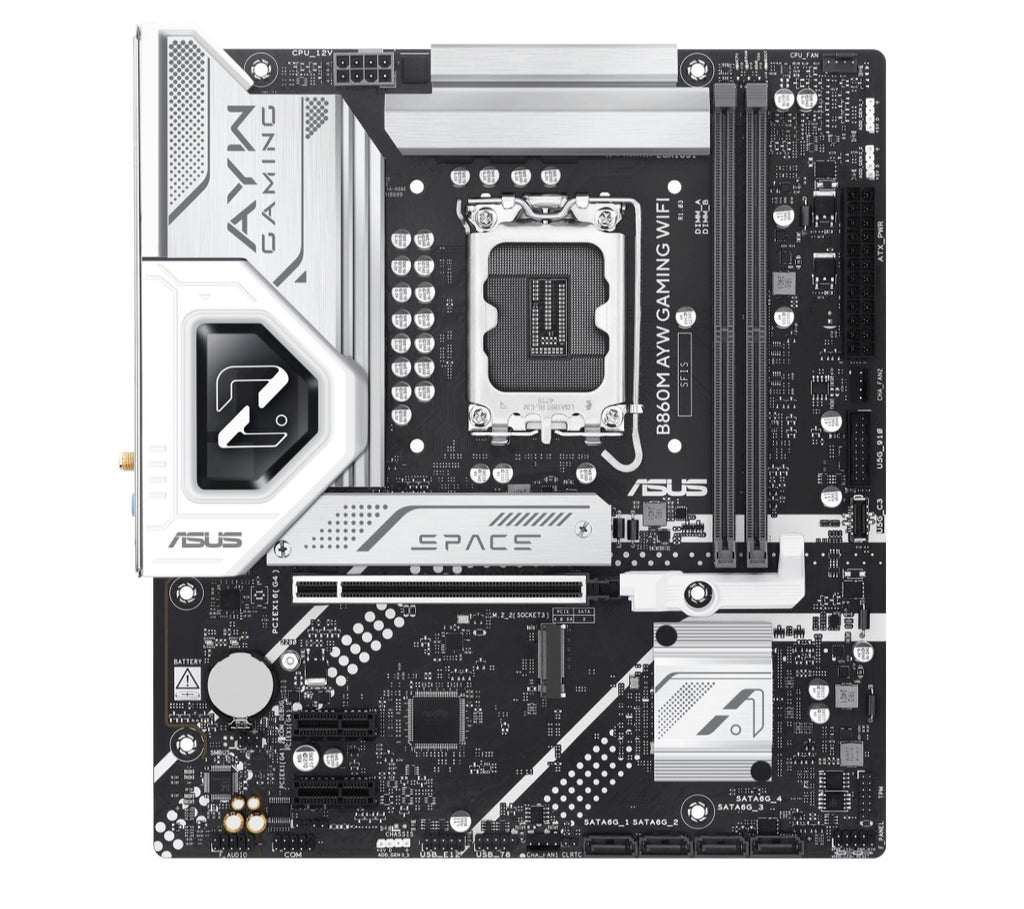

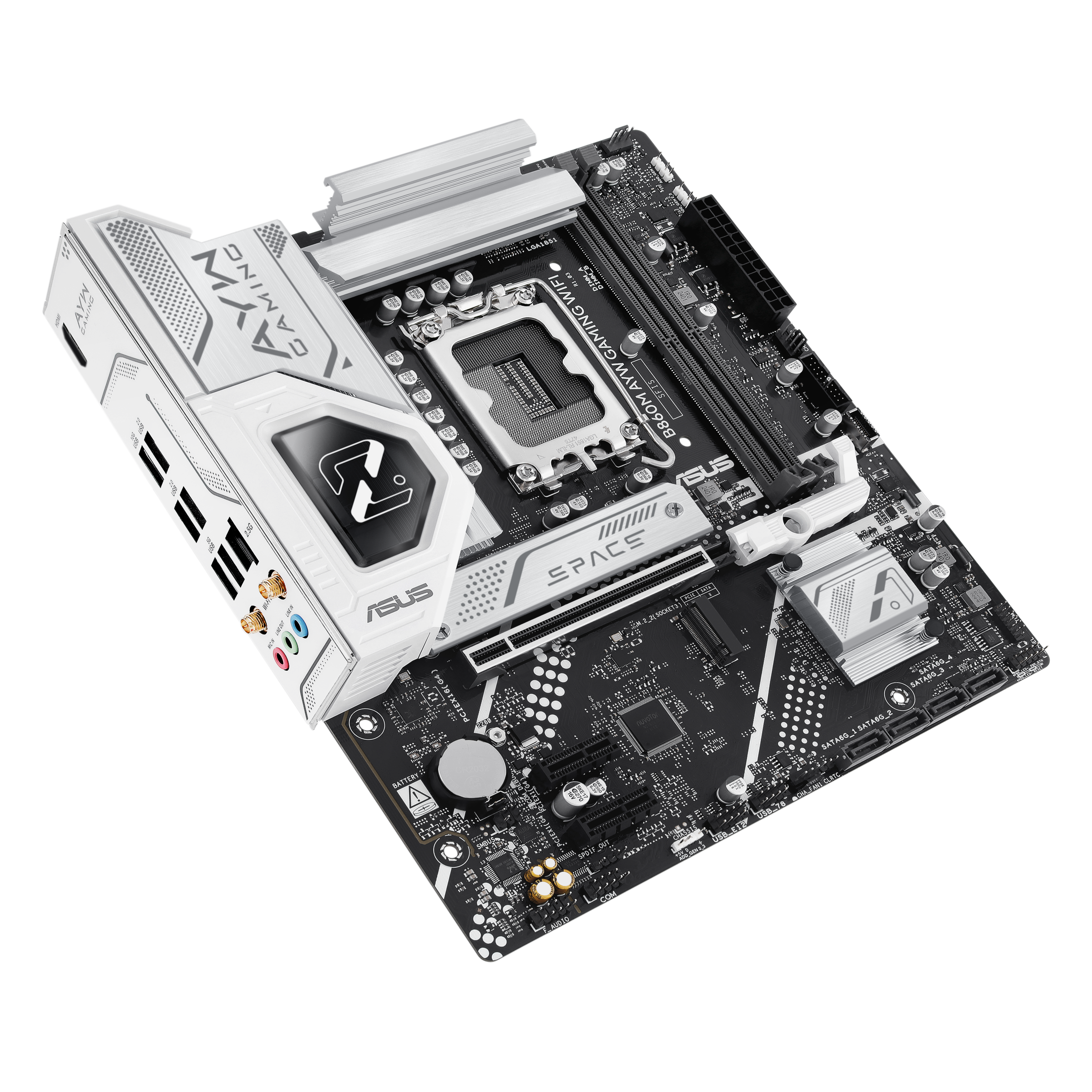

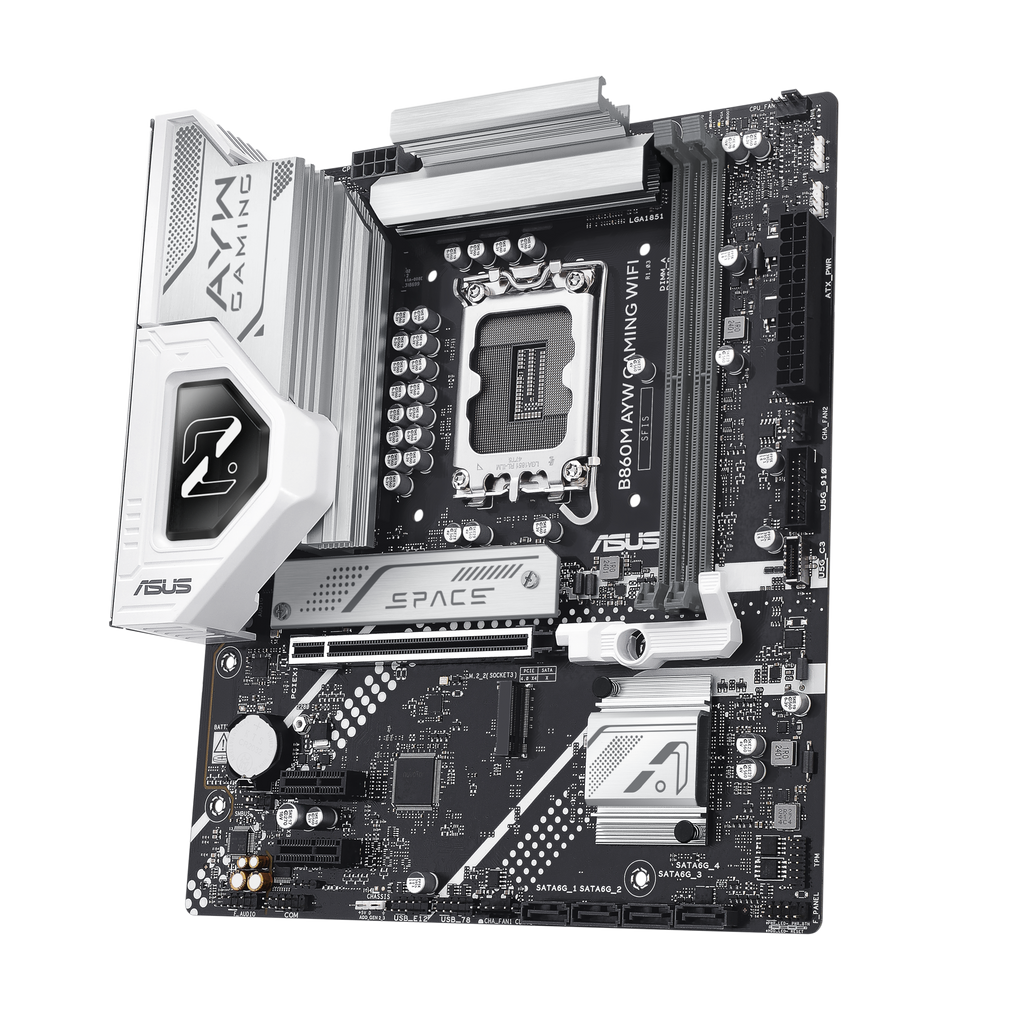

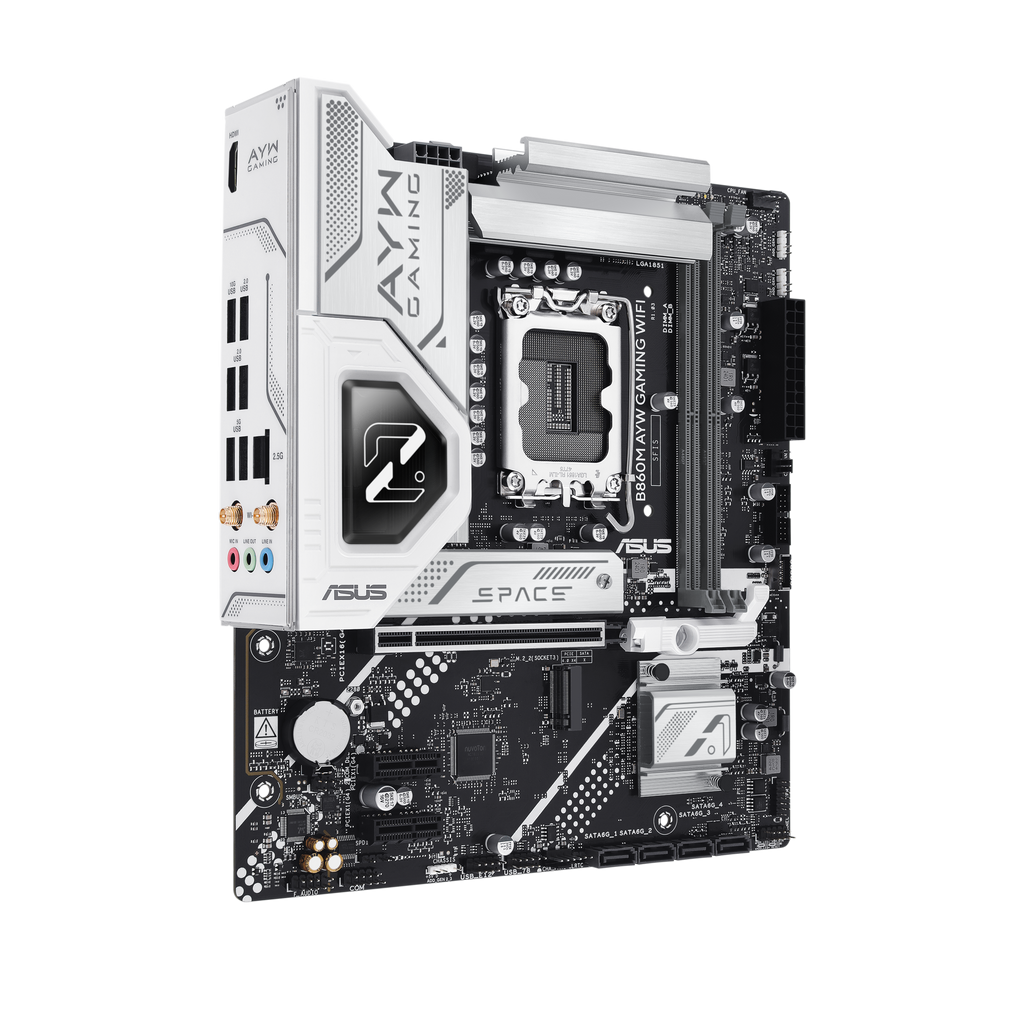

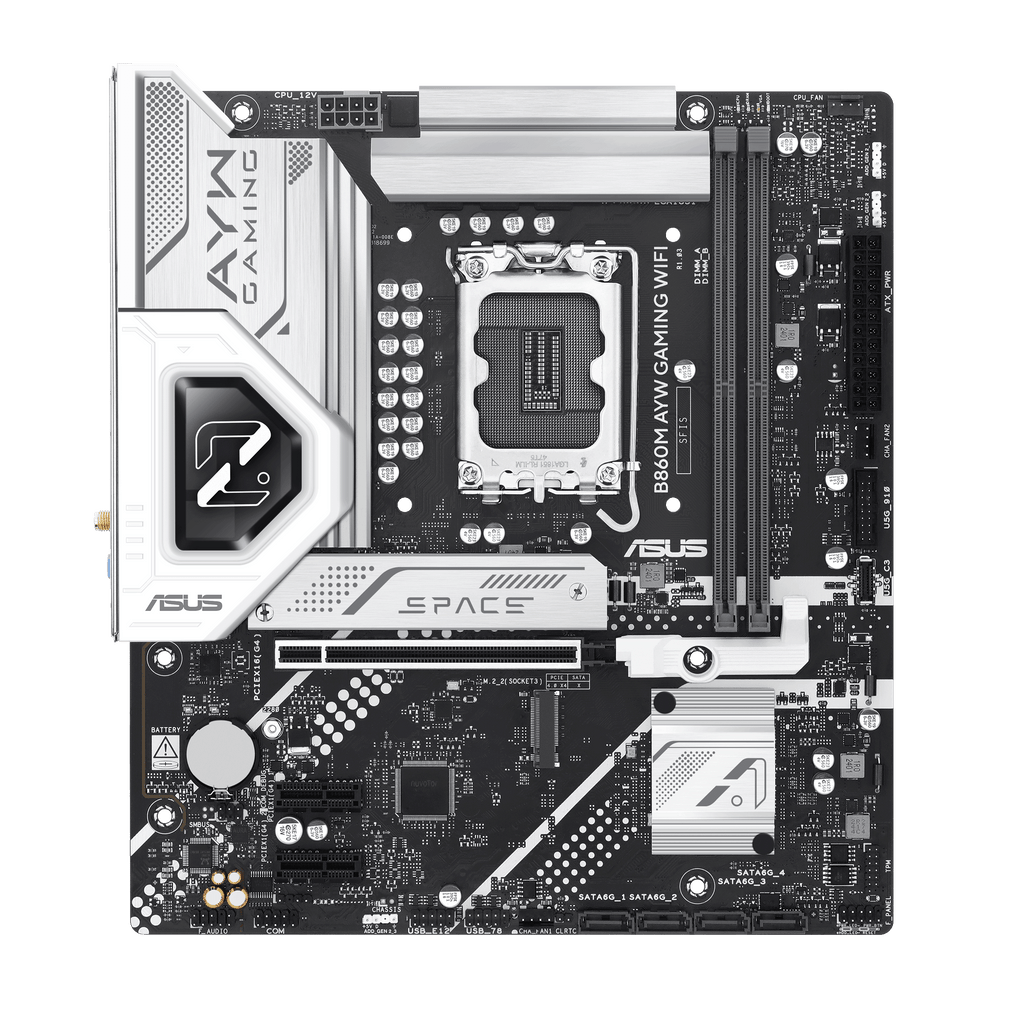

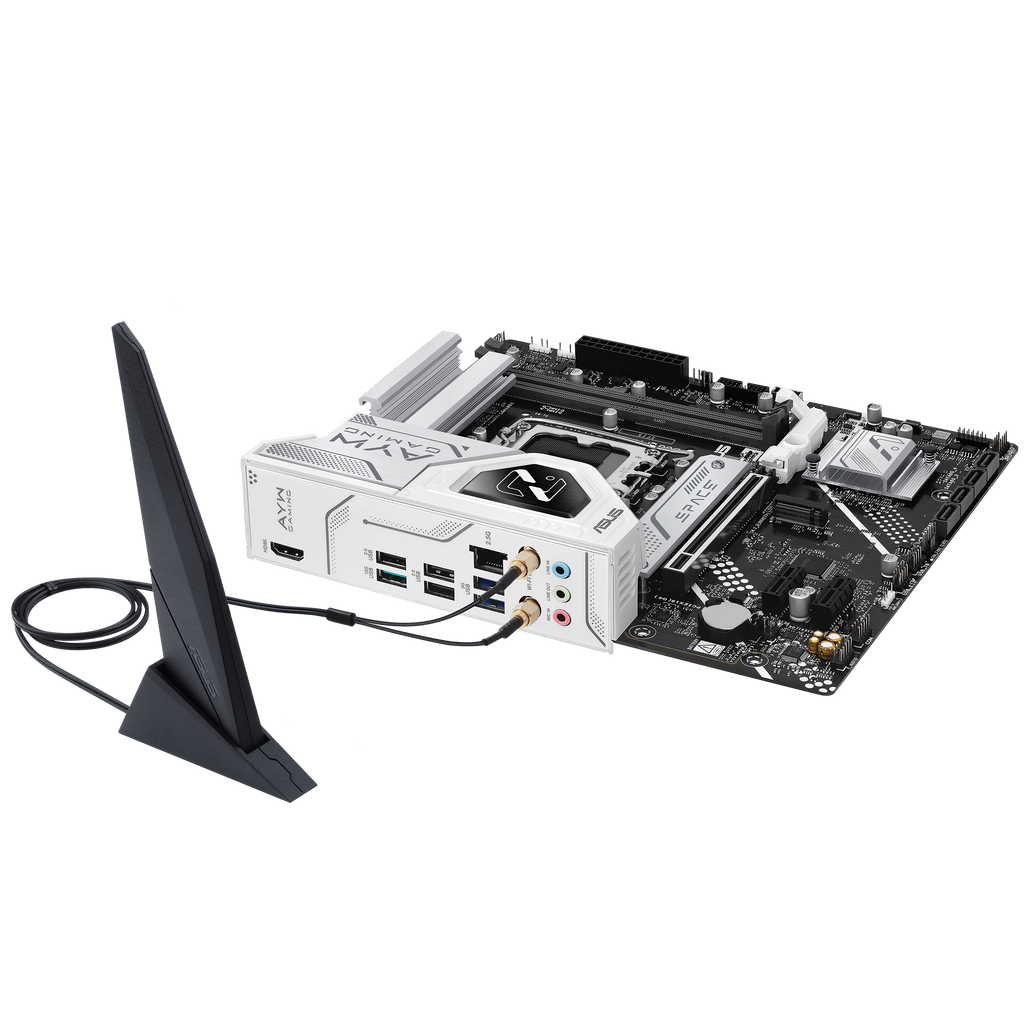

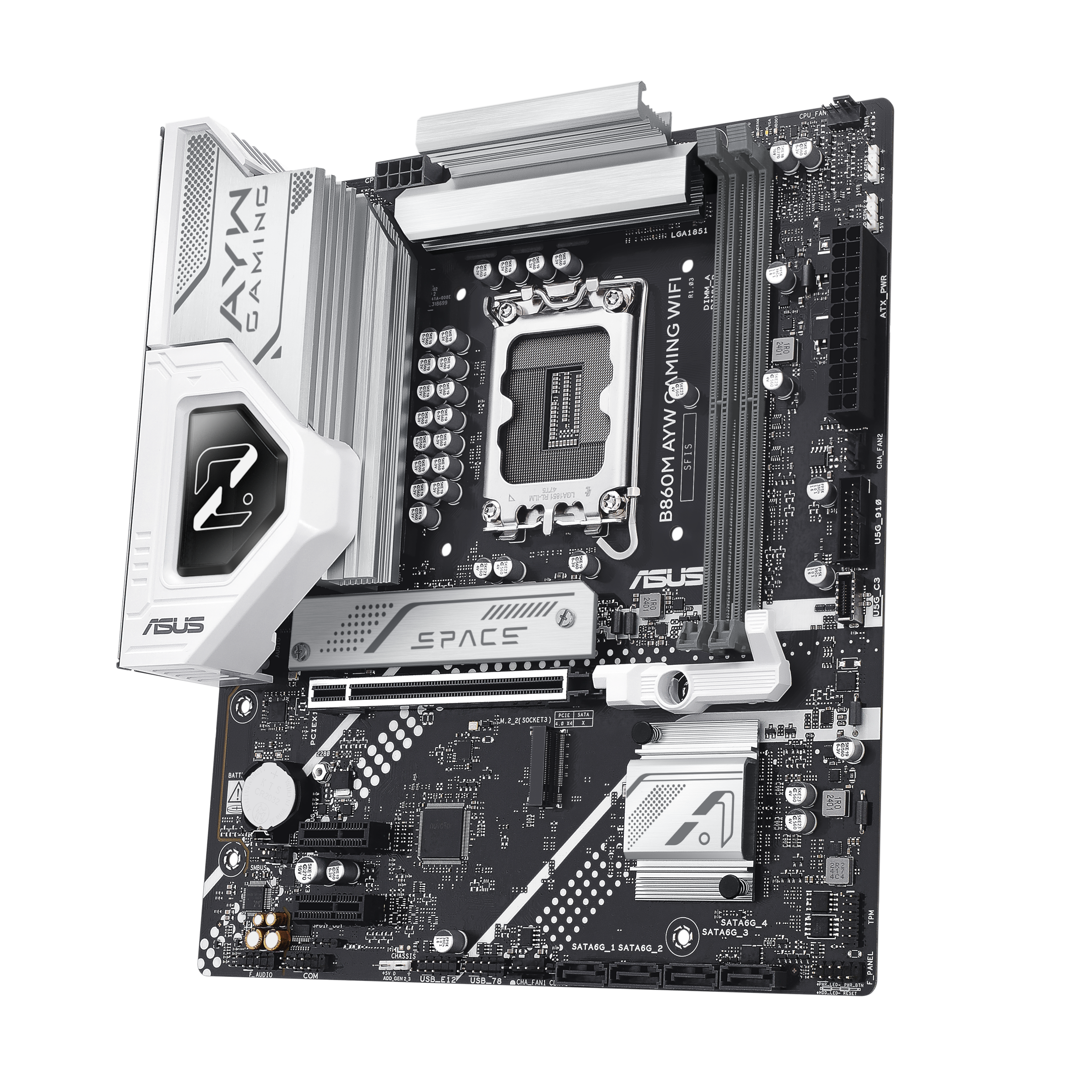

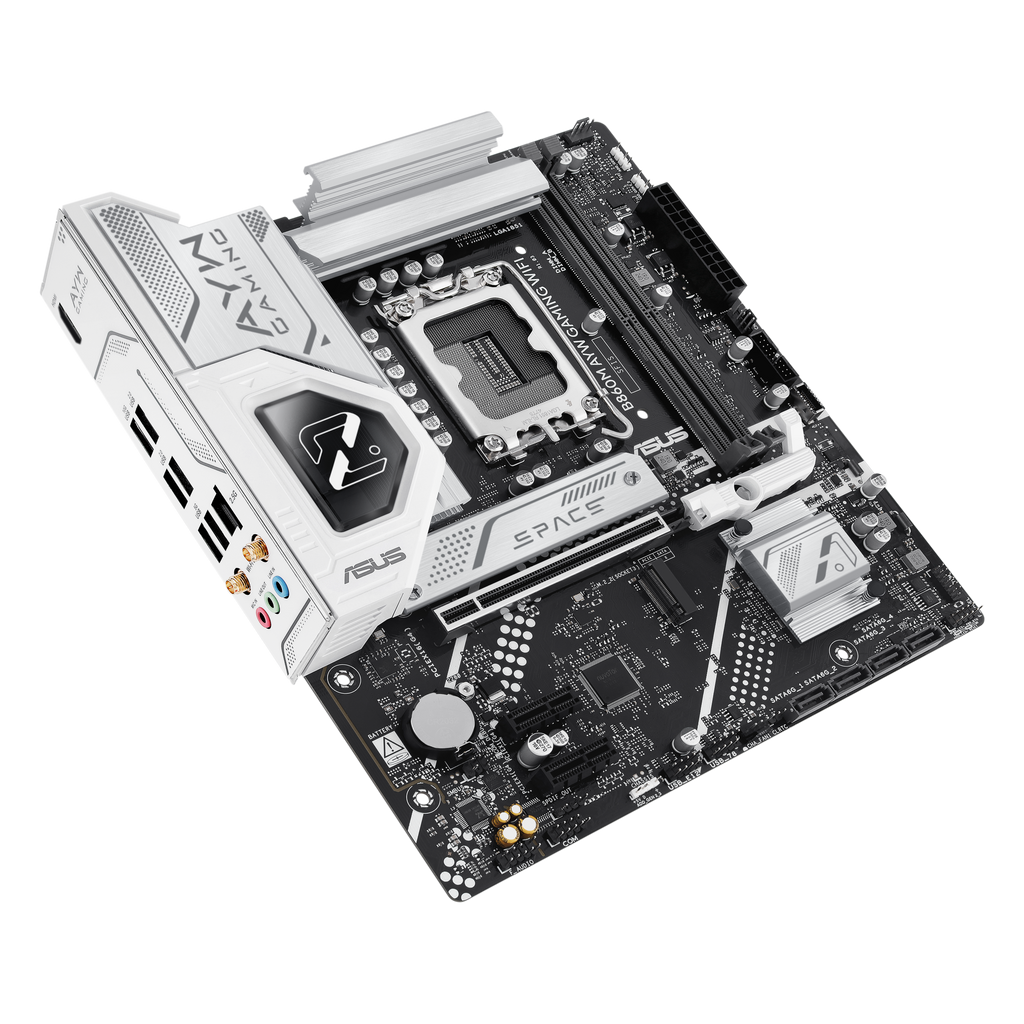

ASUS B860M AYW GAMING WIFI Micro-ATX Motherboard

ASUSSKU: B860M AYW GAMING WIFI

ASUS B860M AYW GAMING WIFI Micro-ATX Motherboard Up to 128GB DDR5 (2x Slots), 1 x PCIe 4.0, 2 x M.2 slots, WiFi 6,

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$251.00

Estimate shipping

Description

Overview

B860M AYW GAMING WIFI
ASUS B860 series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). The B860M AYW GAMING WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Performance
AI Solutions
ASUS AI Solutions include AI Advisor as your technical expert with expertise in PC performance.

Performance
Digital Power Design
Stable power is crucial for maximizing the performance of Intel® Core™ Ultra Processors (Series 2).The B860M AYW GAMING WIFI features an 6+1+1+1 phase design with discrete MOSFETs, ensuring efficient and stable power delivery for Intel® processors plus steady performance for day-to-day use.

Enhanced Memory & Storage Performance
AEMP III for Ultimate DDR5 Performance
ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process, AEMP III first optimizes the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge speeds of DDR5-7600 or higher.

DIMM Fit / DIMM Fit Pro
DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. DIMM Fit Pro gives advanced PC builders more extensive customizability for memory tuning. It allows users to control up to twenty overclocking parameters, define testing ranges, and prioritize stability or performance, offering a more flexible and granular approach to memory optimization.

Two M.2 slots (up to 128Gbps)
B860M AYW GAMING WIFI offers a total of two M.2 slots, including one that supports data-transfer speeds of up to 128Gbps via PCIe 5.0, one that supports 64Gbps via PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.

Cooling
Cooler by design
The B860M AYW GAMING WIFI motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.

ASUS Fan Xpert 2+
ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.

Flexibility
Empowering connections
This motherboard offers a versatile range of connectivity, including support for WiFi 6, PCIe 5.0 M.2, PCIe 4.0 slot and an arsenal of USB ports which includes Type-C® connection.

WiFi 6
The WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 1.2Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.

High Speed Transferring
Numerous USB ports support high-end rigs loaded with peripherals, including a rear USB Type-A port with transmission speeds of up to 10Gbps and a front USB Type-C® connector with ultrafast USB 5Gbps for transmission speeds of up to 5Gbps.

Realtek 2.5Gb Ethernet
Realtek 2.5Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers.

Customization
Personalization
The B860M AYW GAMING WIFI enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.

Customization
DIY friendly
The B860M AYW GAMING WIFI motherboard features EZ PC DIY innovations that simplify and speed up the PC building process, making DIY easy and convenient.

PCIe Slot Q-Release
A physical lever unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new graphics card or other compatible device.

M.2 Q-Latch
The innovative ASUS Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools or screws. This design employs a simple locking mechanism to secure the drive and neatly detach it with one tap.

Q-LED
The on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components - CPU, RAM, graphics card, storage devices - are functioning normally during startup. It can also alert them when memory modules have not been properly installed--even before booting.

Pre-mounted
I/O shield
Our pre-installed I/O shield safeguards ports, simplifies the build process, increases functionality and enhances aesthetics for PC DIY enthusiasts.

SafeSlot Core+
SafeSlot Core+ is a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.

ASUS B860M AYW GAMING WIFI Micro-ATX Motherboard Specifications
CPU Support LGA1851 socket
Intel® Core™ Ultra Processors (Series 2)
Intel® Turbo Boost Technology 2.0
Intel® Turbo Boost Max Technology 3.0
Chipset Intel® B860 Chipset
Memory 2 x DDR5 DIMM slots, up to 128GB
Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered, CUDIMM
Dual channel architecture
Supports Intel® XMP & ASUS AEMP III
On-Die ECC supported
Graphics 1 x HDMI™ port (4K@60Hz, HDMI 2.1)
VGA resolution support depends on CPU/GPU
Expansion Slots CPU: 1 x PCIe 4.0 x16
Chipset: 2 x PCIe 4.0 x1
Storage 2 x M.2 slots:
- M.2_1 (PCIe 5.0 x4, 2280)
- M.2_2 (PCIe 4.0 x4, 2280)
4 x SATA 6Gb/s ports
Supports SATA RAID 0/1/5/10
Ethernet Realtek 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth Wi-Fi 6 (802.11ax), 1x1, 2.4/5GHz
Bluetooth® v5.3
USB Ports Rear: 6 ports
- 1 x USB 10Gbps (Type-A)
- 2 x USB 5Gbps (Type-A)
- 3 x USB 2.0 (Type-A)
Front: 7 ports
- 1 x USB 5Gbps Type-C® connector
- 1 x USB 5Gbps header (2 ports)
- 2 x USB 2.0 headers (4 ports)
Audio Realtek 7.1 Surround Sound HD Audio CODEC
Jack-detection, Multi-streaming, Front Panel Jack-retasking
Up to 24-Bit/192 kHz playback
Audio Shielding, Premium capacitors, Dedicated PCB layers

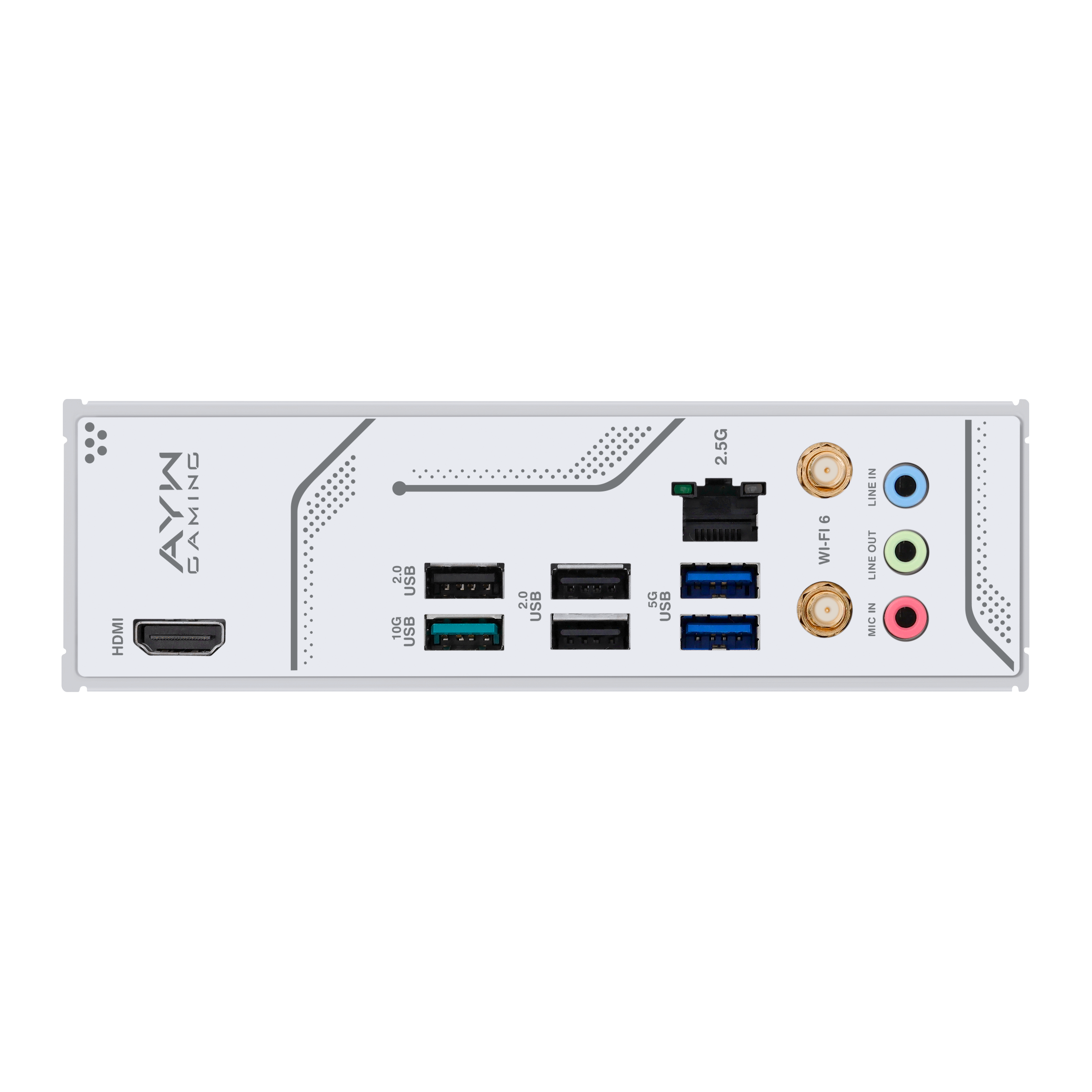

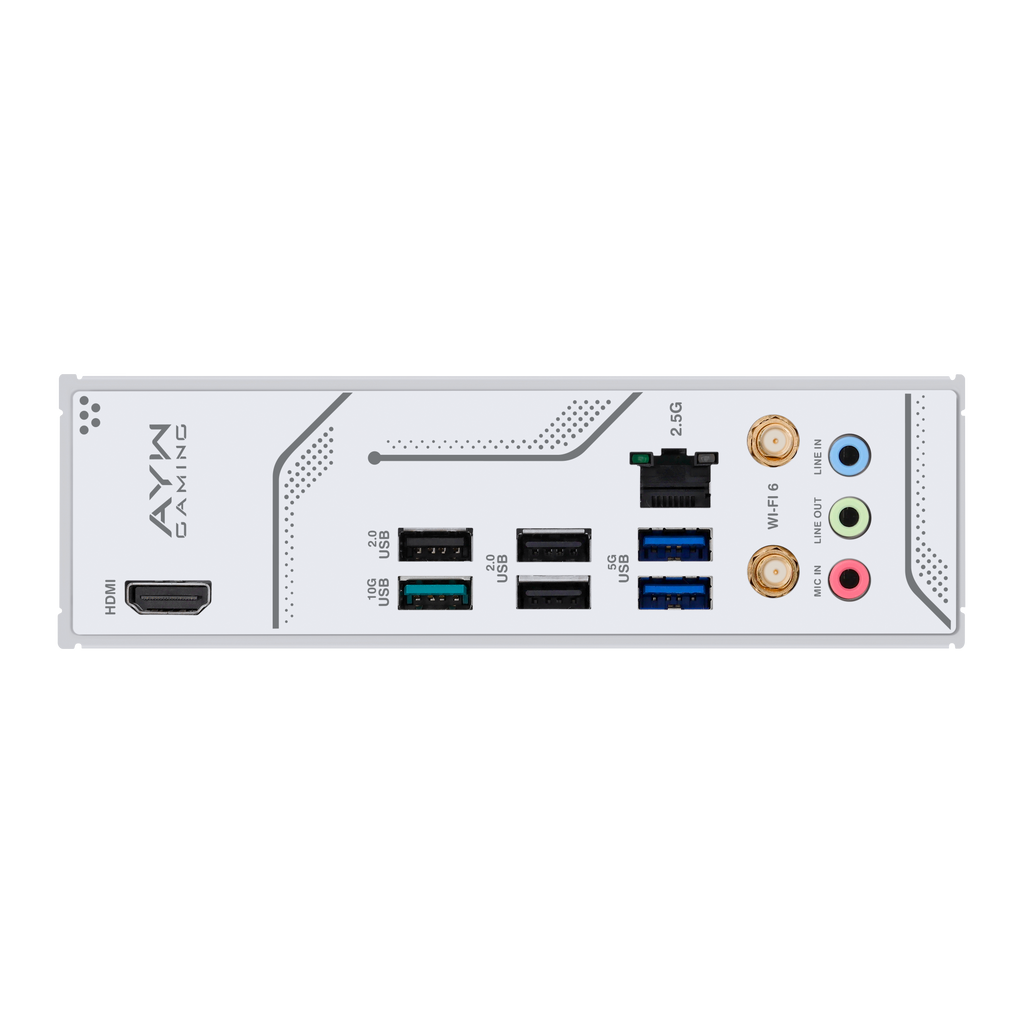

Back Panel I/O 1 x USB 10Gbps (Type-A)
2 x USB 5Gbps (Type-A)
3 x USB 2.0 (Type-A)
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks
Internal I/O Cooling: 1 x CPU Fan, 2 x Chassis Fan (4-pin)
Power: 1 x 24-pin Main, 1 x 8-pin +12V CPU
Storage: 2 x M.2 (Key M), 4 x SATA 6Gb/s
USB: 1 x USB 5Gbps Type-C®, 1 x USB 5Gbps header, 2 x USB 2.0 headers
Misc: 3 x Gen2 RGB headers, Clear CMOS, COM, F_AUDIO, S/PDIF Out, SPI TPM, Front Panel
Special Features ASUS 5X PROTECTION III (DIGI+VRM, LANGuard, Overvoltage, SafeSlot Core+, Stainless-steel I/O)
ASUS Q-Design (M.2 Q-Latch, PCIe Q-Release, Q-DIMM, Q-LED, Q-Slot)
ASUS Thermal Solution (M.2 & VRM heatsinks)
ASUS EZ DIY (ProCool, Pre-mounted I/O shield)
Aura Sync (Gen2 RGB headers)
Software Armoury Crate (Aura Sync, Fan Xpert 2+, Power Saving)
ASUS AI Advisor, DriverHub, GlideX, CPU-Z
Norton 360 Deluxe (60-day trial), WinRAR (40-day trial)
UEFI BIOS ASUS EZ DIY (CrashFree BIOS 3, EZ Flash, EZ Mode, MyHotkey)
256Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE

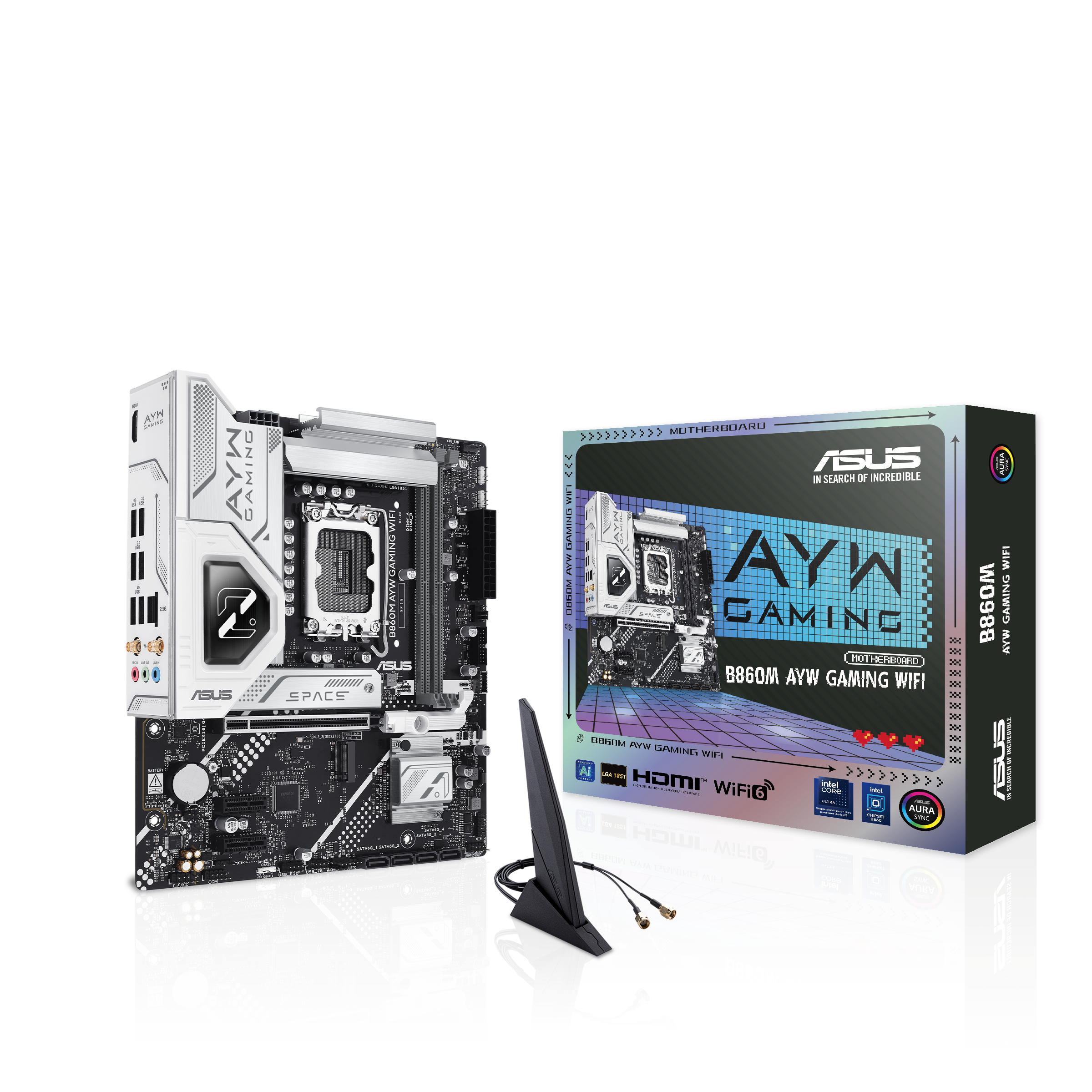

Accessories 2 x SATA 6Gb/s cables

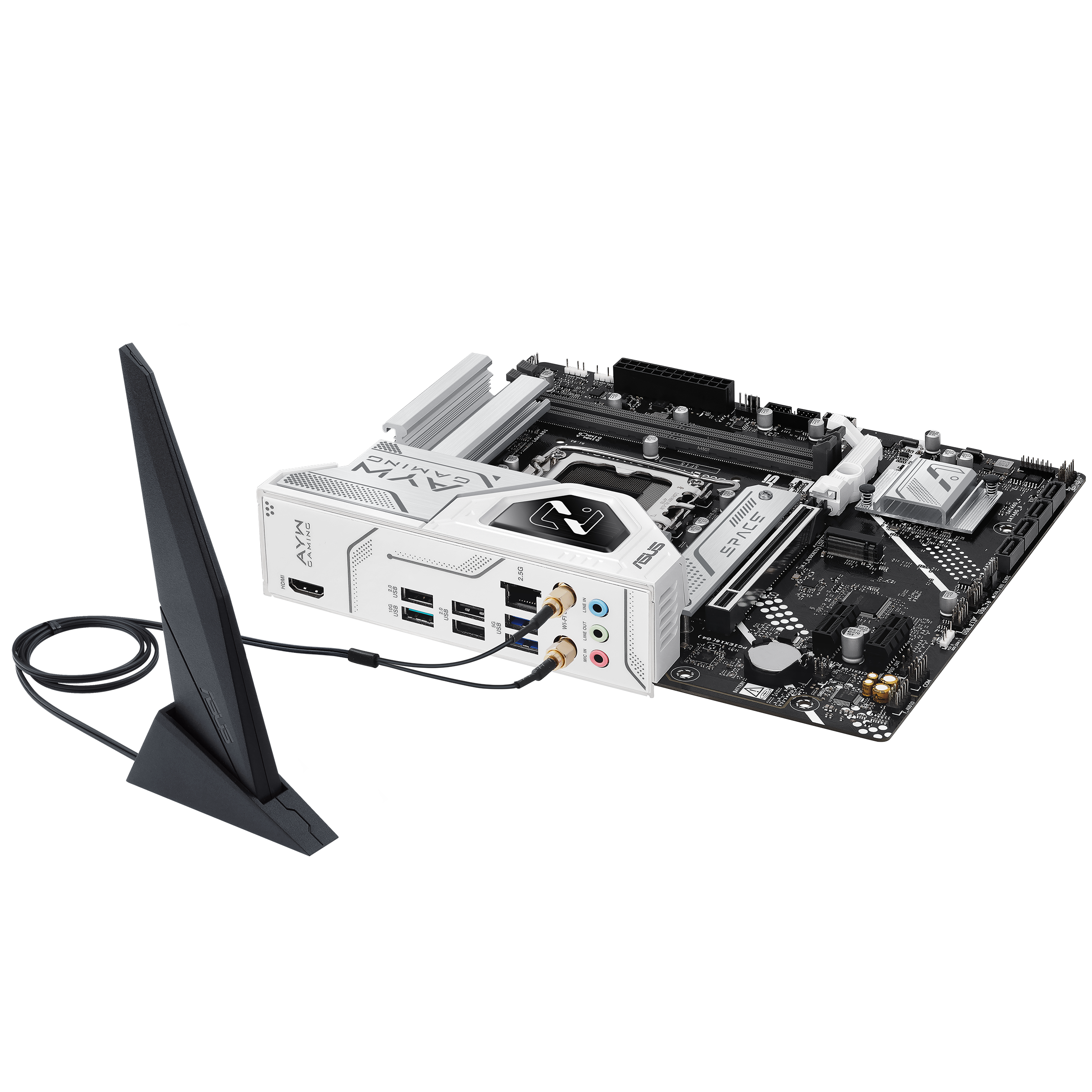

1 x ASUS Wi-Fi antenna
1 x M.2 rubber package
1 x M.2 SSD screw package
1 x Quick start guide
Operating System Windows 11 (22H2 & later)
Windows 10 64-bit (21H2 & later)
Form Factor micro-ATX, 9.6" x 8.75" (24.4cm x 22.2cm)
