Description
Overview

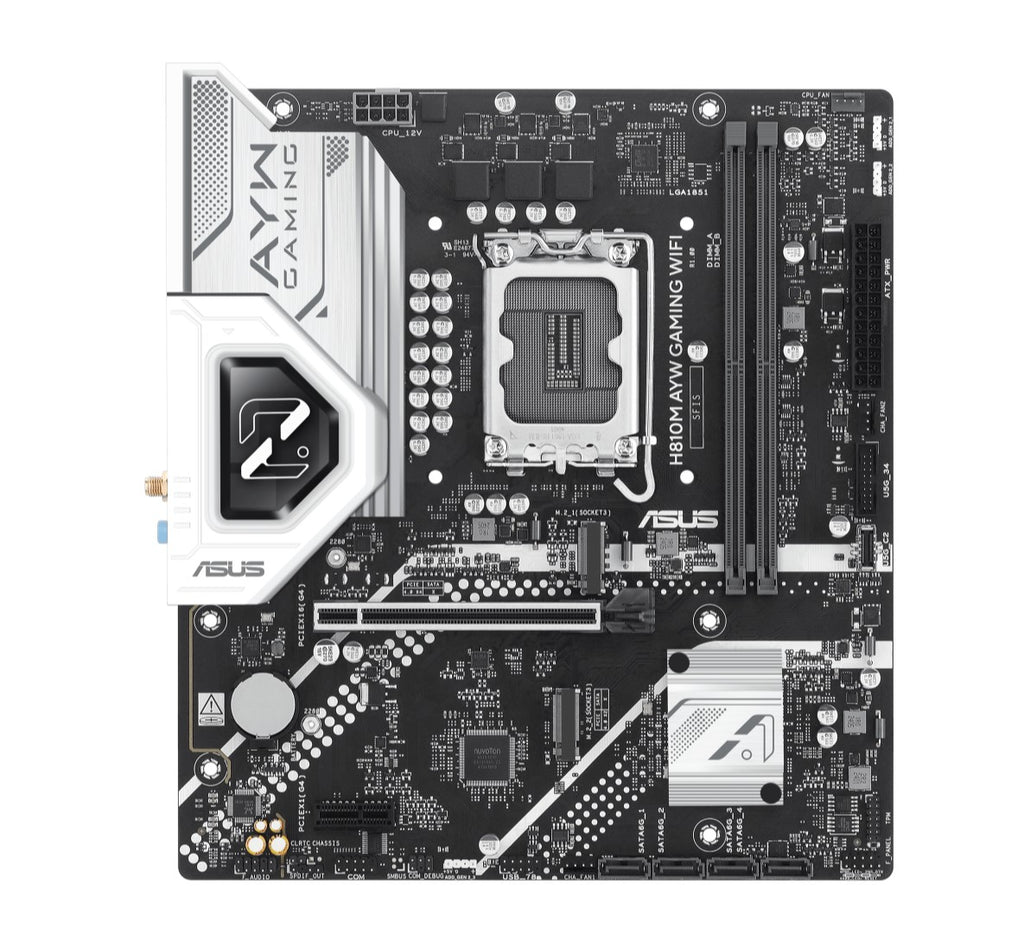

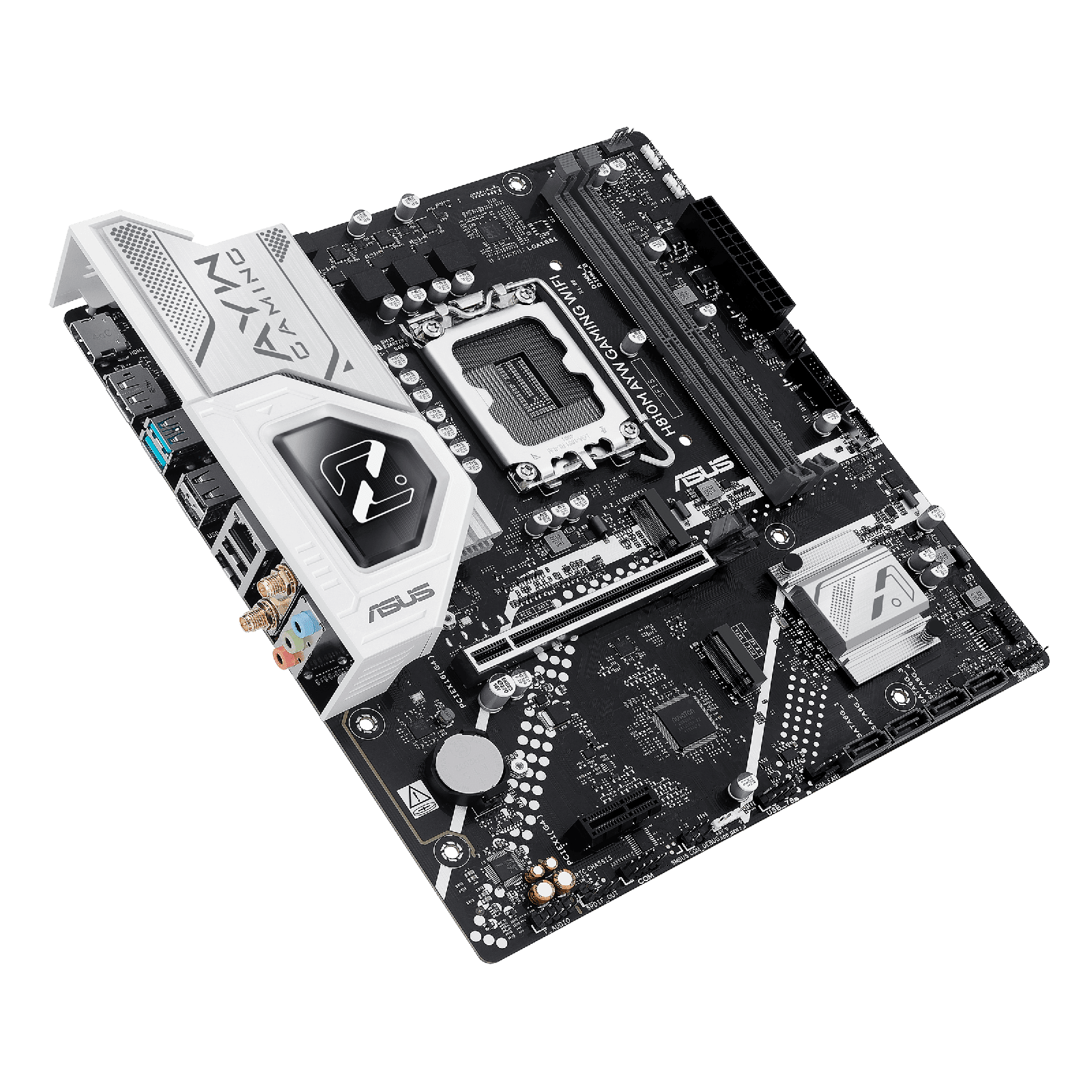

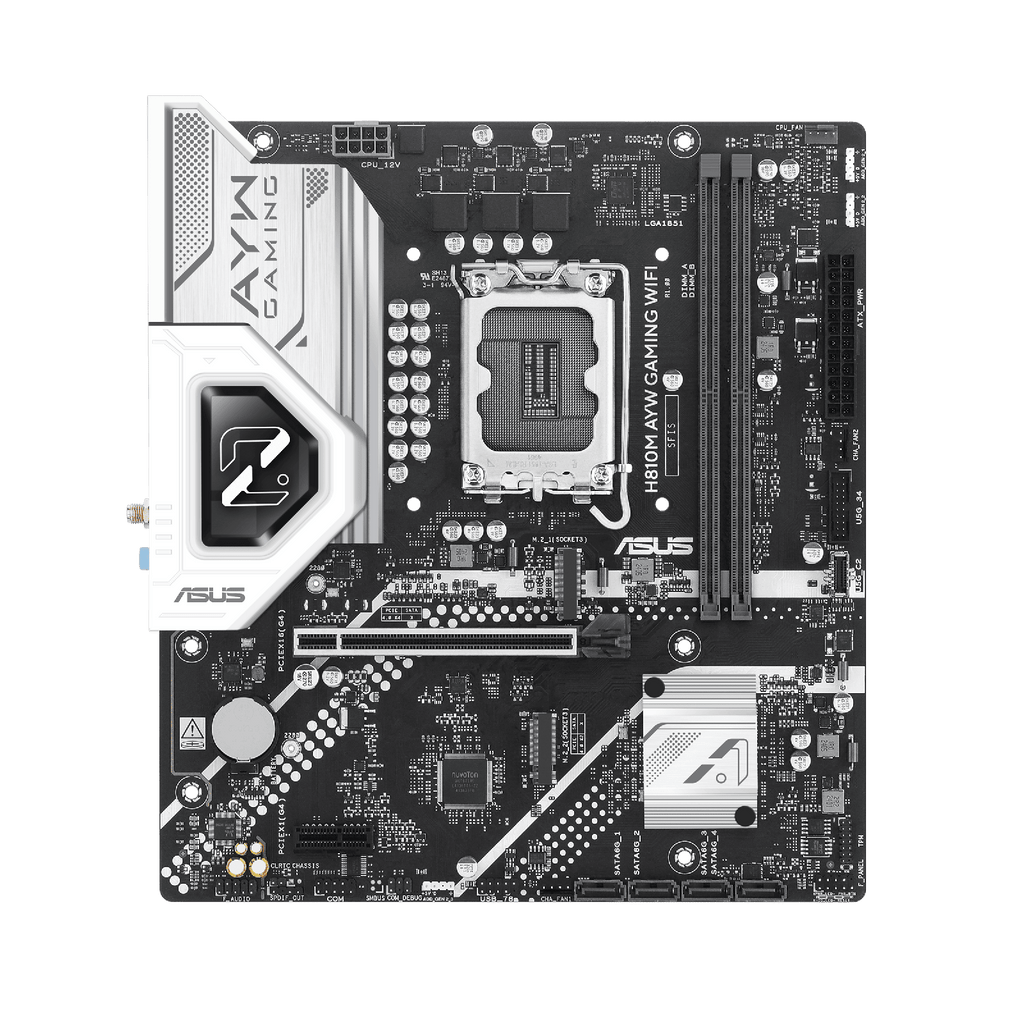

H810M
AYW GAMING WIFI-CSM
ASUS H810 series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). The H810M AYW GAMING WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Performance
Digital Power Design
Stable power is crucial for maximizing the performance of Intel® Core™ Ultra Processors (Series 2).The H810M AYW GAMING WIFI-CSM features an 6+1+1+1 phase design with discrete MOSFETs, ensuring efficient and stable power delivery for Intel® processors plus steady performance for day-to-day use.
DIMM Fit / DIMM Fit Pro
DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. DIMM Fit Pro gives advanced PC builders more extensive customizability for memory tuning. It allows users to control up to twenty overclocking parameters, define testing ranges, and prioritize stability or performance, offering a more flexible and granular approach to memory optimization.
Two M.2 slots (up to 64Gbps)
H810M AYW GAMING WIFI-CSM offers a total of two M.2 slots, including one that supports data-transfer speeds of up to 64Gbps via PCIe 4.0, one that supports 32Gbps via PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.
Cooler by design
The H810M AYW GAMING WIFI-CSM motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.
ASUS Fan Xpert 2+
ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.
Empowering connections
This motherboard offers a versatile range of connectivity, including support for WiFi 6, PCIe 4.0 M.2, PCIe 4.0 slot and an arsenal of USB ports which includes Type-C® connection.

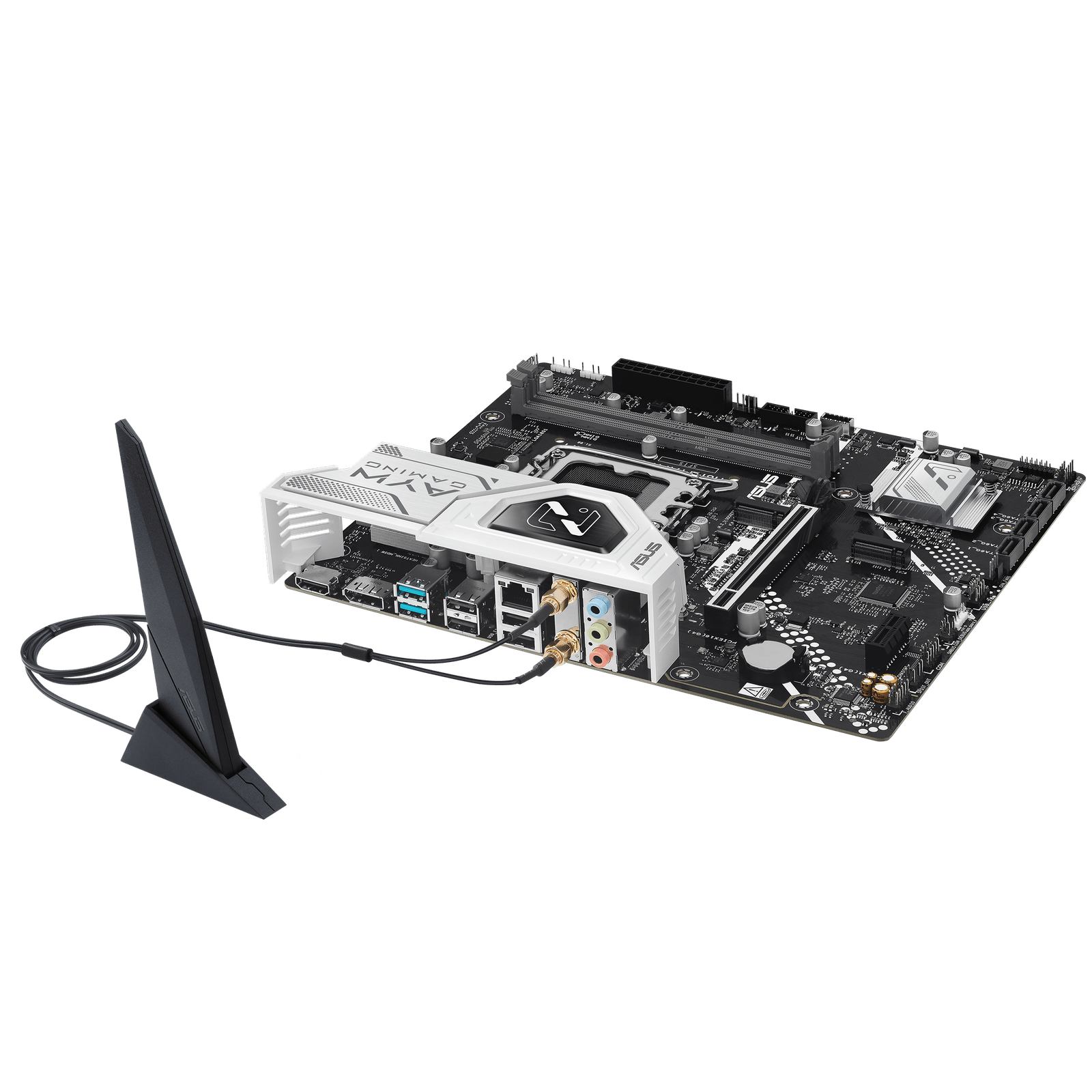

WiFi 6
The WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 1.2Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.
Intel® 1Gb Ethernet
Intel® Ethernet Connection I219-V reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfer.
USB 5Gbps Type-C®
A batch of USB ports support high-end rigs loaded with peripherals, including a front USB Type-C® connector with ultrafast USB 5Gbps for transmission speeds of up to 5Gbps.
Personalization
The H810M AYW GAMING WIFI-CSM enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.
DIY friendly
The H810M AYW GAMING WIFI-CSM motherboard features EZ PC DIY innovations that simplify and speed up the PC building process, making DIY easy and convenient.
SafeSlot Core+
SafeSlot Core+ is a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.
H810M
AYW GAMING WIFI-CSM
ASUS H810 series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). The H810M AYW GAMING WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Performance
Digital Power Design
Stable power is crucial for maximizing the performance of Intel® Core™ Ultra Processors (Series 2).The H810M AYW GAMING WIFI-CSM features an 6+1+1+1 phase design with discrete MOSFETs, ensuring efficient and stable power delivery for Intel® processors plus steady performance for day-to-day use.
DIMM Fit / DIMM Fit Pro
DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. DIMM Fit Pro gives advanced PC builders more extensive customizability for memory tuning. It allows users to control up to twenty overclocking parameters, define testing ranges, and prioritize stability or performance, offering a more flexible and granular approach to memory optimization.
Two M.2 slots (up to 64Gbps)
H810M AYW GAMING WIFI-CSM offers a total of two M.2 slots, including one that supports data-transfer speeds of up to 64Gbps via PCIe 4.0, one that supports 32Gbps via PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.
Cooler by design
The H810M AYW GAMING WIFI-CSM motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.
ASUS Fan Xpert 2+
ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.
Empowering connections
This motherboard offers a versatile range of connectivity, including support for WiFi 6, PCIe 4.0 M.2, PCIe 4.0 slot and an arsenal of USB ports which includes Type-C® connection.
WiFi 6
The WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 1.2Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.
Intel® 1Gb Ethernet
Intel® Ethernet Connection I219-V reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfer.
USB 5Gbps Type-C®
A batch of USB ports support high-end rigs loaded with peripherals, including a front USB Type-C® connector with ultrafast USB 5Gbps for transmission speeds of up to 5Gbps.
Personalization
The H810M AYW GAMING WIFI-CSM enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.
DIY friendly
The H810M AYW GAMING WIFI-CSM motherboard features EZ PC DIY innovations that simplify and speed up the PC building process, making DIY easy and convenient.
SafeSlot Core+
SafeSlot Core+ is a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.
| Category | Details |
|---|---|
| CPU | Supports Intel® Core™ Ultra Processors (Series 2), LGA1851 Intel® Turbo Boost Technology 2.0 and Max Technology 3.0** * CPU support list ** Depends on CPU type |
| Chipset | Intel® H810 Chipset |
| Memory | 2× DDR5 DIMM slots, up to 128GB Up to 6400MT/s, Non-ECC, Un-buffered, CUDIMM* Dual channel architecture Supports Intel® XMP, ASUS AEMP II * Compatibility varies by CPU/memory config ** On-Die ECC supported |
| Graphics | 1× DisplayPort (DP 1.4, 4K@60Hz)** 1× HDMI™ (HDMI 2.1, 4K@60Hz)*** * Specs vary by CPU **** VGA resolution depends on CPU/GPU |
| Expansion Slots | • 1× PCIe 4.0 x16 (CPU) • 1× PCIe 4.0 x1 (Chipset) * See ASUS support for compatibility |
| Storage | • 2× M.2 slots: - M.2_1: 2280, PCIe 4.0 x4 - M.2_2: 2280, PCIe 4.0 x2 • 4× SATA 6Gb/s ports |
| Ethernet | 1× Intel® 1Gb LAN (I219V) ASUS LANGuard * Wake-on-LAN not supported in S5 after G3 |
| Wireless & Bluetooth | Wi-Fi 6 (802.11ax), 1×1, 2.4/5GHz Bluetooth® v5.3* * Version may vary by module |
| USB | Rear: 2× USB 10Gbps (Type-A), 4× USB 2.0 (Type-A) Front: 1× USB 5Gbps (Type-C), 1× USB 5Gbps header (2 ports), 1× USB 2.0 header (2 ports) * Type-C PD: max 5V/3A ** USB_E1–E4 share bandwidth |
| Audio | Realtek 7.1 Surround HD Audio CODEC* Jack-detection, Multi-streaming, Front Panel Jack-retasking Up to 24-Bit/192 kHz playback Audio Shielding, Premium capacitors, Dedicated PCB layers * HD audio module required for 7.1 output |

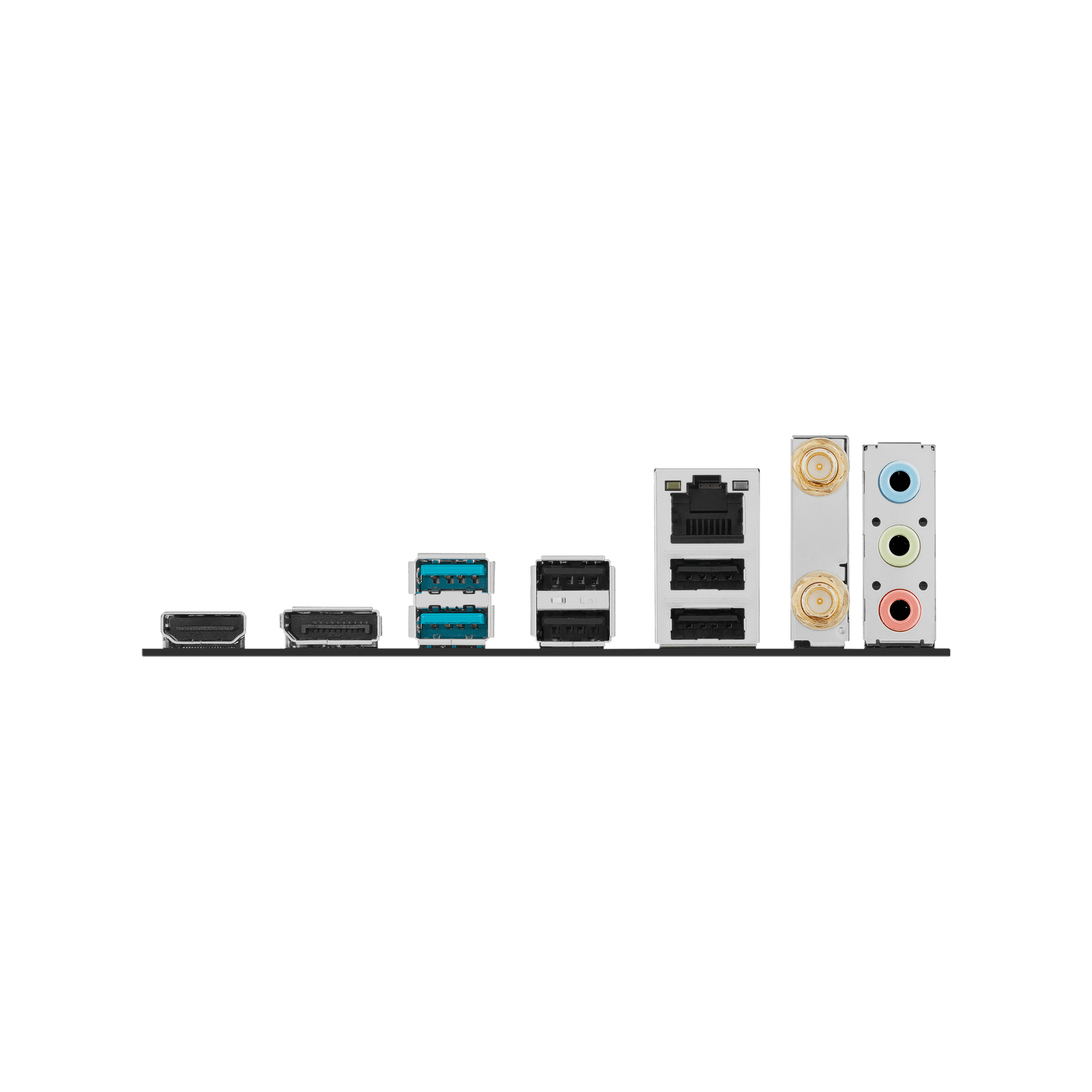

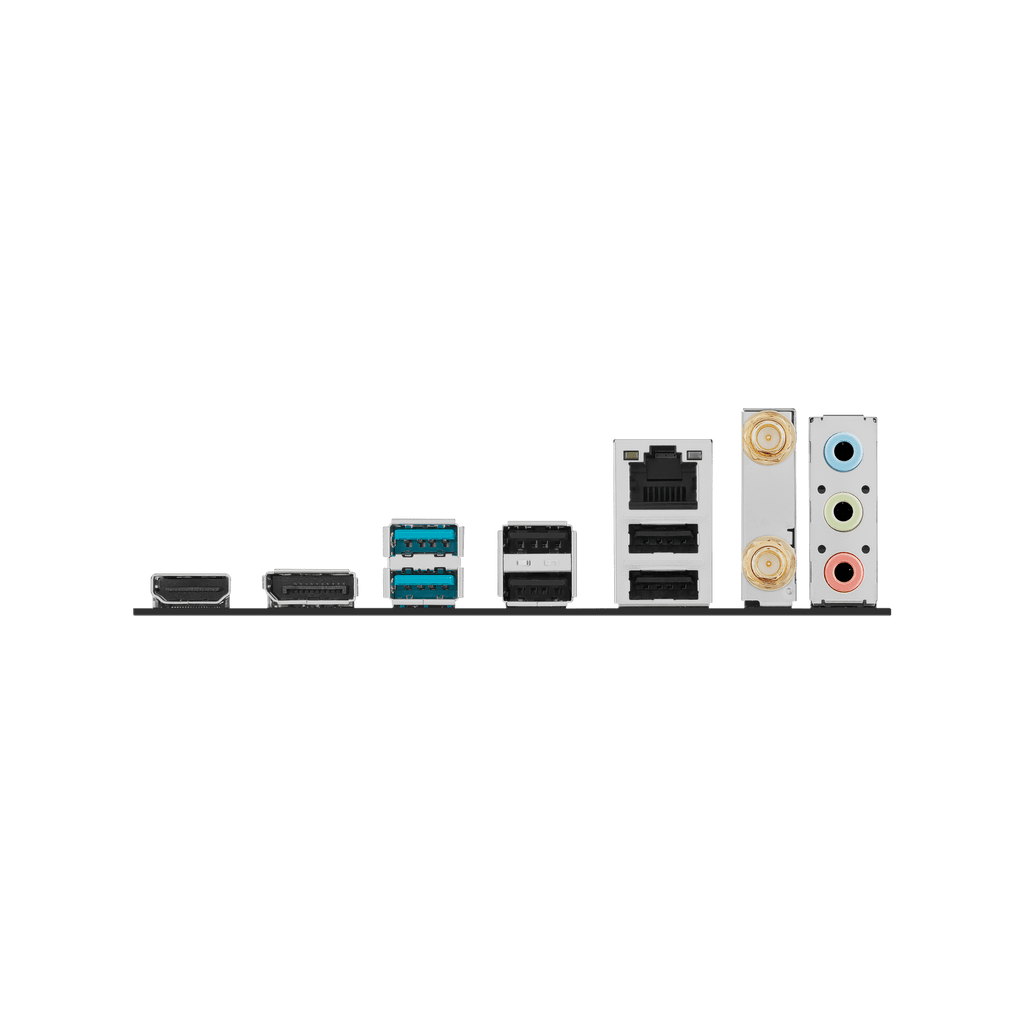

| Back Panel I/O | • 2× USB 10Gbps (Type-A) • 4× USB 2.0 (Type-A) • 1× DisplayPort • 1× HDMI™ • 1× Wi-Fi module • 1× Intel® 1Gb LAN • 3× Audio jacks |
| Internal I/O |
Cooling: • 1× CPU Fan (4-pin) • 2× Chassis Fan (4-pin) Power: • 1× 24-pin ATX • 1× 8-pin +12V CPU Storage: • 2× M.2 (Key M) • 4× SATA 6Gb/s USB: • 1× USB 5Gbps (Type-C) • 1× USB 5Gbps header (2 ports) • 1× USB 2.0 header (2 ports) Misc: • 3× Gen2 ARGB headers • Clear CMOS, COM, F_AUDIO, S/PDIF Out, SPI TPM (14-1 pin), Front Panel (10-1 pin) |
| Special Features |
ASUS 5X PROTECTION III: DIGI+ VRM, LANGuard, Overvoltage, SafeSlot Core+, Stainless-steel I/O ASUS Q-Design: Q-DIMM, Q-Dashboard, Q-LED Core, Q-Slot Thermal: VRM heatsink design Aura Sync: Addressable Gen2 headers |
| Software Features | Armoury Crate: Aura Sync, Fan Xpert 2+, Power Saving ASUS DriverHub, ASUS GlideX, ASUS CPU-Z Norton 360 Deluxe (60d trial), WinRAR (40d trial) |
| UEFI BIOS | ASUS EZ DIY: CrashFree BIOS 3, EZ Flash, EZ Mode, MyHotkey |
| BIOS | 256Mb (128+128) Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | • 2× SATA 6Gb/s cables • 1× ASUS Wi-Fi antenna • 1× I/O shield • 1× M.2 screw package • 1× ACC Express key card • 1× Quick start guide |
| Operating System | Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later) |
| Form Factor | micro-ATX (24.4 cm × 22.2 cm) |
