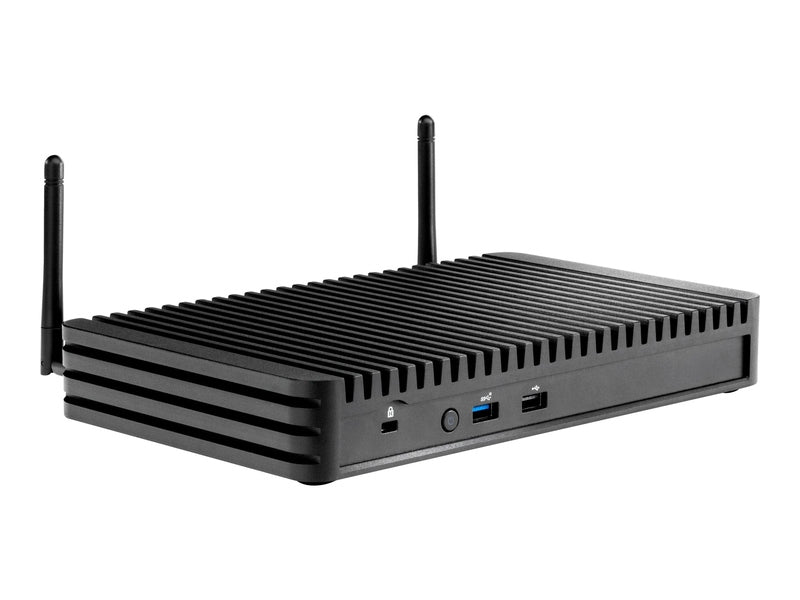

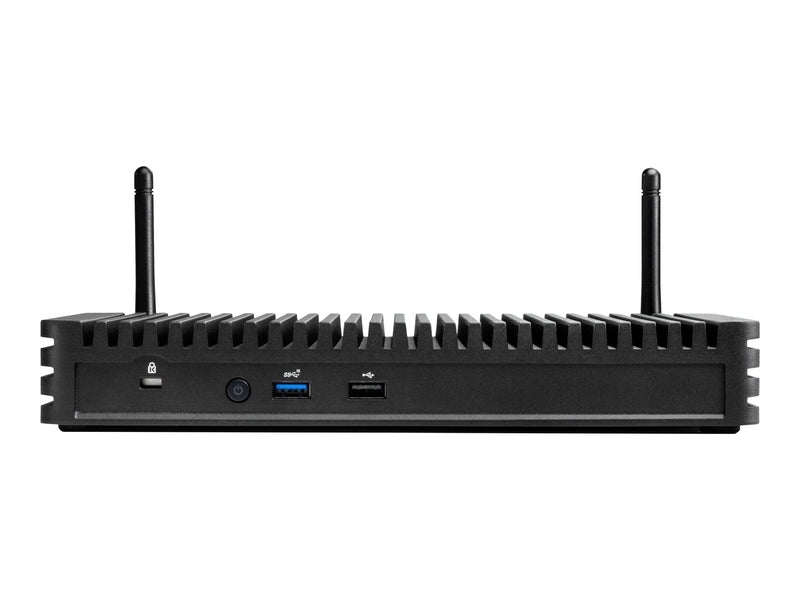

ASUS NUC Rugged Chassis Element M.2(0/2) LAN HDMI(2) No P/Cord FANLESS 3YR RTB

AsusSKU: BKCMCR1ABA

Availability:

❌ Back Order - Contact Us for ETA

Price:
Sale price$249.00
Contact Us for ETA

Estimate shipping

Description

Overview

Small but mighty, the NUC Rugged Board Elements are designed to work with NUC 11, 12, and 13 Compute Elements (U-Series) and Rugged Chassis Elements to last in harsh environments.

Requires NUC Compute Element
Time-to-market rugged boards and rugged chassis available in three configurations:
- Expandable
- Dual LAN
- Multi HDMI
Simplifies serviceability and makes upgrading systems easier.
Easily build custom solutions, including rugged solutions for harsh environments and I/O-rich collaboration solutions for video conferencing, conference rooms, digital signage, and more.
Qualified for 24x7 operation.

Specifications

Product Collection
Intel® NUC Chassis Elements

Alder Lake
Products formerly Austin Beach

Supported Operating Systems
Windows 11* | Windows 10* | Linux*

Board Form Factor
U-series Element Carrier Board

Internal Drive Form Factor
M.2 SSD

# of Internal Drives Supported
2

TDP
15 W

DC Input Voltage Supported
12V~24V

Description
The expandable Intel® NUC Rugged Chassis + Board Element designed for harsh and extreme environments. The expandable board – with two headers and serial DV9 - is designed for edge analytics and offers design flexibility.

Graphics Output
Dual HDMI

# of Displays Supported ‡
2

M 2 Card Slot (storage)
2280 | 2242/80 (M-key)

USB Configuration
USB 3.2g2: 1x front | 2x rear ports USB 3.1g1: 1x header USB 2.0: 1x front port | 2x headers

# of Serial Ports
2

Serial Port via Internal Header
Yes

Integrated LAN
Intel® i219-LM GbE

Additional Headers
Front panel (PWR_SW | PWR_LED | RST | HDD_Act | 5V | 5Vsby | 3.3Vsby); Internal 2x2 power connector

Chassis Dimensions
254 x 152.4 x 36 mm (plus 4.8mm for rubber feet)
