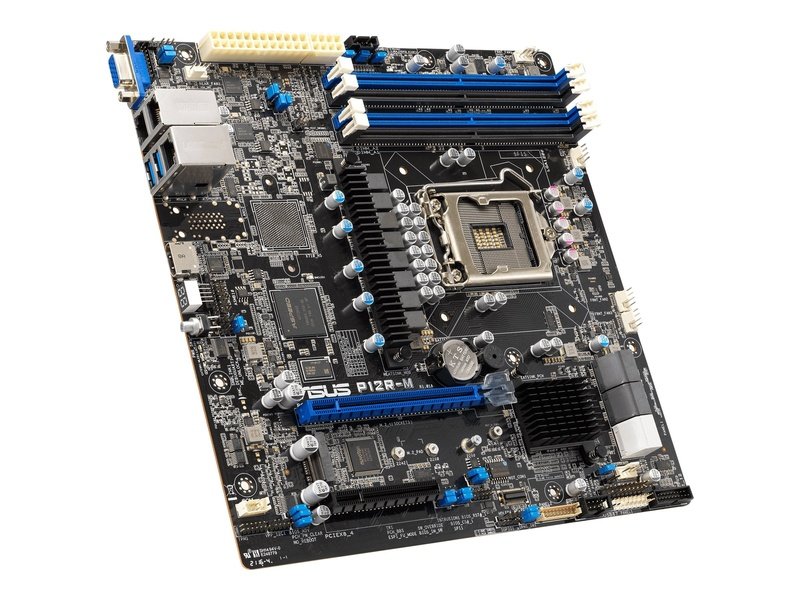

ASUS P12R-M Server Motherboard, Intel® Xeon® E-2300 LGA 1200 Micro-ATX 3YR WTY

ASUSSKU: P12R-M

ASUS P12R-M - Motherboard - micro ATX - LGA1200 Socket - C252 Chipset - USB 3.2 Gen 2 - 2 x Gigabit LAN - onboard graphics - for ASUS RS300-E11-RS4

Availability:

✅ In Stock at PC LAN Store

Price:
Sale price$640.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Estimate shipping

Description

P12R-M

Intel® Xeon® E-2300 LGA 1200 Micro-ATX server motherboard with four DIMM and one M.2 slot, plus dual LAN, six SATA, one HDMI, two PCIe 4.0 slots, two USB 3.2 Gen 2, Platform Firmware Resilience (PFR) and ASUS ASMB10-iKVM



KEY FEATURES

  • Ideal for remote office/branch office (ROBO) use and everyday business environments
  • Powered by eight-core Intel® Xeon E-2300-series processor with support for up to 95 W TDP
  • Flexible expandability with six native SATA HDDs and two PCI Express 4.0 slots
  • Dual Intel I210AT Gigabit Ethernet with teaming support
  • One M.2 for up to 32 Gbps performance for faster OS booting
  • HDMI 1.4 support for high-resolution display maintenance and monitoring
  • Onboard ASUS ASMB10-iKVM with ASPEED AST2600 controller for out-of-band management
  • Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency



PCIe 4.0 Ready

PCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS P12R server motherboards are PCIe 4.0 ready to support a diverse array of graphics, storage and networking – enabling flexible scalability for demanding or increasing workloads.





Specifications

Component Details
Processor / System Bus 1 x Socket LGA1200
Intel® Pentium® Processors
Intel® Xeon® E processors
Core Logic Intel® C252 Chipset
Memory Total Slots :
4 (2-channel)
Capacity :
Maximum up to 128GB UDIMM
Memory Type :
DDR4 3200/2933/2666 UDIMM
Memory Size :
32GB, 16GB, 8GB, 4GB
* Refer to support page for more information
Expansion Slots Total Slot : 2
Slot Location 4 : PCI-E x8 (Gen4 X4 Link)
Slot Location 6 : PCI-E x16 (Gen4 X16 Link)
Form Factor Micro ATX (9.6"x9.6", 244mm x 244mm)
Storage Storage Controller :
6 x SATA3 6Gb/s ports
1 x M.2 connector (2280/2260/2242)
SAS Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card
Networking - 2 x Intel® I210AT + 1 x Mgmt LAN
Graphic Aspeed AST2600 with 64MB VRAM
On Board I/O 1 x TPM header
1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
2 x USB3.2 Gen2 ports
1 x USB3.2 Gen1 header
1 x USB 2.0 pin header
6 x Fan Header , 4pin
1 x SMBus
1 x Chassis Intruder
4 x Front LAN LED
1 x Serial Port Header
1 x M.2 Connector
1 x VGA Header
1 x Onboard header for optional management card
Back I/O Ports 2 x USB 3.2 Gen 2
1 x VGA Port (VGA from BMC)
1 x HDMI Port (useable only with iGPU)
2 x GbE LAN + 1 x Mgmt LAN
Management Solution
ASUS Control Center Enterprise (Optional)
Optional ASMB10-iKVM for KVM-over-Internet
Weight
Gift Box (1-in-1)
Net Weight : 0.76 KG
Gross Weight : 1.3 KG

Bulk Pack (10-in-1)
Net Weight : 6.9 KG
Gross Weight : 9.5 KG
Environment
Operation temperature: 10℃ ~ 50℃*
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)

*The boundary condition above is based on 8.3W of PCH TDP spec . If the LFM estimate is higher than acceptable value from customer, ASUS can provide boundary condition with raw power for reference.
Accessories Gift Box (1-in-1)
2 x Support CD
1 x I/O shield
6 x SATA 6G cables
4 x Plate for LGA1200
Bulk Pack (10-in-1)
2 x Support CD
1 x I/O shield
1 x Plate for LGA1200
Monitoring CPU Temperature, Fan RPM
Note *1.VGA from BMC
*2.HDMI (useable only with iGPU)
