Description
Overview
Ultra-compact mini PC with 13th Gen Intel® Core™ processors and Intel® Iris® Xe Graphics*, DDR5 RAM, PCIe® Gen 4 x4 M.2 NVMe® SSD, Intel® 2.5 Gb LAN, WiFi 6E
- Powered by the latest Intel® 12th & 13th Generation Core™ processors
- Whole new hybrid architecture design with powerful performance-cores and efficient-cores for improved multitasking, streaming experience and intelligent workload optimization.
- DDR5-4800 memory support allows your computer to transfer data faster than DDR4
- Support one PCIe Gen4x4 SSD to deliver greater performance and lower latency
- 4 display located in the rear I/O panel including dual HDMI2.0
- Features Two-Way AI Noise Cancelation to provide crystal-clear online voice communication
- Support DisplayPort 1.4 & Power Delivery input through rear USB Type C port
- Onboard 2.5GbE LAN delivering faster Ethernet connectivity
- Advanced fan control to achieve better heat dissipation
- 24/7 reliability — Extensively tested to ensure long-term dependability
Specifications
Model
ASUS ExpertCenter PN64(Barebone)
Operating System
No OS
CPU
Intel® Core™ i5-13500H Processor, (18M Cache, P-core up to 4.70 GHz/ E-core up to 3.50 GHz)
Chipset
Integrated
TPM module on board (on selected model)
Graphics
Intel® Iris® Xe Graphics or Intel® UHD Graphics for 12th Gen Intel® Processors
Memory
2 x DDR5 SO-DIMM, Max. 16GB x 2
* Memory support may vary based depending on CPU characteristics. Please check the Qualified Vendors List (QVL) for more details.
Storage
1 x M.2 2280 PCIe Gen4x4 slot, 1 x SATA 6Gb/s connector for 2.5" HDD
* 2.5" HDD bay only supports 7mm height. ** Please check the Qualified Vendors List (QVL) for more details.
Wireless Data Network
Wi-Fi 6, Bluetooth 5.0, 2*2
LAN
2.5G LAN, Intel I225V

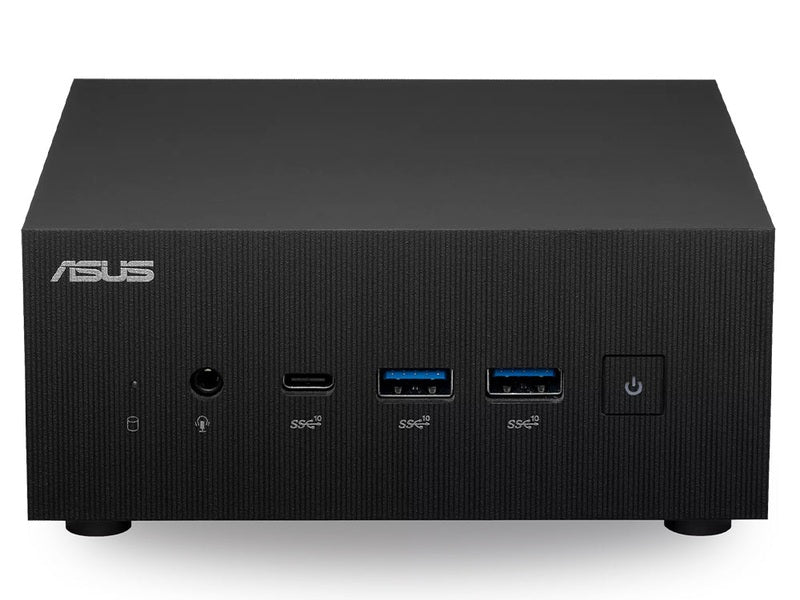

Side(Front) I/O Ports
1 x USB 3.2 Gen2 Type-C; 2 x USB 3.2 Gen2; 1 x Audio Jack (Line out/ Mic in/ Headphone out); 1 x Kensington Lock

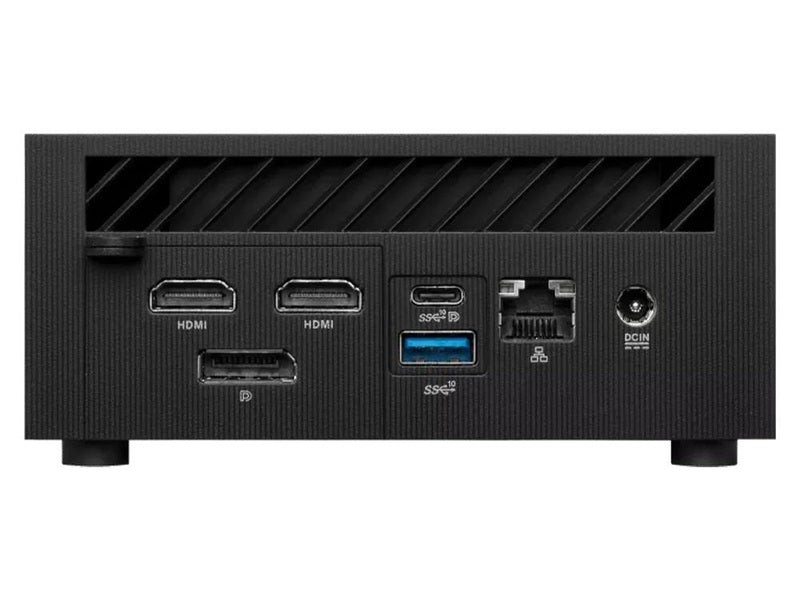

Back I/O Ports
1 x USB 3.2 Gen2; 1 x USB 3.2 Gen2 TypeC (support DP1.4, PD);
2 x HDMI;
1 x Intel (RJ45) 2.5G LAN;
1 x DC-in;
1 x Padlock ring
*This product does not come with Configurable ports.
Configurable I/O
1 x Display1.4 Port
1 x COM Port
1 x 2.5G Lan(RJ-45) Port
1 x VGA Port
1 x HDMI2.1 Port
Speaker
No
Dimensions (W x D x H)
120 x 130 x 58 mm
Weight
0.75 kg(barebone)
Color
ECO Black
Ultra-compact mini PC with 13th Gen Intel® Core™ processors and Intel® Iris® Xe Graphics*, DDR5 RAM, PCIe® Gen 4 x4 M.2 NVMe® SSD, Intel® 2.5 Gb LAN, WiFi 6E
- Powered by the latest Intel® 12th & 13th Generation Core™ processors
- Whole new hybrid architecture design with powerful performance-cores and efficient-cores for improved multitasking, streaming experience and intelligent workload optimization.
- DDR5-4800 memory support allows your computer to transfer data faster than DDR4
- Support one PCIe Gen4x4 SSD to deliver greater performance and lower latency
- 4 display located in the rear I/O panel including dual HDMI2.0
- Features Two-Way AI Noise Cancelation to provide crystal-clear online voice communication
- Support DisplayPort 1.4 & Power Delivery input through rear USB Type C port
- Onboard 2.5GbE LAN delivering faster Ethernet connectivity
- Advanced fan control to achieve better heat dissipation
- 24/7 reliability — Extensively tested to ensure long-term dependability
Specifications
Model
ASUS ExpertCenter PN64(Barebone)
Operating System
No OS
CPU
Intel® Core™ i5-13500H Processor, (18M Cache, P-core up to 4.70 GHz/ E-core up to 3.50 GHz)
Chipset
Integrated
TPM module on board (on selected model)
Graphics
Intel® Iris® Xe Graphics or Intel® UHD Graphics for 12th Gen Intel® Processors
Memory
2 x DDR5 SO-DIMM, Max. 16GB x 2
* Memory support may vary based depending on CPU characteristics. Please check the Qualified Vendors List (QVL) for more details.
Storage
1 x M.2 2280 PCIe Gen4x4 slot, 1 x SATA 6Gb/s connector for 2.5" HDD
* 2.5" HDD bay only supports 7mm height. ** Please check the Qualified Vendors List (QVL) for more details.
Wireless Data Network
Wi-Fi 6, Bluetooth 5.0, 2*2
LAN
2.5G LAN, Intel I225V
Side(Front) I/O Ports
1 x USB 3.2 Gen2 Type-C; 2 x USB 3.2 Gen2; 1 x Audio Jack (Line out/ Mic in/ Headphone out); 1 x Kensington Lock
Back I/O Ports
1 x USB 3.2 Gen2; 1 x USB 3.2 Gen2 TypeC (support DP1.4, PD);
2 x HDMI;
1 x Intel (RJ45) 2.5G LAN;
1 x DC-in;
1 x Padlock ring
*This product does not come with Configurable ports.
Configurable I/O
1 x Display1.4 Port
1 x COM Port
1 x 2.5G Lan(RJ-45) Port
1 x VGA Port
1 x HDMI2.1 Port
Speaker
No
Dimensions (W x D x H)
120 x 130 x 58 mm
Weight
0.75 kg(barebone)
Color
ECO Black
