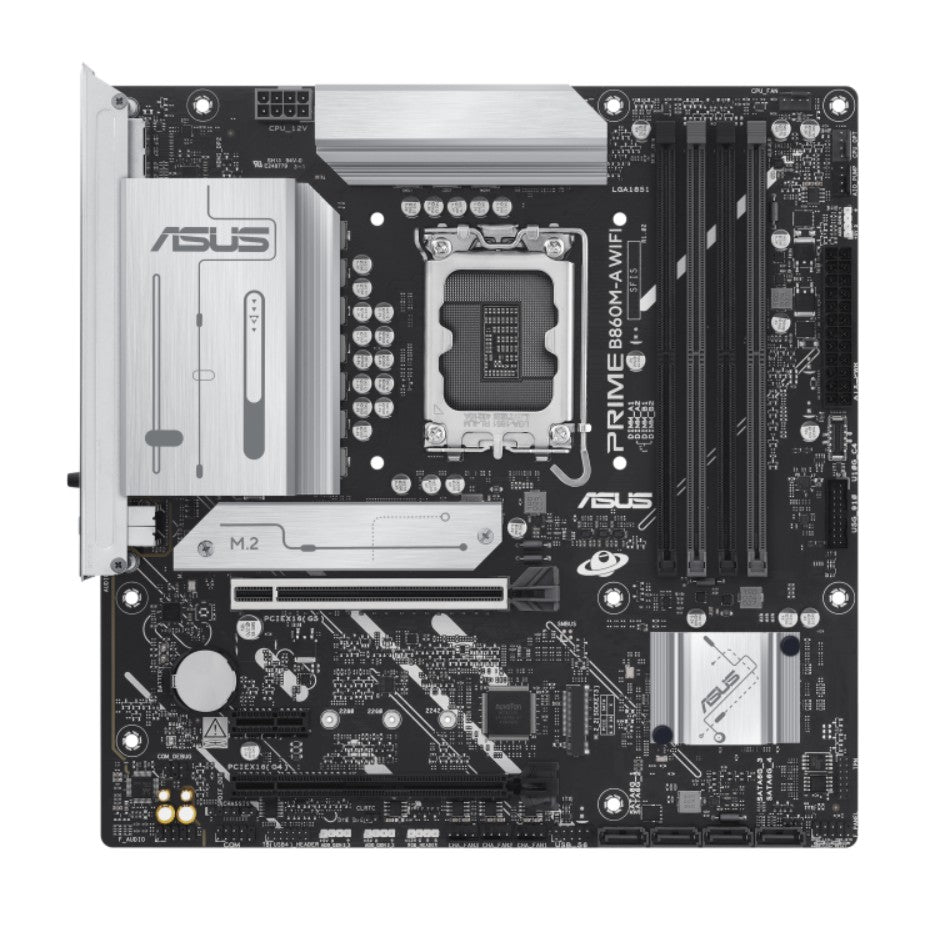

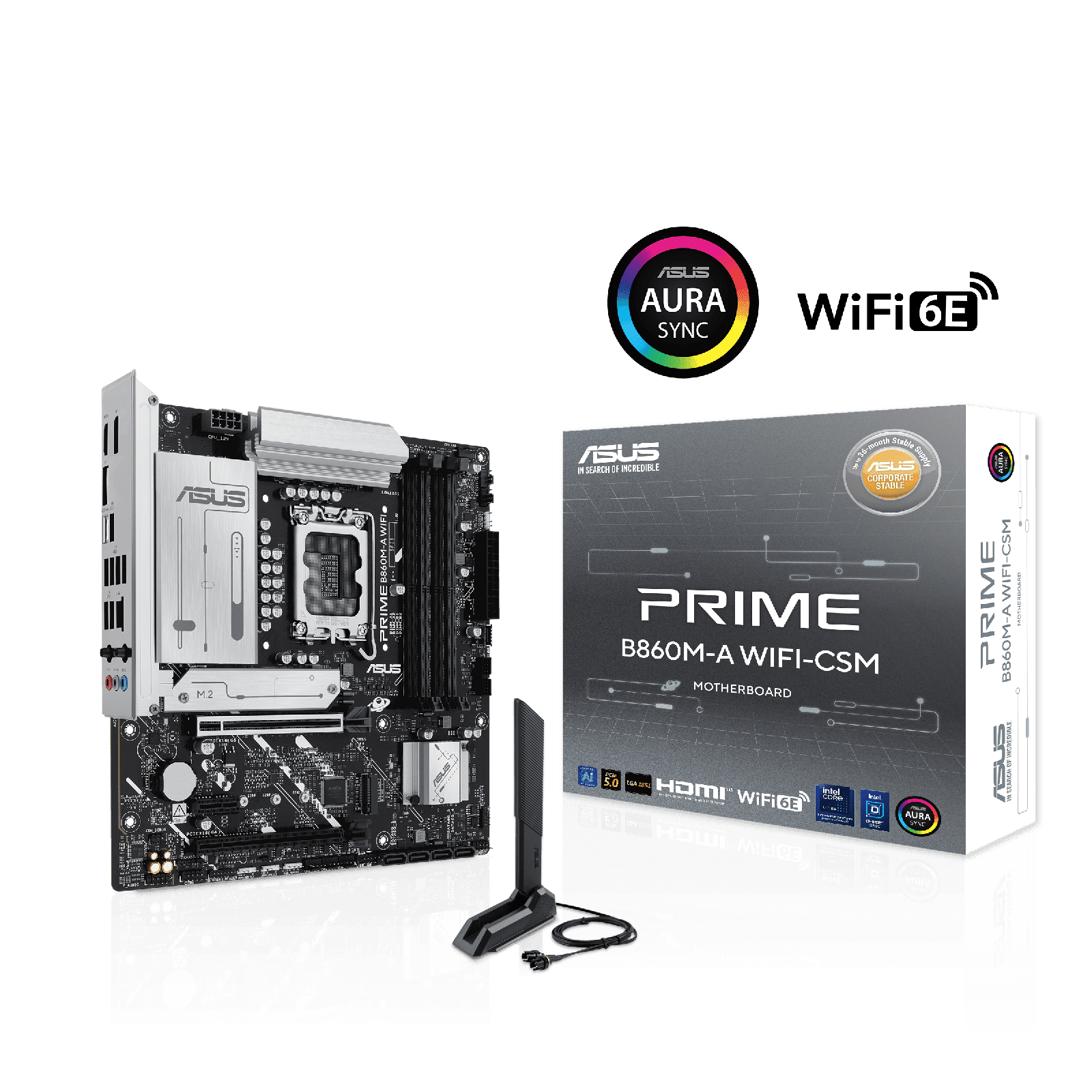

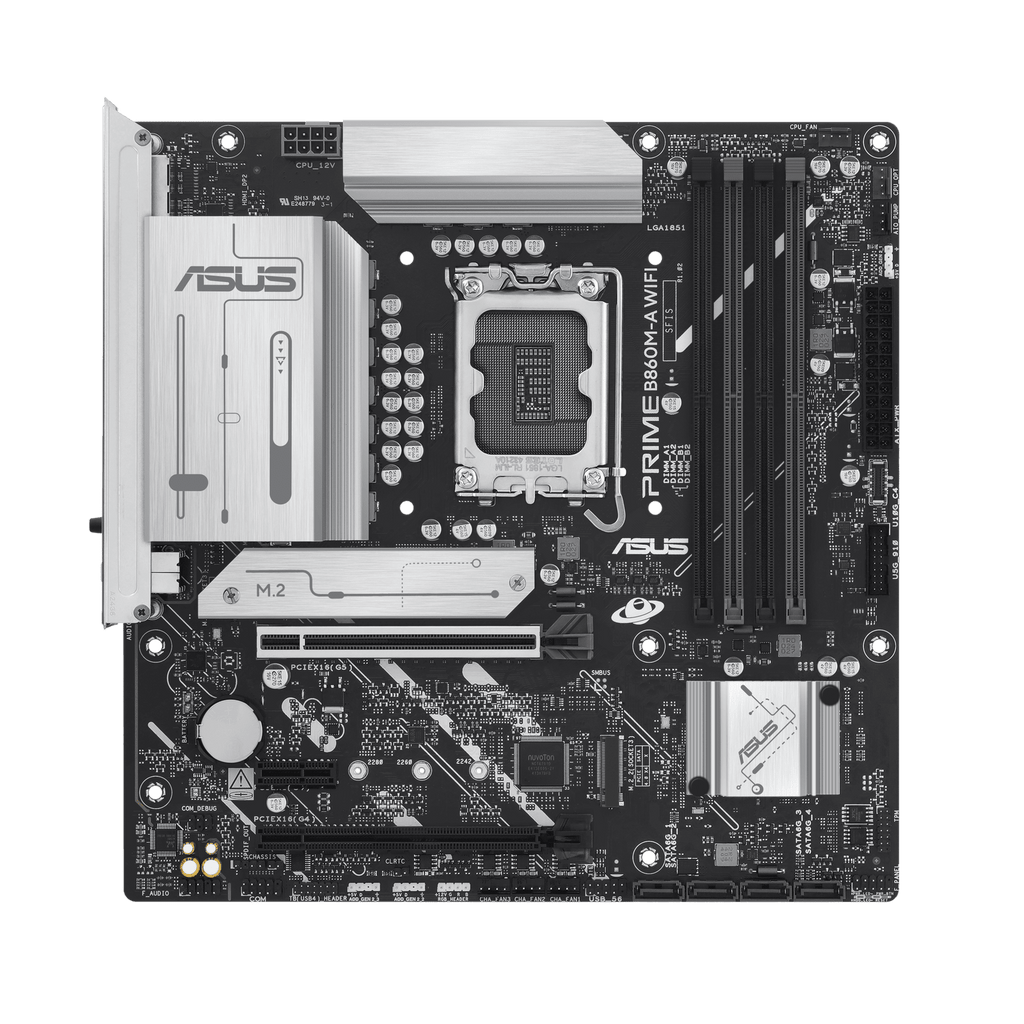

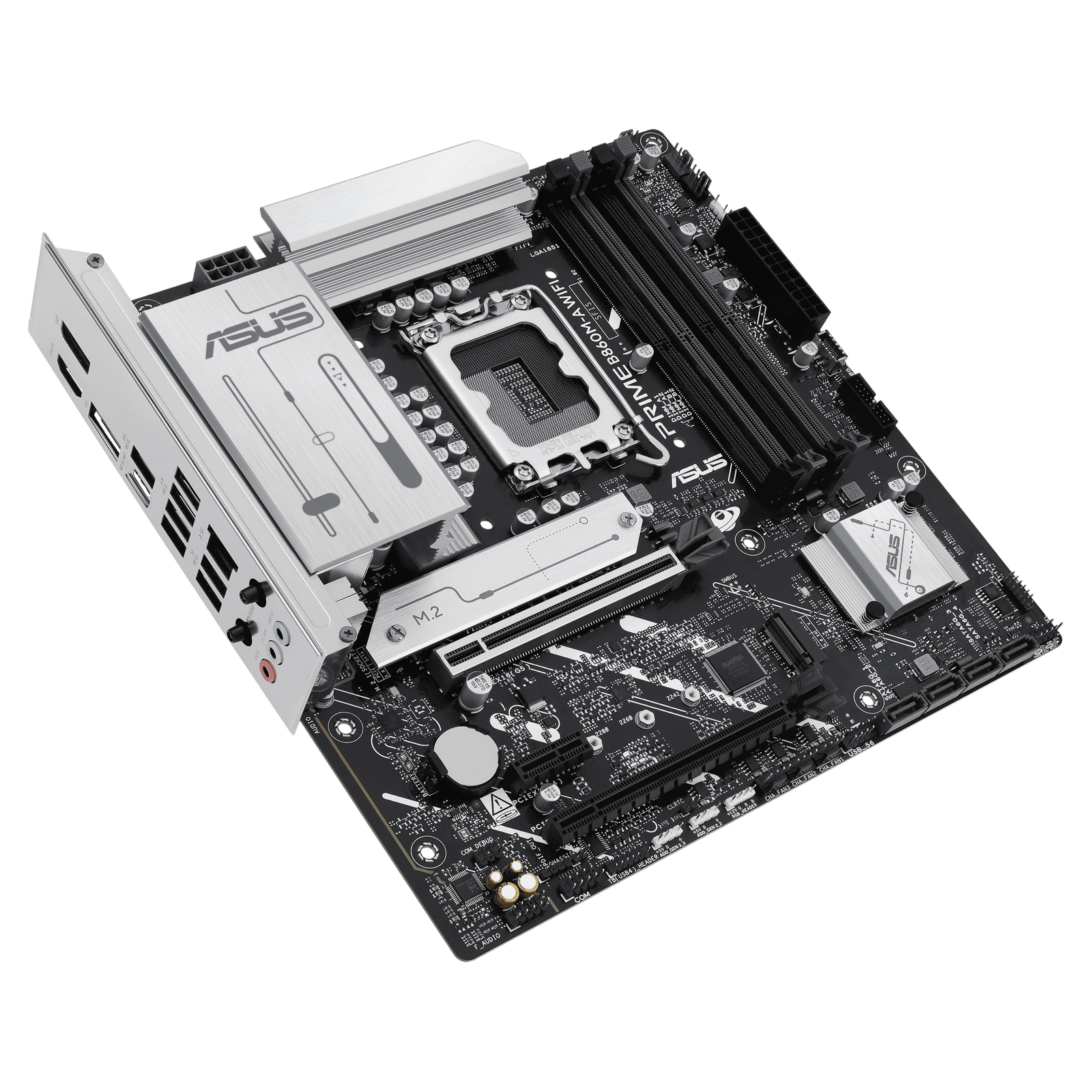

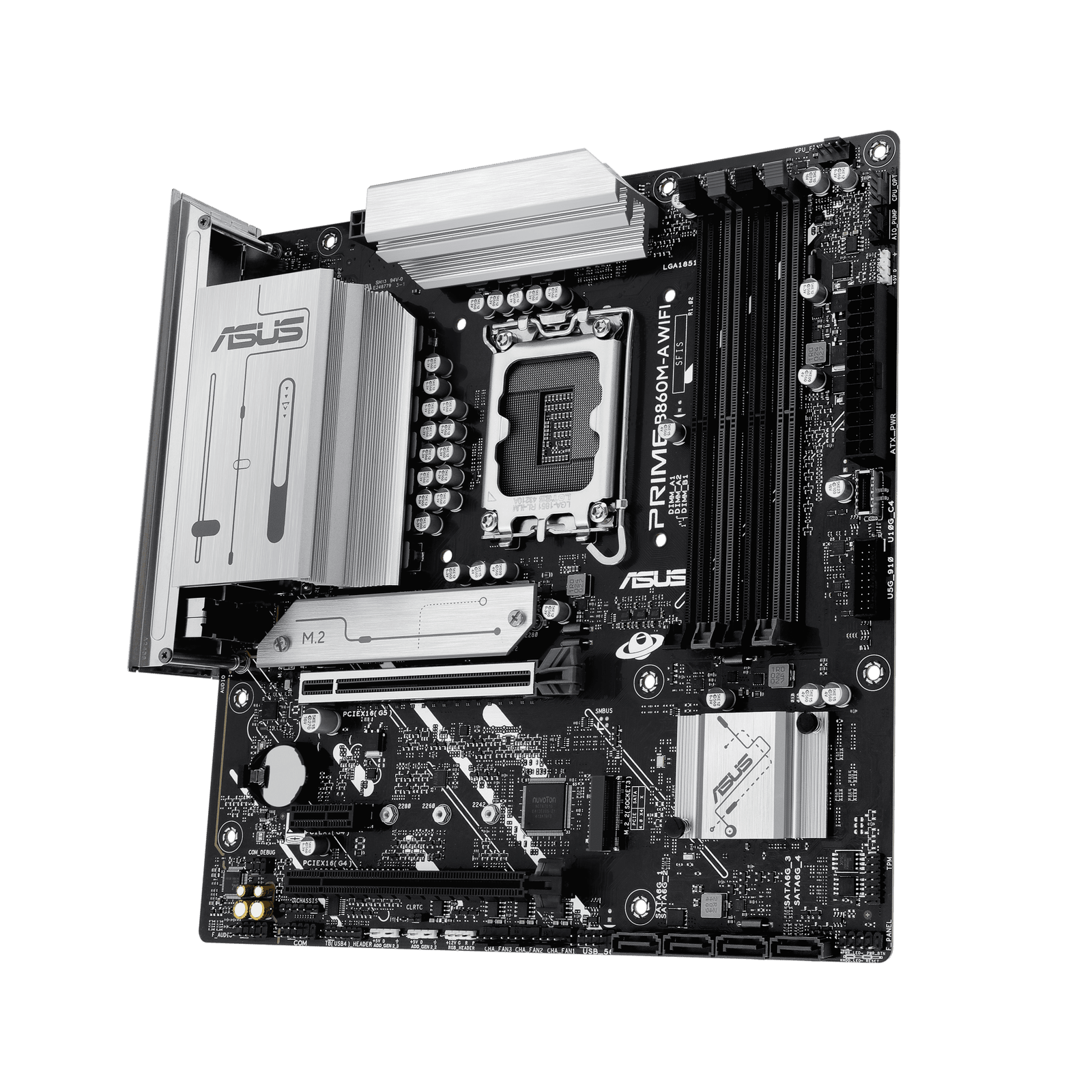

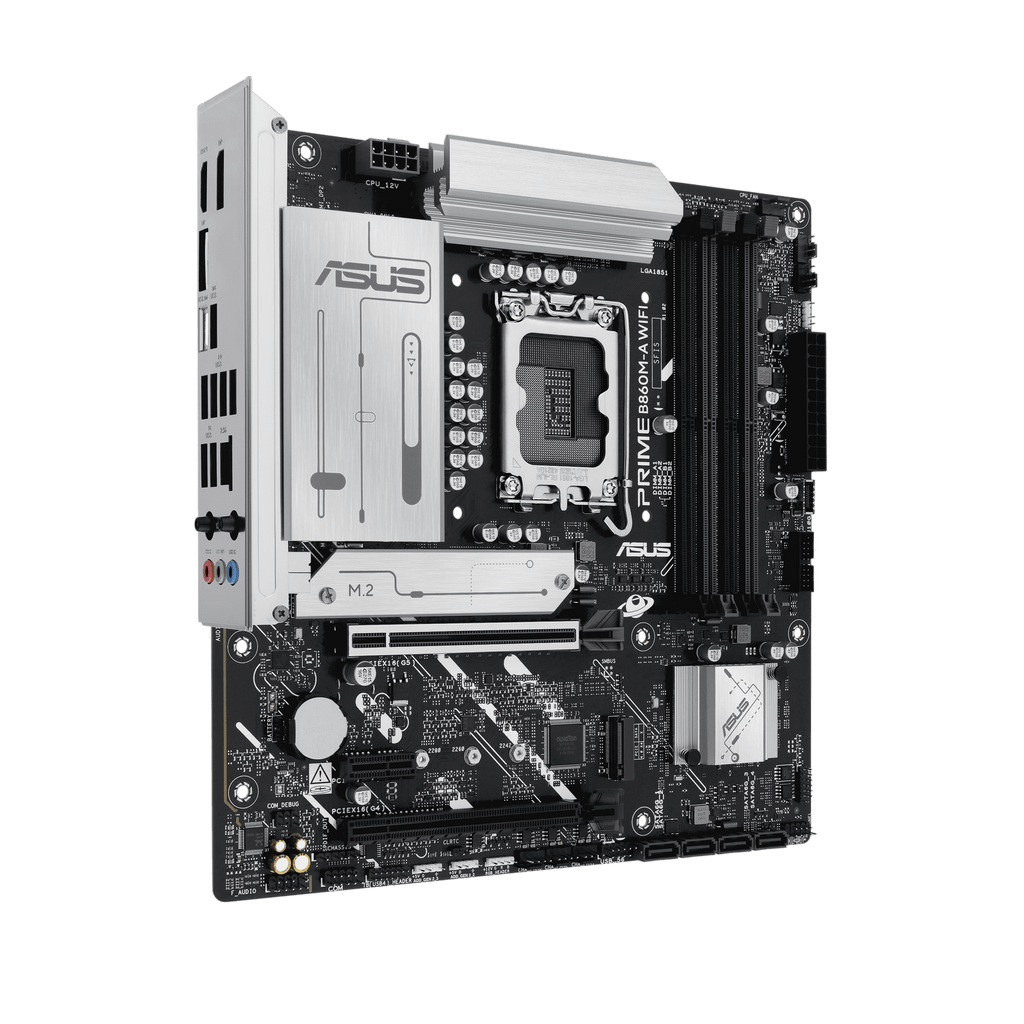

ASUS PRIME B860M-A WIFI-CSM Micro-ATX Motherboard

ASUSSKU: PRIME B860M-A WIFI-CSM

ASUS PRIME B860M-A WIFI-CSM Micro-ATX Motherboard 256GB, DDR5, 1 x PCIe 5.0, 2 x M.2 slots, 4 x SATA, WiFi 6E, 1 x HDMI, 2 x DP

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$302.00

Estimate shipping

Description

Overview

PRIME
B860M-A WIFI-CSM
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860M-A WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Performance
Robust power design
Stable power is crucial for maximizing the performance of Intel® Core™ Ultra Processors (Series 2). The PRIME B860M-A WIFI-CSM is designed to meet the needs of high-core-count CPUs. It features 7(80A) + 1(80A) + 1(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future Intel® processors.

Enhanced Memory & Storage Performance
AEMP III for Ultimate DDR5 Performance
ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process, AEMP III first optimizes the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge speeds of DDR5-7600 or higher.

DIMM Fit / DIMM Fit Pro
DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. DIMM Fit Pro gives advanced PC builders more extensive customizability for memory tuning. It allows users to control up to twenty overclocking parameters, define testing ranges, and prioritize stability or performance, offering a more flexible and granular approach to memory optimization.

Two M.2 slots (up to 128Gbps)
The PRIME B860M-A WIFI-CSM offers a total of two M.2 slots, including one that supports data-transfer speeds of up to 128Gbps via PCIe 5.0, one that supports 64Gbps via PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.

Cooling
Cooler by design
The PRIME B860M-A WIFI-CSM motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.

ASUS Fan Xpert 2+
ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.

Cooler compatibility
ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new motherboards, empowering you to build your dream gaming rig.

Flexibility
Empowering connections
The PRIME B860M-A WIFI-CSM motherboard offers a versatile range of connectivity, including support for WiFi 6E, the latest version of PCI Express and an arsenal of USB ports which includes Type-C connections.

WiFi 6E
Built-in WiFi 6E4 technology takes advantage of the newly available radio spectrum in the 6 GHz band. With triple the bandwidth of the 2.4/5/6 GHz band, WiFi 6E delivers ultrafast wireless networking speeds with improved capacity and better performance in dense wireless environments.

USB 20Gbps port
A batch of USB ports supports high-end rigs loaded with peripherals, including a rear USB Type-C® port with transmission speeds of up to 20Gbps.

PCIe 5.0 slot
The latest processors introduce PCIe 5.0 support, doubling data transfer speeds compared to PCIe 4.0, enhancing signal integrity, and providing backward-compatible CEM connectors and support for previous PCIe versions.

Customization
Personalization
The PRIME B860M-A WIFI-CSM enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.

Customization
DIY friendly
The PRIME B860M-A WIFI-CSM motherboard features EZ PC DIY innovations that simplify and speed up the PC building process, making DIY easy and convenient.

Q-Antenna
With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.

Q-LED Core
The Q-LED Core display produces color-coded lights during the Power-On Self-Test (POST) that can help you troubleshoot potential issues.

Pre-mounted
I/O shield
Our pre-installed I/O shield safeguards ports, simplifies the build process, increases functionality and enhances aesthetics for PC DIY enthusiasts.

SafeSlot
PCIe 5.0 is twice as fast as PCIe 4.0. ASUS has adapted our SMT manufacturing for the faster SafeSlot, a reinforced metal sheath that ensures secure card installation and faster data speeds.

ASUS B860 Micro-ATX Motherboard Specifications
CPU Support Intel® Core™ Ultra Processors (Series 2), LGA1851
Intel® Turbo Boost Technology 2.0
Intel® Turbo Boost Max Technology 3.0
Chipset Intel® B860 Chipset
Memory 4 x DDR5 DIMM slots, up to 256GB
Supports up to 8666+MT/s (OC), Non-ECC, Un-buffered, CUDIMM
Dual channel architecture
Supports Intel® XMP, ASUS AEMP III, DIMM Fit
On-Die ECC supported
Graphics 2 x DisplayPort (up to 4K@60Hz or 4K@120Hz)
1 x HDMI™ port (4K@60Hz)
1 x USB 20Gbps Type-C® with DisplayPort Alt Mode
Quad-display support
Expansion Slots CPU: 1 x PCIe 5.0 x16
Chipset: 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 4.0 x1
Storage 2 x M.2 slots:
- M.2_1: PCIe 5.0 x4 (2242/2260/2280)
- M.2_2: PCIe 4.0 x4 (2242/2260/2280)
4 x SATA 6Gb/s ports
Supports SATA RAID 0/1/5/10
Ethernet Realtek 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth Wi-Fi 6E (802.11ax), 2x2, 2.4/5/6GHz
Bluetooth® v5.3
* Wi-Fi 6E supported only in Windows 11 or later
USB Ports Rear: 8 ports
- 1 x USB 20Gbps (Type-C® with DP Alt mode)
- 1 x USB 10Gbps (Type-A)
- 2 x USB 5Gbps (Type-A)
- 4 x USB 2.0 (Type-A)
Front: 5 ports
- 1 x USB 10Gbps (Type-C®)
- 1 x USB 5Gbps header (2 ports)
- 1 x USB 2.0 header (2 ports)
Audio Realtek 7.1 Surround Sound HD Audio CODEC
Jack-detection, Multi-streaming, Front Panel Jack-retasking
Up to 24-Bit/192 kHz playback
Audio Shielding, Premium capacitors, Dedicated PCB layers

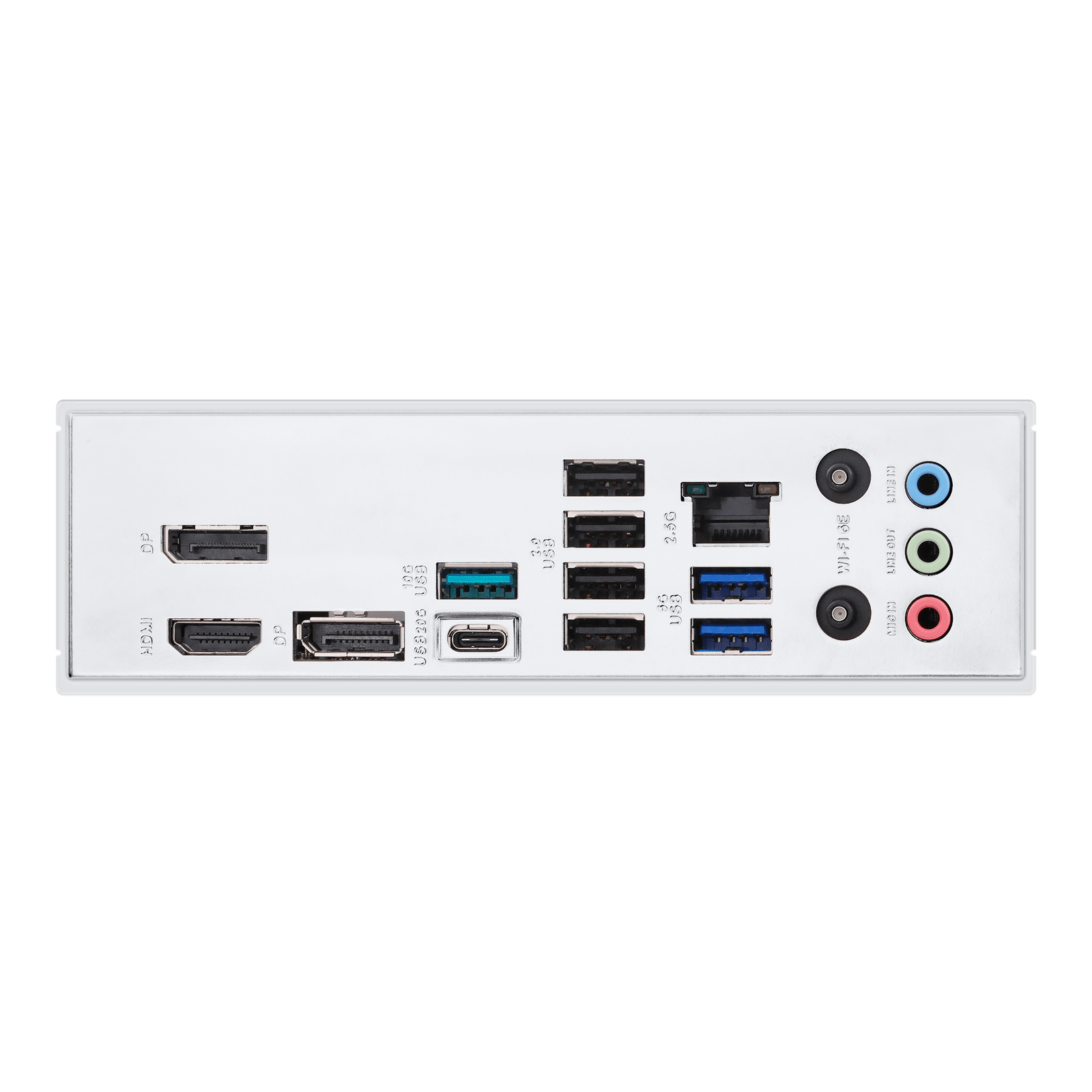

Back Panel I/O 1 x USB 20Gbps (Type-C® with DP Alt mode)
1 x USB 10Gbps (Type-A)
2 x USB 5Gbps (Type-A)
4 x USB 2.0 (Type-A)
2 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks
Internal I/O Cooling: 1 x CPU Fan, 1 x CPU OPT, 1 x AIO Pump, 3 x Chassis Fan
Power: 1 x 24-pin Main, 1 x 8-pin +12V CPU
Storage: 2 x M.2, 4 x SATA 6Gb/s
USB: 1 x USB 10Gbps (Type-C®), 1 x USB 5Gbps header, 1 x USB 2.0 header
Misc: 3 x Gen2 RGB headers, Aura RGB, Clear CMOS, Chassis Intrusion, COM, F_AUDIO, S/PDIF Out, SPI TPM, Front Panel, Thunderbolt™ (USB4®)
Special Features ASUS 5X PROTECTION III (DIGI+ VRM, ESD Guards, LANGuard, Overvoltage, SafeSlot)
ASUS Q-Design (Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot)
ASUS Thermal Solution (M.2 & VRM heatsinks)
ASUS EZ DIY (ProCool, Pre-mounted I/O shield)
Aura Sync (Aura RGB, Gen2 headers)
Software Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 2+, Power Saving)
ASUS DriverHub, GlideX, CPU-Z
Norton 360 Deluxe (60-day trial), WinRAR (40-day trial)
UEFI BIOS ASUS EZ DIY (CrashFree BIOS 3, EZ Flash, EZ Mode, MyHotkey)
256Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories 2 x SATA 6Gb/s cables
1 x ASUS WiFi Q-Antenna
1 x M.2 rubber package
1 x M.2 SSD screw package
1 x ACC Express Activation Key Card
1 x Quick start guide
Operating System Windows 11 (22H2 & later)
Windows 10 64-bit (21H2 & later)
Form Factor micro-ATX, 9.6" x 9.6" (24.4 cm x 24.4 cm)
