Description
Overview

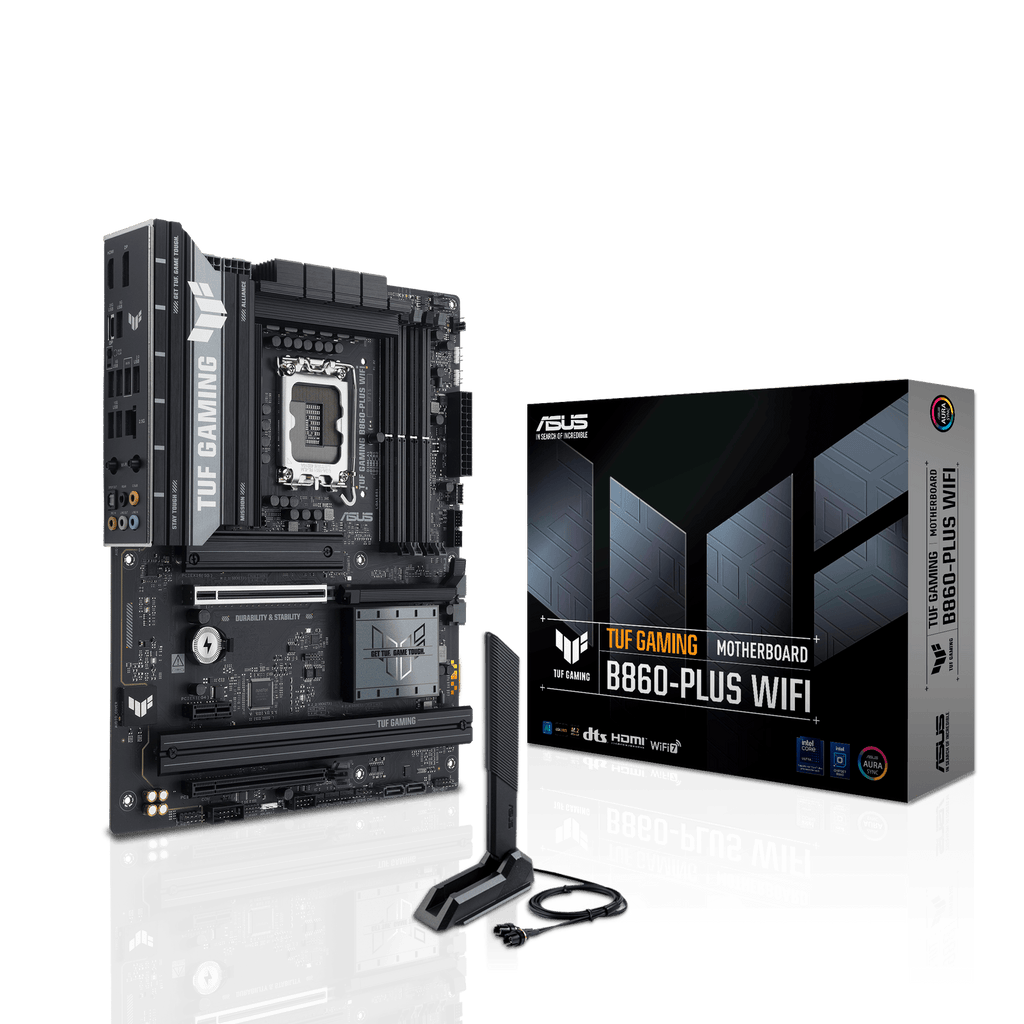

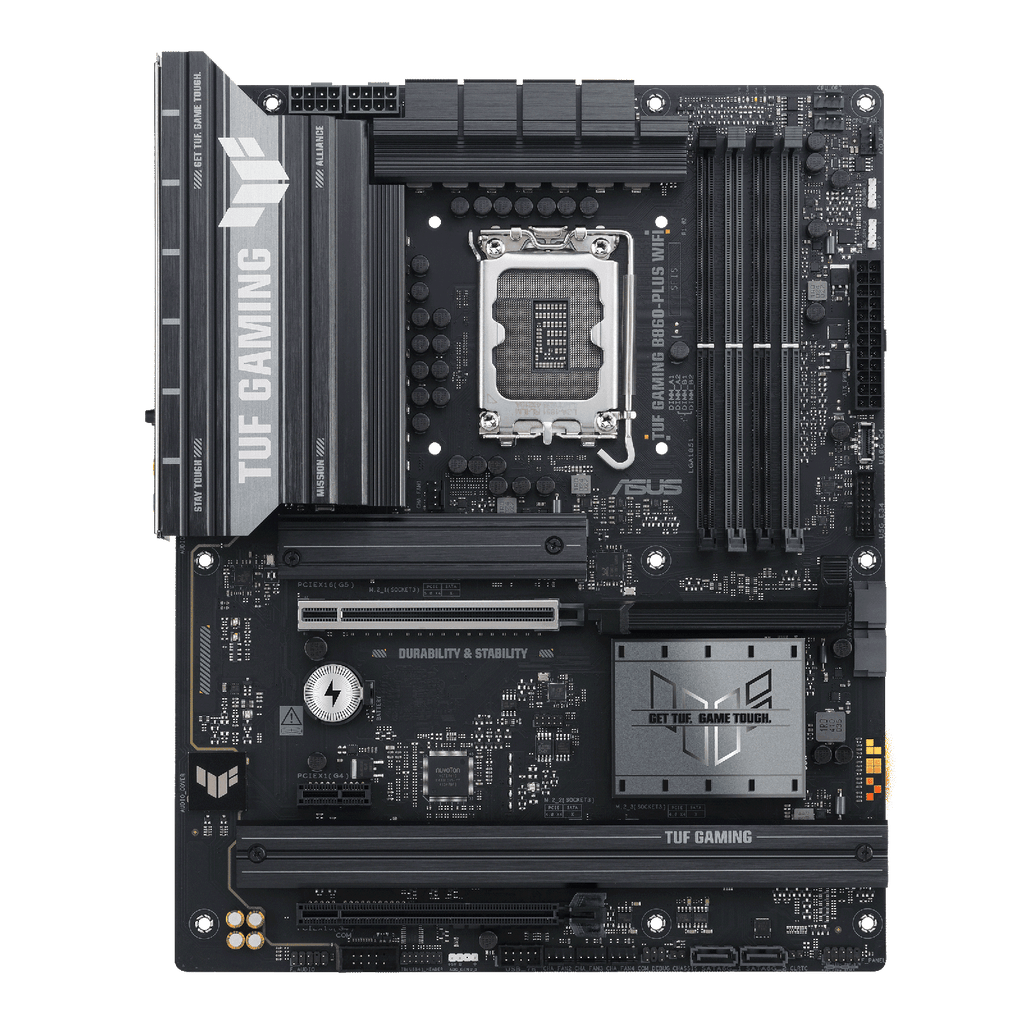

TUF GAMING
B860-PLUS WIFI

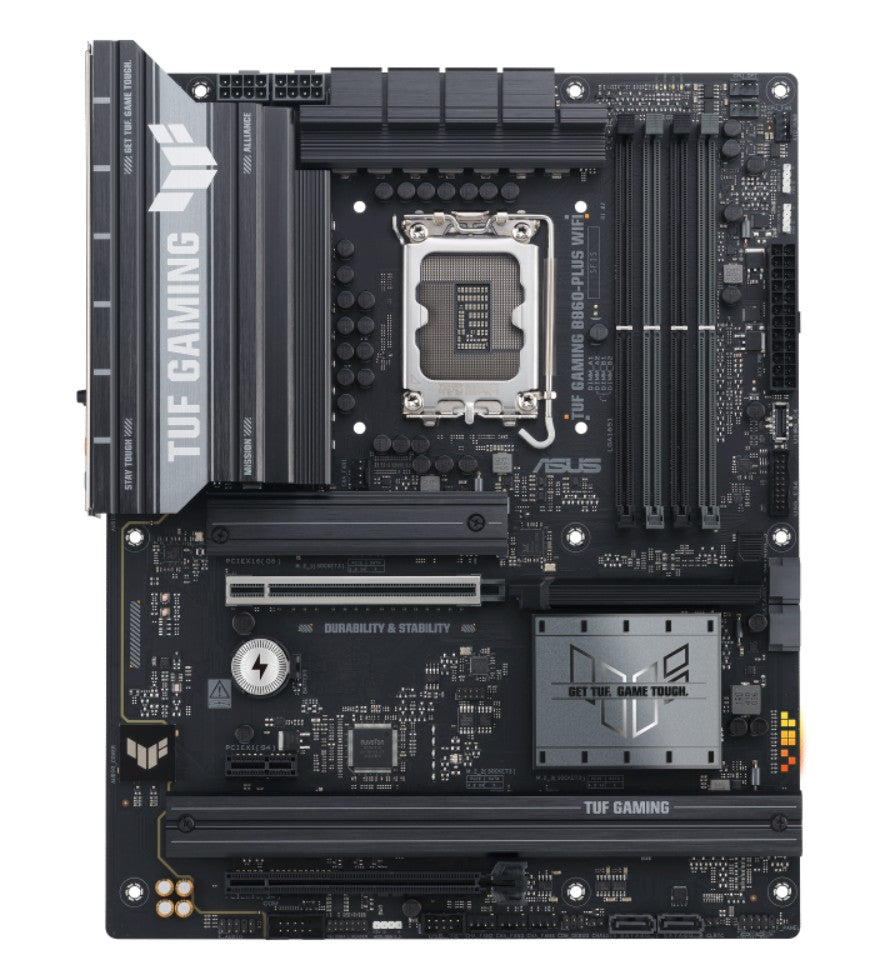

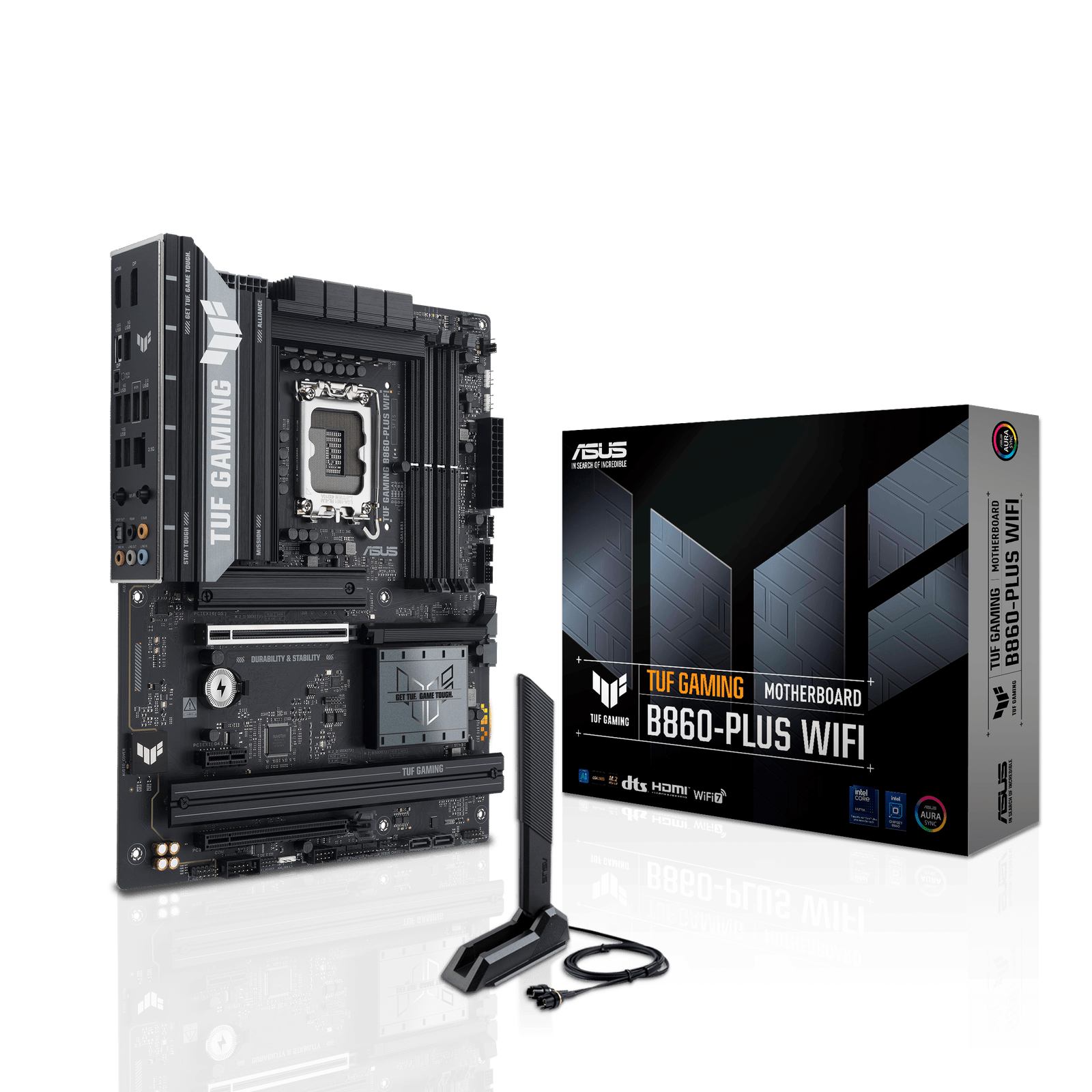

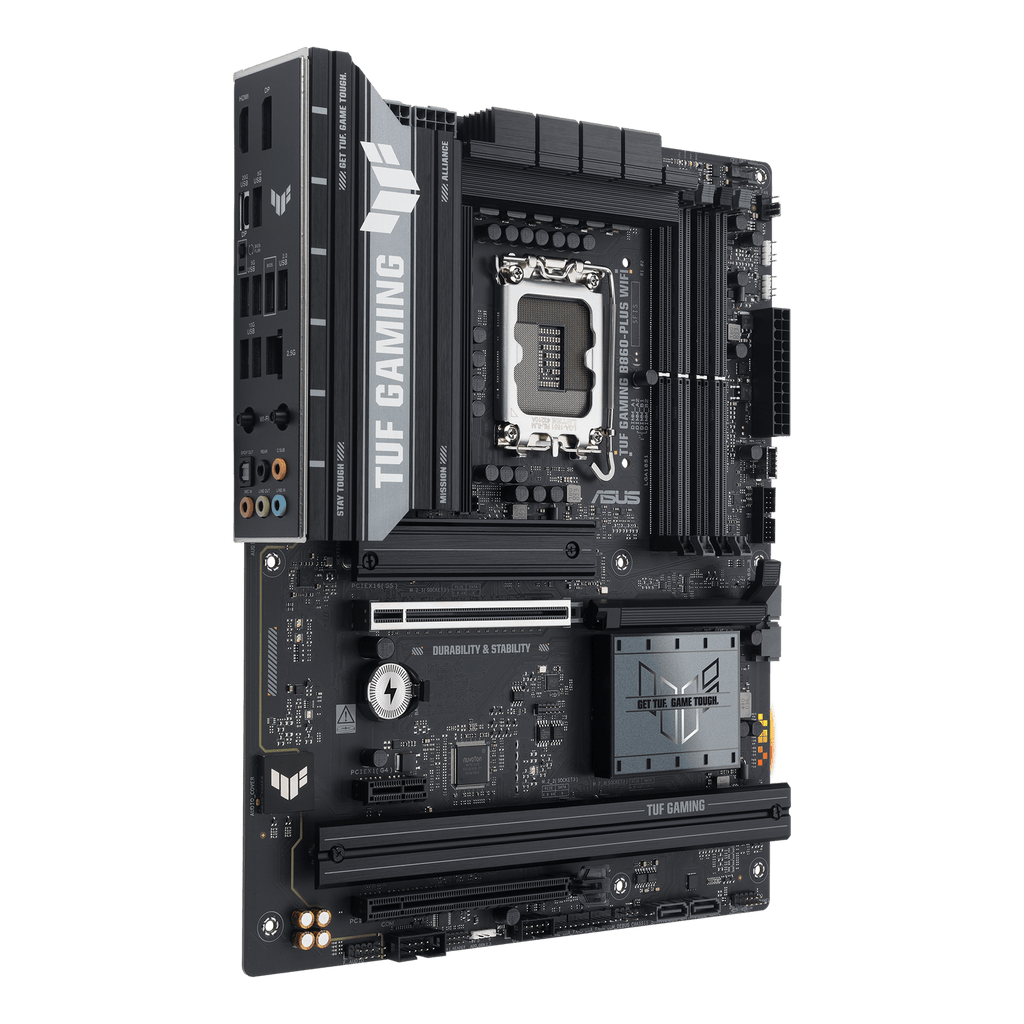

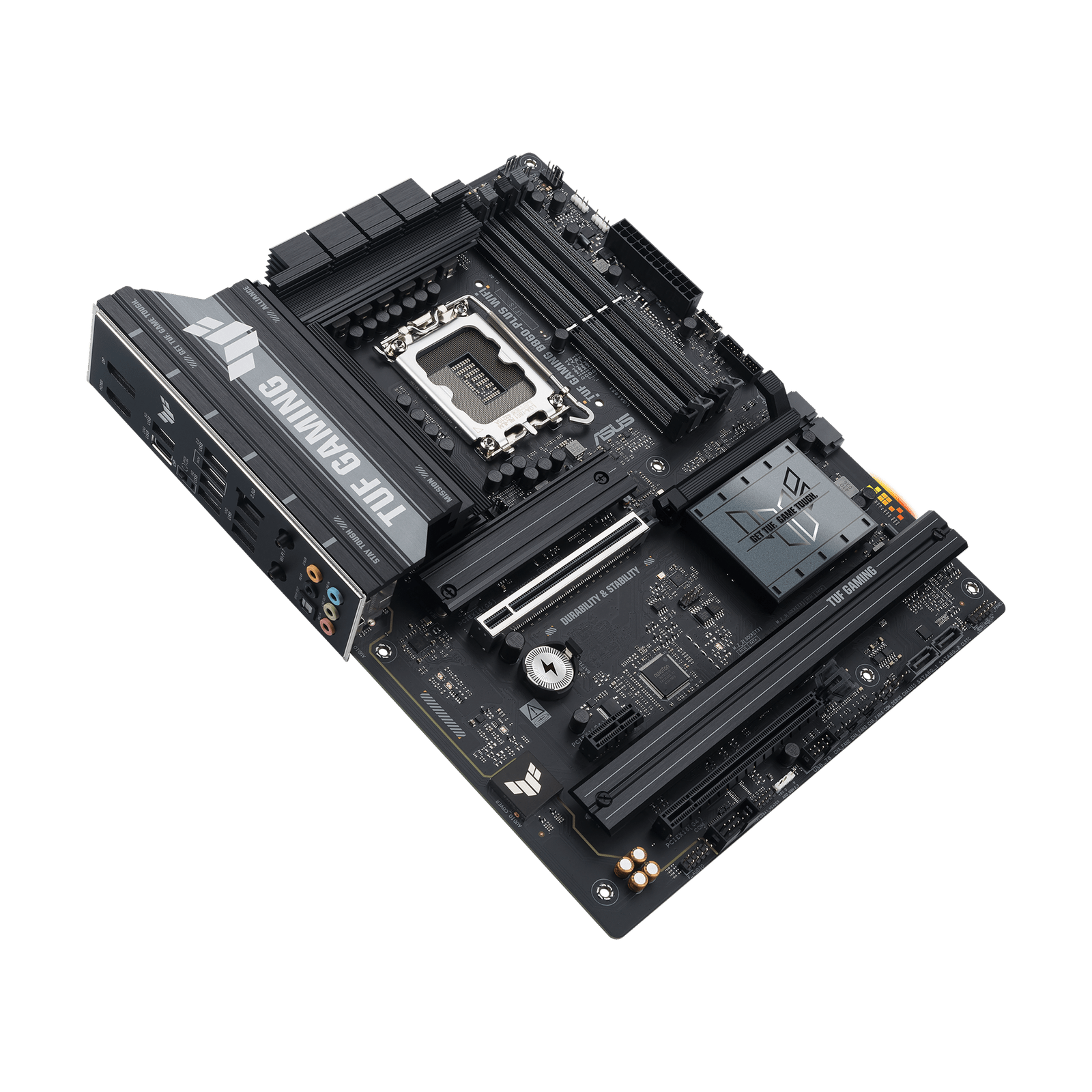

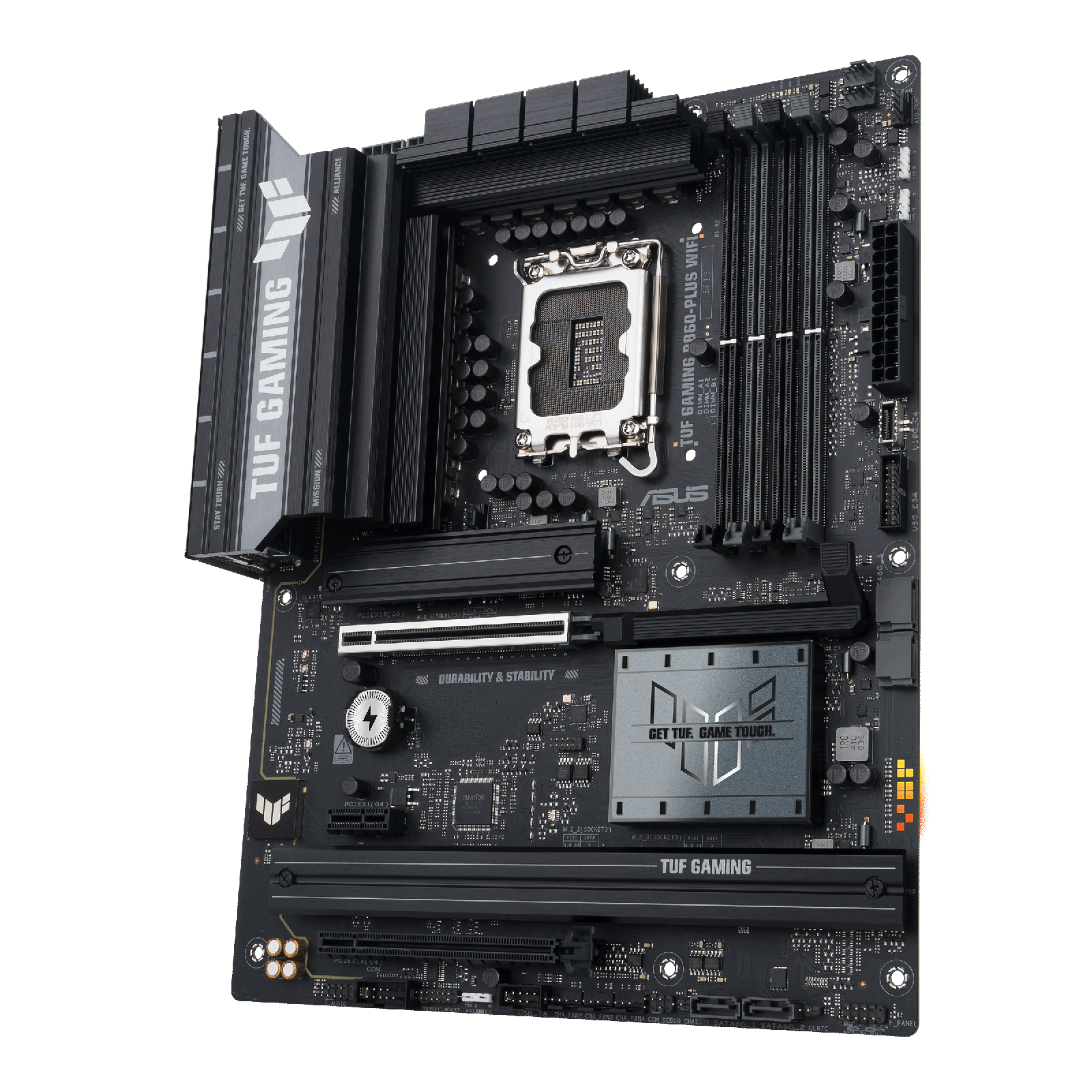

ASUS TUF GAMING B860-PLUS WIFI takes all the essential elements of the latest Intel® Core™ Ultra Processors (Series 2) processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
Performance
Premium Power Design
Stable power is crucial for maximizing the performance of Intel processors. The motherboard is designed to meet the needs of high-core-count CPUs. It features 12(80A) + 1(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80A each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future Intel processors.
Performance
Memory & Storage
DRAM Overclocking Performance
Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With the motherboard, you can extract all the potential out of your DDR5 modules*, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.
* Memory overclocking may vary between CPU series. Please refer to the spec table for detailed information.
AEMP III
ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process, AEMP III first optimizes the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge speeds of DDR5-7600 or higher.*
*Results may vary according to individual system specifications. Results are based on a test with an Intel Core Ultra 9 285K processor and 2x16GB SK Hynix DDR5-6400 Clocked Unbuffered DIMM RAM, model HMCG78AHBCA326N.
DIMM Fit / DIMM Fit Pro
DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues.
DIMM Fit Pro gives advanced PC builders more extensive customizability for memory tuning. It allows users to control up to twenty overclocking parameters, define testing ranges, and prioritize stability or performance, offering a more flexible and granular approach to memory optimization.
M.2 PCIe 5.0 Support
This motherboard also features one PCIe 5.0 M.2 slots to enjoy the fastest data transfers of up to 128 Gbps*.
Cooling
Cooler Compatibility
ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new TUF Gaming motherboards, empowering you to build your dream gaming rig.
Connectivity
Empowering Connection
This motherboard offers a versatile range of connectivity with PCIe 5.0, rear USB 20Gbps Type-C® with DP Alt mode and front USB 10Gbps Type-C®
PCIe 5.0 for Graphics Card
PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards and backward compatibility with previous versions of the PCIe bus.
Front USB 10Gbps Type-C®
This motherboard features a USB Type-C® front panel connector for speedy data transfers of up to 10Gbps.
Rear USB 20Gbps Type-C® with DP Alt Mode
This motherboard features a rear USB 20Gbps Type-C® with DP Alt mode for speedy data transfers of up to 20Gbps.
PCIe Slot Q-Release
A physical lever unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.
M.2 Q-Latch
The innovative ASUS Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools or screws. This design employs a simple locking mechanism to secure the drive and neatly detach it with one tap.
Q-Antenna

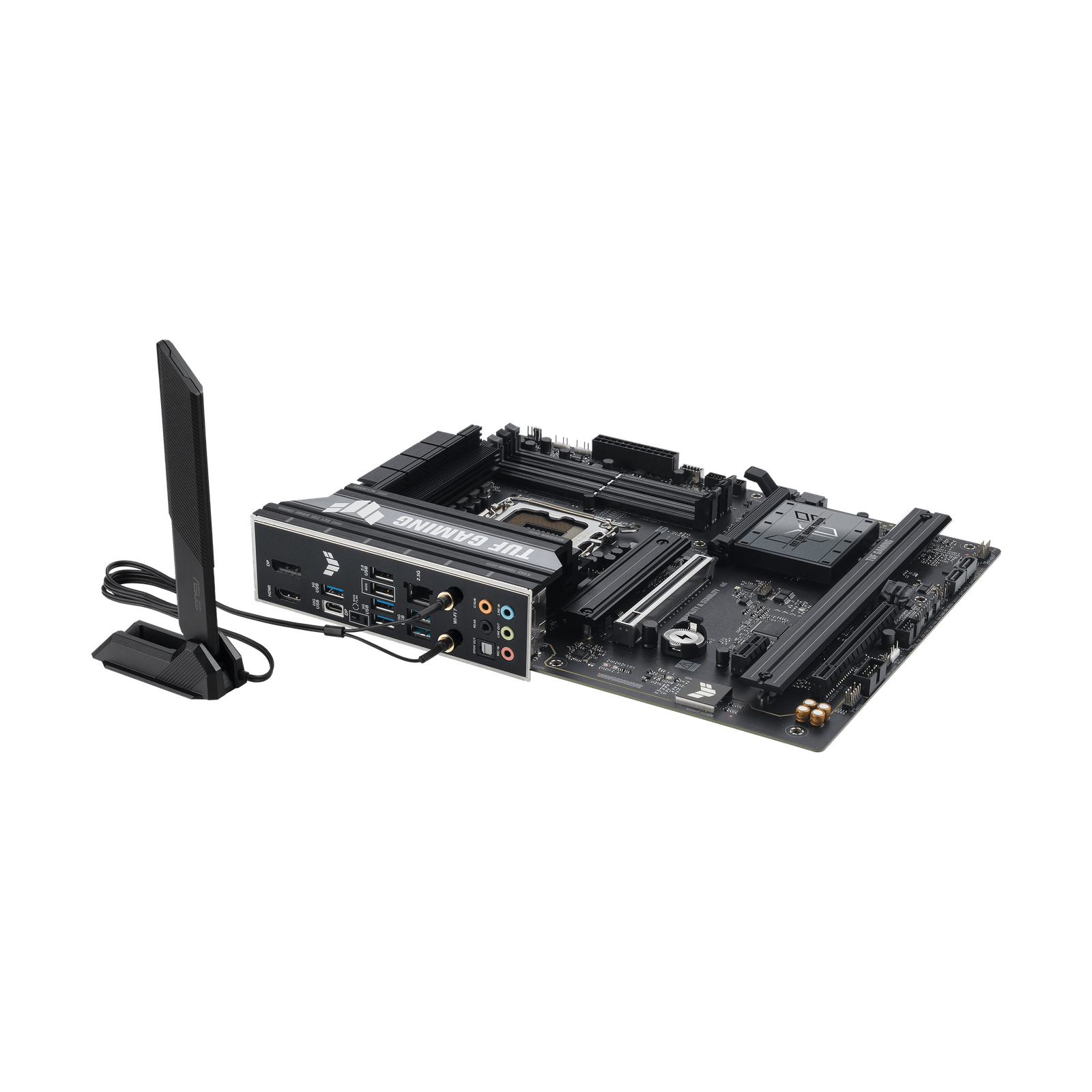

With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.
BIOS FlashBack™
BIOS FlashBack™ simplifies BIOS updates. Just load the BIOS file onto a FAT32 USB stick, insert it into the BIOS FlashBack™ port, and press a button—no CPU or memory needed.
Gaming
Ultrafast Networking
Provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay.
Realtek 7.1 Channel Audio
The unique audio codec designed in close collaboration with Realtek for TUF GAMING B860 motherboards feature an unprecedented 98 dB signal-to-noise ratio for the stereo line out, providing pristine audio quality.
TUF GAMING
B860-PLUS WIFI
ASUS TUF GAMING B860-PLUS WIFI takes all the essential elements of the latest Intel® Core™ Ultra Processors (Series 2) processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
Performance
Premium Power Design
Stable power is crucial for maximizing the performance of Intel processors. The motherboard is designed to meet the needs of high-core-count CPUs. It features 12(80A) + 1(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80A each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future Intel processors.
Performance
Memory & Storage
DRAM Overclocking Performance
Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With the motherboard, you can extract all the potential out of your DDR5 modules*, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.
* Memory overclocking may vary between CPU series. Please refer to the spec table for detailed information.
AEMP III
ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process, AEMP III first optimizes the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge speeds of DDR5-7600 or higher.*
*Results may vary according to individual system specifications. Results are based on a test with an Intel Core Ultra 9 285K processor and 2x16GB SK Hynix DDR5-6400 Clocked Unbuffered DIMM RAM, model HMCG78AHBCA326N.
DIMM Fit / DIMM Fit Pro
DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues.
DIMM Fit Pro gives advanced PC builders more extensive customizability for memory tuning. It allows users to control up to twenty overclocking parameters, define testing ranges, and prioritize stability or performance, offering a more flexible and granular approach to memory optimization.
M.2 PCIe 5.0 Support
This motherboard also features one PCIe 5.0 M.2 slots to enjoy the fastest data transfers of up to 128 Gbps*.
Cooling
Cooler Compatibility
ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new TUF Gaming motherboards, empowering you to build your dream gaming rig.
Connectivity
Empowering Connection
This motherboard offers a versatile range of connectivity with PCIe 5.0, rear USB 20Gbps Type-C® with DP Alt mode and front USB 10Gbps Type-C®
PCIe 5.0 for Graphics Card
PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards and backward compatibility with previous versions of the PCIe bus.
Front USB 10Gbps Type-C®
This motherboard features a USB Type-C® front panel connector for speedy data transfers of up to 10Gbps.
Rear USB 20Gbps Type-C® with DP Alt Mode
This motherboard features a rear USB 20Gbps Type-C® with DP Alt mode for speedy data transfers of up to 20Gbps.
PCIe Slot Q-Release
A physical lever unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.
M.2 Q-Latch
The innovative ASUS Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools or screws. This design employs a simple locking mechanism to secure the drive and neatly detach it with one tap.
Q-Antenna
With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.
BIOS FlashBack™
BIOS FlashBack™ simplifies BIOS updates. Just load the BIOS file onto a FAT32 USB stick, insert it into the BIOS FlashBack™ port, and press a button—no CPU or memory needed.
Gaming
Ultrafast Networking
Provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay.
Realtek 7.1 Channel Audio
The unique audio codec designed in close collaboration with Realtek for TUF GAMING B860 motherboards feature an unprecedented 98 dB signal-to-noise ratio for the stereo line out, providing pristine audio quality.
| ASUS TUF GAMING B860-PLUS WIFI Specifications | |
|---|---|
| CPU | |
| Socket | Intel® LGA1851 |
| Supported CPUs | Intel® Core™ Ultra Processors (Series 2) |
| Technologies | Intel® Turbo Boost 2.0, Turbo Boost Max 3.0 |
| Chipset | |
| Chipset | Intel® B860 |
| Memory | |
| Slots | 4 x DDR5 DIMM |
| Max Capacity | Up to 256GB |
| Speed | Up to 8666+ MT/s (OC) |
| Architecture | Dual Channel |
| Profiles | Intel® XMP, ASUS Enhanced Memory Profile III (AEMP III) |
| Graphics | |
| Outputs | 1 x DisplayPort 1.4 (4K@60Hz) 1 x HDMI™ 2.1 (4K@60Hz) 1 x USB 20Gbps Type-C® with DisplayPort Alt Mode (4K@60Hz) |
| Expansion Slots | |
| CPU PCIe | 1 x PCIe 5.0 x16 (SafeSlot) |
| Chipset PCIe | 1 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 4.0 x1 |
| Storage | |
| M.2 Slots | 1 x M.2_1 (PCIe 5.0 x4, 2280) 1 x M.2_2 (PCIe 4.0 x4, 2280/22110) 1 x M.2_3 (PCIe 4.0 x4, 2242/2260/2280) |
| SATA | 4 x SATA 6Gb/s |
| RAID Support | SATA RAID 0/1/5/10 |
| Networking | |
| LAN | Realtek 2.5Gb Ethernet with TUF LANGuard |
| Wi-Fi | Wi-Fi 7 (802.11be), 2x2 MU-MIMO, 2.4/5/6GHz |
| Bluetooth | Bluetooth® v5.4 |
| USB | |

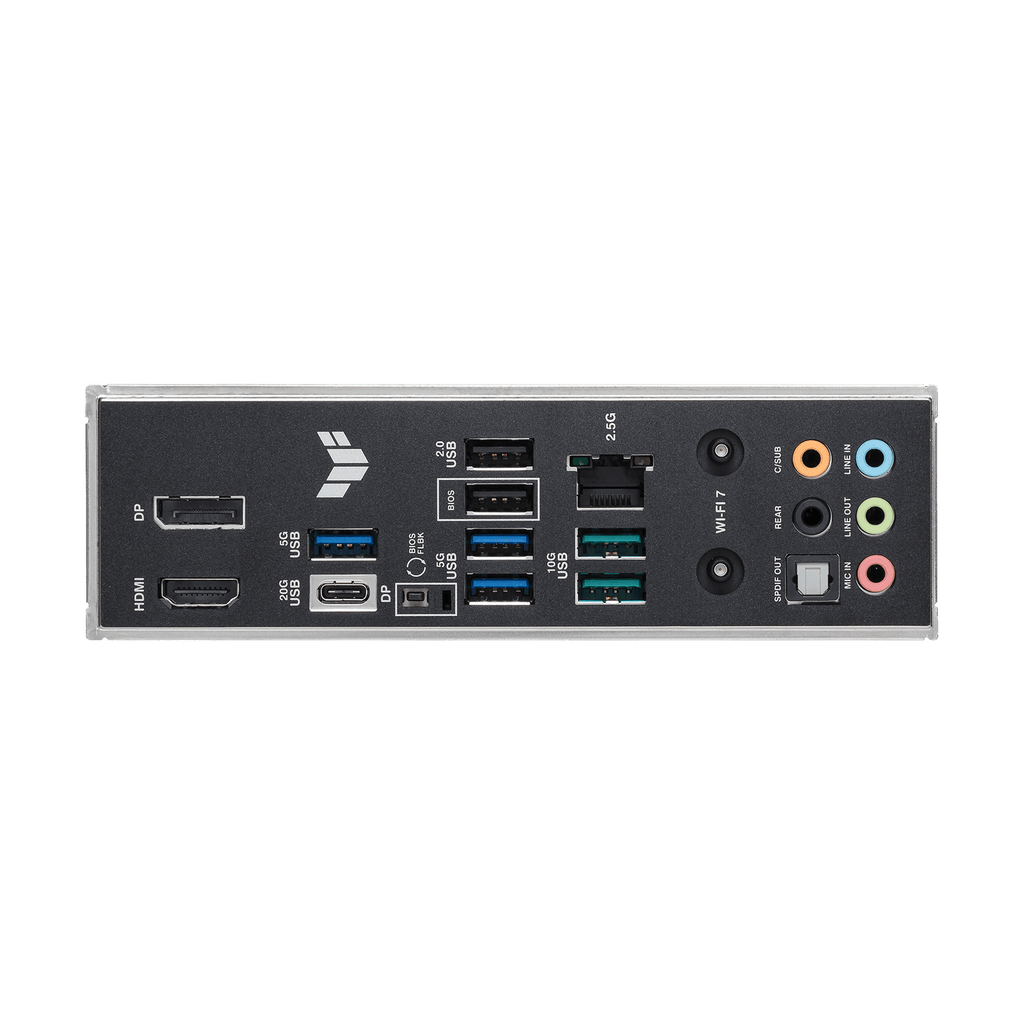

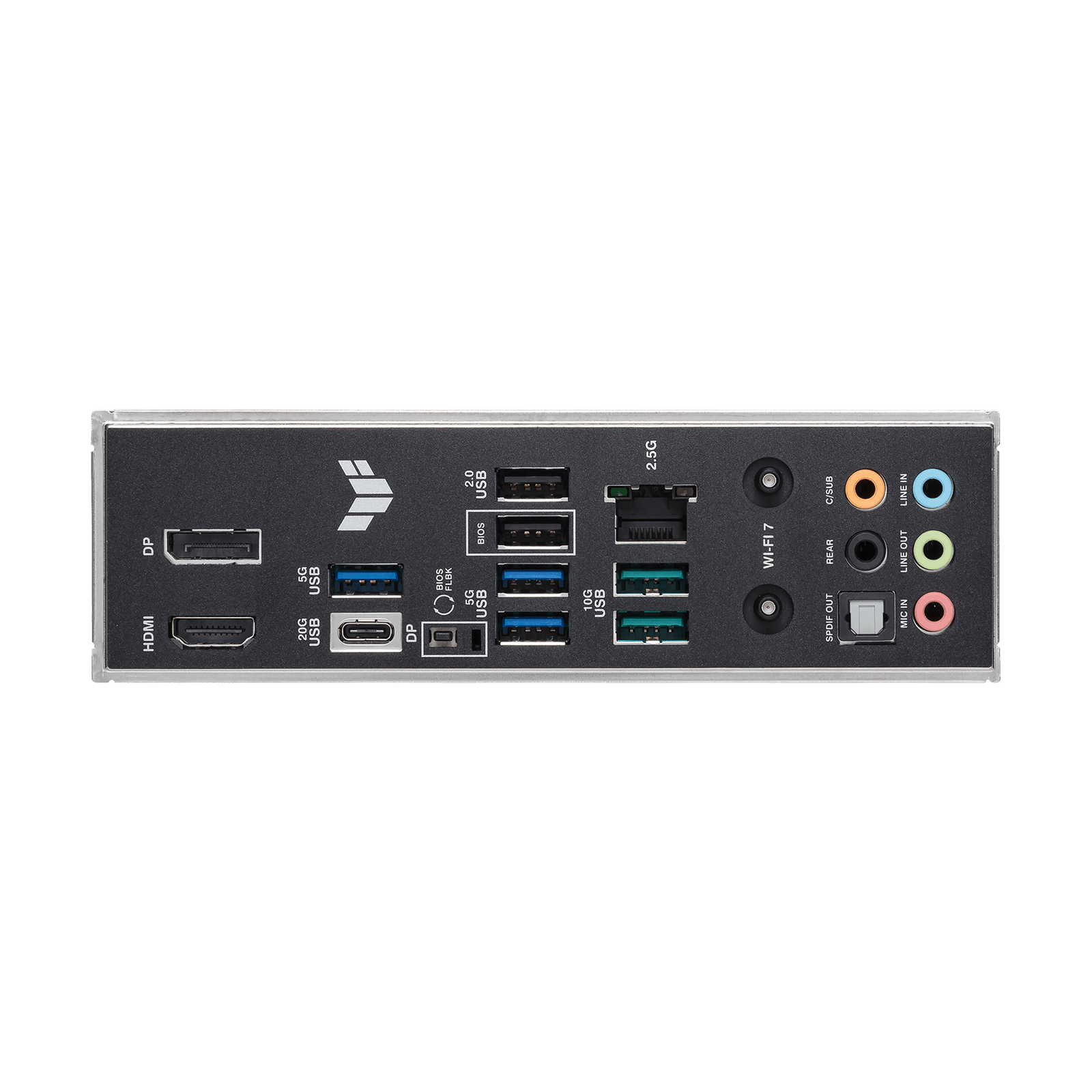

| Rear I/O | 1 x USB 20Gbps Type-C® 1 x USB 10Gbps Type-A 4 x USB 5Gbps Type-A 2 x USB 2.0 Type-A |
| Front Panel | 1 x USB 5Gbps Type-C® connector 1 x USB 5Gbps header (2 ports) 2 x USB 2.0 headers (4 ports) |
| Audio | |
| Codec | Realtek 7.1 Surround Sound High Definition Audio |
| Features | Jack-detection, Multi-streaming, Front Panel Jack-retasking Up to 24-bit/192kHz playback Audio shielding, premium capacitors, dedicated PCB layers |
| Power Design | |
| Power Stages | 12 (80A) + 1 (80A) + 2 (80A) + 1 (80A) |
| Special Features | |
| Protection | TUF Components DIGI+ VRM LANGuard SafeSlot Stainless-Steel Back I/O |
| DIY Features | BIOS FlashBack™ button Pre-mounted I/O shield Q-DIMM, Q-LED Core, Q-Slot |
| RGB | Aura Sync, Addressable Gen 2 headers |
| Software | |
| ASUS Software | Armoury Crate AI Advisor Fan Xpert 4 TurboV Core CPU-Z Norton 360 (60-day trial) WinRAR (40-day trial) |
| BIOS | |
| Type | 256Mb Flash ROM, UEFI AMI BIOS |
| Operating System | |
| Supported OS | Windows 11 (22H2 and later) |
| Form Factor | |
| Size | ATX, 30.5 cm x 24.4 cm |
