4-Port USB HDMI Multi-View Dual Rail WideScreen LCD KVM Switch
- Multi-view console controls up to four video sources on one screen with display modes including Quad View, Picture in Picture (PiP), Picture by Picture (PbP), and Picture on Picture (PoP)
- Integrated KVM console with an 18.5” LED-backlit widescreen LCD monitor in a dual rail housing with top and bottom clearance for smooth operation in a 1U high system rack
- Easily resizes and/or repositions any PiP or PbP to suit users’ viewing needs
- Superior video quality – 1920 x 1200 @ 60Hz

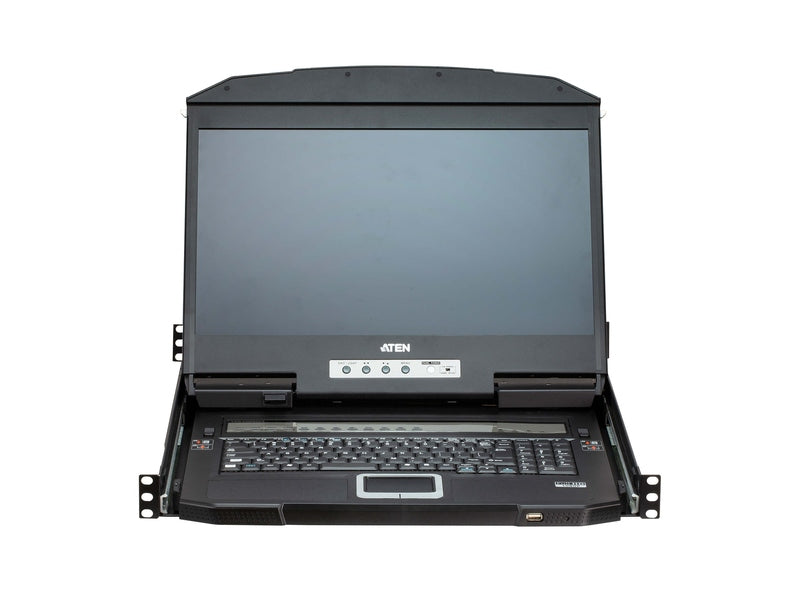

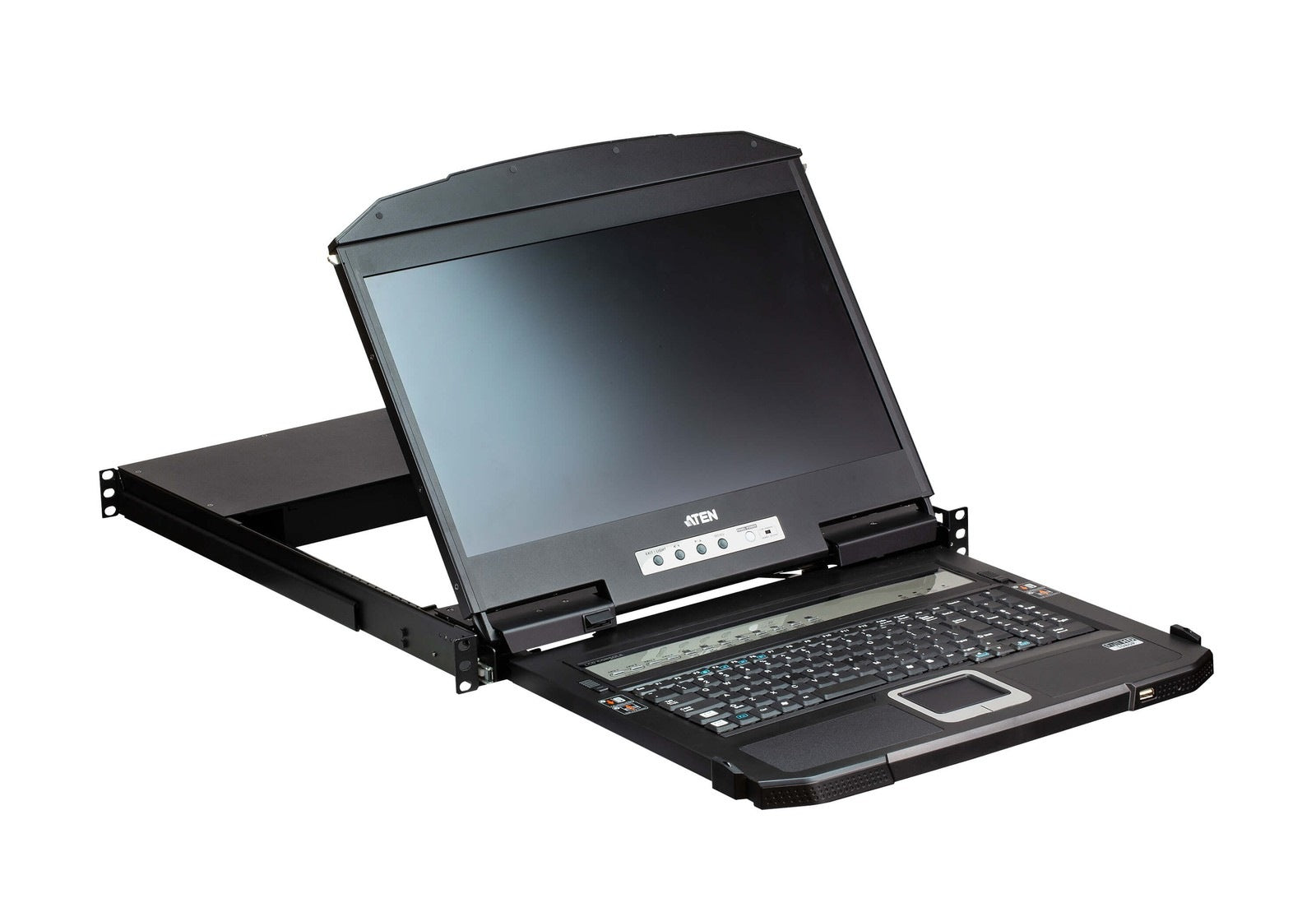

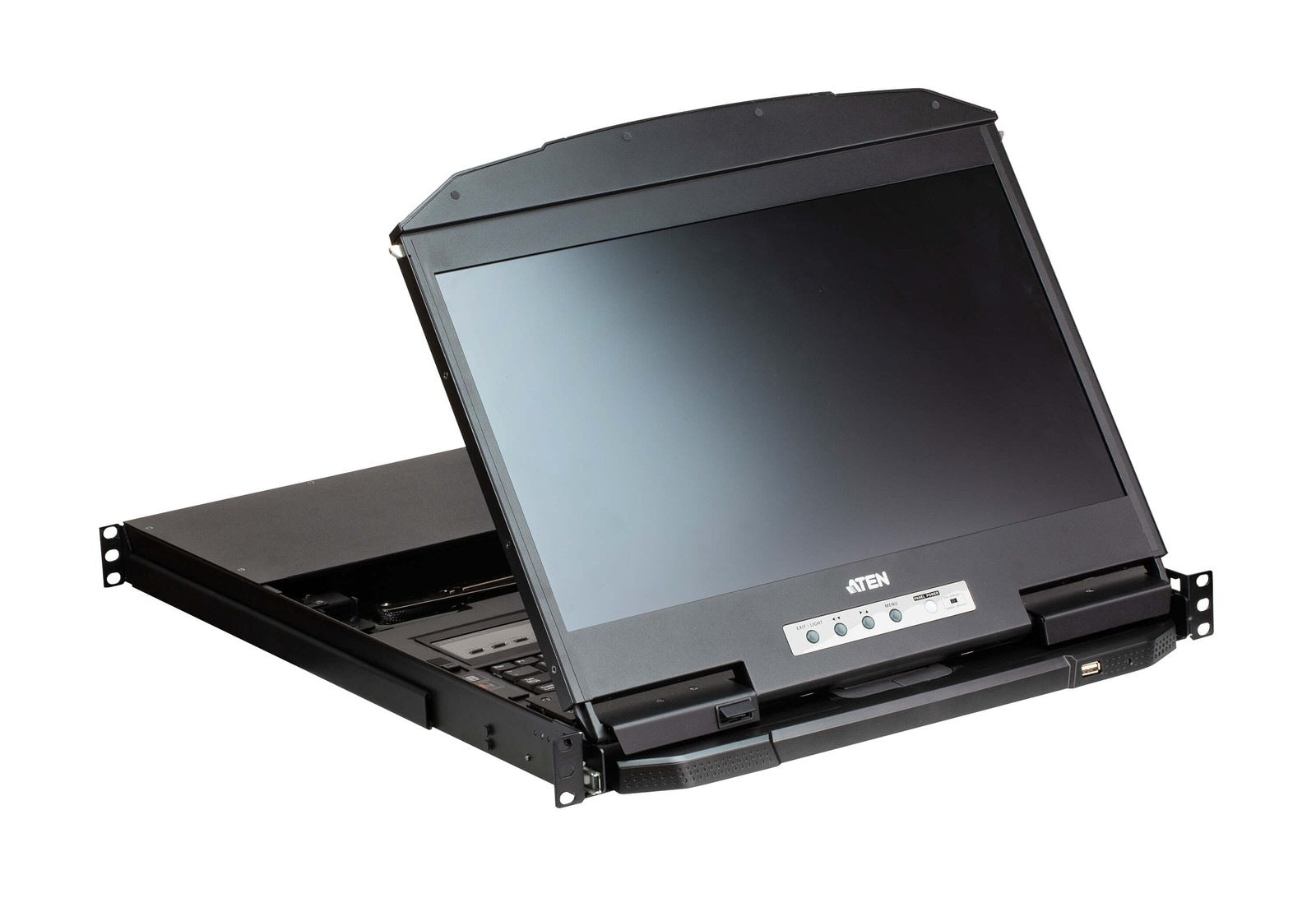

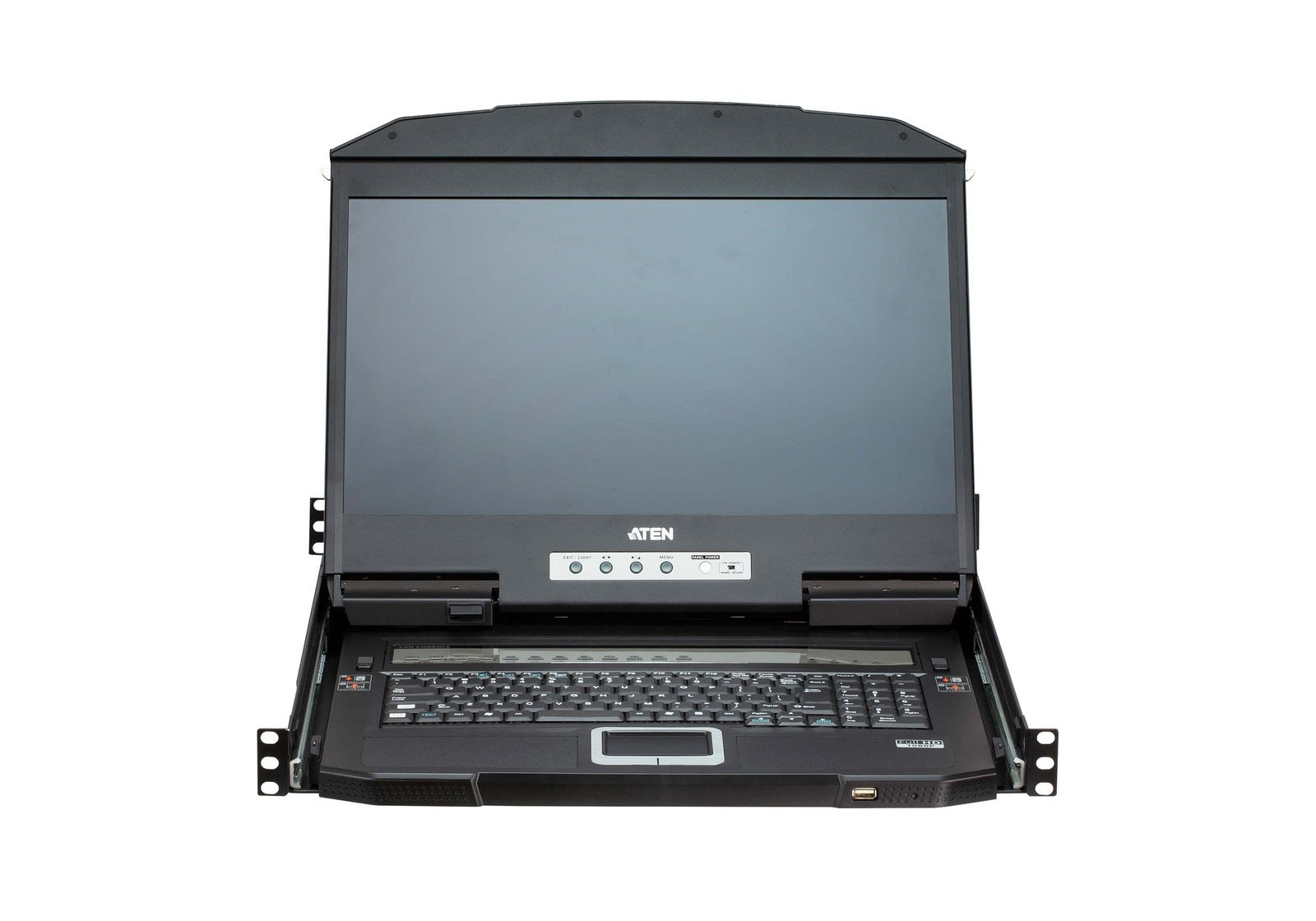

The ATEN CL3884NW LCD KVM Switch offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, a 18.5" LED-backlit LCD monitor, and a touchpad in a 1U rack-mountable slide housing. The dual rail design enables the LCD monitor, keyboard and touchpad to operate independently of each other. To maximize space utilization, the keyboard and touchpad modules can slide back to "hideaway" when not in use, while the LCD monitor rotates back, flush against the rack, to allow convenient monitoring of computer activity.
The CL3884NW offers dual console outputs that guarantees users real-time monitoring functionality. Users can control both outputs to display the following display modes: Quad View, Picture in Picture (PiP), Picture by Picture (PbP), and Picture on Picture (PoP). The display modes have different layout options to allow users to customize which sources are being displayed. In addition, being able to cascade up to 2 levels, the CL3884NW can reach up to a maximum of 16 video sources that can be simultaneously displayed and controlled with independent keyboard and mouse.
Featuring Boundless Switching, the CL3884NW allows users to switch control to another computer by simply moving the mouse cursor across a screen border and onto the target computer display without limitations. With patented ATEN technology – Video DynaSync ™, users can enjoy better display resolutions and faster switching between systems. What’s more, the EDID modes are available for smooth power-up, high-quality display that eliminate monitor compatibility issue.
For added convenience, users can choose to manage the computer from an external console. The CL3884NW features a USB peripheral port on the unit’s front panel, ports for the external KVM console (USB keyboard/mouse and HDMI monitor) on the rear panel, and audio ports for connecting audio speakers.
The CL3884NW is a feature-rich LCD KVM switch which exceeds the requirements for control room applications in any industry in terms of its capabilities of optimizing video quality, space utilization, adaptive deployment, and operational versatility.
Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.
4-Port USB HDMI Multi-View Dual Rail WideScreen LCD KVM Switch
- Multi-view console controls up to four video sources on one screen with display modes including Quad View, Picture in Picture (PiP), Picture by Picture (PbP), and Picture on Picture (PoP)
- Integrated KVM console with an 18.5” LED-backlit widescreen LCD monitor in a dual rail housing with top and bottom clearance for smooth operation in a 1U high system rack
- Easily resizes and/or repositions any PiP or PbP to suit users’ viewing needs
- Superior video quality – 1920 x 1200 @ 60Hz
The ATEN CL3884NW LCD KVM Switch offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, a 18.5" LED-backlit LCD monitor, and a touchpad in a 1U rack-mountable slide housing. The dual rail design enables the LCD monitor, keyboard and touchpad to operate independently of each other. To maximize space utilization, the keyboard and touchpad modules can slide back to "hideaway" when not in use, while the LCD monitor rotates back, flush against the rack, to allow convenient monitoring of computer activity.
The CL3884NW offers dual console outputs that guarantees users real-time monitoring functionality. Users can control both outputs to display the following display modes: Quad View, Picture in Picture (PiP), Picture by Picture (PbP), and Picture on Picture (PoP). The display modes have different layout options to allow users to customize which sources are being displayed. In addition, being able to cascade up to 2 levels, the CL3884NW can reach up to a maximum of 16 video sources that can be simultaneously displayed and controlled with independent keyboard and mouse.
Featuring Boundless Switching, the CL3884NW allows users to switch control to another computer by simply moving the mouse cursor across a screen border and onto the target computer display without limitations. With patented ATEN technology – Video DynaSync ™, users can enjoy better display resolutions and faster switching between systems. What’s more, the EDID modes are available for smooth power-up, high-quality display that eliminate monitor compatibility issue.

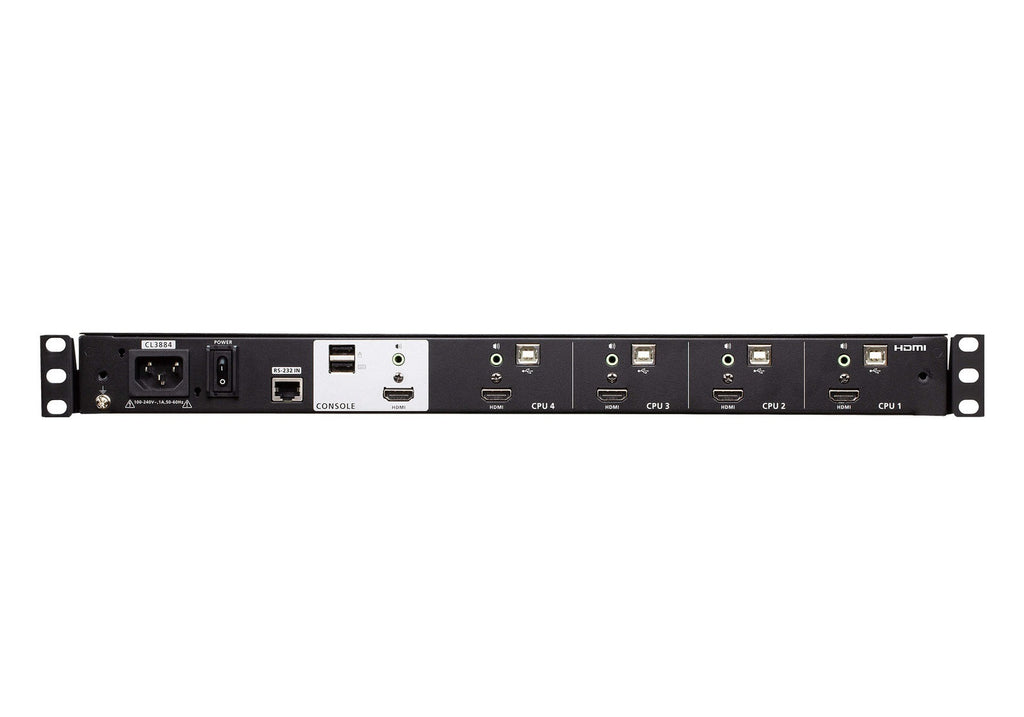

For added convenience, users can choose to manage the computer from an external console. The CL3884NW features a USB peripheral port on the unit’s front panel, ports for the external KVM console (USB keyboard/mouse and HDMI monitor) on the rear panel, and audio ports for connecting audio speakers.
The CL3884NW is a feature-rich LCD KVM switch which exceeds the requirements for control room applications in any industry in terms of its capabilities of optimizing video quality, space utilization, adaptive deployment, and operational versatility.
Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.
| Rackmount KVM Console Switch Specifications | |
|---|---|
| Computer Connections | |
| Direct | 4 |
| Maximum (via Cascade) | 16 |
| Port Selection | OSD, Hotkey, Pushbutton, RS-232 Command |
| Connectors | |
| KVM Ports | 4 x HDMI Female 4 x USB Type B Female 4 x 3.5mm Audio Jack Female (Green) |
| Power | 1 x IEC 60320/C14 |
| Serial | 1 x RJ-45 Female |
| External Console Ports | 1 x HDMI Female 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green) |
| USB Port | 1 x USB Type A Female (Front) |
| Switches | |
| Port Selection | 4 x Pushbutton |
| Multi-View Mode | 5 x Pushbutton |
| Display Mode | 3 x Pushbutton |
| Reset | 1 x Semi-recessed Pushbutton |
| Firmware Upgrade | 1 x Slide Switch |
| Power | 1 x Rocker Switch |
| LCD Control | 4 x Pushbutton |
| LCD Power | 1 x LED Pushbutton |
| LEDs | |
| Power | 1 (Dark Green) |
| Lock Indicators | 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green) |
| LED Illumination Light | 1 x LED Illumination Light |
| Panel Specifications | |
| LCD Module | 18.5" TFT-LCD |
| Resolution | 1920 x 1080 @ 60 Hz |
| Response Time | 20 ms |
| Viewing Angle | 178° (H), 178° (V) |
| Support Color | 16.77M colors |
| Contrast Ratio | 1000 : 1 |
| Luminance | 350 cd/m² |
| Video | |
| Input Video Resolution | 1920 x 1200 @ 60 Hz |
| Second Console | 1920 x 1200 @ 60 Hz |
| Scan Interval | 5, 10, 15, 30, 60, 90 seconds (default: 5 seconds) |
| Emulation | |
| Keyboard / Mouse | USB |
| Power | |
| Maximum Input Power Rating | 100-240V AC, 50-60Hz, 1A |
| Power Consumption | AC110V: 35.2W / 171BTU/h AC220V: 35.7W / 174BTU/h |
| Environmental | |
| Operating Temperature | 0-40°C |
| Storage Temperature | -20-60°C |
| Humidity | 0-85% RH, Noncondensing |
| Physical Properties | |
| Housing | Metal |
| Rail Type | Dual Rail |
| Weight | 11.20 kg (24.67 lb) |
| Dimensions (L x W x H) | 48.06 x 63.10 x 4.28 cm (18.92 x 24.84 x 1.69 in.) |
| Body Dimensions (L x W x H) | 44.92 x 58.40 x 4.28 cm (17.68 x 22.99 x 1.69 in.) |
| Note | Standard rackmount dimensions are expressed as LxWxH. |
