Description
Overview

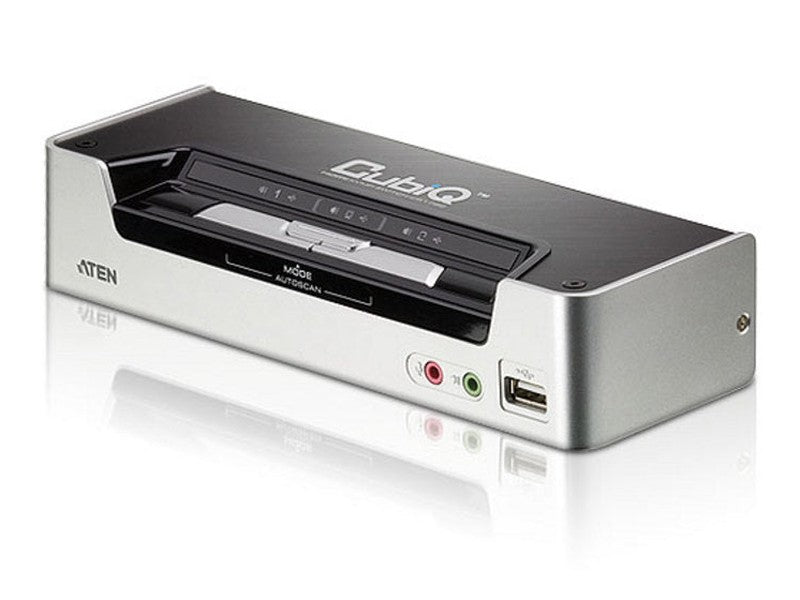

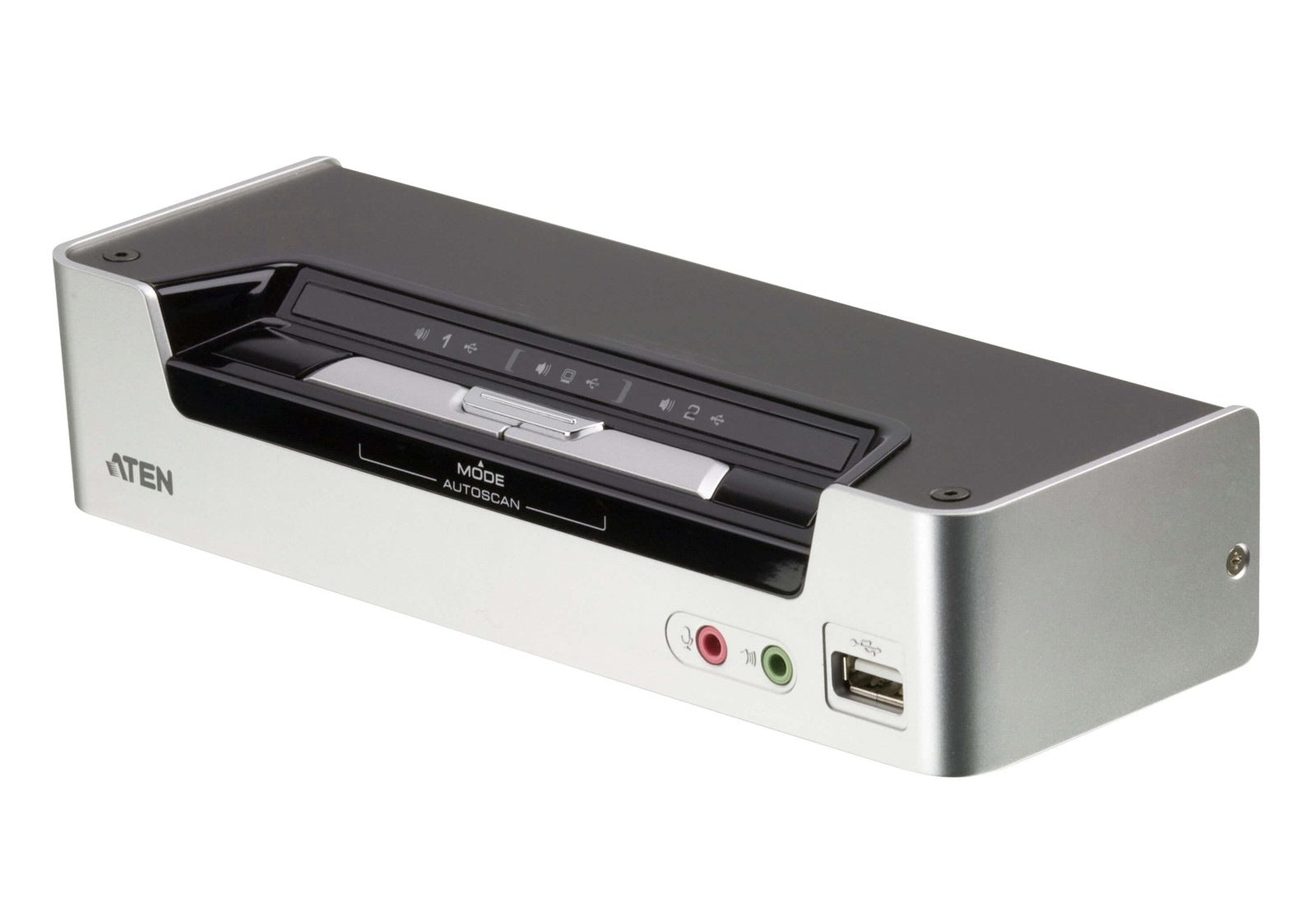

2-Port USB HDMI/Audio KVMP™ Switch
- Superior video quality - supports 480i, 480p, 720p, 1080i, and 1080p(HDTV)/1920 x 1200(DVI)
- PC selection via pushbutton and hotkeys
- Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
- Multiplatform support - Windows, Linux,and Mac
With the unique design and innovative features, the CS1792 USB 2.0 HDMI KVMP™ Switch provides both style and functionality for today's multimedia SOHO environment.
Combining a 2-port switch with a 2-port USB 2.0 hub, the CS1792 provides seamless HDMI signal switching between 2 PCs or other HDMI-enabled devices, such as gaming consoles, and allows users to share USB peripherals from a single console. The CS1792 provides enhanced independent switching via front panel pushbuttons and keyboard hotkeys, and features Video DynaSync™ technology to ensure that HDMI display resolution is always optimized. With integrated digital audio, the CS1792 also allows users to experience high-definition sound, such as Dolby True HD and DTS HD Master Audio.
Ideal for multimedia applications in the office, the CS1792 offers the ultimate in space-saving, streamlined KVM technology for the desktop.
2-Port USB HDMI/Audio KVMP™ Switch
- Superior video quality - supports 480i, 480p, 720p, 1080i, and 1080p(HDTV)/1920 x 1200(DVI)
- PC selection via pushbutton and hotkeys
- Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
- Multiplatform support - Windows, Linux,and Mac
With the unique design and innovative features, the CS1792 USB 2.0 HDMI KVMP™ Switch provides both style and functionality for today's multimedia SOHO environment.
Combining a 2-port switch with a 2-port USB 2.0 hub, the CS1792 provides seamless HDMI signal switching between 2 PCs or other HDMI-enabled devices, such as gaming consoles, and allows users to share USB peripherals from a single console. The CS1792 provides enhanced independent switching via front panel pushbuttons and keyboard hotkeys, and features Video DynaSync™ technology to ensure that HDMI display resolution is always optimized. With integrated digital audio, the CS1792 also allows users to experience high-definition sound, such as Dolby True HD and DTS HD Master Audio.
Ideal for multimedia applications in the office, the CS1792 offers the ultimate in space-saving, streamlined KVM technology for the desktop.
| Product Specifications | |
|---|---|
| General | |
| Computer Connections | 2 |
| Port Selection | Hotkey, Pushbutton |
| Connectors | |

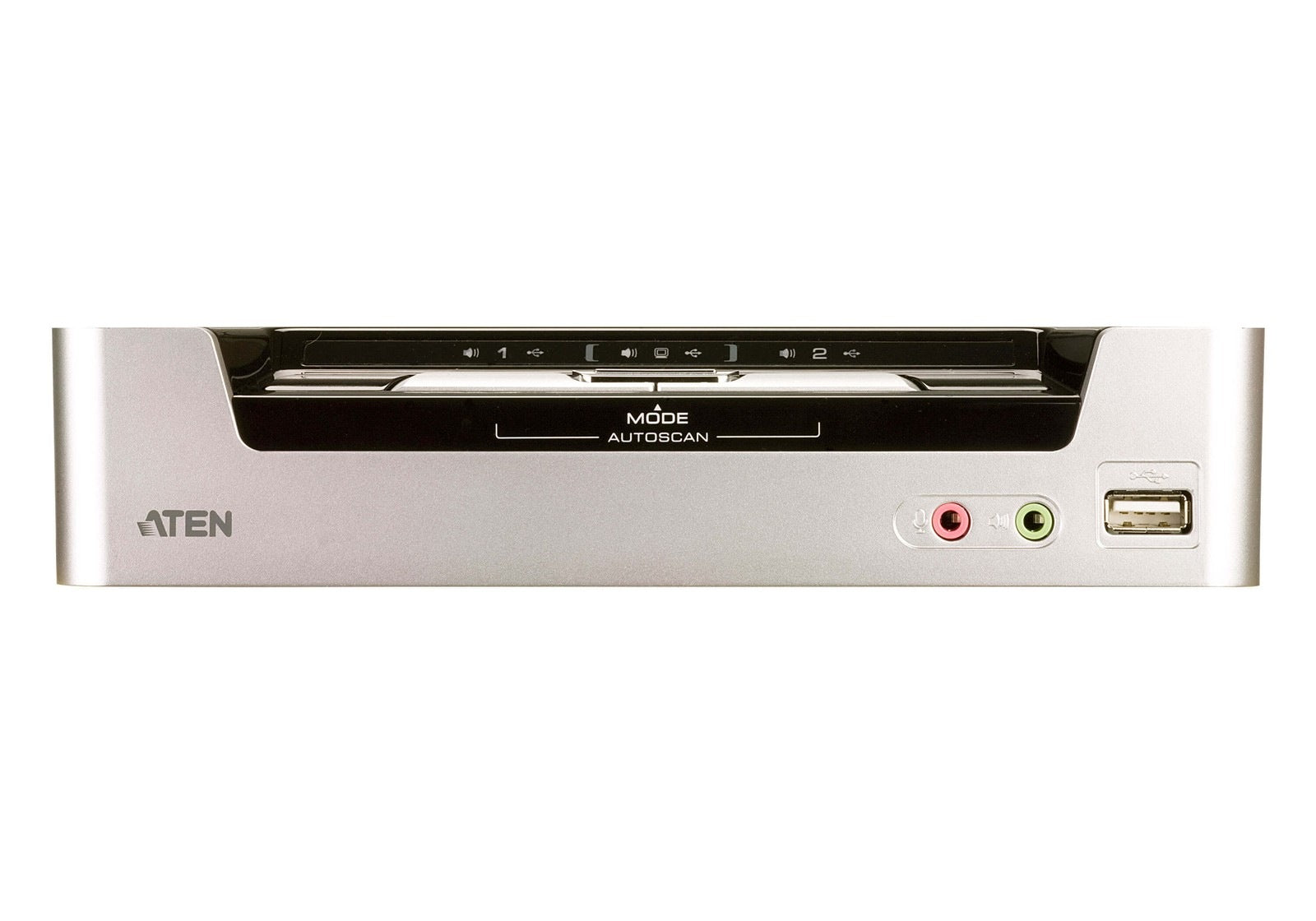

| Console Ports | 2 x USB Type A Female (rear panel) 1 x HDMI Female (Black) 2 x 3.5 mm Audio Jack Female (Green; 1 x front, 1 x rear) 2 x 3.5 mm Audio Jack Female (Pink; 1 x front, 1 x rear) |

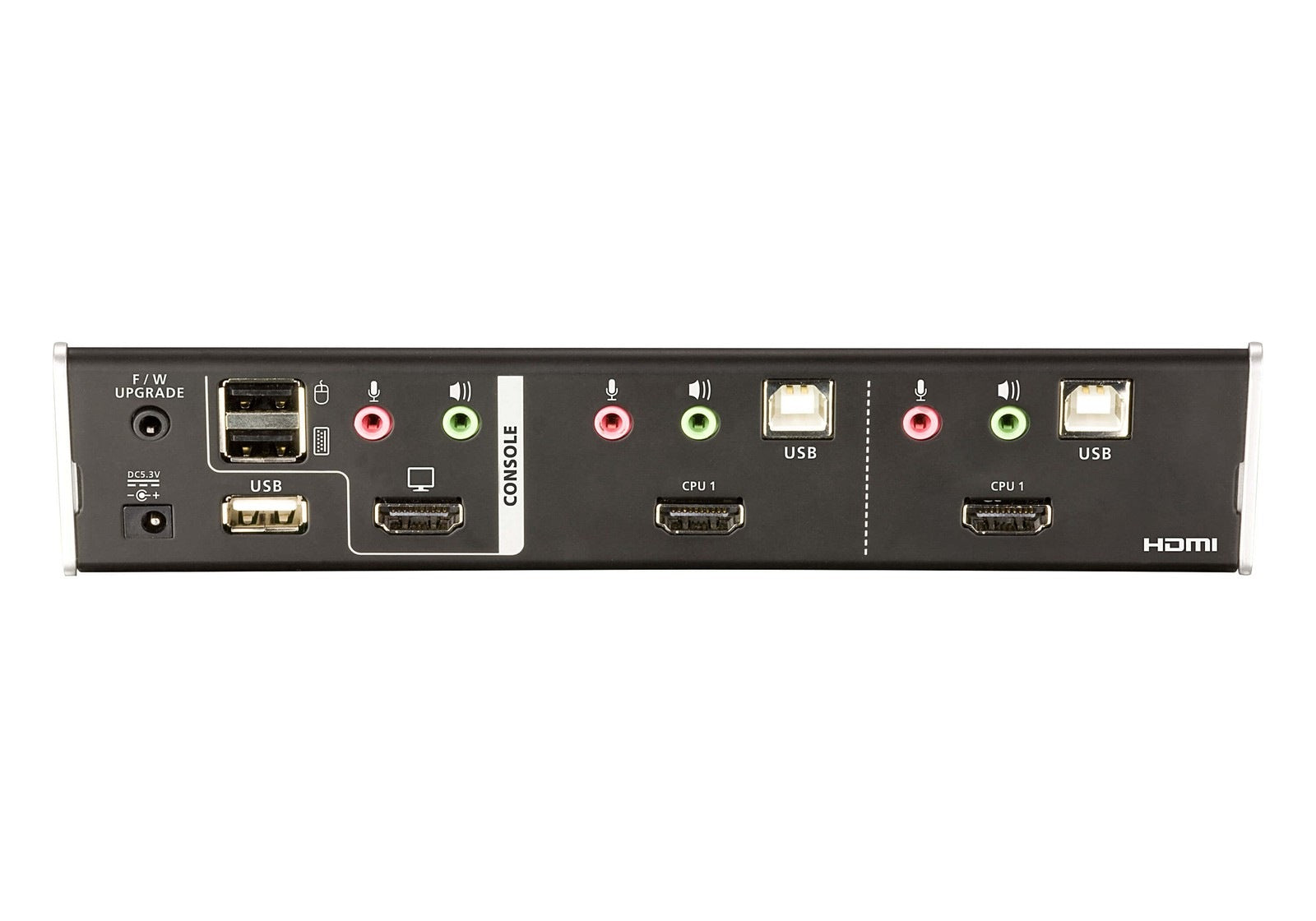

| KVM Ports | 2 x USB Type B Female 2 x HDMI Female (Black) 2 x 3.5 mm Audio Jack Female (Green) 2 x 3.5 mm Audio Jack Female (Pink) |
| Firmware Upgrade | 1 x 3.5 mm Audio Jack Female (Black) |
| Power | 1 x DC Jack |
| USB Hub | 2 x USB Type A Female (1 x front panel; 1 x rear panel) |
| Switches | |
| Selected | 3 x Pushbutton |
| LEDs | |
| Audio | 3 (Green) |
| KVM | 3 (Orange) |
| USB | 3 (Green) |
| Emulation | |
| Keyboard / Mouse | USB |
| Video | |
| Resolution | 1920 x 1080 @ 60Hz / 1920 x 1200 @ 60Hz |
| Scan Interval | 1–99 seconds (default: 5 sec.) |
| Power Consumption | |
| Typical / Loaded | DC5.3V: 2.7W; 28 BTU/h |
| Note | |
| ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. ● For some rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
|
| Environmental | |
| Operating Temperature | 0–50°C |
| Storage Temperature | –20–60°C |
| Humidity | 0–80% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal, Plastic |
| Weight | 0.42 kg (0.93 lb) |
| Dimensions (L x W x H) | 20.63 x 7.24 x 4.40 cm (8.12 x 2.85 x 1.73 in.) |
